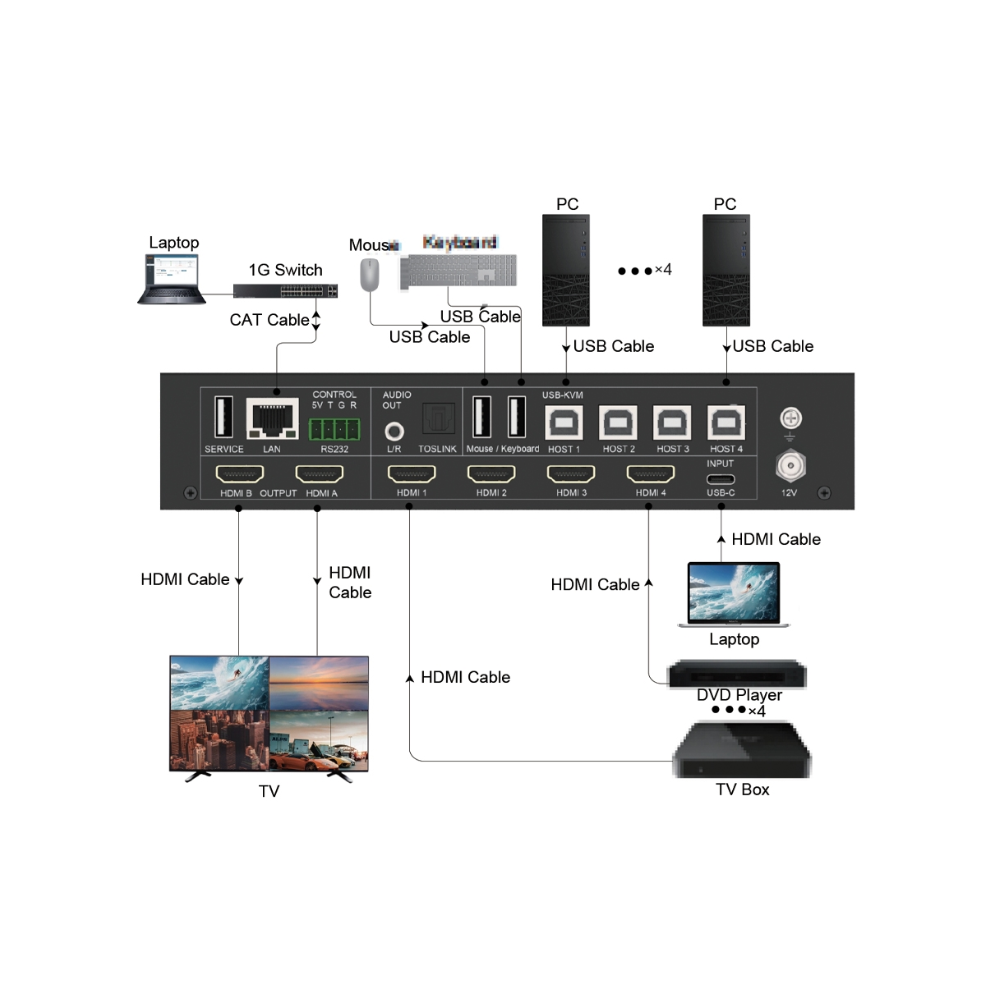

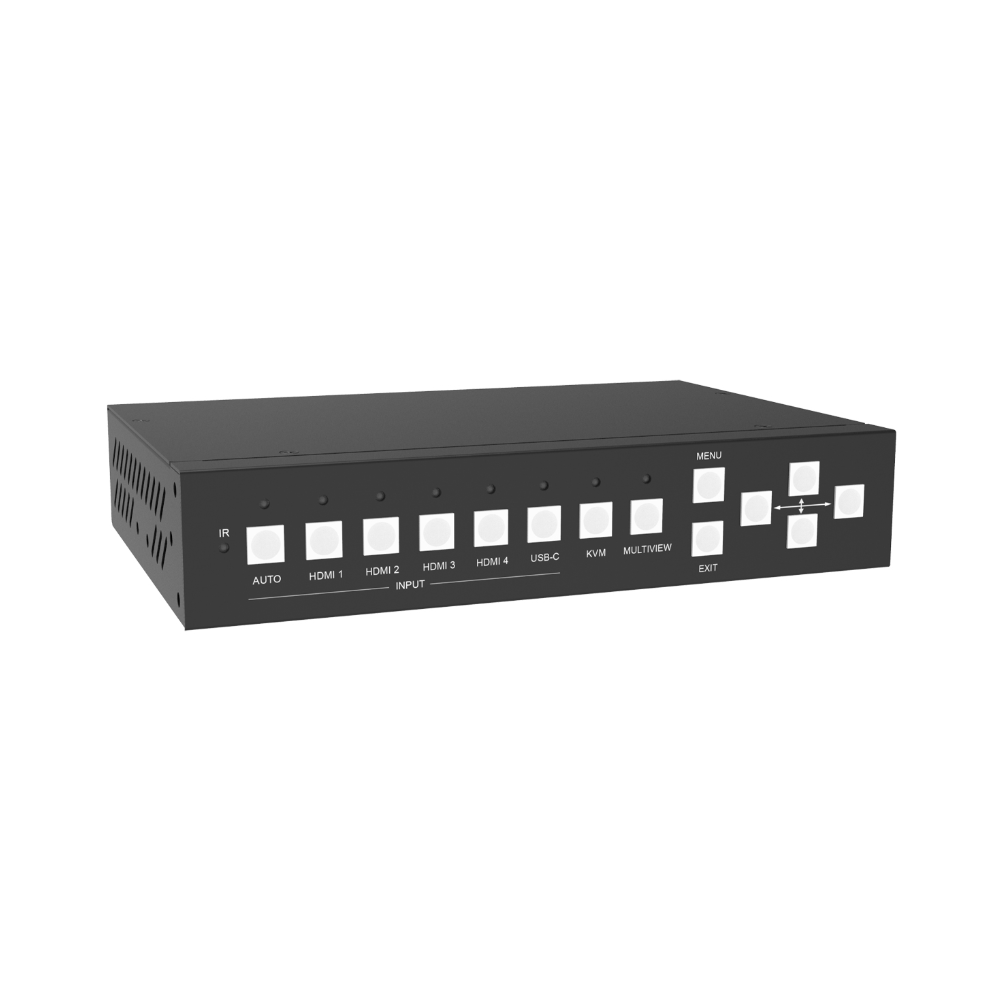

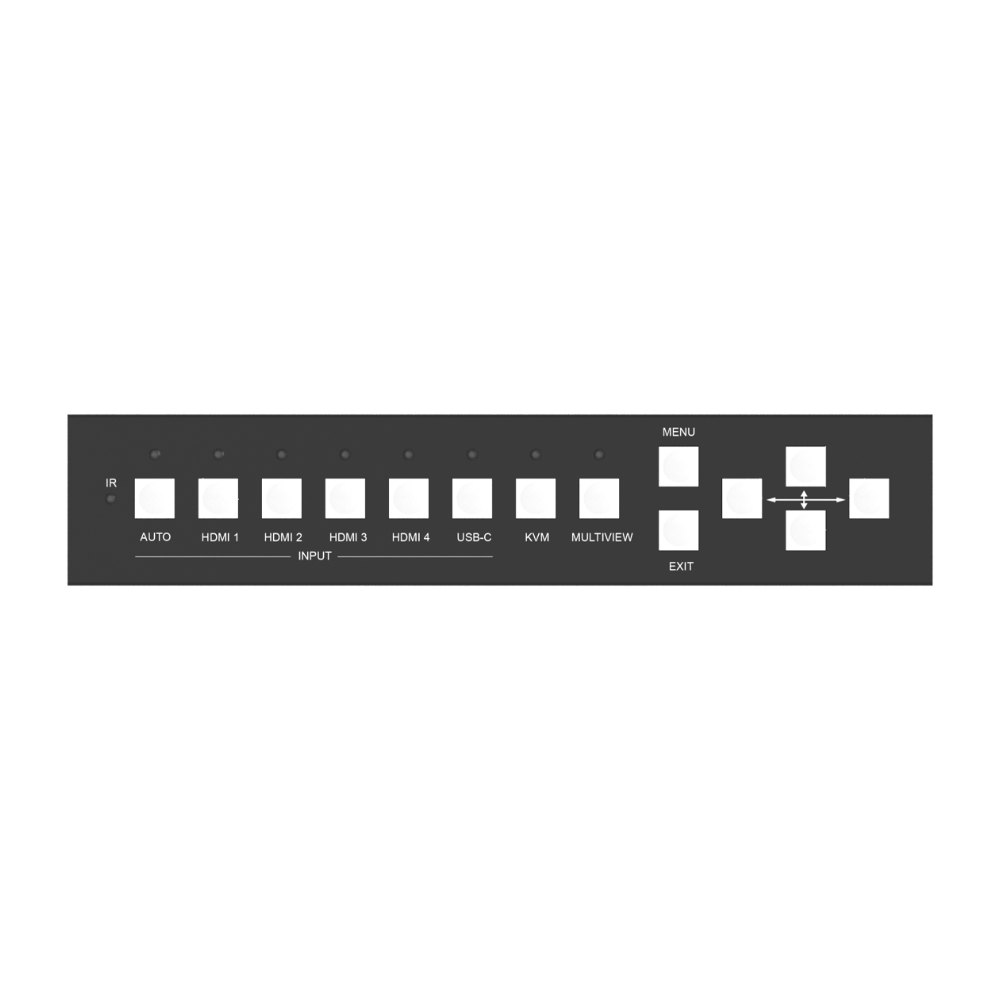

he 5x Inputs and 2x Outputs seamless multiview video switcher with USBKVM control was developed for the purpose of multiple sources displayed on a single screen. It supports high input and output resolutions (up to 3840 x2160@60Hz). The switcher can combine up to four video signals onto a single UHD or HD displayer. The switcher supports 4x USB-Type B inputs which are connected to PC and 2x USB-Type A outputs which are connected to Mouse and Keyboard. User can easily manage the switcher via the front panel buttons, IR remote, RS-232 or TCP/IP commands. The HDMI B mirror output port can be used for audio amplifier, video capture (with HDMI to USB dongle), or remote display (with HDBaseT Extender). This multi-functional product can be widely applied in a variety of fields, such as Home Theatre, Video Conference, Security Monitoring, Presentation and Broadcasting, Teaching System, Financial Stock Analysis, Game E-Sports, Medical Display.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Up to 4K2K@60Hz with 24-bit RGB/YCBCR 4:4:4
- Multiple output resolutions from 720p to 4K60

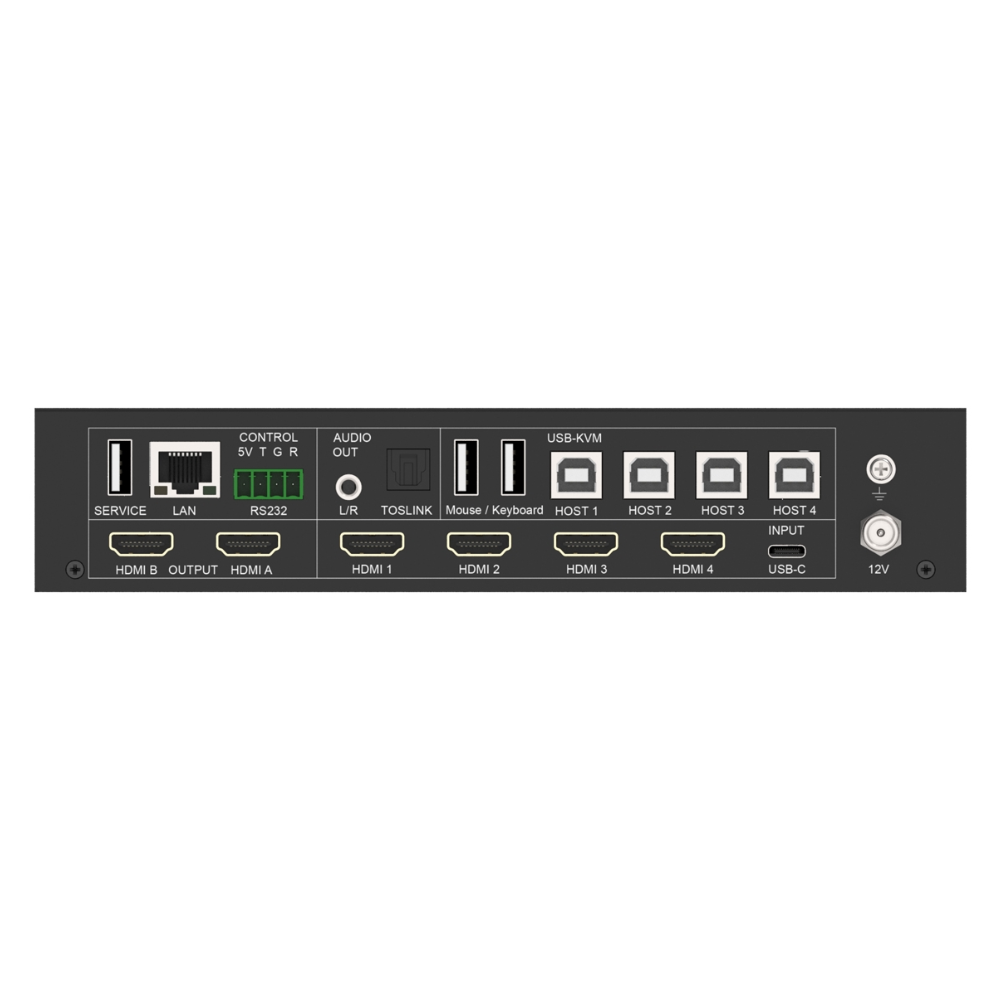

- 4x HDMI, 1x USB-C (AV only) inputs and 2x HDMI mirror outputs
- Up to 5 display modes: SINGLE, PIP, PBP, 3xWIN, 4xWIN
- Seamless switching on single display mode
- Fast switching on multiview display mode
- 4x USB KVM switcher with 2 USB devices for Mouse/Keyboard
- Support USB Roaming, hot-key to switch input
- Support volume control and independent audio selection
- Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
- Support OSD navigation for advanced setting
- EDID management
