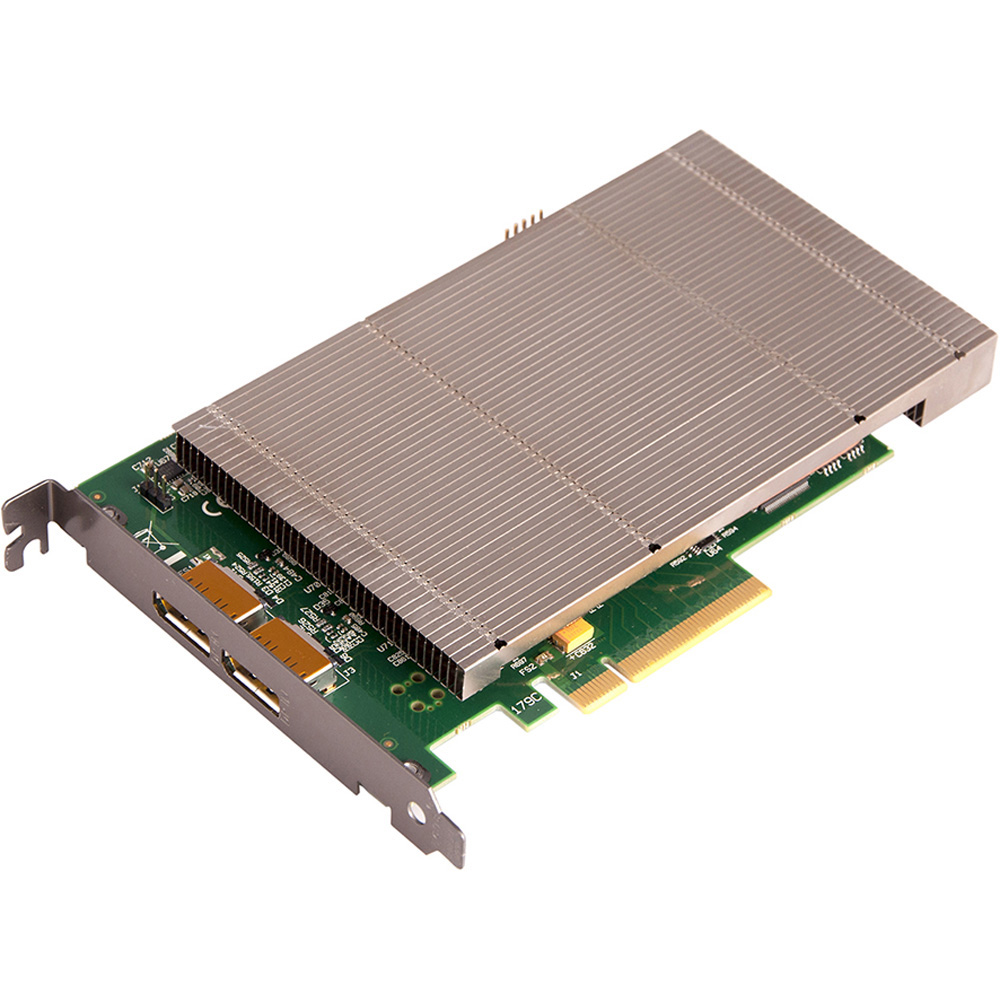

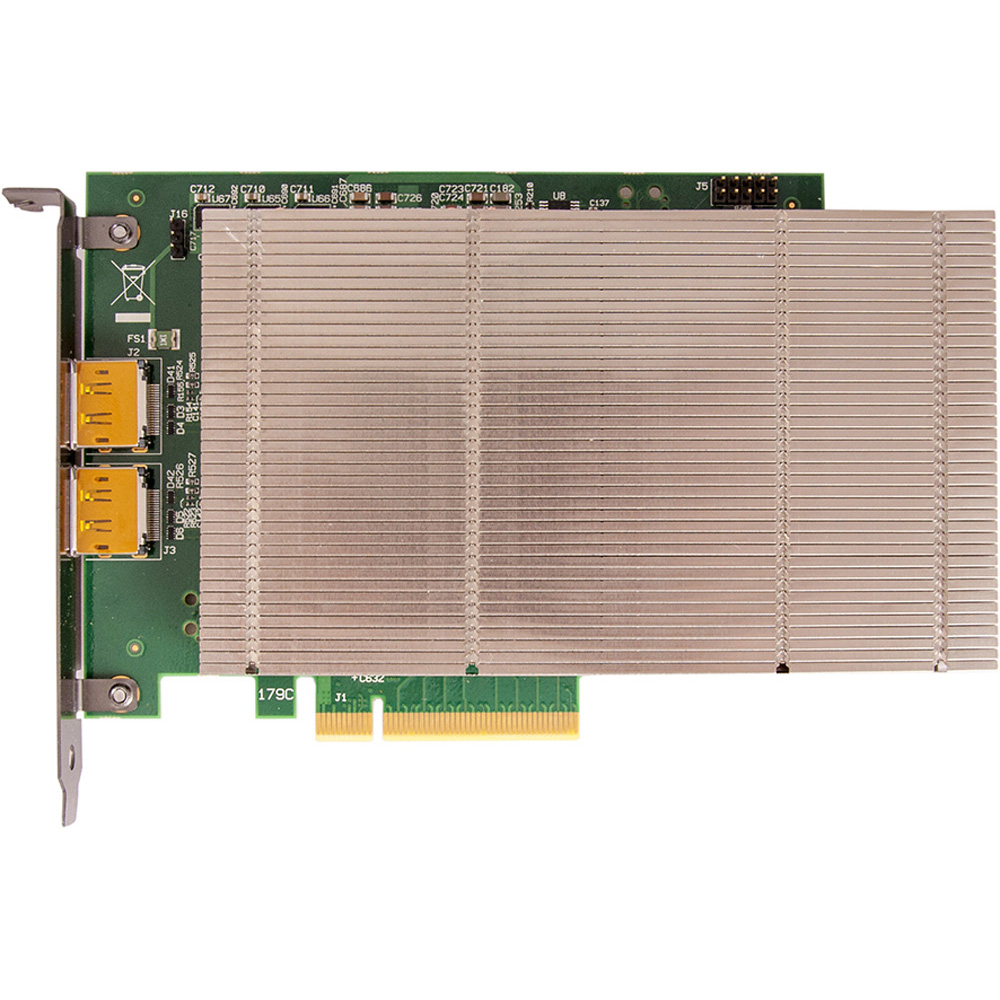

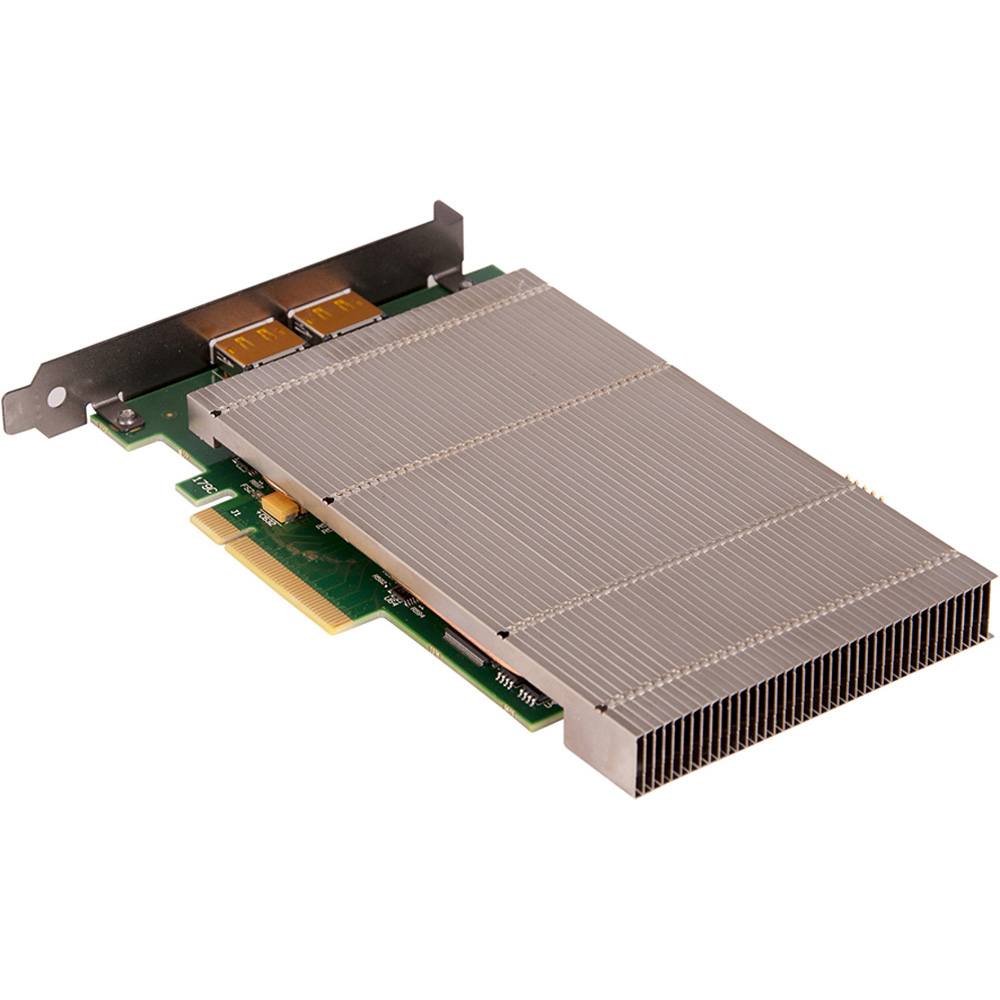

VisionSC-DP2

  • Two independent DisplayPort1.2 capture channels
  • Eight lane PCIe Gen.3 interface, net 6GB/s total capture bandwidth
  • Frame buffer memory – 768 MB
  • HDCP support with Datapath graphics cards
  • Up to 8k x 8k capture resolution
  • Single PCIe endpoint, allowing for more cards and captures to be placed with a single system
  • Datapath unified Windows® and Linux® driver support
  • Frame Sequential 3D mode

VisionSC-DP2

The professional AV market has begun to adopt 4k UHD technologies, with integrators and system builders demanding higher performance and greater resolutions in the video that they are working with.

The Datapath VisionSC-DP2 offers video professionals the ability to simultaneously capture multiple 4k, Ultra-High Defintion, video feeds each at 60 frames per second. Developed as part of the VisionSC family of capture cards, the VisionSC-DP2 offers unmatched capture performance and reliability.

Video Streaming

DirectShow drivers for WDM Streaming support the following applications, to encode, record and stream video over networks or the Internet:

  • Microsoft Media Encoder®
  • VLC
  • VirtualDub
  • Any other DirectShow encoding software
  • For streaming applications, the VisionSC-DP2 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.

Any application compatible with Windows® DirectShow technology can use the VisionSC-DP2 due to its built-in WDM support.

Reliability

Built for the future, Datapath continues to maintain and support its own RGBEasy SDK for application developers as well as offering a Microsoft DirectShow interface based on the AV Stream framework. Inputs can be accessed by DirectShow / Media Foundation-compatible applications including:

  • Dataton Watchout
  • One Control technology – Allows control of multiple PC’s across a single workstation with one keyboard and mouse
  • PanOpto
  • vMix
  • Telestream Wirecast
  • Opencast Video Solution
  • VidBlasterX
  • Open Broadcaster Software (OBS)
  • Adobe Flash Media Live
  • Encoder
  • VLC
  • Security – Mass storage mode disable for securing against endpoint intrusion
  • Connectors – Copper and fiber versions (can be mixed)
  • Rack Mount Kit – The Arqa RMK is a convenient way to house and power up to four transmitters or receivers into a single 1U rack space (subject to availability)

Extra Protection With Advanced Swap Out And Extended Warranty Services

For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team

SPECIFICATIONS

Specification of the VisionSC-DP2 Capture Card:

Board Format PCI Express x8 plug-in card

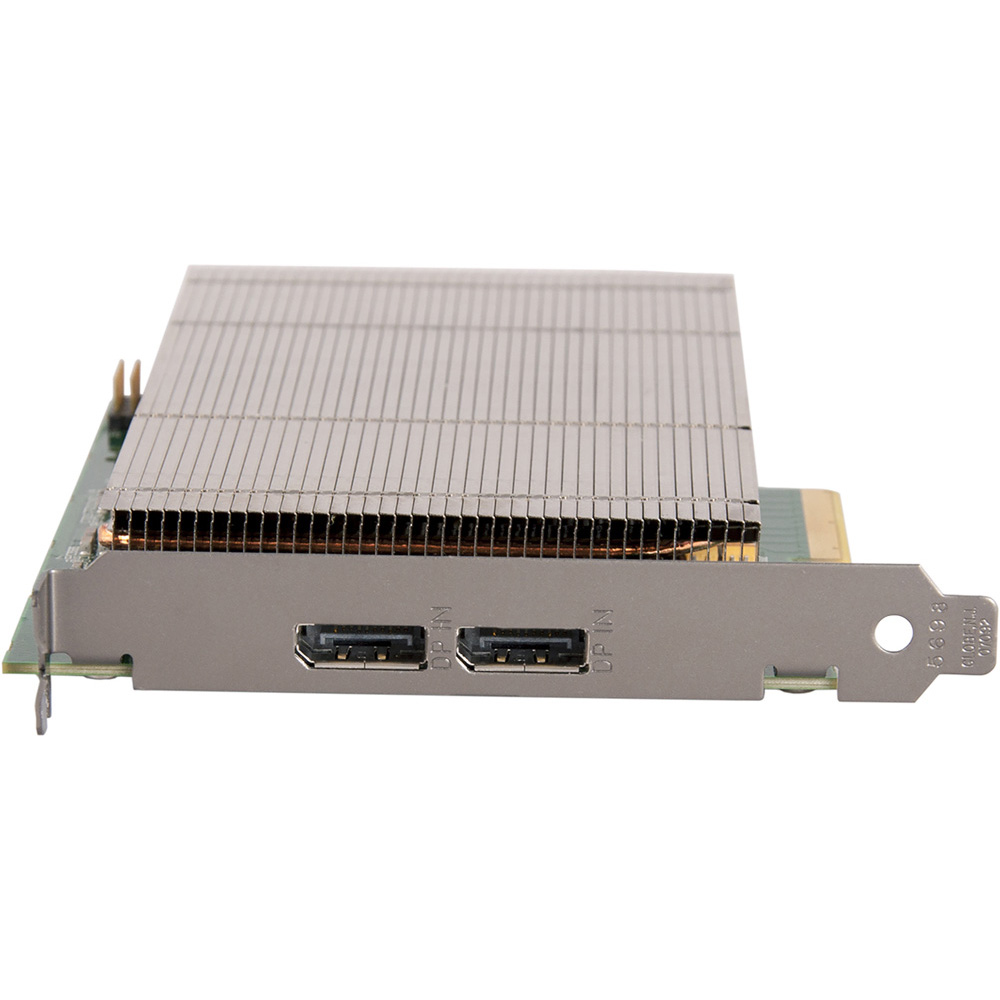

Connectors Locking Dual DisplayPort 1.2 (l x h)
Maximum capture resolution 616 MPixel/ second capture bandwidth per channel. Captures up to 4096 x 2160p @ 60Hz per input
Dimensions 110mm a 177mm
Frame buffer memory 768MB
Input mode detection Decodes Main Stream Attribute (MSA) data to determine video geometry
Pixel transfer formats RGB: 5-5-5, 5-6-5 (16 bit) or 8-8-8 (24 bit) or 8-8-8-alpha (32 bit)
YUV: 4:2:2 (16bit)
MONO: 8bit
Update rate User defined. Captured frame rate will match the source providing max data rate (6G/Bs) is not exceeded Multi-buffered to eliminate tearing artifacts
Pixel capture format RGB with 18, 24 per pixel
HDCP HDCP support when used with Datapath graphics cards
Operating system support Up to Windows 10®
Power Requirements HDCP Max current at +12V – 1.0A
Max power ≈ 12W
Operating Temperature 0 to 35 °C/ 32 to 96 °F
Storage Temperature -20 to 70 °C/ -4 to 158 °F
Relative Humidity 5% to 90% non-condensing
Warranty 3 years

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
