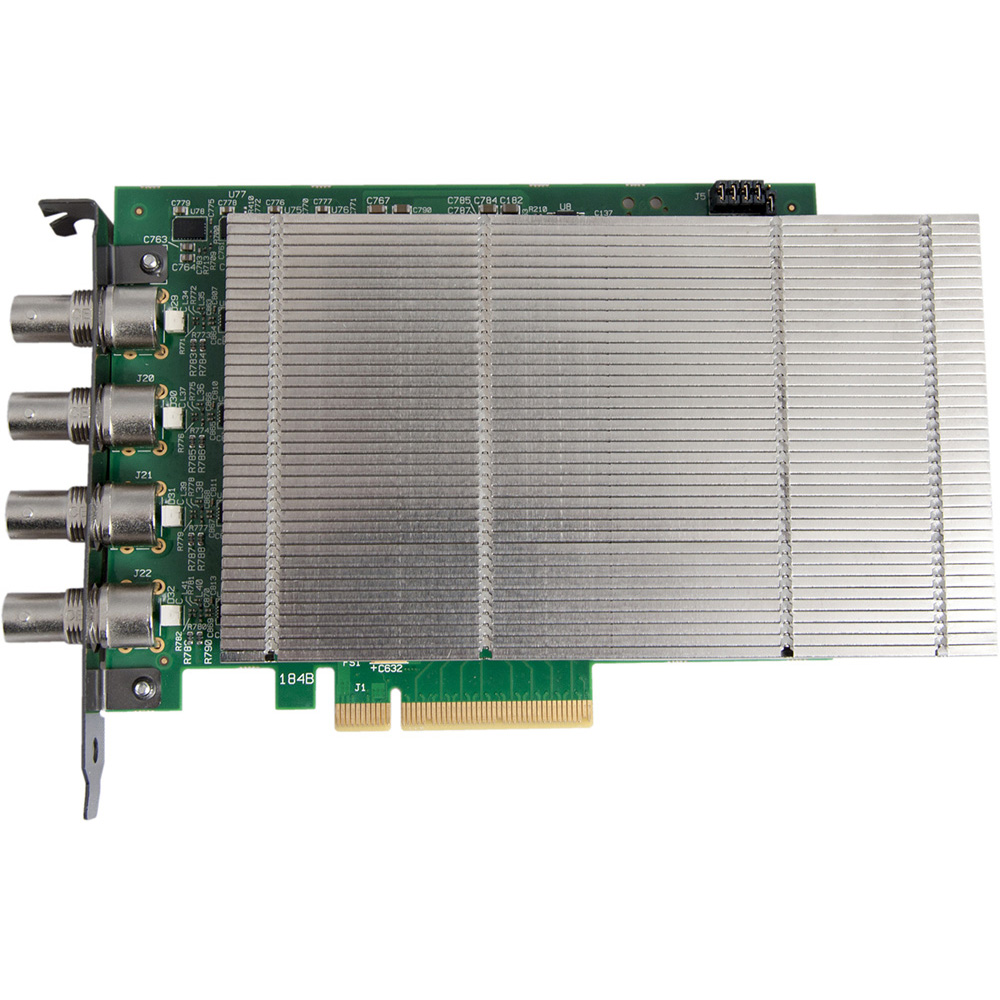

Developed for capturing multiple High Definition SDI video signals, the VisionSC-SDI4 is the perfect solution for AV professionals looking to capture from multiple SDI sources.
Ideal for use in broadcast markets or with any SDI capable applications the VisionSC-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second. Each capture channel is hardware timestamped allowing for larger surfaces to be captured and stitched together.
DirectShow drivers for WDM Streaming support the following applications, to encode, record and stream video over networks or the Internet:
For streaming applications, the VisionSC-SDI4 can be used with Windows Media Encoder to compress and stream captured video. To replay the video, use Windows® Media Player.
Any application compatible with Windows® DirectShow technology can use the VisionSC-SDI4 due to its built-in WDM support.
For additional security and peace of mind, our customers are invited to take advantage of Datapath’s advanced swap out service and extended warranty. For a small premium, selected products can be protected by our advanced swap out service and optional 5 year warranty. For more information please contact our sales team
| Board Format | PCI Express x8 plug-in card |
| Dimensions | 110m x 177mm (including heat sink) |

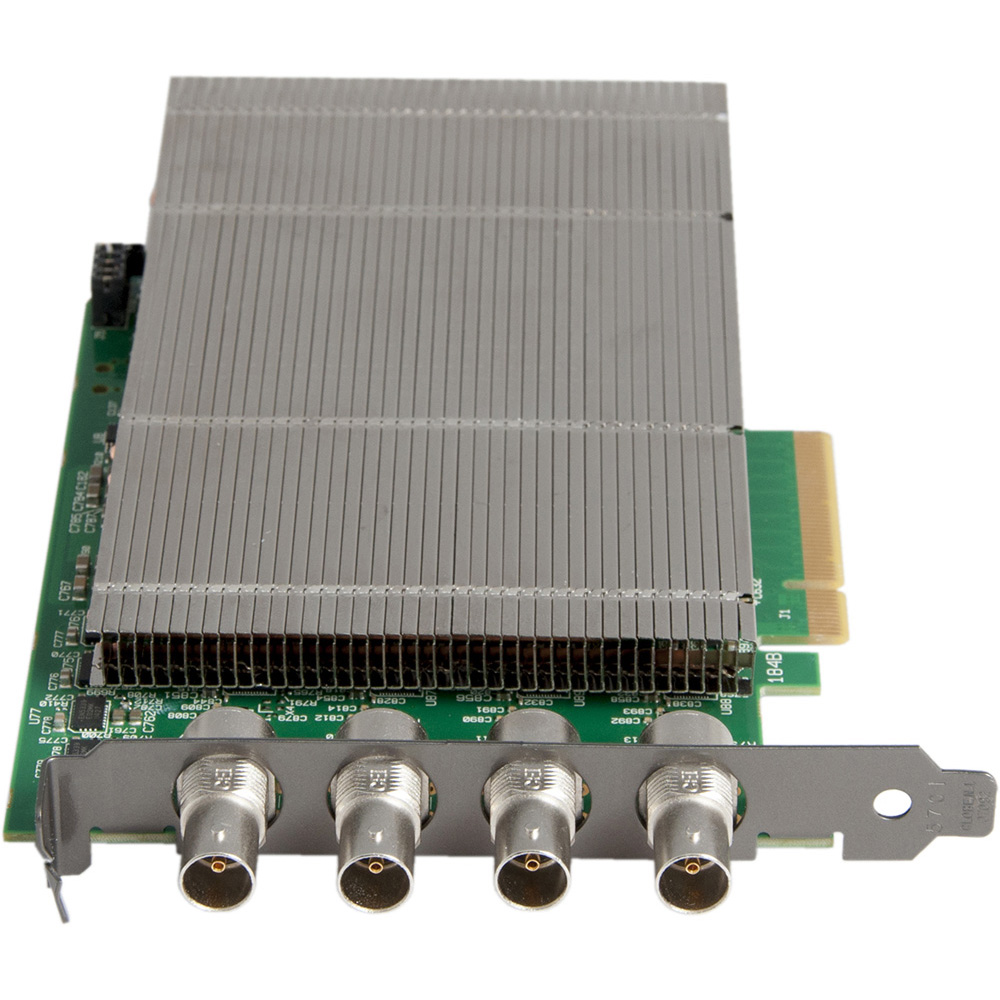

| Connectors | 4 x BNC Connectors |
| Maximum Capture Resolution | 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input |
| Frame Buffer Memory | 768 MB |
| Input Mode Detection | Supports SMPTE – 352 Payload Identifiers |
| Sample formats | RGB: 4:4:4 (+A) YUV: 4:2:2 (+A), 4:4:4 (+A) |
| SMPTE standards | ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048 |
| Update Rate | User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts. |
| Video modes | 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF |
| Supported frame rates | 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz |
| Operating System Support | Windows® up to 10 |
| Power Requirements | Max current at +3.3 – 0.45A (TBC) Max current at +12V – 0.85A (TBC) Max power ≈ 18W (TBC) |
| Operating Temperature | 0 to 35 °C/ 32 to 96 °F |
| Storage Temperature | -20 to 70 °C/ -4 to 158 °F |
| Relative Humidity | 5% to 90% non-condensing |
| Warranty | 3 years |
We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
