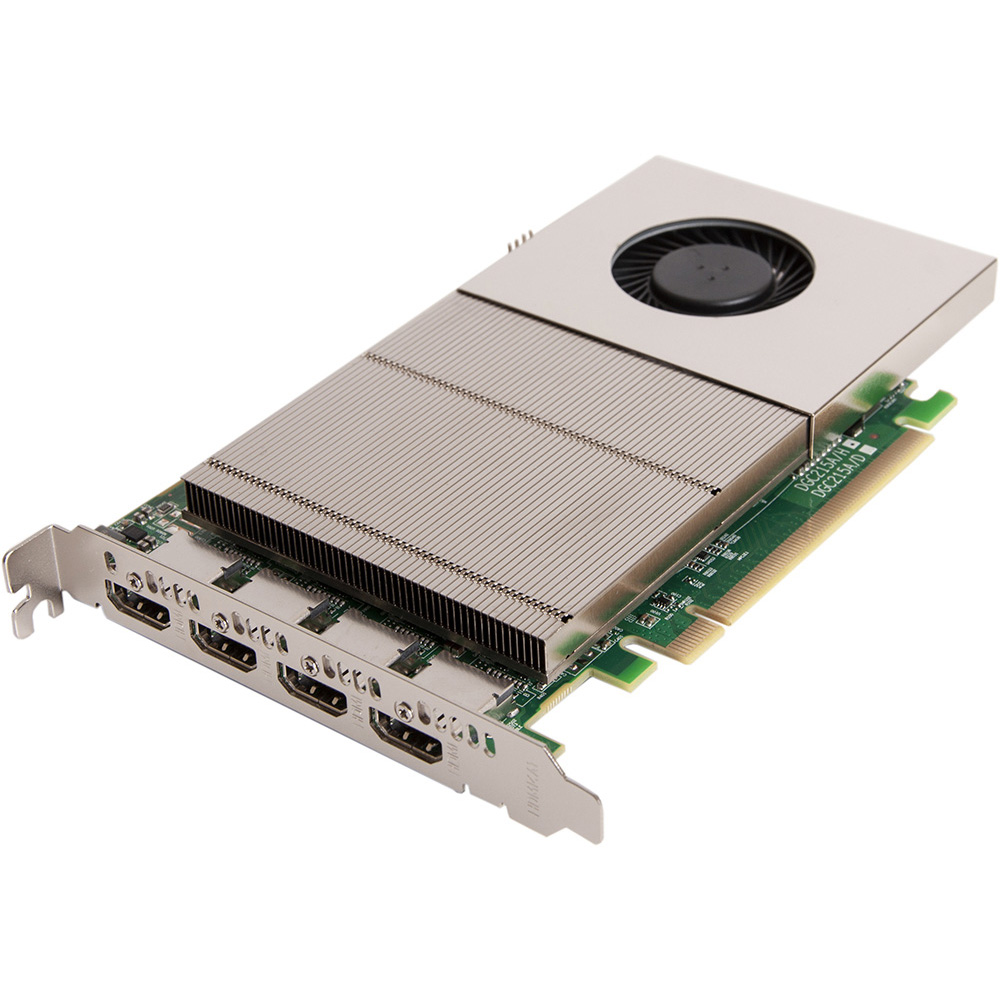

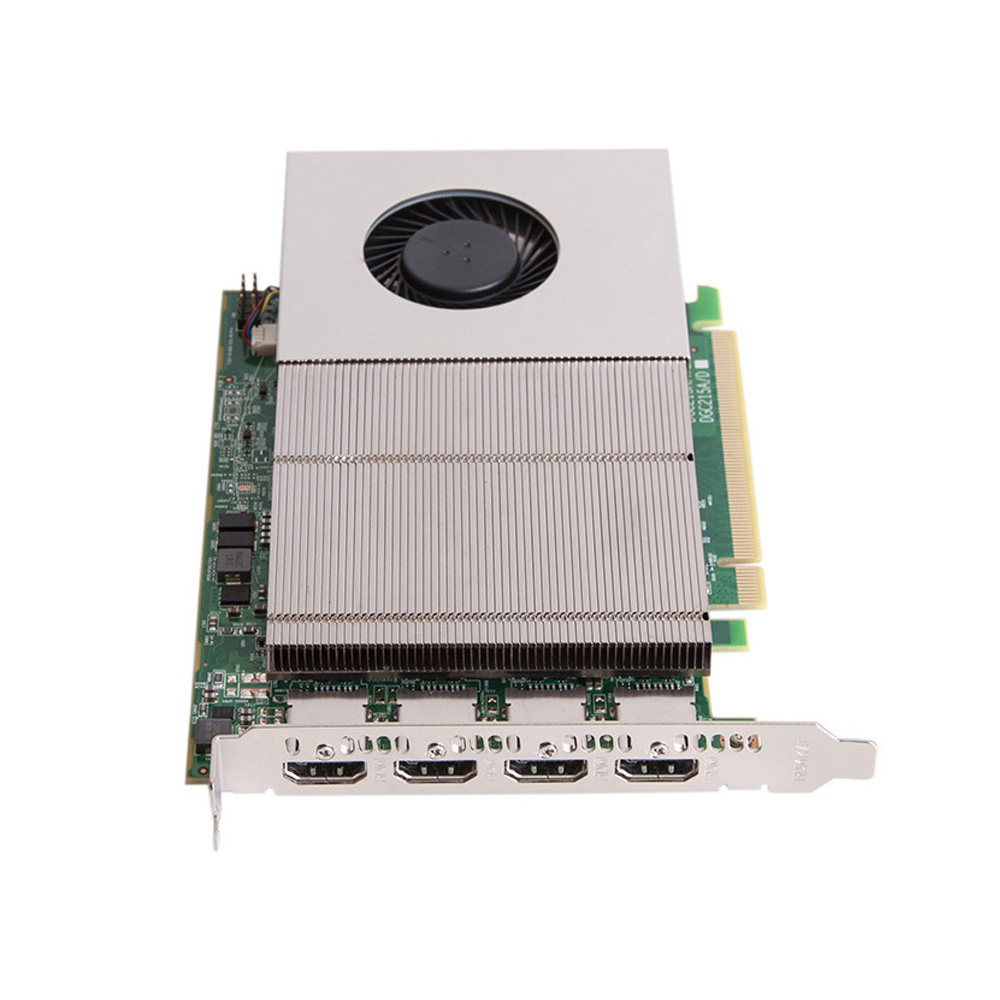

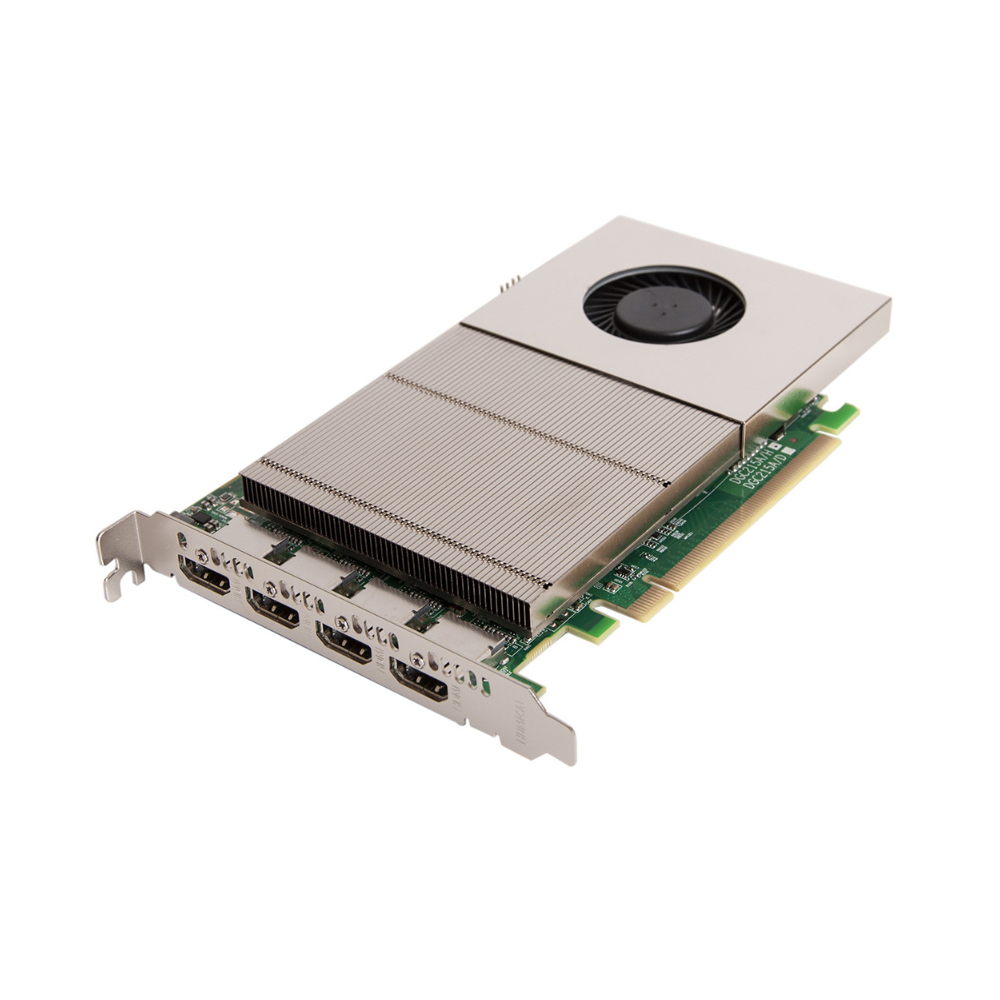

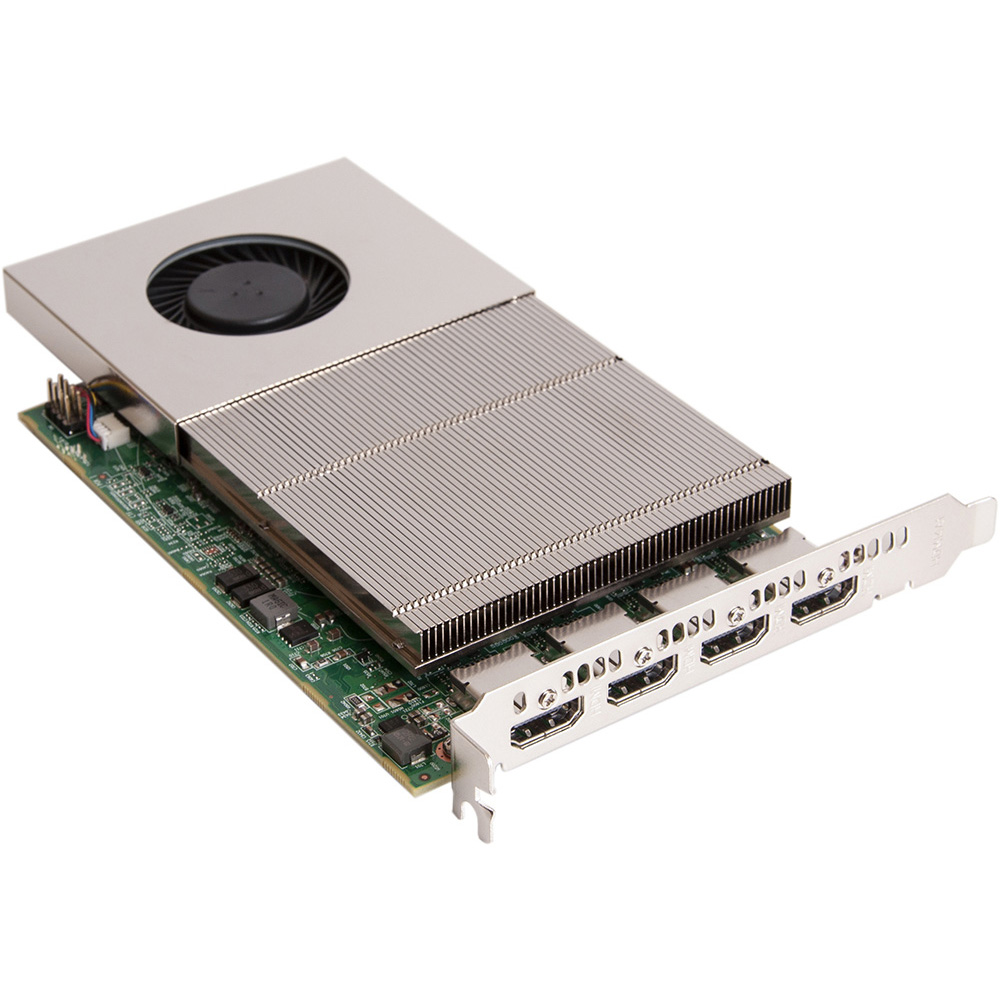

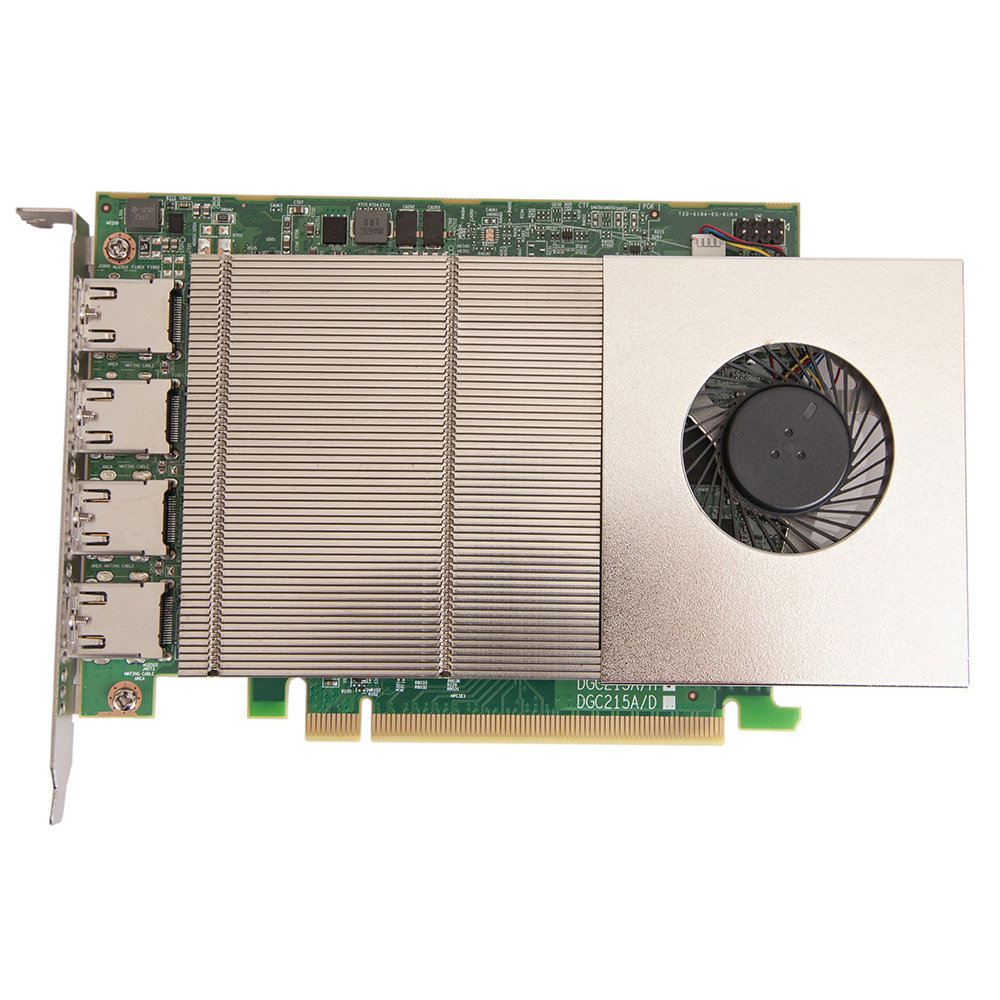

Image4K

    • Four 4K60 4:4:4 HDMI 2.0 outputs
    • Enables full 4K60 capture and display in Datapath VSN controllers
    • HDCP 2.2 supported when using Datapath capture cards
    • Support for up to 6 cards in a single system with a total output of 199 Megapixels
    • Fully compatible with Datapath’s Display Driver Configuration Tool (DDCT) and Diagnostic Suite

Image4K, powering up to 24 4K screens

The Image4K can power up to 24 4K (or 96 HD) screens from a single system (using six Image4K cards) making it four times more powerful than the ImageDP4+.



Full 4K High Bandwidth Graphics Card

Designed for professional, multi-screen and video wall installations, the Image4K is a very powerful graphics card, enabling scalable solutions, that delivers full 4K60 4:4:4 content over four HDMI 2.0 outputs.

Fully integrated with Datapath’s graphical setup wizard, the Image4K is easy to configure for different combinations of monitors, projectors, or LED controllers. Output resolution, rotation and wall layout are all easily configured using the intuitive graphical interface in a matter of minutes.

Software Drivers

We have a highly optimised driver to run efficiently with Datapath hardware available for use with Windows 10 LTSC and Windows Server 2019. The function of the display driver is to present one large desktop to the Windows operating system. The multi-screen driver will support up to 24 screens.

WallControl 10 Software

The Image4K is fully compatible with Datapath’s WallControl 10 software which enables you to simply launch and position video and application windows to create complex wall layout configurations. WallControl 10 presents a representational window of the entire display wall showing position and size of the windows, including a live sample of all video content. With the full version, it is possible to save layouts and recall them for future use and also operate WallControl 10 on a remote PC via a network connection.



SPECIFICATIONS

Model Options

Product Name/Order Code Description
Image4K 4 channel HDMI PCIe graphics card



Image4K Specification

Card Format PCI Express x16 Mechanical, x8 Electrical (Gen. 3)
Card Size 110mm x 177mm (incl heat sink)
Maximum Output Resolution 3840 x 2160 at 60Hz (max 594 MP/s) per channel
Max Effective Transfer Rate 5.5 GB/s sustained from Datapath Vision capture cards
Maximum Colour Depth 8-bit per component
Maximum Number of Cards per System 6 (24 display channels)
Graphics Card Memory 8GB
Maximum Current at +3.3V 0.6A
Maximum Current at +12V 4.0A
Maximum Thermal Power 50W
Operating Temperature 0 °C to 35 °C / 32 °F to 96 °F
Storage Temperature -20 °C to 70 °C / -4 °F to 158 °F
Relative Humidity 5% to 90% non-condensing
MTBF Over 80,000 hrs

We are continuously developing the technology used within our product ranges delivering outstanding innovative solutions, therefore the specification may change from time to time.
