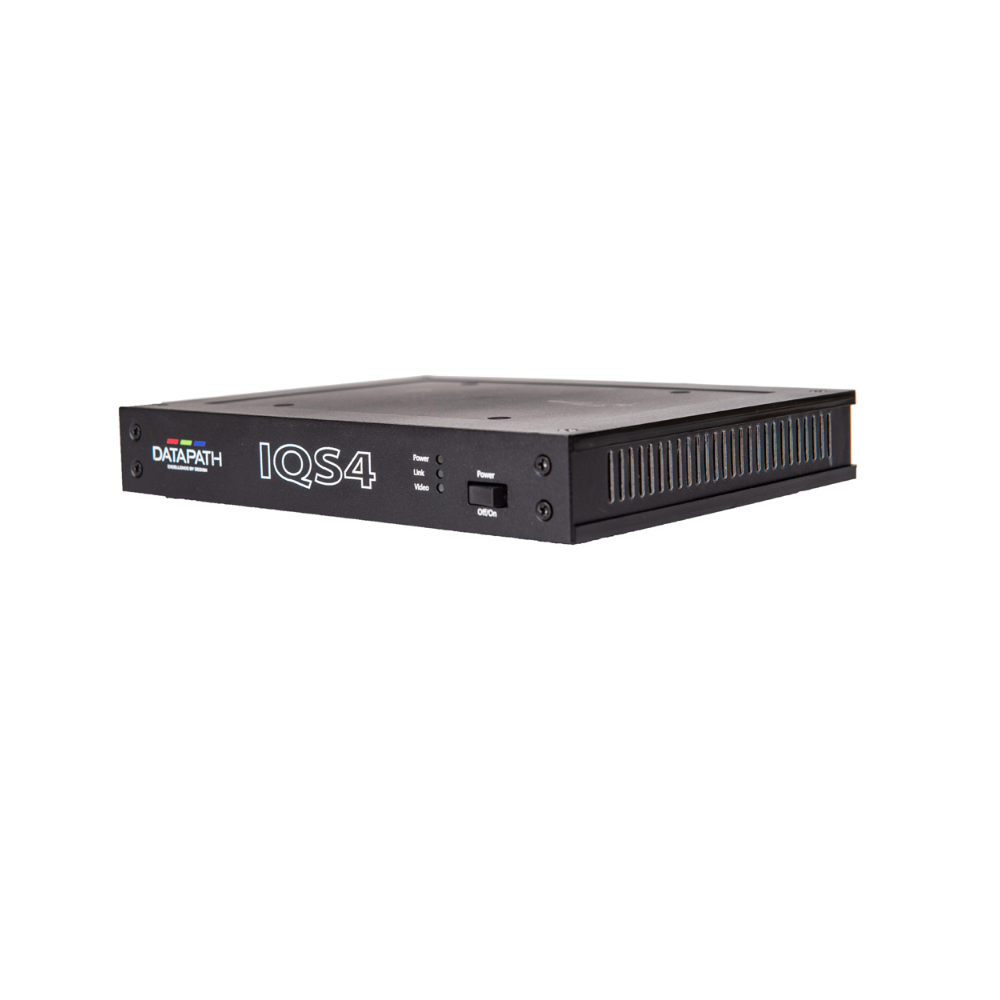

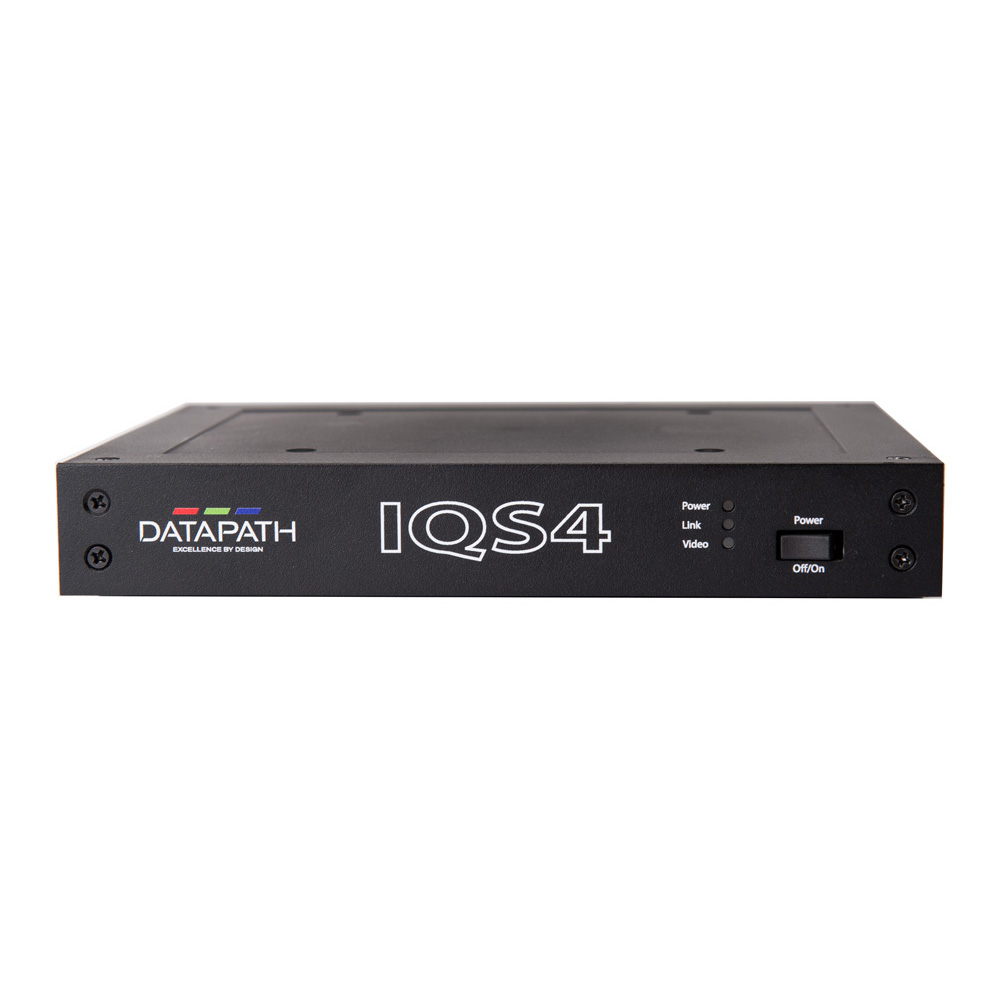

IQS4

Driving large-scale video walls in mission-critical environments

Single 4K Input, Four HD Output Video Splitter

Datapath’s IQS4 enables large-scale, multi-output video wall applications. The compact splitter solution takes a single 4k input and splits it out into four HD outputs, all with zero latency with no configuration needed.

When paired with Datapath Image4K or Image2K graphics cards, IQS4 enables video walls of up to 96 HD screens to be driven with zero latency and full synchronization.

Datapath supplies video wall controller systems that are capable of integrating many types of video and data sources onto any display configuration.

Our video wall controllers are used in a variety of different areas such as traffic control centres, telecom operations facilities, utility companies, security applications and entertainment settings.

We provide highly expandable and flexible solutions for video wall and multi-screen solutions, using Datapath’s latest generation of video capture cards and graphics cards.

  • Works with Datapath Image4K and Image2K graphics cards with no configuration needed.
  • Splitting and placement of quadrants is easy with the graphical setup wizard.
  • Works with the output of an Image4K or Image2K graphics card with support for HDCP 2.2.
  • Splits and routes the input signal to all four outputs with a maximum delay of a single line.
  • Multiple mounting options.
  • Distribute video in 4K and split local to screens to reduce long distance cabling requirements.
  • Datapath have a range of software tools to plan, execute and manage video wall setups.

SPECIFICATIONS

IQS4 Specification

Size 205mm (l) x 161mm (w) x 31mm (h)
Operating Temperature 0 oC to 35 oC / 32 oF to 96 oF
Power Requirements 12W

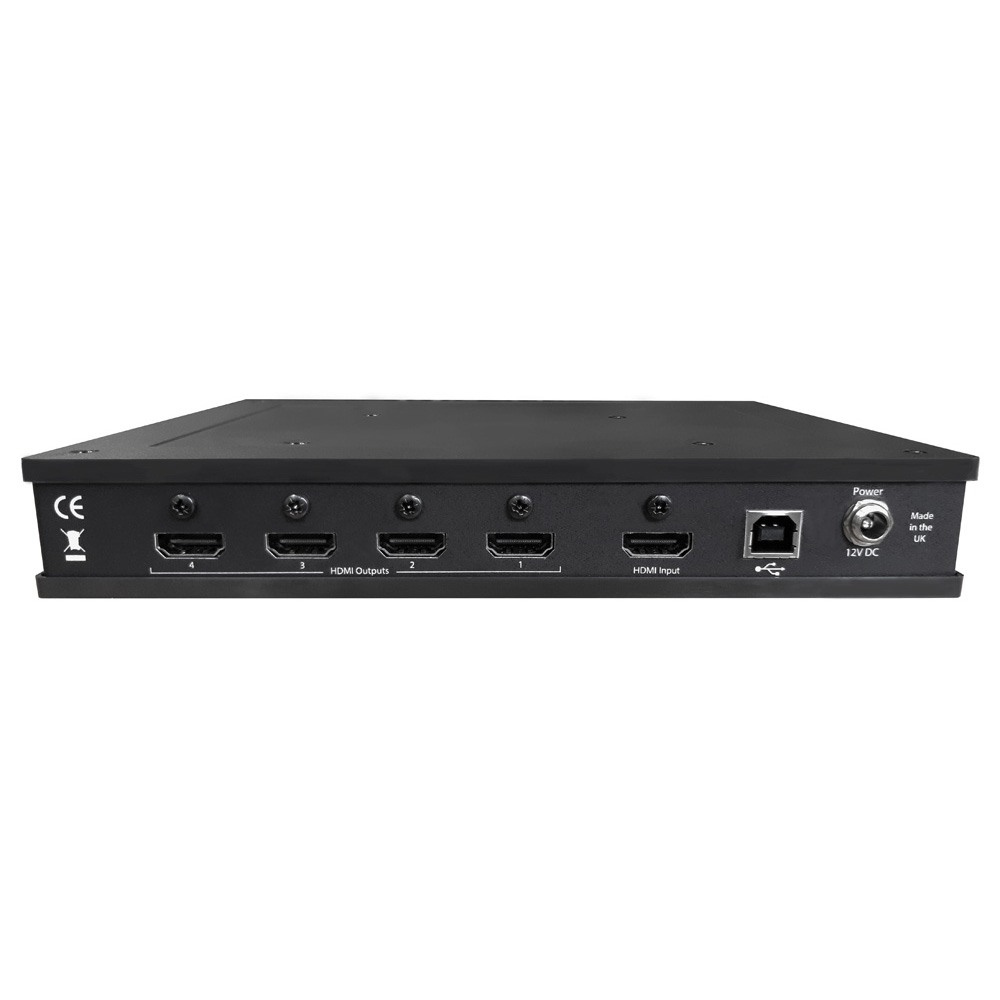

Video Input Connection 1 x HDMI 2.0 (7680×1080@60)
Video Output Connections 4 x HDMI 1.4 (1920×1080@60)
Storage -20 °C to 70 °C / -4 oF to 158 oF
Relative Humidity 5%-90% non-condensing
Warranty 3-year standard, 5 year extended (optional)
