Aligo QTX100
Quad 4K Transmitter with SQX Encoding

– Connects up to four HDMI 2.0 inputs (4K60) to your 10G AV network. Use in conjunction with a VSN controller to distribute up to 16
– independent HD outputs per unit
– On-board SQX encoding enables compressed content to be sent to a 1G network
– Low latency KVM is supported for each source via the onboard USB 2.0 interfaces
– Independent routing of Video and embedded Audio channels

FEATURES

Aligo – Intelligent AVoIP

Aligo, Datapath’s AV over IP solution, provides pristine quality 4K content across a 10G network and compressed streams on 1G infrastructure at the same time, delivering unprecedented quality and flexibility in IP content distribution.

Quality Without Compromise

Aligo uses Datapath’s proprietary DS10G codec. It delivers visually lossless content, with zero-latency 4K60 intra-frame encoding and is optimized for switched distribution over 10Gb networks. Aligo is purpose-built for use in professional and mission-critical installations.

Flexible and Secure Distribution

Each source is provided as an H264/5 stream over a 1G network for storage, distribution over external networks or integration with third-party systems. Encrypted to be received only by legitimate users and pre-authenticated Datapath resources, each input can be configured for remote viewing or archiving.

Powered by Aetria

Aetria is Datapath’s integrated solution for the design, management, and operation of control rooms of any size. Developed for the most challenging and complex applications, Aetria makes life easier for system integrators whilst enabling control room operators to focus on their core objective.

Aligo Product Range

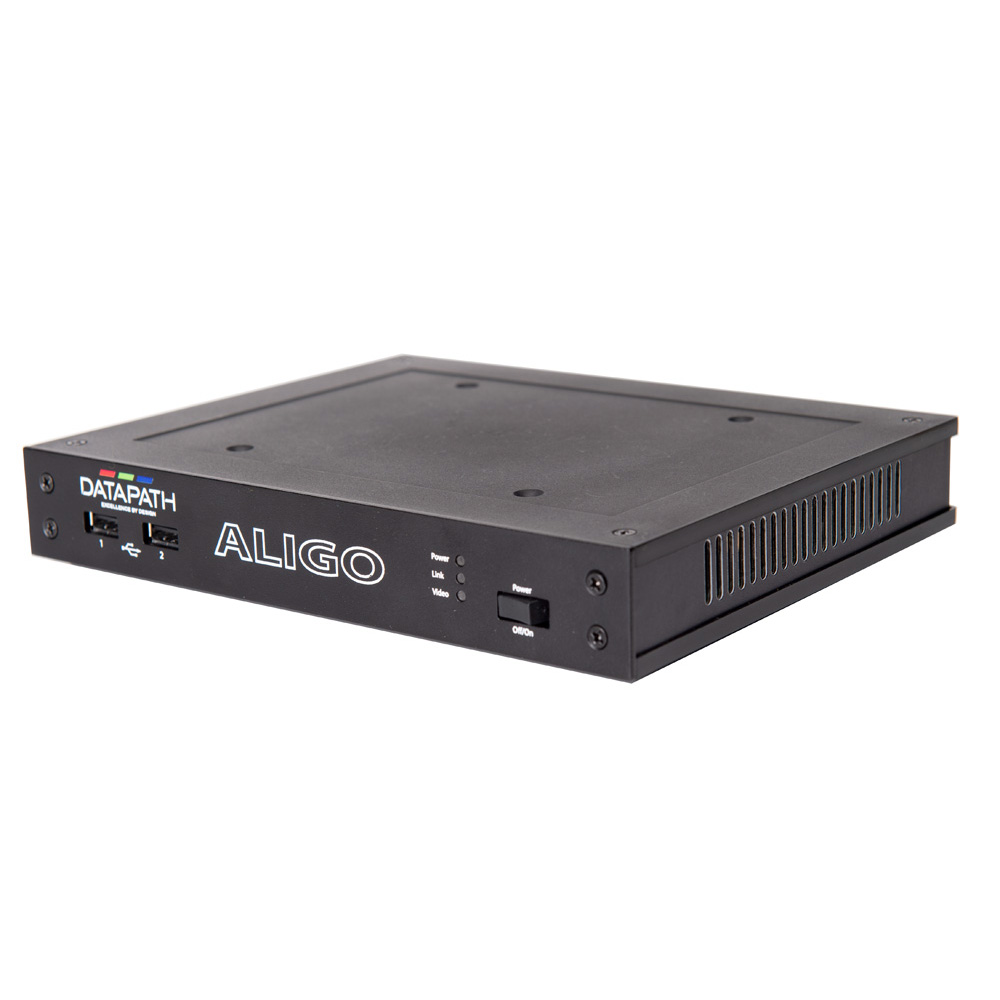

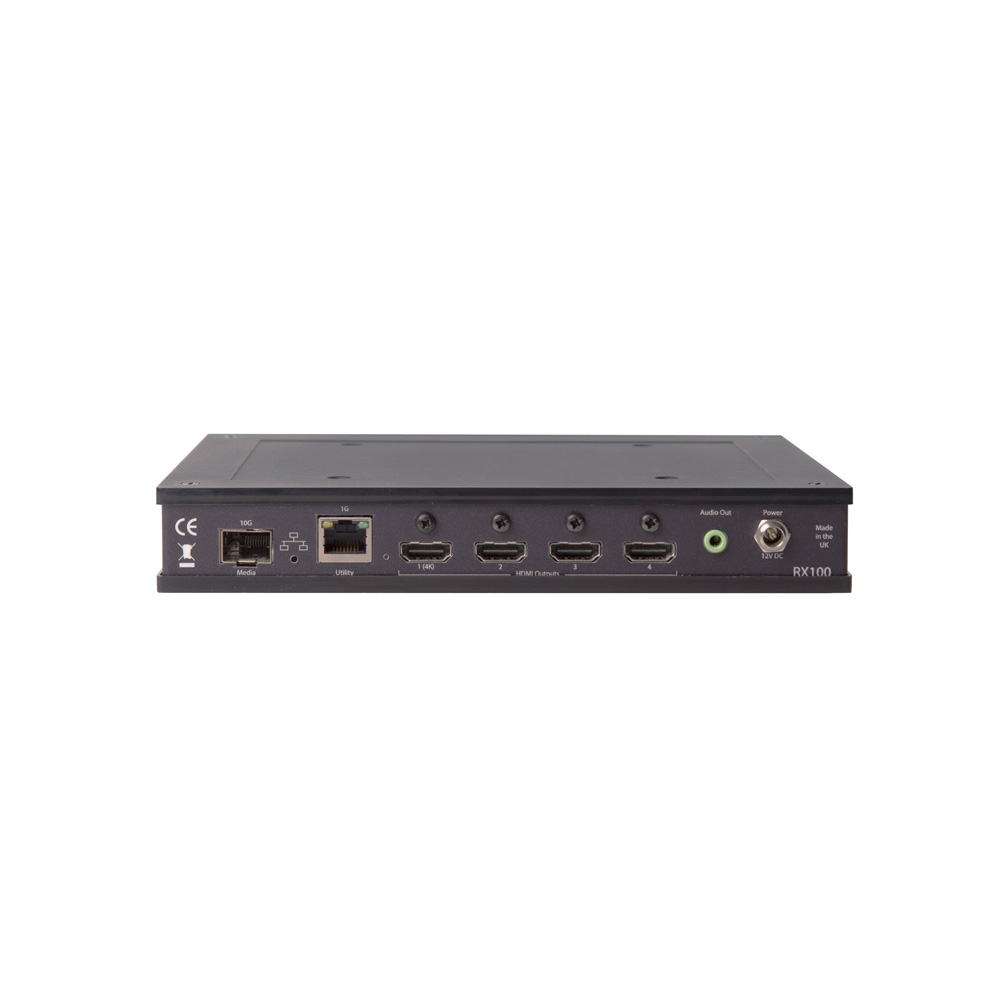

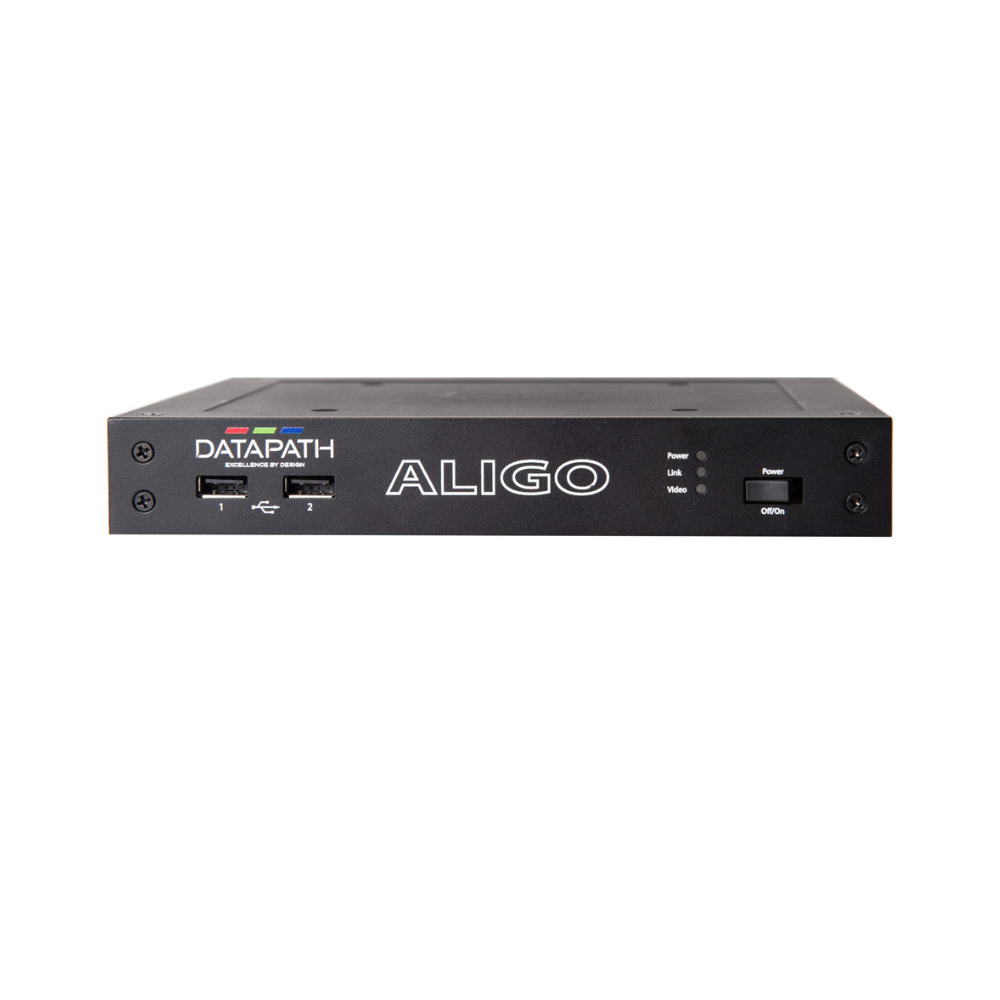

Aligo RX100

Single 4K Receiver with Quad HD Outputs

Rack Mount Kit

A 1U rack mount kit supports two Aligo RX100 (8 HD outputs)

SPECIFICATIONS

Aligo QTX100 Specifications

Video Input Connections 4 x HDMI 2.0 full size connectors
HDCP Support HDCP v2.2
HDMI Pixel Clock Maximum 600 MHz
HDMI Pixel Clock Minimum 25 MHz
Typical Resolutions, HD Stream Up to 150Mpixels/sec, maximum line length 2048
Examples:
1920x1080p 60Hz (SMPTE timings)
1920x1200p 60Hz (CVT-Reduced Blanking)
2048x1080p 60Hz (CVT-Reduced Blanking)
Typical Resolutions, 4K Stream Up to 600Mpixels/sec, maximum line length 4096
Examples:
3840x2160p 60Hz (SMPTE timings)
4096x2160p 60Hz (CVT-Reduced Blanking)
Scan Type Progressive. Interlaced video not supported.
Video Sampling Formats [1] 10,12-bit modes coming soon RGB 8-bit, RGB 10-bit[1],YCbCr 4:4:4 8-bit, YCbCr 4:4:4 10-bit[1], YCbCr 4:2:2 12-bit[1], YCbCr 4:2:0
Streaming Codecs and Profiles DS10G by Datapath (visually lossless & low latency over 10Gb network)
Additional H.264 SQX streaming at source resolution for each port
Network Connections 4x 10Gb SFP+ Fiber ports (Lossless streaming interface), Note: Compatible 850nm multi-mode SFP modules are available as a separate accessory.
1x 1Gb RJ45 (Control/Management port)
1x 1Gb RJ45 (Media port for SQX streaming)
Multicast Streaming Support Each source is available at any number of displays in parallel. Requires IGMPv2 enabled at network switch.
Maximum Sources Per System At least 220 (UHD), 650 (HD)
Audio Support Transmit stereo HDMI embedded audio for each input independently routable to multiple sinks. The embedded audio consists of up to four channel pairs encoded in PCM format, up to 96KHz sampling.
KVM Support 4 x Type-B USB host ports for connecting to a USB host PC
HID device support (keyboard, mouse etc.) independently routable to sink
Power Consumption 35W
Mechanical 318 x 176 x 43 mm
Weight 1.8Kg
Relative Humidity 5%-90% non-condensing
