FEATURES
Compact Video Display Technology

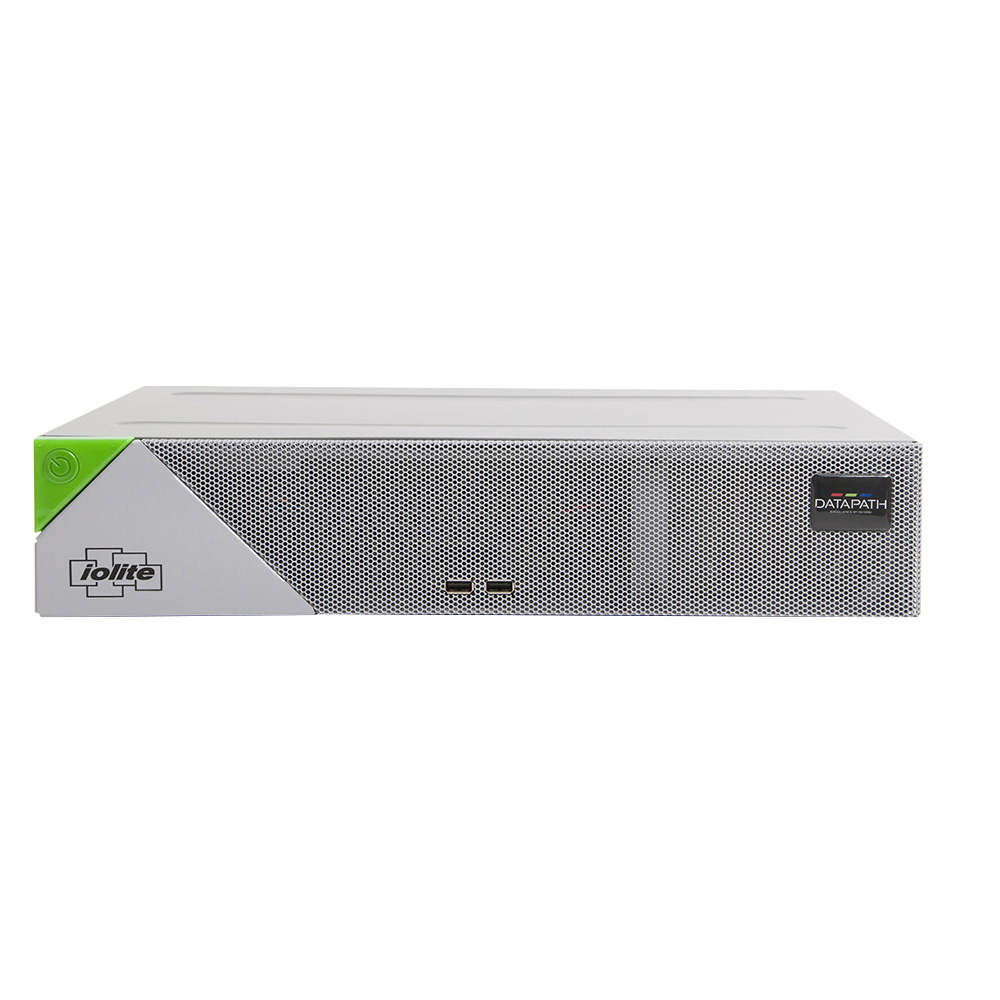

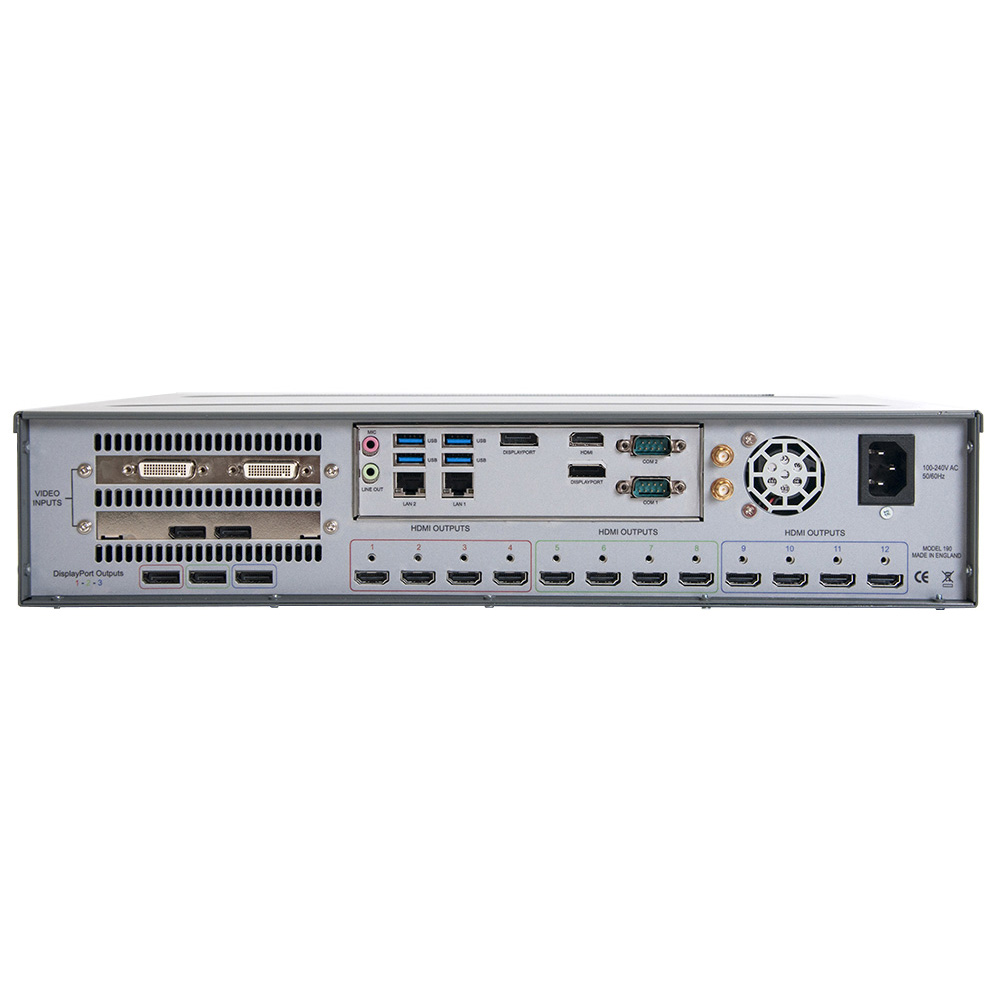

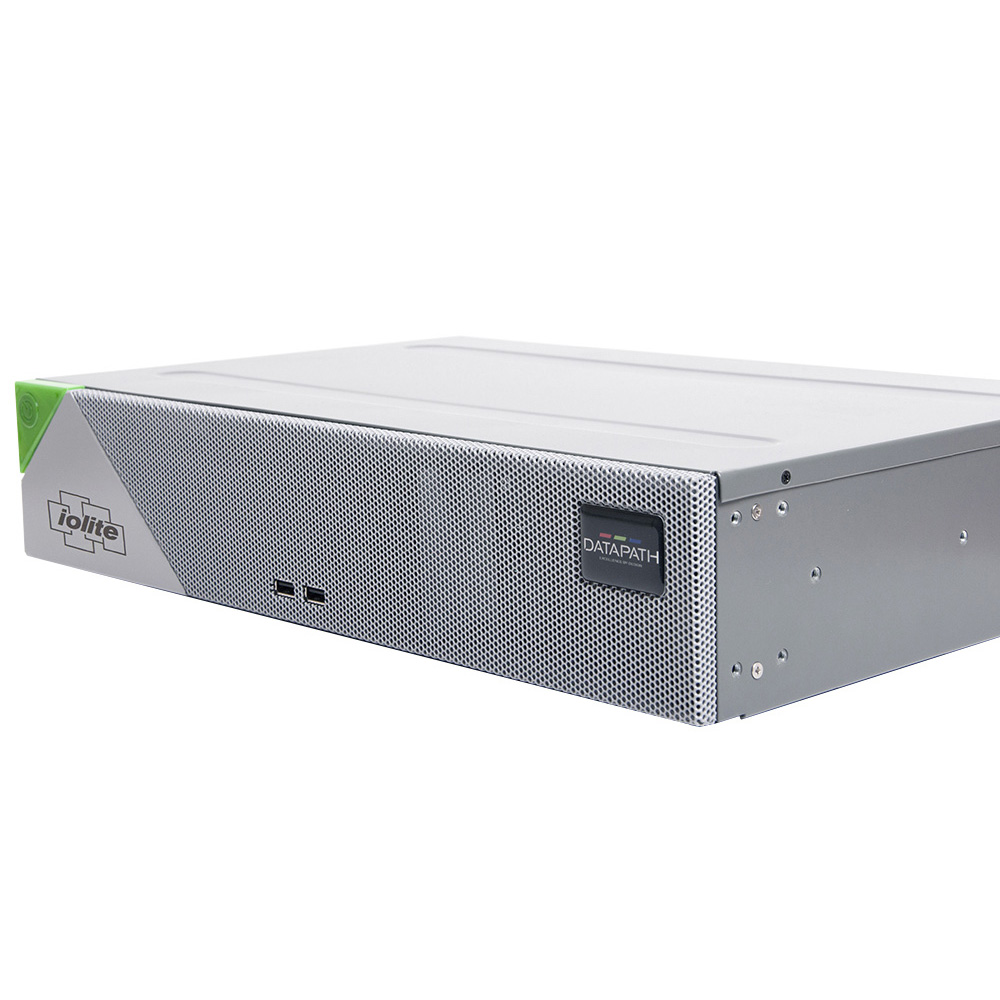

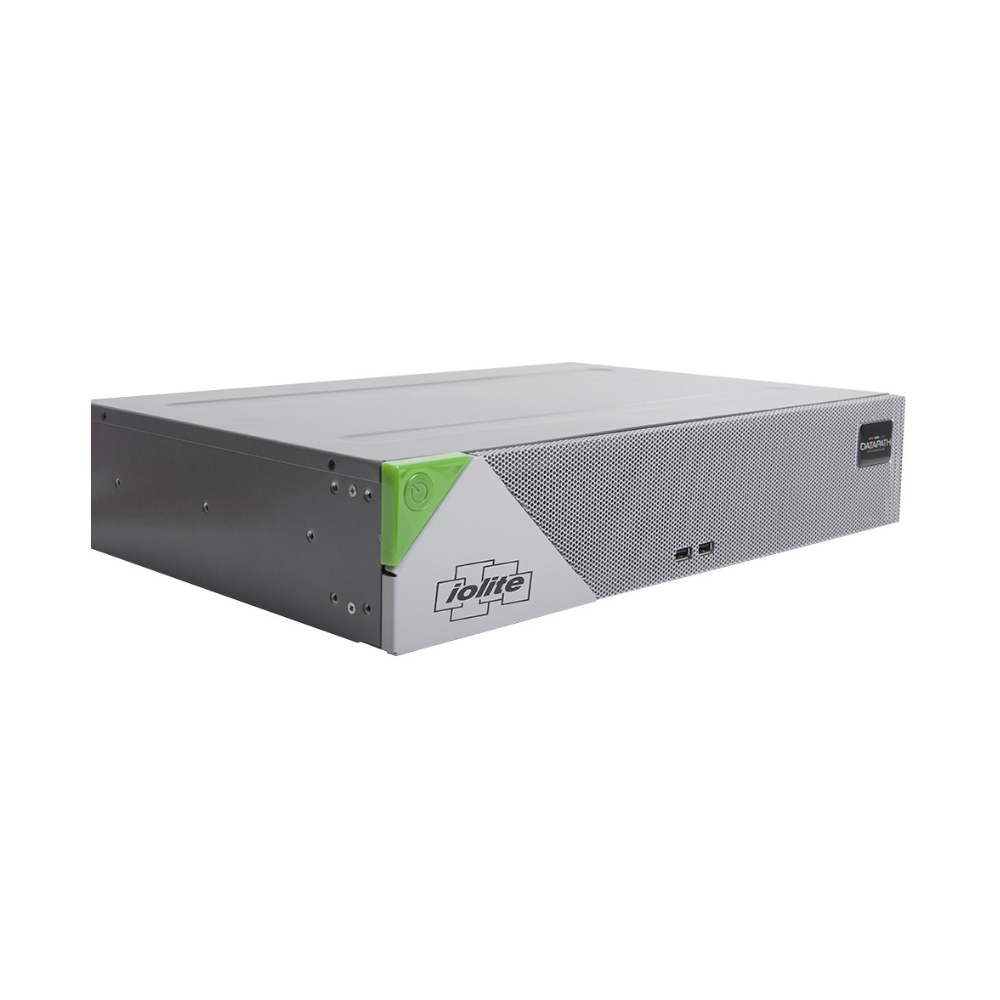

The ability to drive multiple screens from a single, simple controller is a key requirement for businesses wanting the ability to display video, news feeds, corporate messaging and traditional signage in their reception areas, as well as enhancing their conferencing and presentation facilities. The iolite 12i is a compact wall controller designed specifically for environments that require very low noise levels, where space is at a premium. It is rack mountable and includes twelve integrated HDMI outputs, and three 4K DisplayPort outputs. The two integrated x4 Gen.3 PCIe slots can be populated with various Datapath capture cards or SQX (IP decode) cards to meet specific needs, making it the perfect choice for smaller video wall installations requiring a compact, quiet controller that still offers a degree of flexibility and configuration.
Driving Video Wall Installations
Combined with a high performance Windows system, the iolite 12i can drive multiple screens simultaneously, delivering video captured from a range of sources including media players, television set top boxes, IP cameras and online or local media. The iolite 12i is available as standard with an Intel Corei5 processor, 128GB SSD hard drive and 8GB RAM. Upgrade options are available to allow the inclusion of additional, high capacity HDD drive, increased memory (up to 16GB) and Intel Corei7 processor.
Use with Aetria for Integrated Control Rooms
Aetria is Datapath’s integrated control room solution for the design, management and operation of control rooms of any size. With Aetria, System Integrators have the freedom to design and deploy the right solution by following a structured, integrated process. Configuration of all connectivity to workstations, video walls, sources, layouts, and templates are managed and operated from a single interface. Meaning users can focus on their core objectives, rather than how to make the technology work. Aetria has five distinct components:
- Aetria Designer
- Aetria Command Centre
- Aetria Workstation
- Aetria Wall Control
- Aetria Network Manager
Compatible with WallControl 10 for Standalone Video Walls of any Scale
WallControl 10 allows users to quickly and easily place and control output sources such as IP feeds, video captures and local applications anywhere on a video wall. These sources can be controlled simply when the most elaborate and complex wall scenarios are required.
Common arrangements can be saved as layouts for recall at any time and any section of the wall can contain carousels of videos playing one after the other at definable intervals. Administrators of WallControl 10 can configure a single system to drive multiple walls. Each of these walls can be assigned a number of user roles, and each user role can allow different access to sources, local videos, layouts and templates. *
Now With DDCT
All of Datapath’s award-winning video wall controllers are now supplied with the Display Driver Configuration Tool (DCCT) software pre-installed. The wizard allows users to easily configure video walls and get started in minutes.
