- -Compatible with HDMI, HDCP 1.1
- -Deep color support 8/10/12 bit source
- -Seamless switching

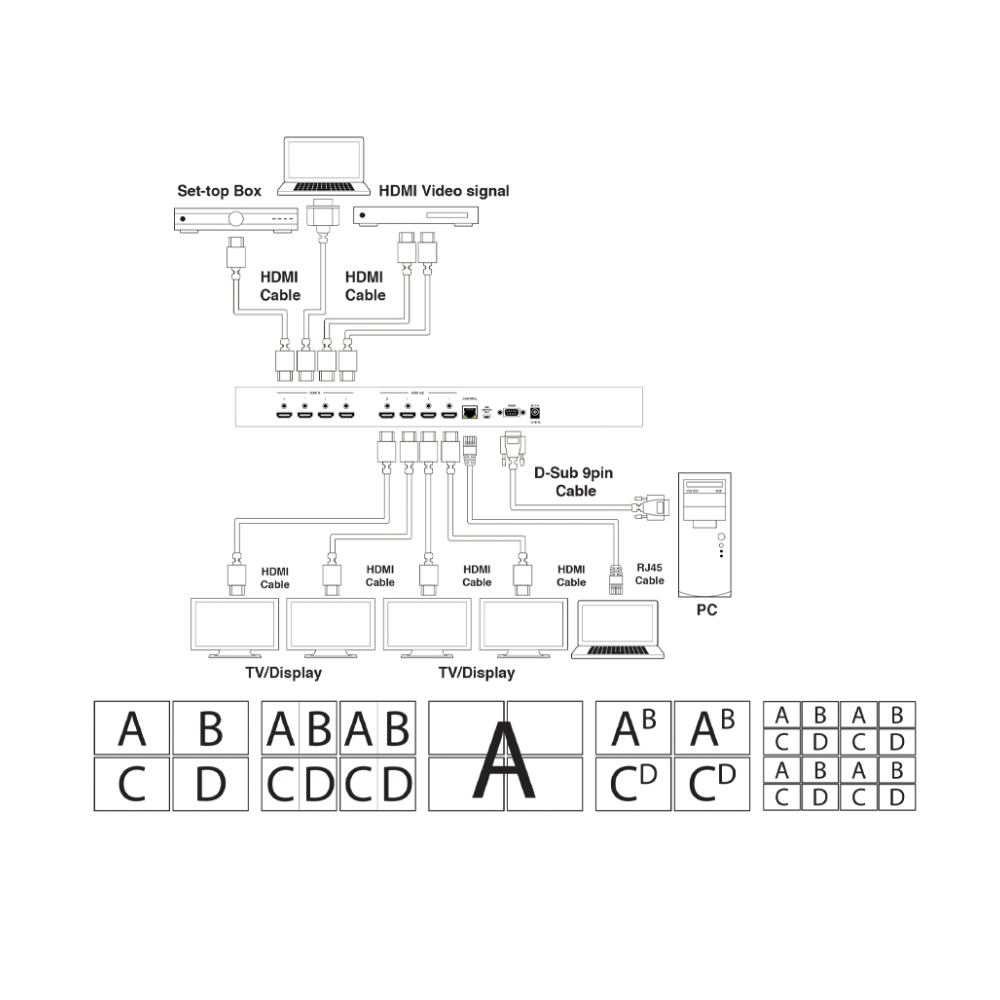

- -Supports four different modes: Matrix mode/ Dual mode/ Quad / 2×2 TV Wall mode
- Matrix mode: Can routes and output any 4 sources to any 4 displays with seamless switching (Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show “IN 4 Disabled”)
- Dual mode: Can display POP (Picture Of Picture) & PiP (Picture In Picture) image com-bined by 2 sources to be presented on the HDMI output ports (Dual A and Dual B)
- Quad mode: Can output all sources to a display (4 in 1) as a full image
- TV Wall mode: Can output any source to 4 displays (2×2 Video wall) as a full image with adjustable frame correction for 4 displays

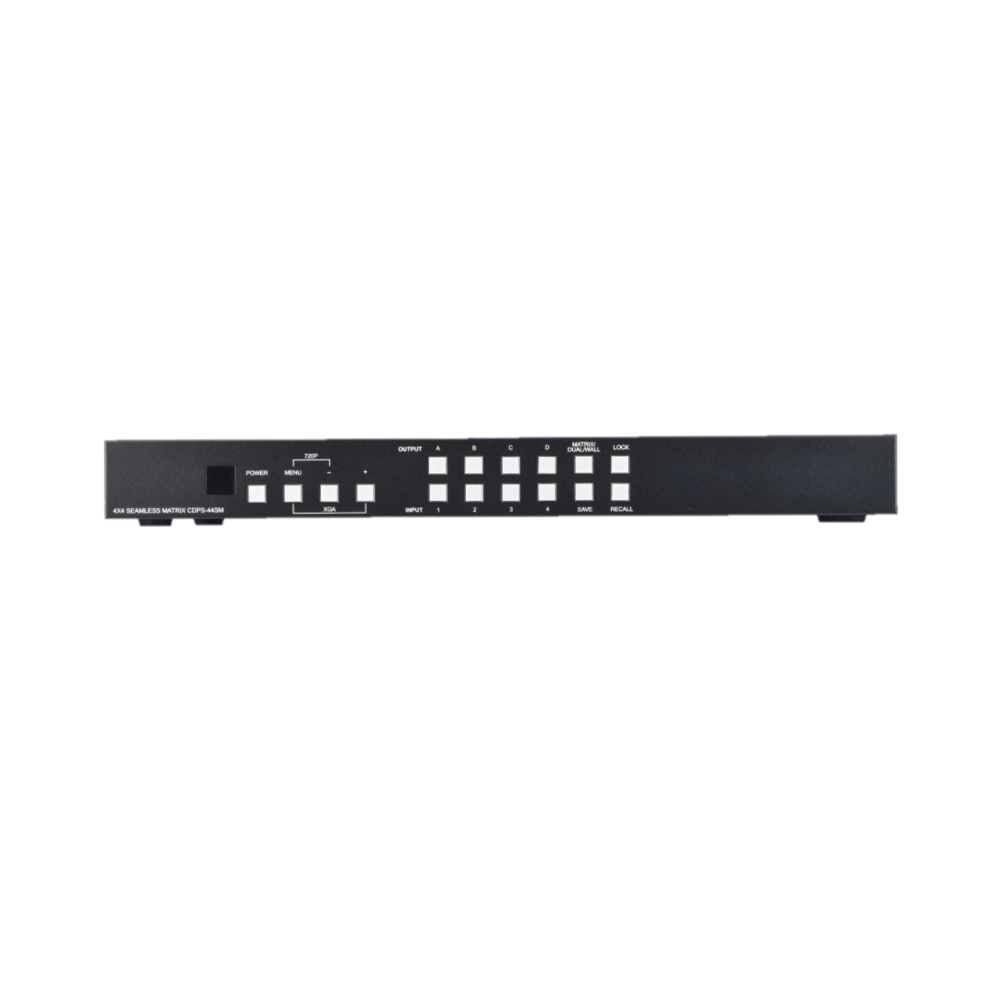

- -Supports OSD, RS232, Telnet, WebGUI, Remote control and on-panel controls
- -Input resolutions support VGA-WUXGA and 480i-1080p
- -Output resolutions support 480p-1080p
- -Different input resolution and output resolution are selectable from OSD menu(factory default value for the output resolution is 720p@60Hz/ 2CH LPCM)
- -Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD Master Audio

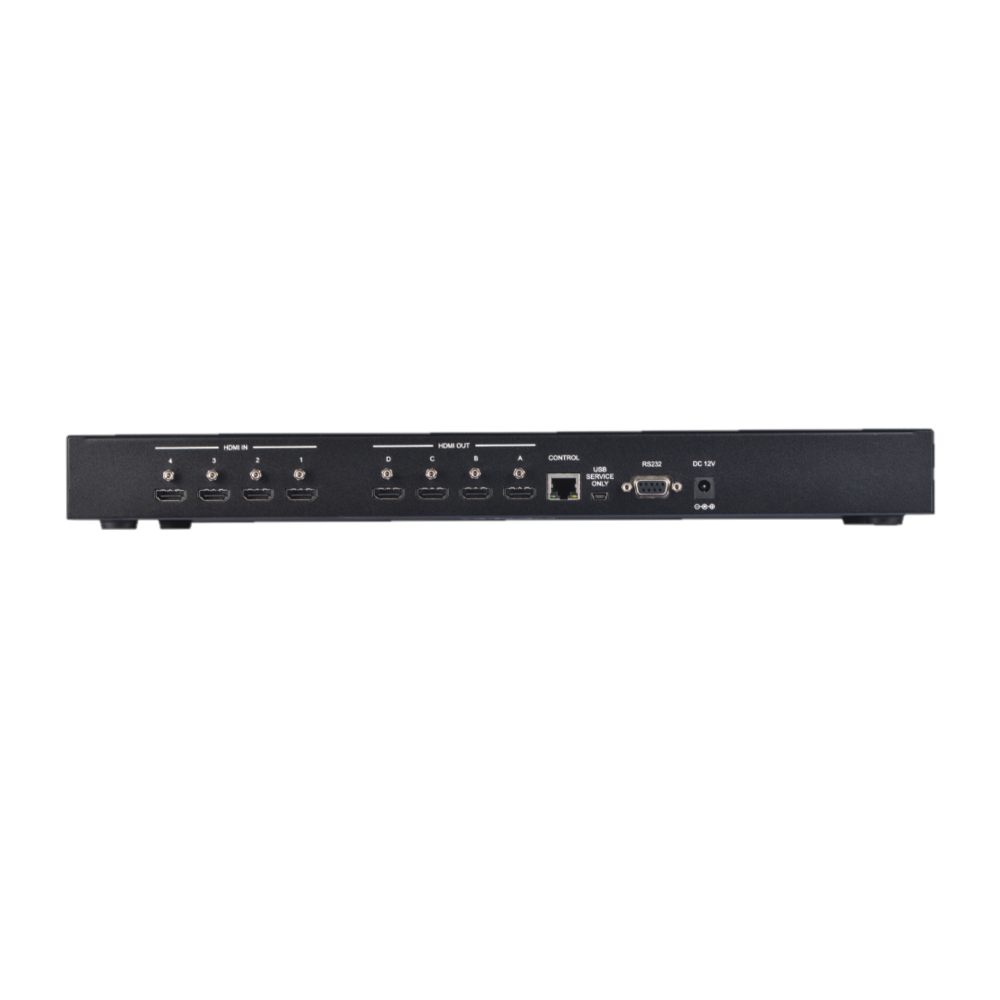

Inputs
- 4x HDMI [4x Uncompressed AV and Data]
- 1x RJ45 [1x IP Control]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs
- 4x HDMI [4x Uncompressed AV and Data]
PSU:
- 12V/3A
Dimensions
- 436mm [W] x 247mm [D] x 44mm [H]
Net Weight
- 2200gr
