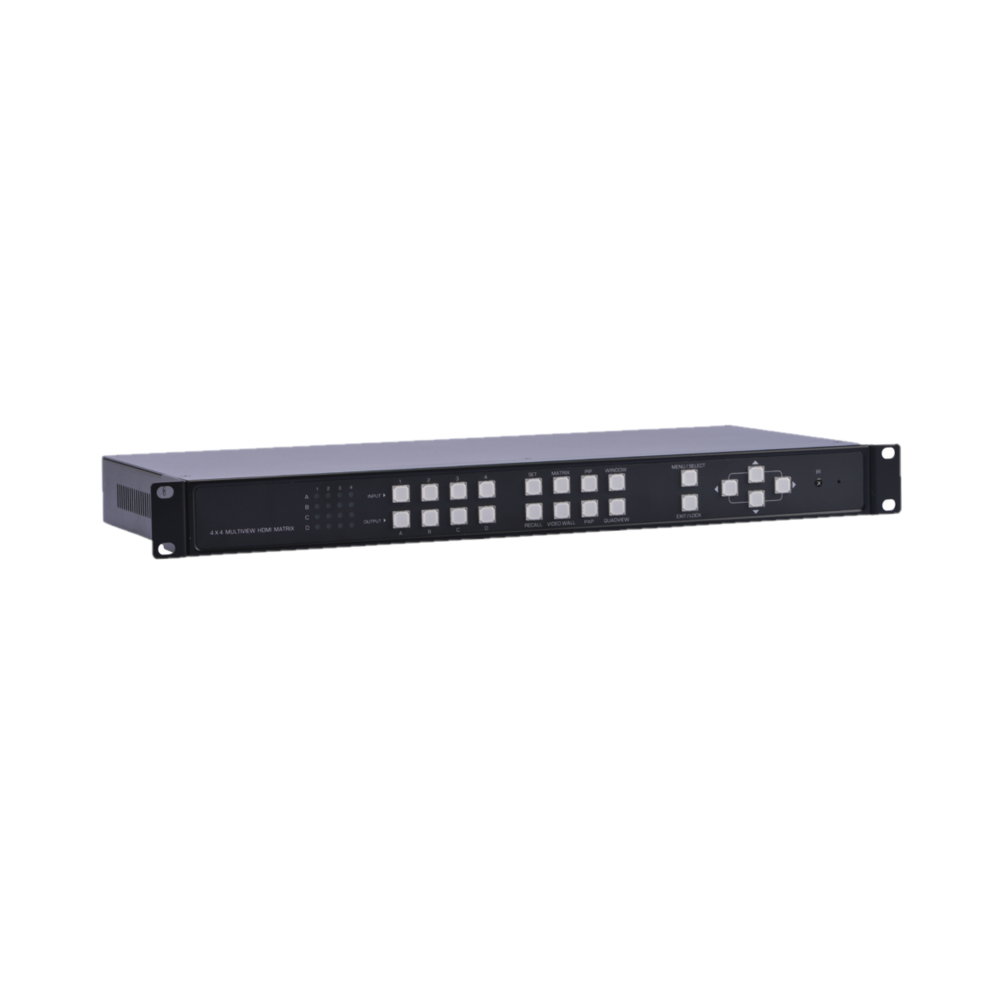

EGE-MSP-444, 4 x 4 Smart HDMI A/V Processor is the only complete independent HDMI
system that arrange four HDMI multimedia sources and dynamically exhibit them on 4 displays in
various mode. Each source can be independently scale. Switching do not have delays or black screen.
It is the ideal solution for A/V Switching, Splitting, or Broadcasting.

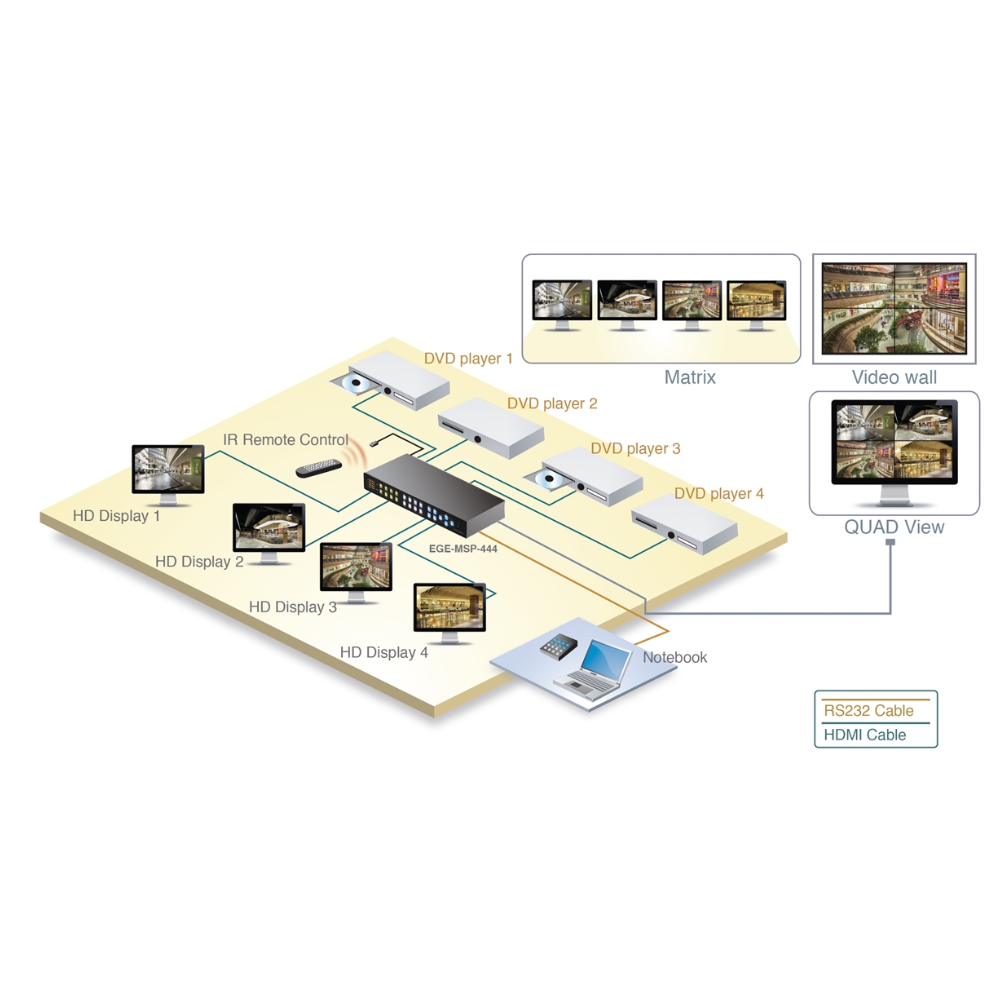

Enhanced Matrix
Route any HDMI multimedia source and combine them to multiple displays. Scale any input
source to a portion or all the displays. It’s a perfect system for broadcasting multimedia content.
Enhanced Video Wall
Expand High Definition resolution to lossless 4K x 2K. Perfect for reaching beyond a single
monitor.
Enhanced Quadview
Video mode selection includes 4-Pane, Picture-in-Picture, and Picture-and-Picture. These
modes can be dynamically changed for better surveillance viewing and verification.
6 Video Mode selection with 8 Video Configuration programmable memory
Select any of the 4 input to be dynamically and smoothly scale onto and up to 4 monitors

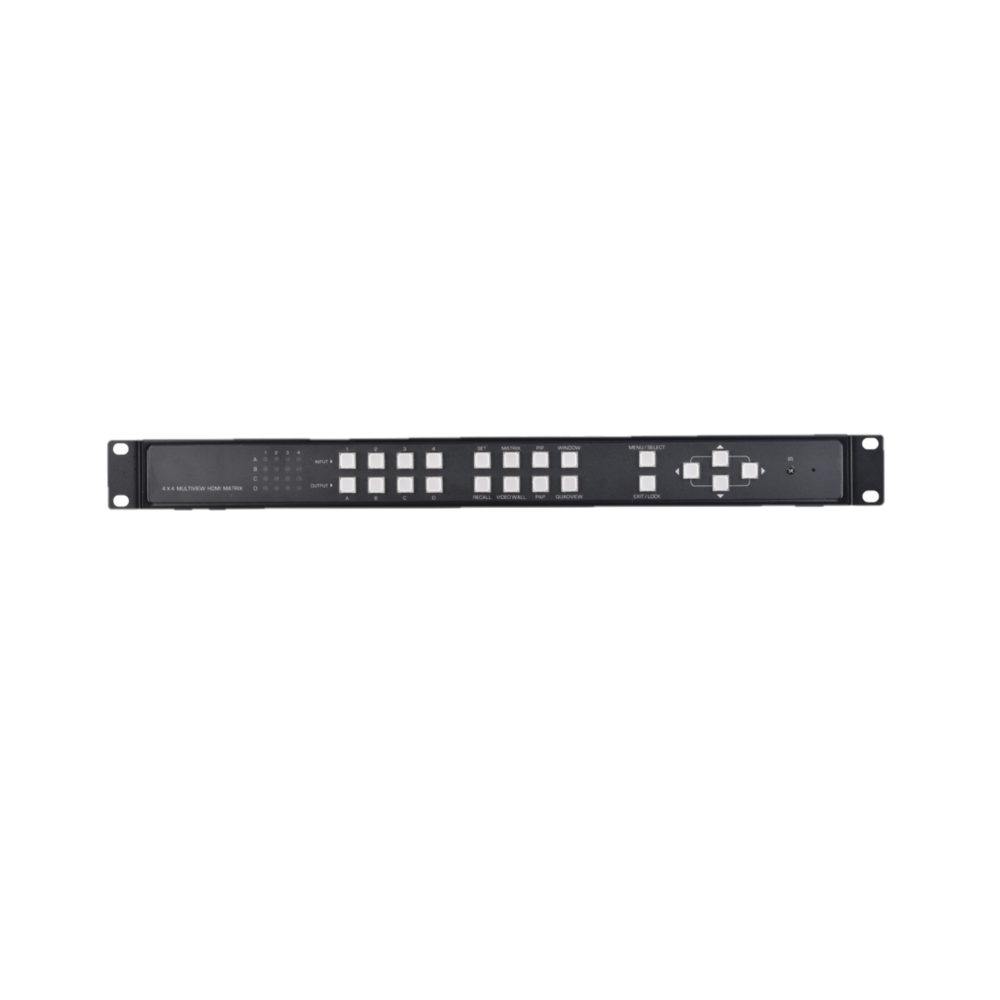

Intuitive mode operation by front panel Push Buttons, OSD, or IR Remote Control
Full HD Digital Video resolution can support up to 1920 x 1200 to give a combine total of 4K x 2K video
resolution
Support Locking HDMI cable
