DT-620
CMM/CFM Thermo-Anemometers

  • Resolution of 0.01m/sec 20 points avarage for air flow.
  • Thermo – Anemometer with built-in non-contact IR Thermometer

CMM/CFM Thermo-Anemometers

  • CFM/CMM Thermo-Anemometer with built-in non-contact IR Thermometer measures remote surface temperature to 280ºC (536ºF) and 8:1 distance to spot ratio.
  • Multifunction Air Velocity Meter with wide temperature range (618/618B)

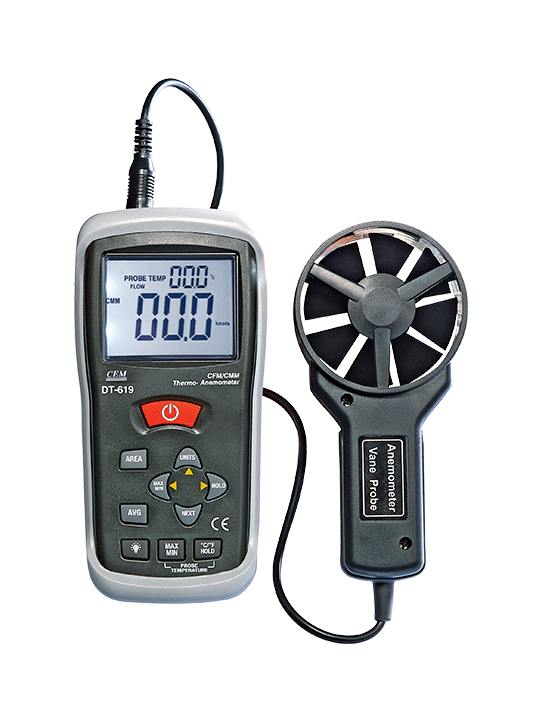

  • CFM/CMM Thermo-Anemometer (619)
  • CFM/CMM Thermo-Anemometer + InfraRed Thermometer (620)
  • Max/Min/Avg value with relative time stamp (619/620)
  • Low battery indication and Auto Power Off
  • Display Air Flow (CFM/CMM), or Air Velocity plus Temperature simultaneously (619/620)

FEATURES

Features
Simultaneous display of Air Flow or Air Velocity plus Ambient Temperature(619/620)
Easy to set Area dimensions (cm2) are stored in the meter´s internal memory for the next power on(619/620)
Resolution of 0.01m/sec (619/620)
20 points average for Air Flow (619/620)
Super large LCD Backlit Display(618/619/620)
3% velocity accuracy via low friction 2.83″D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable(619/620)
Type K sensor for temperature measurements (618/618B)
High Sensitive and Accurate

SPECIFICATIONS

Specifications
Air Velocity Range Accuracy 618 618B 619 620
m/s(meter per second) 0.40~30.00 ±3% ±0.20m/s * * * *
ft/min(feet per minute) 80~5900 ±3% ±40ft/min * * *
km/h(kilometers per hour) 1.4~108.0 ±3% ±0.8km/h * * * *
MPH(miles per hour) 0.9~67.0 ±3% ±0.4MPH * *
Knots(nautical miles per hour) 0.8~58.0 ±3% ±0.4knots * * * *
Air Temperature -10-60ºC(14-140ºF) ± 2.0ºC(4.0ºF) * * * *
InfraRed Temperature -50 to -20ºC(-58 to -4ºF) ± 5.0ºC(9.0ºF) *
-20 to 260°C(-4 to 500ºF) ±2% reading or ± 2ºC(4ºF) *
Air Flow Range Area
CFM 0-999900 0-999.9 ft2 * *
CMM 0-999900 0-999.9 m2 * *



ACCESSORIES

Accessories :

9V battery and Anemo probe, Gift box with carrying case.
