UT360 Series
Anemometers

UT360 series anemometers can measure temperature, wind speed, and wind count. These meters can be used in energy saving, HVAC, fishing and other industries that use exhaust or ventilation systems.

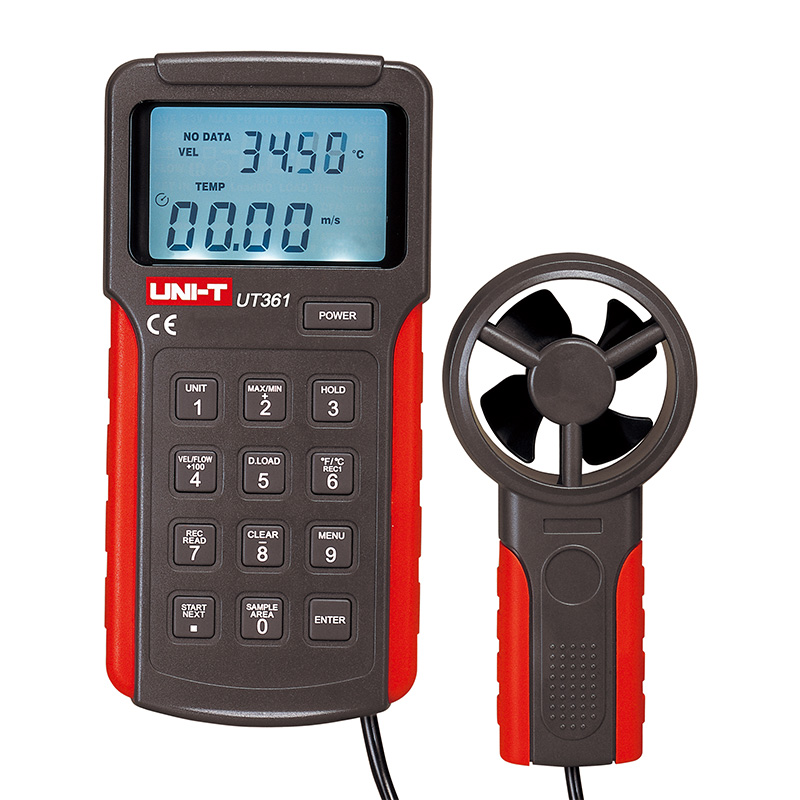

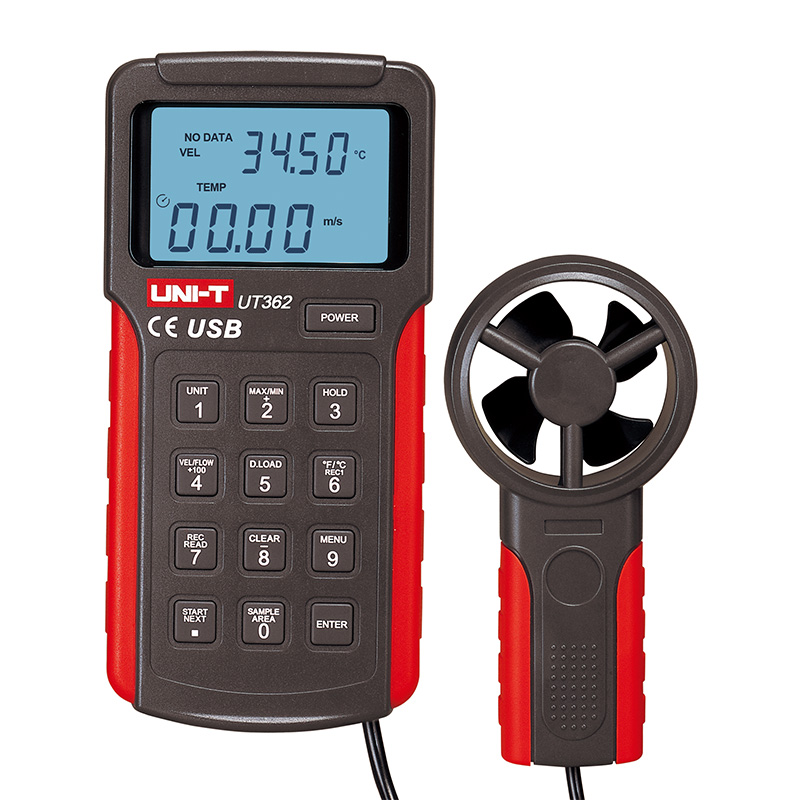

Models in UT360 Series: UT361, UT362

Features of UT360 Series Anemometers

Certificates: CE, UKCA

  • Data hold, LCD backlight
  • ℃/℉ selectable
  • Auto power off (cancelable)
  • 2044 sets data storage
  • Auto record function with 0 .5~255s interval
  • Wearproof fan shaft for improved accuracy and reliability
  • Wind speed modes: MAX, MIN, Real-time
  • Wind count modes: MAX, 2/3 MAX, MIN, AVG, real-time
  • 7 selectable units: m/s, km/h, ft/min, MPH, KNOTS, CFM, CMM

SPECIFICATIONS

Specifications of UT360 Series Anemometers

Specifications Range UT361 UT362
Wind speed measurement 2m/s~10m/s ±(3%+0.5) ±(3%+0.5)
10m/s~30m/s ±(3%+0.8) ±(3%+0.8)
Wind count measurement (CMM) 0.001~9999 x 100 √ √
Wind count measurement (CFM) 0.001~9999 x 100 √ √
Temperature measurement  0°C~40°C (32°F~104°F) ±3°C (±4°F) ±3°C (±4°F)
Features
Display count 10000 10000
Data hold √ √
Auto power off Around 10 minutes √ √
Low battery indication ≤7.2V √ √
MAX/MIN mode √ √
Data storage 2044 2044
USB interface √
Auto record time setup √ √
Units switch √ √
LCD backlight √ √
Wind speed display Display “VEL” √ √
Wind count display Display “FLOW” √ √
General Characterisitics
Power 9V battery (6F22)
Display 57mm x 37mm
Product color Red and grey
Product net weight 375g
Product size 162mm x 78mm x 30mm
Standard accessories Battery, USB interface cable (UT362), PC software CD (UT362), carrying bag
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 460mm x 335mm x 210mm
Standard carton gross weight 6.8kg

APPLICATIONS

Applications of UT360 Series Anemometers
