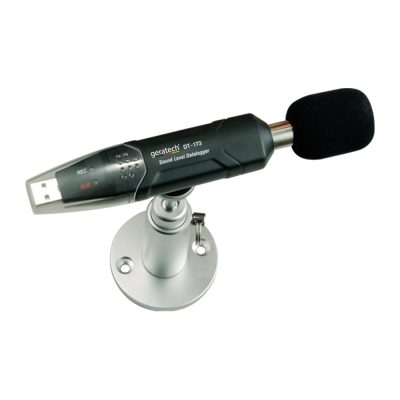

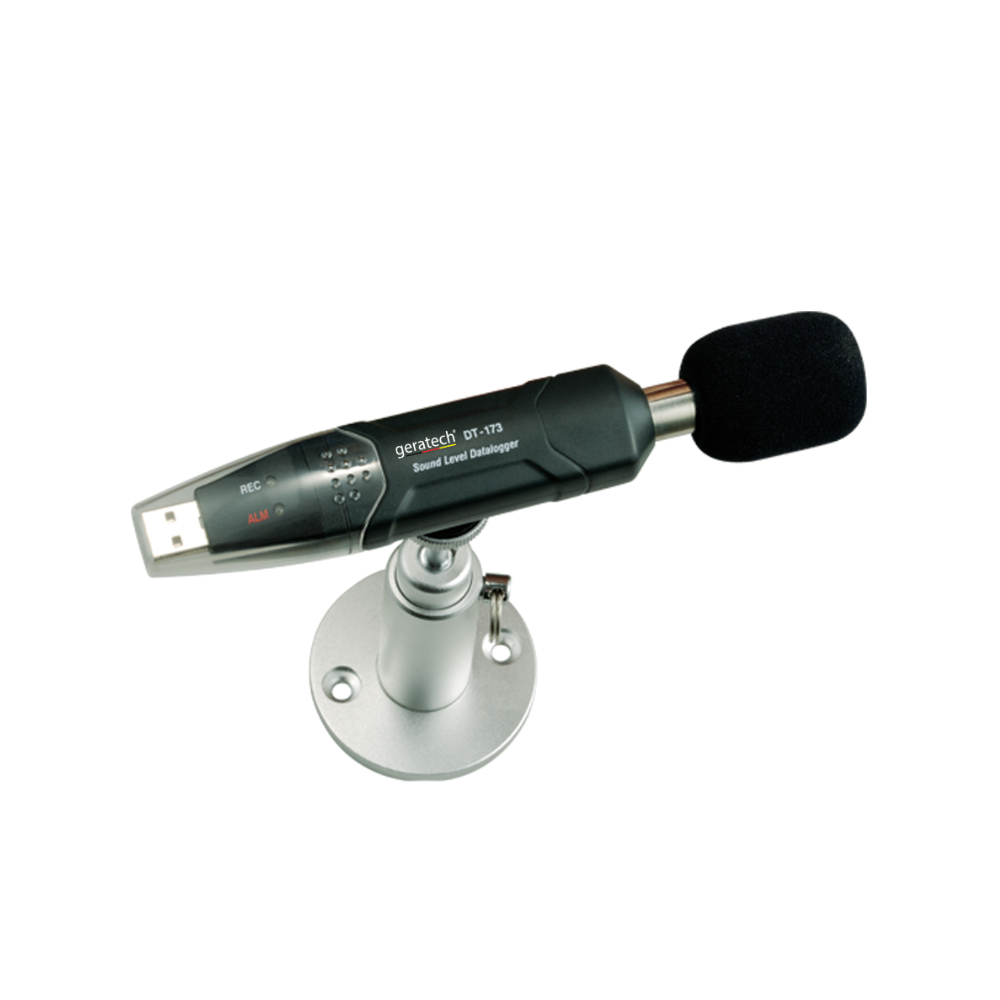

DT-173
Sound Level Datalogger

IEC61672-1 CLASS2; MAX & MIN measurements; A & C Weighting; NORM(Normal) & PEAK mode; 25ms sample interval; FAST & SLOW response; Manual and Automatic mode.
Standard applied IEC61672-1CLASS2
Accuracy ±1.4 dB
Frequency range 31.5HZ-8KHZ
Dynamic range 50 dB
Level ranges Auto: 30dB-130dB
Frequency weighting A/C
Time weighting FAST(125ms),SLOW(1s)
Memory Readings 129920 points for dBA or dBC
Sample rate 1 Sec. to 24h

Sound Level Datalogger

  • IEC61672-1 CLASS2; MAX & MIN measurements; A & C Weighting; NORM(Normal) & PEAK mode; 25ms sample interval; FAST & SLOW response; Manual and Automatic mode.
  • Standard applied IEC61672-1CLASS2
  • Accuracy ±1.4 dB
  • Frequency range 31.5HZ-8KHZ
  • Dynamic range 50 dB
  • Level ranges Auto: 30dB-130dB
  • Frequency weighting A/C
  • Time weighting FAST(125ms),SLOW(1s)
  • Memory Readings 129920 points for dBA or dBC
  • Sample rate 1 Sec. to 24h

FEATURES

Features:
IEC61672-1 CLASS2
MAX & MIN measurements
A & C Weighting
NORM(Normal) & PEAK mode
25ms sample interval
FAST & SLOW response
Manual and Automatic mode



Size(HxWxD): 106mm x 56mm x 33.5mm

Weight: 34g

SPECIFICATIONS

Standard applied IEC61672-1CLASS2
Accuracy ±1.4 dB
Frequency range 31.5HZ-8KHZ
Dynamic range 50 dB
Level ranges Auto: 30dB-130dB
Frequency weighting A/C
Time weighting FAST(125ms),SLOW(1s)
Memory Readings 129920 points for dBA or dBC
Sample rate 1 Sec. to 24h
Microphone 1/2 inch electret condenser microphone
Data output USB data traffic

ACCESSORIES

Accessories :

3.6V Lithium battery, stand, software and clamshell.
