UT352
Sound Level Meter

UT352 sound level meter can measure noise level and output results in dB. A or C weighted modes can be selected depending on the application. UT352 consume very little power and can continuously work up to 20 hours. They are suitable for industrial and environmental sound level measurement.

Features of UT352 Sound Level Meter

Certificates: CE, UKCA

  • MAX/MIN modes
  • Auto power off (cancelable)
  • 63 sets data storage
  • AC/DC analog signal output
  • Over/under range indication
  • Data hold, LCD backlight
  • Simulated analog bar
  • A (ear)/C (machine) weighting modes
  • Manual/auto range selectable
  • Fast/slow response rate (fast: 125ms, slow: 1s)
  • Powered by batteries or external power source

SPECIFICATIONS

Specifications of UT352 Sound Level Meter

Specifications Range UT352
Range 30～80dB ±1.5dB
50～100dB ±1.5dB
60～110dB ±1.5dB
80～130dB ±1.5dB
Frequency 31.5Hz～8000Hz √
Frequency Weighting A&C √
Sample Rate FAST: 8 Times/s √
SLOW: 1 Times/s √
Features
Analogue Outputs AC: 0.707Vrms full scale;
Output impedance: around 600Ω		 √
DC:2Vrms full scale; 10mV/dB;
Output impedance: around 100Ω		 √
Data Hold √
Auto Power Off √
Low Battery Indication ≤4.8V √
MAX Mode √
MIN Mode √
Data Logging 63
High Alarm Display “OVER” √
Lower Alarm Display “UNDER” √
LCD Backlight √
Analogue Bar Graph 30～130dB √
General Characteristics
Power 1.5V Batteries (LR6) X 4
LCD Size 53mm X 41 mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273mm X 70mm X 39mm
Standard Accessories Batteries, Windscreen, Leather Box
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 30pcs
Standard Carton Measurement 670mm X 385mm X 300mm (0.077 CBM Per Standard Carton)
Standard Carton Gross Weight 18kg

APPLICATIONS

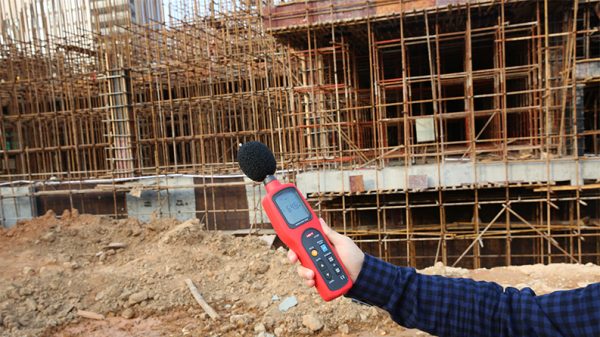

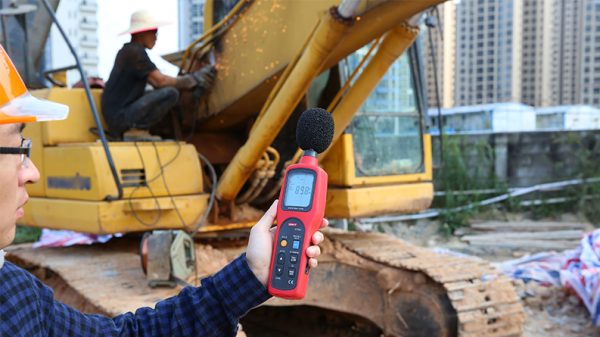

Applications of UT352 Sound Level Meter
