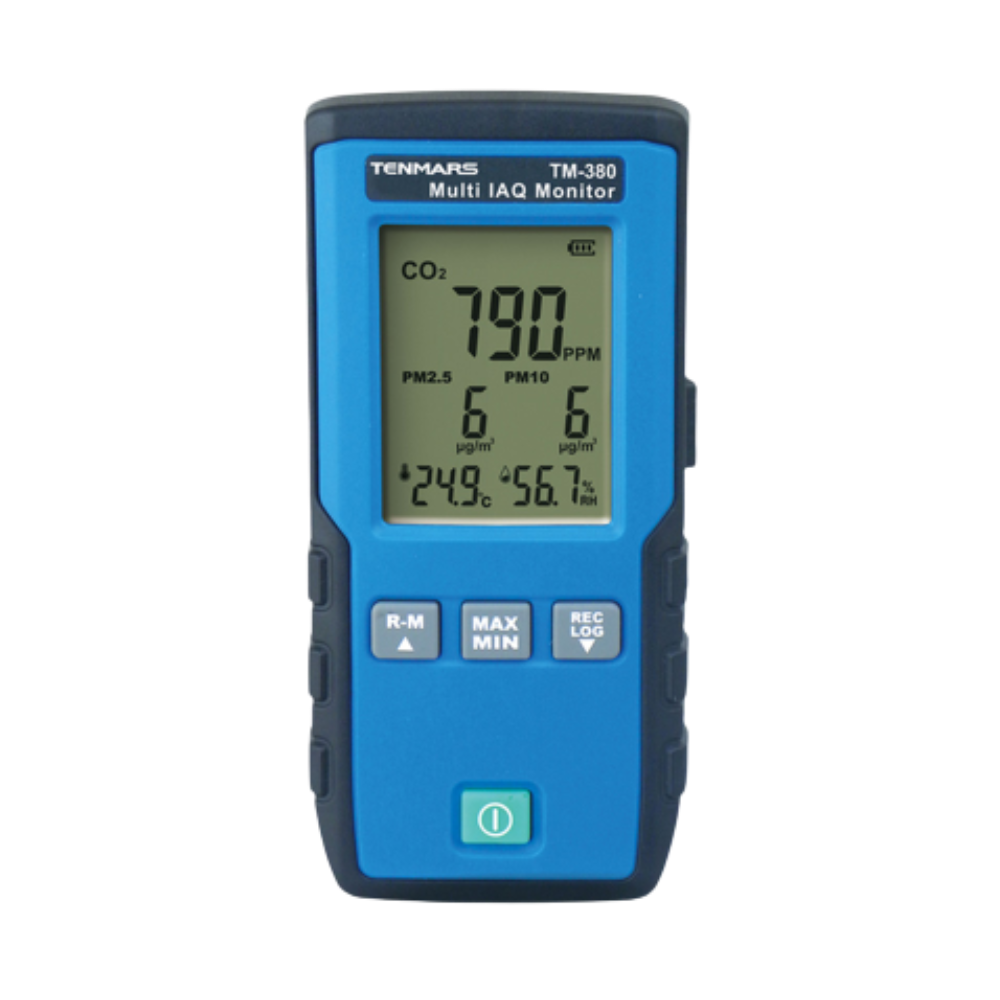

TM-380
Multi IAQ Monitor

  • CO2
  • PM2.5
  • PM10
  • Temperature
  • Humidity

APPLICATION

This meter can make 5 measures of air quality once a time, including CO2, PM2.5, PM10, temperature and humidity.
The measurement for CO2 is used for the air exchange rate of total heat exchangers or other ventilation fans or systems, the measurement for PM2.5 or PM10 is used for the cleaning capacity of air purifiers, and the measurement for temperature and humidity is used to estimate the dehumidification effect of dehumidifiers.

FEATURES

  • Real-time measurement of CO2/PM2.5/PM10/temperature/humidity.
  • °C or °F unit selection.
  • Locking function for Maximum value/minimum value/average value.
  • Auto-shutdown function and disable auto-shutdown function.
  • Adjustment and calibration function (CO2/temperature/humidity).
  • CO2/PM2.5/PM10 red backlight alarm.
  • Manual record and auto-record.
  • Key sound assists to ensure the operation works.

CO2 /PM2.5/PM10 red backlight alarm setting function

Setting value
 CO2 PM2.5 PM10
1000PPM 35µg/m³ 75µg/m³

When the measured value reaches the setting value for alarm, the LCD backlight shines in red and related measurement items flash.

SPECIFICATIONS

  • 20 logs for manual and automatic recording values.
  • Auto-record saving interval setting: 5 seconds, 10 seconds, 5 minutes, 10 minutes, 20 minutes,
  • 30 minutes, 60 minutes.
  • Sampling time: 2.5 seconds (5 types, 0.5 seconds for each).
  • Battery: 3.7V 2000mAh rechargeable lithium battery
  • Transformer for charging: 1A/5V
  • 5V micro USB interface for external power supply
  • Display size: 52mm (L) x 40mm (W).
  • Dimension: 150 X 65 X 22mm (LxWxH)
  • Weight: 190g(without the batteries’ weight)
Electrical specifications
Ambient temperature range for accurate measure: 18°C (64°F) ~ 28°C (82°F)
PM2.5
 Sensor
 Laser particulate matter sensor
 Measuring range
 0-500 μg/m3
 Accuracy
 ±8μg :<=50µg/m3
 ±10% of reading value:>50µg/m3
 Resolution
 1
 Reaction time
 <10seconds
PPM10
 Sensor
 Laser particulate matter sensor
 Measuring range
 0-500 μg/m3
 Accuracy
 ±10μg :<=50µg/m3
 ±15% of reading value:>50µg/m3
 Resolution
 1
 Reaction time
 <10 seconds
CO2
 Sensor
 Non-Dispersion Infrared(NDIR)
 Measuring range
 400 to 9999ppm
 Accuracy
 ±70ppm ±3% of readings.
(400-2000ppm)
 Resolution
 ±1ppm
 Reaction time
 90% during about 2 minutes
Temperature
 Sensor
 Bandgap temperature sensor
 Effective range
 -10°C~50°C / 14°F~122°F
 Accuracy
 ±1.0°C/±1.8°F
 (Non-charging and
30 minutes after charging)
 Resolution
 0.1°C / 0.1F
(0~35°C / 32°F~95°F) ;
  1°C / 1°F
 (Above 100°C /°F or
below -10°C /°F)
 Reaction time
 About 1 second
Humidity @25°C
 Sensor
 Capacitive humidity sensor
 Effective range
 1-99%
 Accuracy
 ±5.0%RH(10~90%);
 ±8.0%RH(<10%,>90%) no
 condensation, at 25°C
 Resolution
 0.1%
 Reaction time
 About 4 seconds

ACCESSORIES

  • Meter (with a 3.7V Rechargeable lithium battery)
  • User’s Manual
  • Micro USB cable
