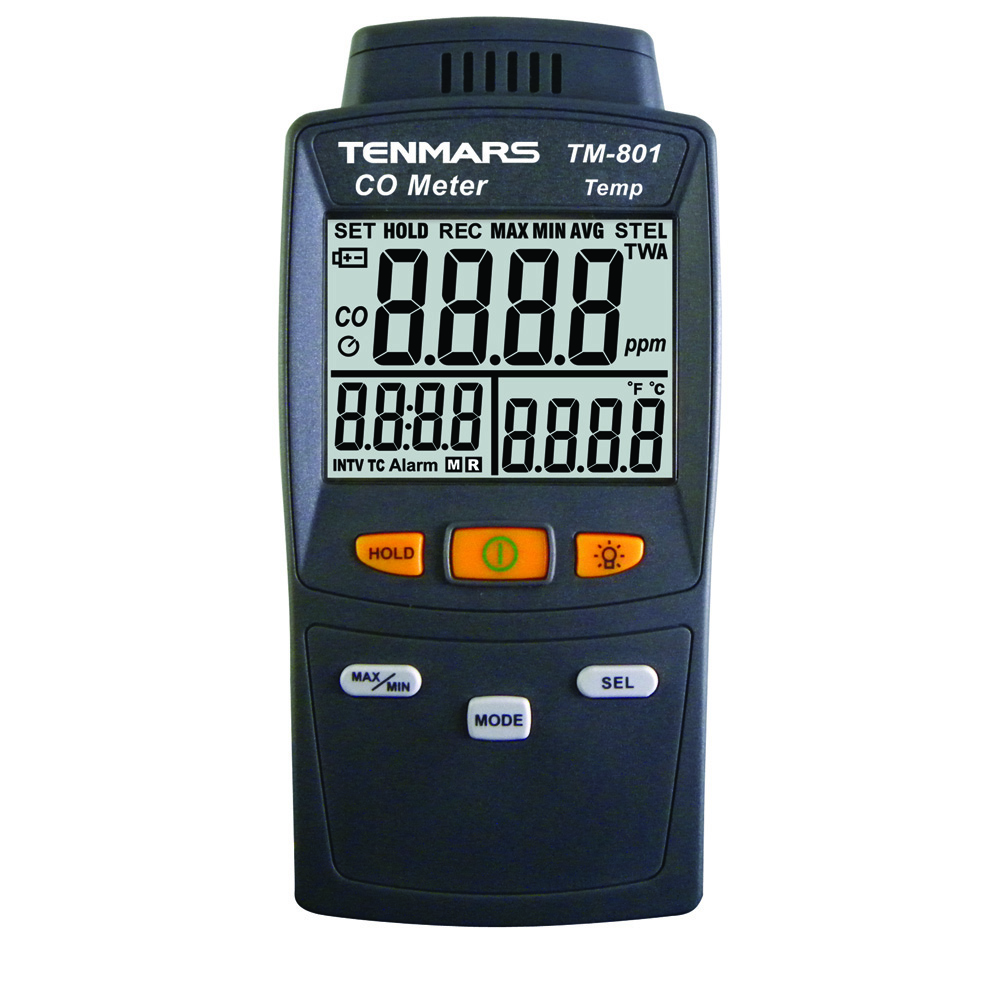

TM-801
Carbon Monoxide Meter

  • 4 digits backlit LCD with maximum 1,000 counts.
  • Dual display of the readings for CO and Temperature.
  • CO range: 0 ~ 1,000ppm.
  • Temperature range: -20~50 ºC (-4~122 ºF).
  • Easy to calibrate at 100ppm or 500ppm

APPLICATION

TM-801 CO meter is used for measuring the CO levels to 1000ppm.
Carbon monoxide (CO) is a poisonous gas that has no smell, color or taste.
But it is very dangerous and reduces the oxygen-carrying capacity of blood that causes you unwell, illness and death

FEATURES

  • Adjustable alarm: Adjustable alarm threshold
    level(25/35/50/100/250/400/800/Randomly Adjustable); Enable/Disable alarm.
  • Dual and digital display of the CO and temperature measuring.
  • Maximum/Minimum/Average hold.
  • Data hold(HOLD).
  • Low battery indication
  • LED Backlight.
  • Auto power OFF and disable function

SPECIFICATIONS

  • Dimension: 156 X 73 X 35mm (LxWxH)
  • Weight: 250g(without the batteries’ weight)
Electrical specifications
Accuracy is indicated as [% of reading +ppm].
It is referred to the following reference conditions: 23°C ± 5°C with RH <75%.
CO  ※Carbon monoxide
 Range
 0 ~ 1000ppm
 Resolution
 ±1ppm
 Accuracy
 ±(5% +2ppm)
 Repeatability
 < 2%
 Response time※
 < 30 seconds.
 Zero drift in long term
 < 5ppm
 Sensitivity drift
 < 5% (per year)
 Typical sensor life
 3 years
※ The response time refers to the fixed value of 90% of the value.
Temperature
 Range
 -20~50 °C /-4~122 ° F
 Resolution
 ±0.1 °C /±0.1 °F
 Accuracy
 ±1.0 °C /±1.8 °F

ACCESSORIES

  • User’s Manual
  • UM-4(AAA) 1.5V battery
  • Carrying case
