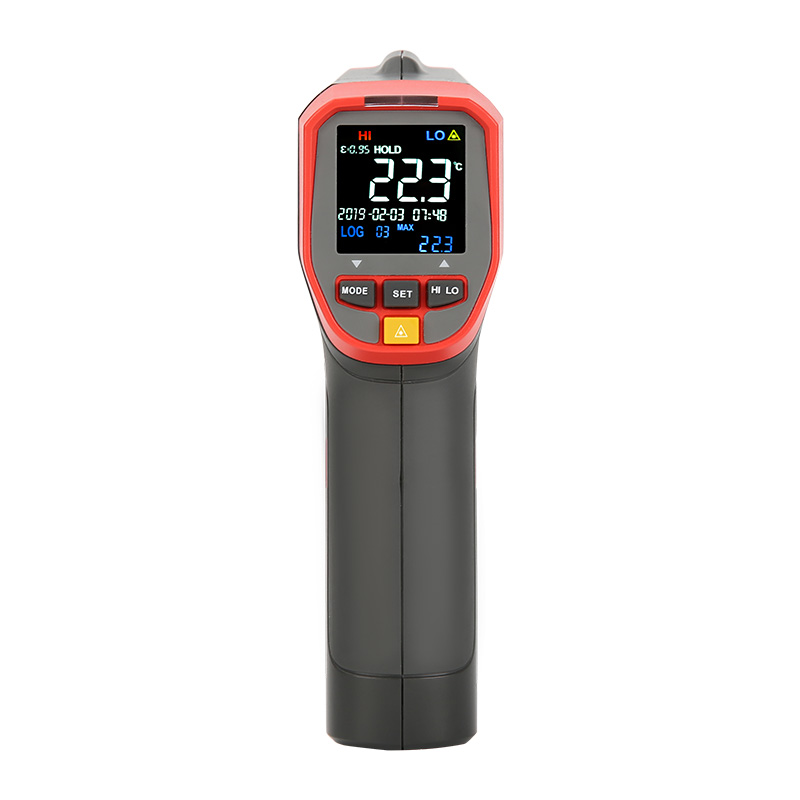

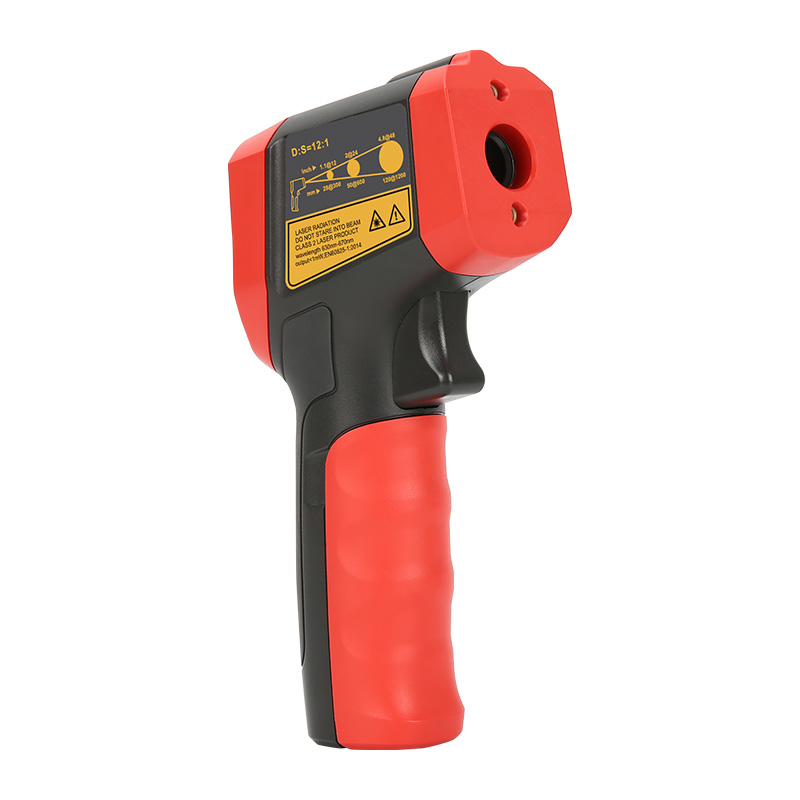

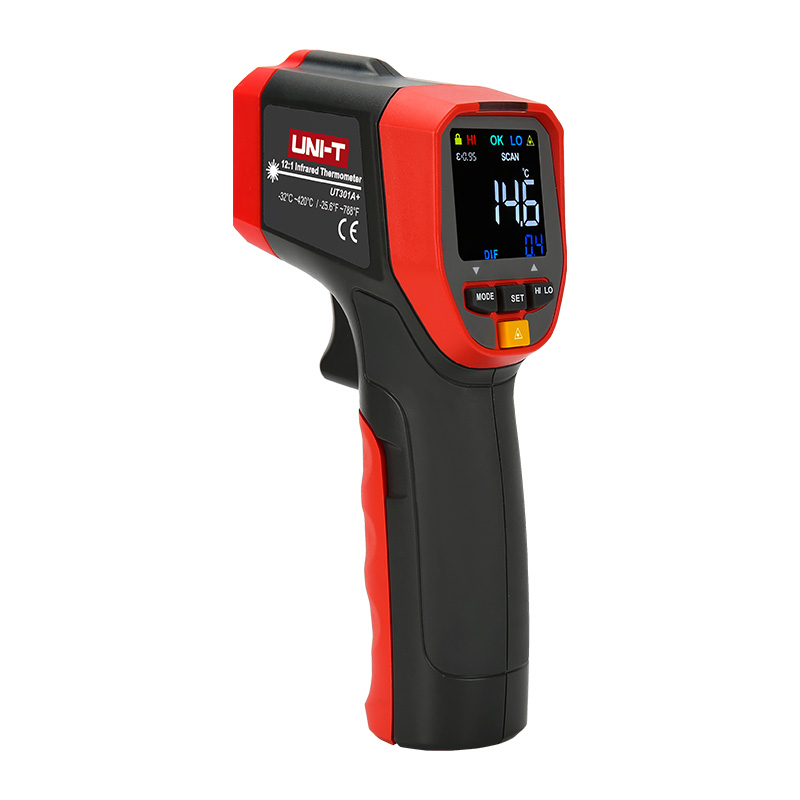

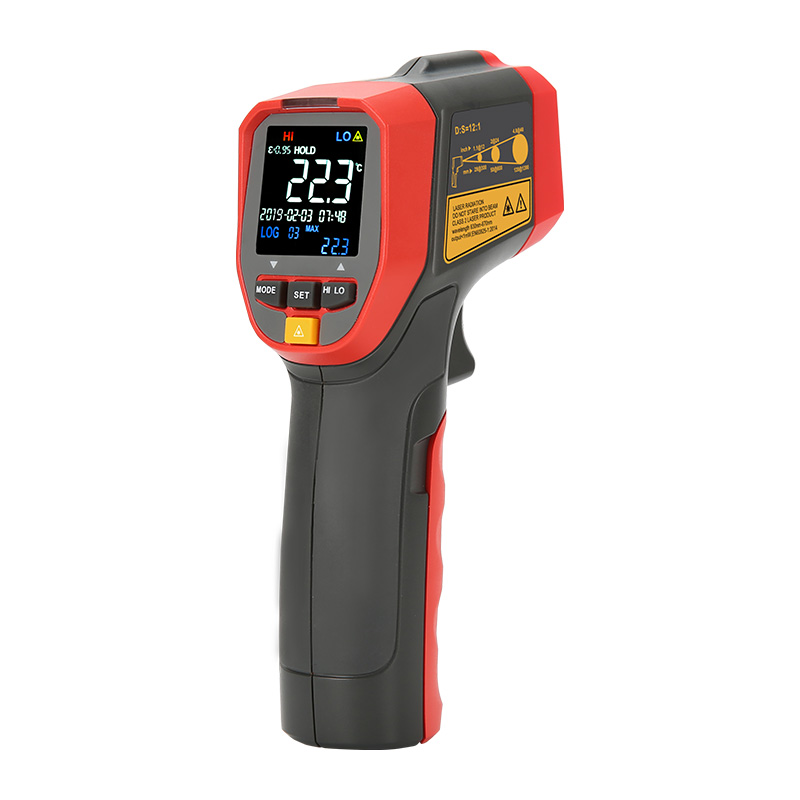

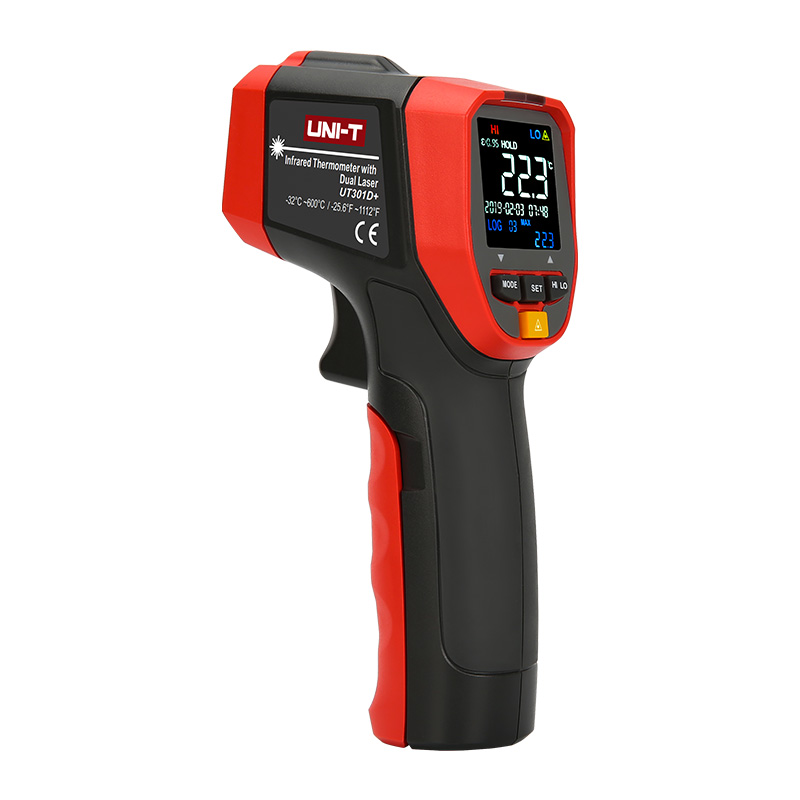

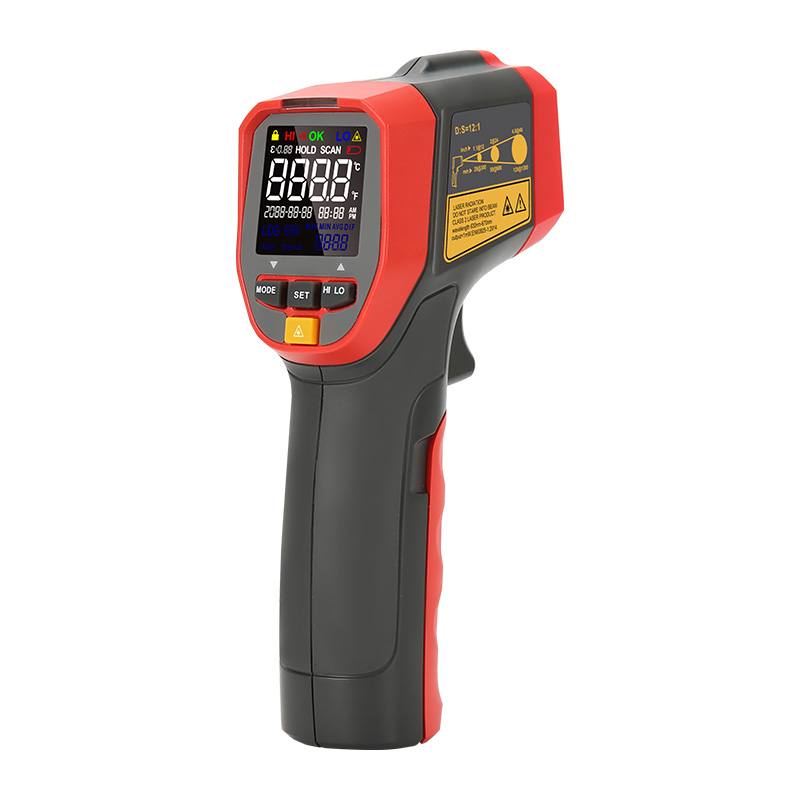

UT301+ Series
Infrared Thermometers

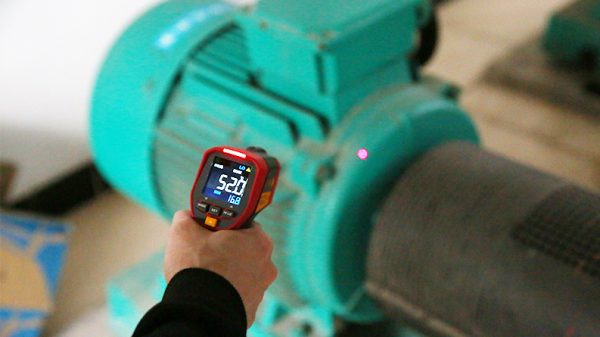

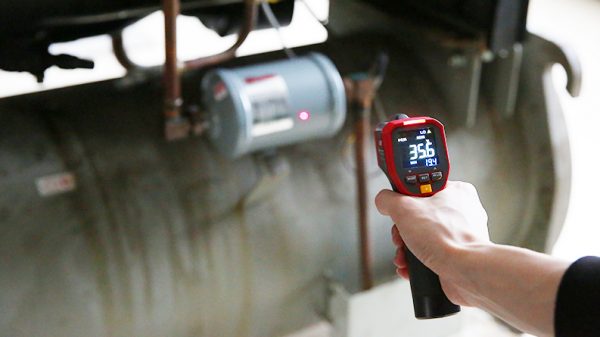

The new UT301+ series is a durable and easy-to-use infrared thermometer with high accuracy/energy (95%)/repeatability. It has the adjustable high and low temperature visual/audible alarm, responding faster than 250ms, which can help you quickly find out anomalies. You can preset and save 5 sets of emissivity values, and quickly switch the emissivity according to different surfaces to get more accurate results. With the lock measurement, MAX/MIN/AVG/DIFF hold, and a tripod mount, UT301A+ is ideal for processes that require temperature monitoring. UT301A+ can be applied to power distribution/transportation equipment inspection, HVAC/equipment maintenance, vehicle troubleshooting, and more fields.

Models in UT301+ Series: UT301A+, UT301C+, UT301D+

Features of UT301+ Series Infrared Thermometers

Certificates: CE, UKCA

12:1 D:S ratio
Adjustable emissivity 0.1~1.0
±1.5℃ temperature measurement accuracy
User deﬁned visual and audio alarm
High contrast EBTN color display
MAX/MIN/AVG/DIFF/Hold modes
Ring Lasers (UT301C+); Dual Lasers (UT301D+)
Temperature recording up to 99 groups (UT301C+/UT301D+)
Date/time display (UT301C+/UT301D+)
Time scheduled measurement (UT301C+/UT301D+)

SPECIFICATIONS

Specifications of UT301+ Series Infrared Thermometers

Specifications	UT301A+	UT301C+	UT301D+
Temperature range	-32℃~420℃	-32℃~600℃	-32℃~600℃
	-25.6℉~788℉	-25.6℉~1112℉	-25.6℉~1112℉
Accuracy	>0℃: ±1.5℃ or ±1.5%; ≤0℃: ±(1.5℃+0.1℃/℃)
	>32℉: ±3.0℉ or ±1.5%; ≤32℉: ±(3.0℉+0.1℉/℉)
Repeatability	0.7℃ or 0.7% (1.5℉ or 0.7%)
D:S ratio	12:1 (95%)
Response time	≤250ms (95% of reading)
Emissivity	0.1~1.0 (adjustable, stores 5 sets of preset values)
Spectral response	8um~14um
Laser power	< 1mW
Features
Auto power off	√
Low battery indication	√
LCD display	Color EBTN
High/low temperature LED alarm	√
High/low temperature audible alarm	√
Data hold	√
℃/℉ selection	√
MAX/MIN/AVG/DIFF mode	√
Lock measurement	√
Data storage	–	99	99
Scheduled measurement	–	√	√
Backlight	√
Operating temperature	0℃~50℃ (32℉~122℉)
Storage temperature	-20℃~60℃ (-4℉~140℉)
Operating humidity	<90% RH (non-condensing)
Drop test	1m
Tripod mounting hole	√
General Characterisitics
Power	9V battery
Display	30mm x 30mm
Product color	Red and grey
Product net weight	204g
Product size	160mm x 74mm x 48mm
Standard accessories	Battery, carrying bag
Standard individual packing	Gift box, blister, English manual
Standard quantity per carton	20pcs
Standard carton measurement	475mm x 350mm x 250mm
Standard carton gross weight	10.43kg
