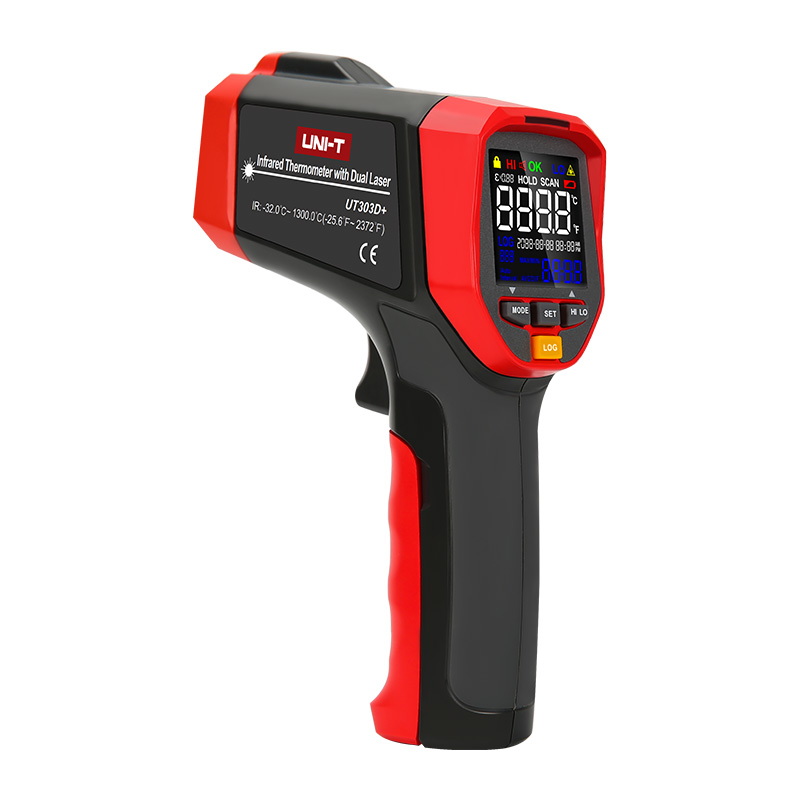

UT302+/UT303+ Series
Series Infrared Thermometers

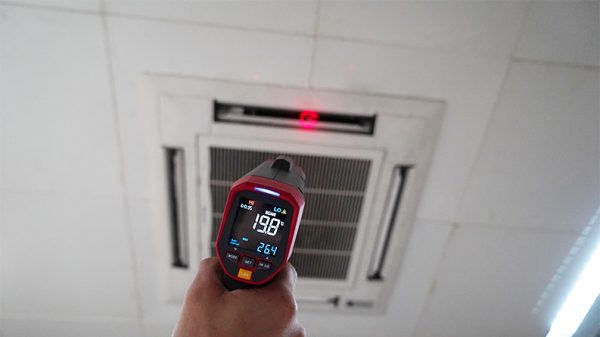

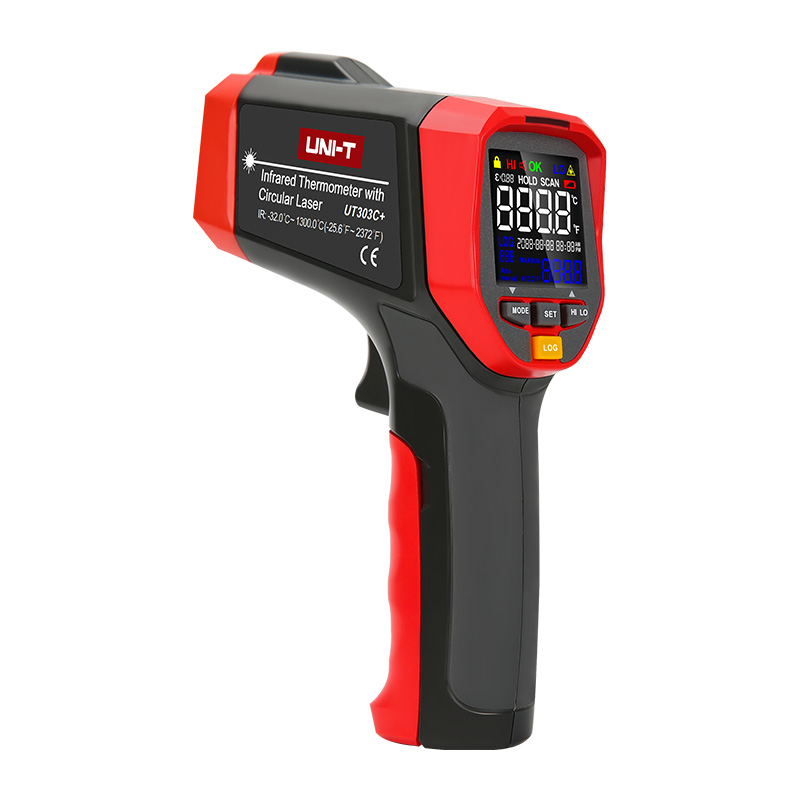

UT302+/UT303+ series infrared thermometer can quickly and accurately determine the surface temperature by measuring the infrared energy radiated from the target surface. It is suitable for non-contact surface temperature measurement. The UT302C+ and UT303C+ have ring laser, an unique patented display method that covers entire measured area, user will know exactly where the measurement is taking place.

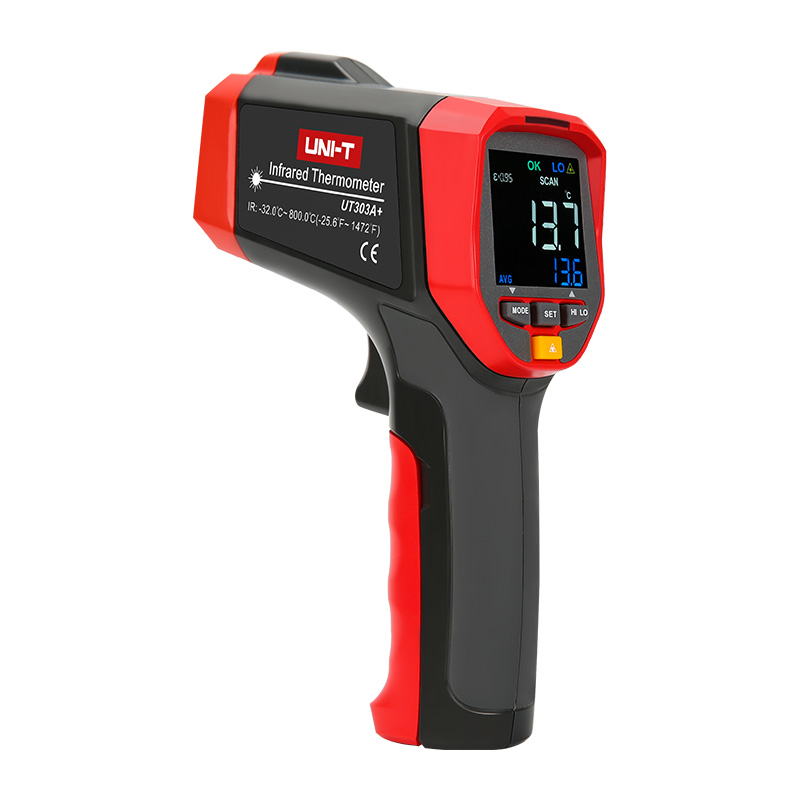

Models in UT302+/UT303+ Series: UT302A+, UT302C+, UT302D+, UT303A+, UT303C+, UT303D+

Features of UT302+/UT303+ Series Infrared Thermometers

Certificates: CE, UKCA

±1.5℃ temperature measurement accuracy
User deﬁned visual and audio alarm

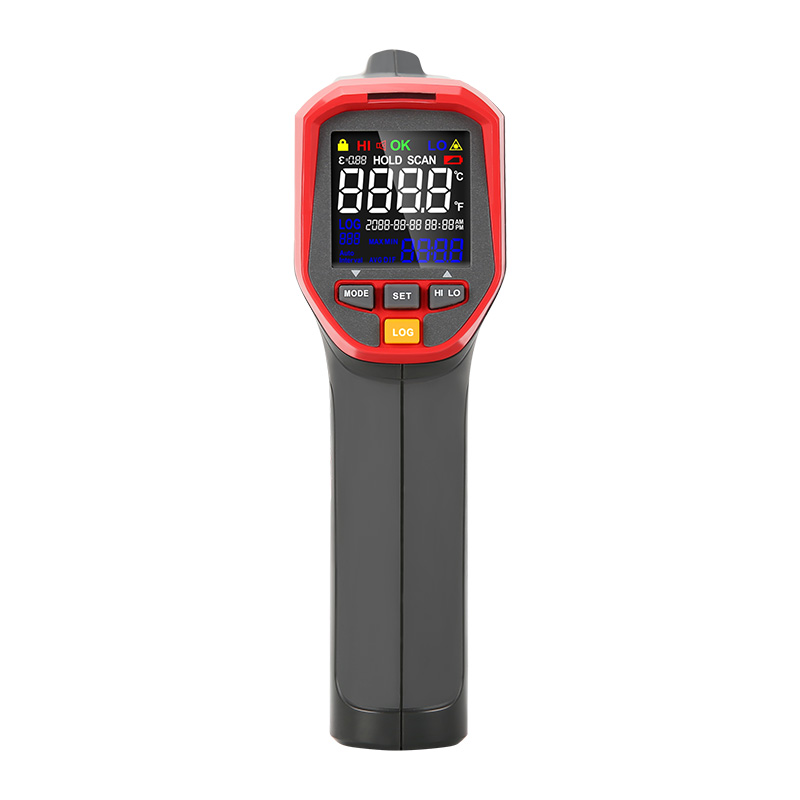

High contrast EBTN color display
MAX/MIN/AVG/DIFF/Hold modes

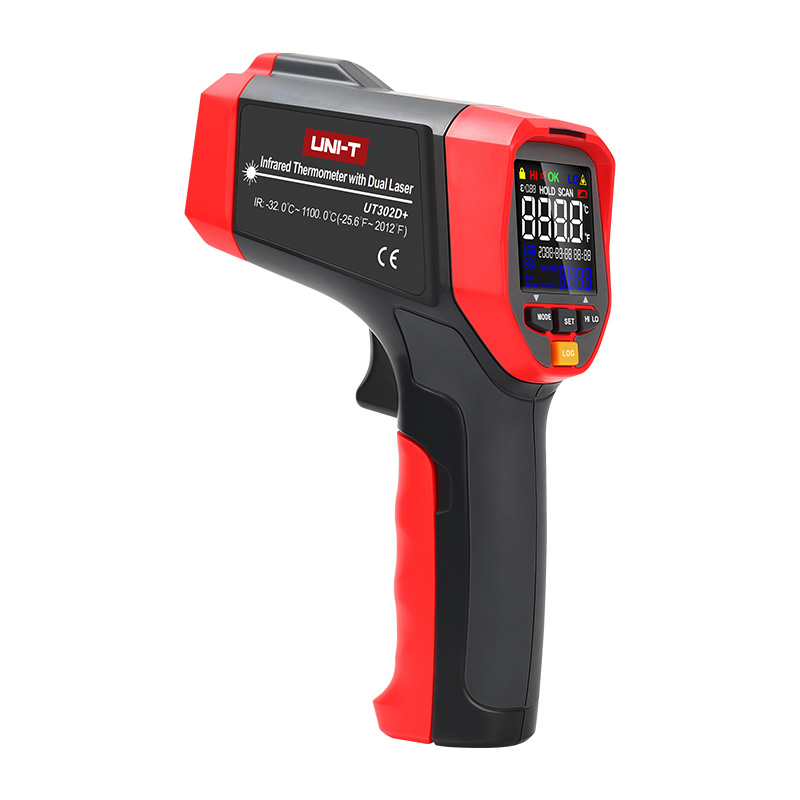

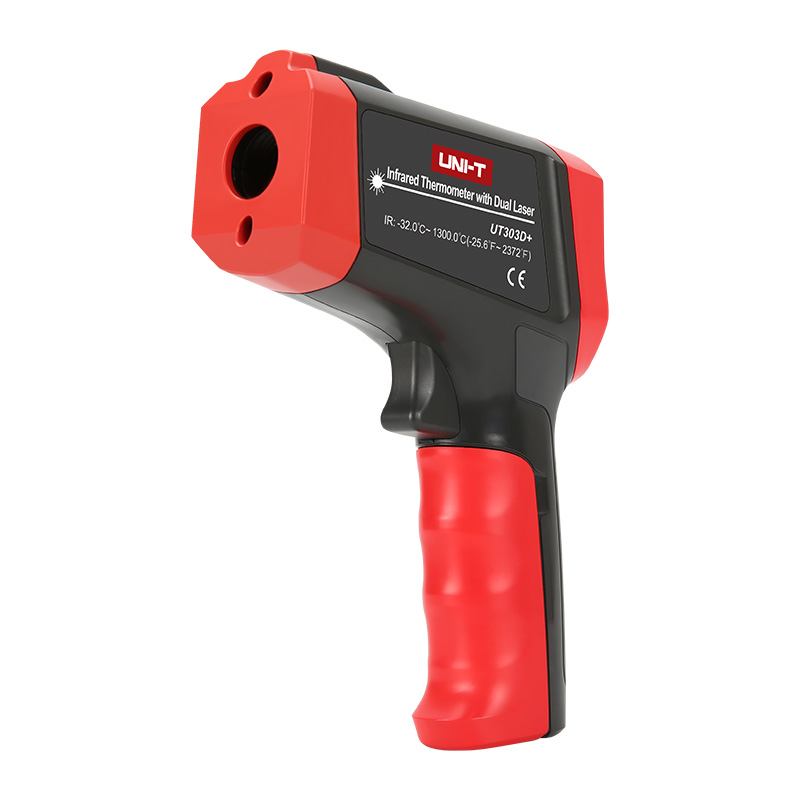

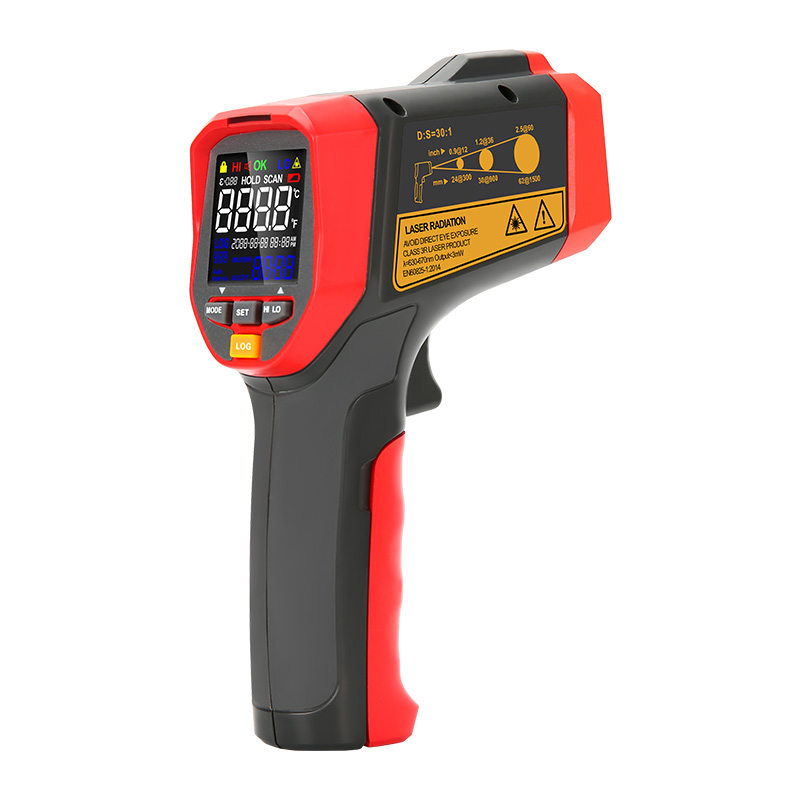

Dual lasers (UT302D+/UT303D+)
Temperature recording up to 99 groups (UT302C+/UT303C+/UT302D+/UT303D+)
Date/time display (UT302C+/UT302D+/UT303C+/UT303D+)
Time scheduled measurement (UT302C+/UT303C+/UT302D+/UT303D+)

SPECIFICATIONS

Specifications of UT302+/UT303+ Series Infrared Thermometers

Specifications	UT302A+	UT302C+	UT302D+	UT303A+	UT303C+	UT303D+
Temperature range	-32℃~700℃	-32℃~1100℃	-32℃~1100℃	-32℃~800℃	-32℃~1300℃	-32℃~1300℃
	-25.6℉~1292℉	-25.6℉~2012℉	-25.6℉~2012℉	-25.6℉~1472℉	-25.6℉~2372℉	-25.6℉~2372℉
Accuracy	≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃)
	≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉)
Repeatability	0.7℃ or 0.7% (1.5℉ or 0.7%)

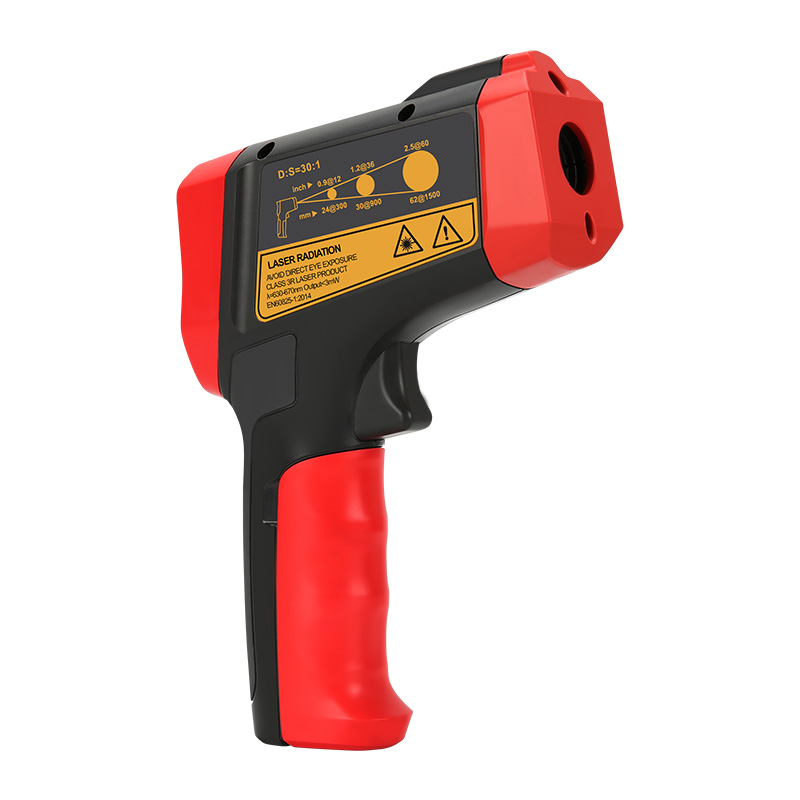

D:S ratio	20:1			30:1
Response time	250ms
Emissivity	0.1~1.0 (adjustable, stores 5 sets of preset values)
Spectral response	8um~14um
Laser power	< 1mW
Features
Auto power off	√
Low battery indication	√
LCD display	Color EBTN
High/low LED alarm	√
High/low audible alarm	√
Data hold/Lock measurement	√
℃/℉ selection	√
MAX/MIN/AVG/DIFF mode	√
Data storage with date and time		99	99		99	99
Scheduled measurement		√	√		√	√
Backlight	√
Operating temperature	0℃~50℃ (32℉~122℉)
Storage temperature	-20℃~60℃ (-4℉~140℉)
Operating humidity	<90%RH (non-condensing)
Drop test	1m
Tripod mounting hole	√
General Characterisitics
Power	9V battery
Display	35mm x 35mm
Product color	Red and grey
Product net weight	310g
Product size	172mm x 113.5mm x 53mm
Standard accessories	Battery, carrying bag
Standard individual packing	Gift box, blister, English manual
Standard quantity per carton	10pcs
Standard carton measurement	425mm x 335mm x 365mm
Standard carton gross weight	6.65kg
