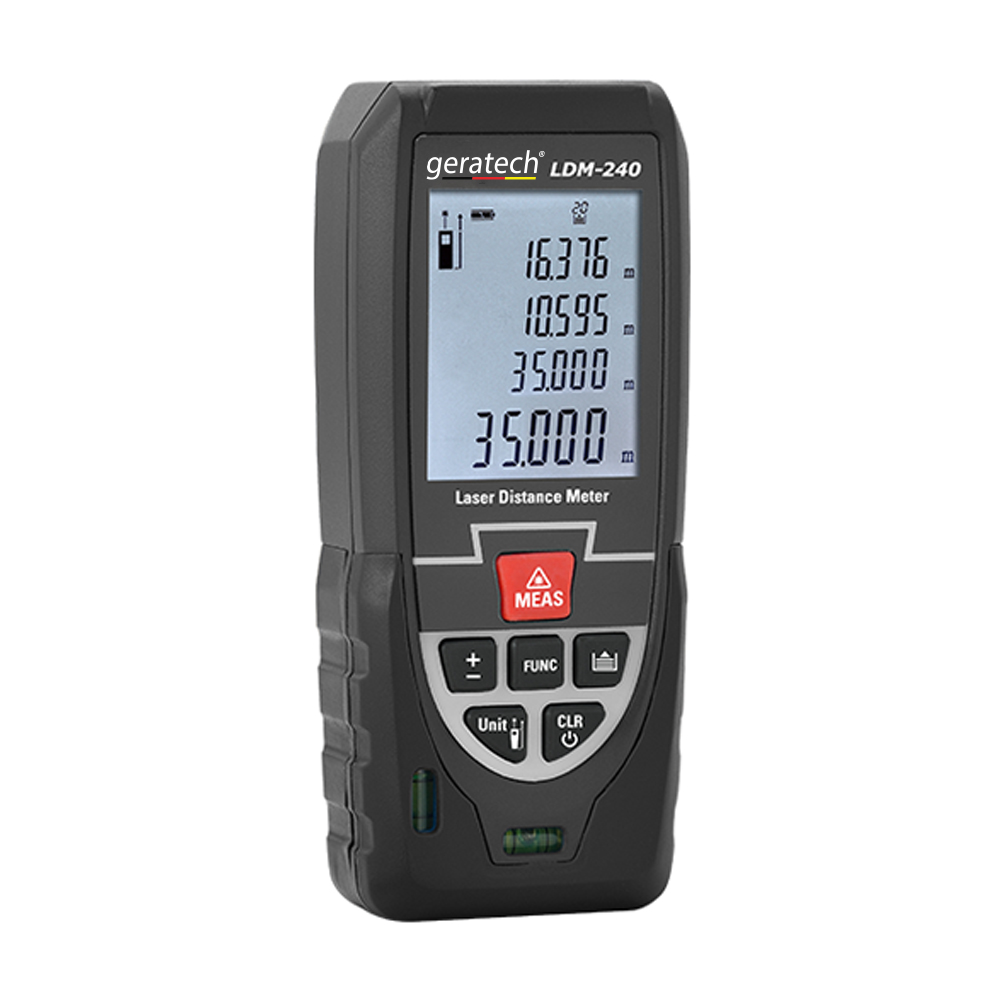

LDM-240/260/280/280H
Mini Laser Distance Meter

Mini Laser Distance Meter

●Area, Volume Calculations
●Indirect Measurement Using Pythagoras
●Indirect Measurement Using Tilt Sensor
●Angle Measurement Using Tilt Sensor (±65°)
●Continuous Measurement
●Addition/Subtraction
●Beep Indication
●Min/Max Distance Tracking
●Laser Continuous
●Timer (self-triggering)
●Stake-out Function
●Display Illumination and Multi-line Display
●Multifunctional Endpiece

FEATURES

Area, Volume Calculations
Indirect Measurement Using Pythagoras
Indirect Measurement Using Tilt Sensor
Angle Measurement Using Tilt Sensor (±65°)
Addition/Subtraction
Continuous Measurement
Min/Max Distance Tracking
Timer (self-triggering)
Laser Continuous
Stake-out Function
Display Illumination and Multi-line Display
Multifunctional Endpiece
Beep Indication

Size(HxWxD): 105mm x 45mm x 25mm

Weight: 115g

SPECIFICATIONS

Specifications LDM-240 LDM-260 LDM-280 LDM-280H
Measuring Range 0.05 to 40m (0.15ft to 131ft) 0.05 to 60m (0.15ft to 197ft) 0.05 to 80m (0.15ft to 229.0ft) 0.05 to 100m (0.15ft to 328.0ft)
Measuring Accuracy Typically ±1.5mm (±0.06in)
Measuring Units m, in, ft
Laser Class Class II 635nm, <1mW
Smallest Unit Displayed 1mm
Tilt Sensor Measuring Range ±65°
Bluetooth Distance 10m
Dust Protect/Splash Proof IP54
History Measurement Records 99
Keyboard Type Super Soft-touch (Long Life)
Operating Temperature -10℃ to 50℃ (14℉ to 122℉)
Storage Temperature -20℃ to 60℃ (4℉ to 158℉)
Battery Life Up to 5,000 Measurements
Auto Laser Switch-off After 0.5min
Auto Instrument Switch-off After 3min

ACCESSORIES

Accessories:

2 x 1.5V “AAA” batteries and gift box with carrying case.
