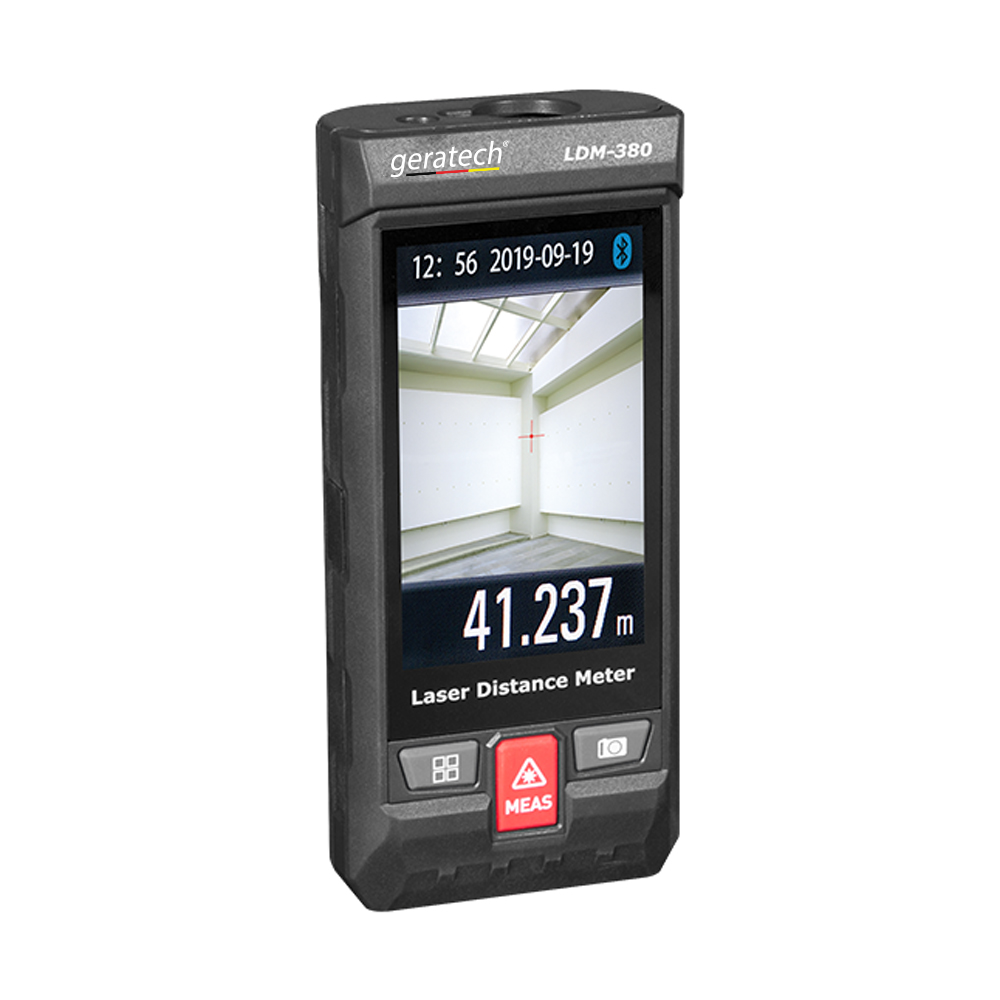

LDM-300/350/380
Mini Laser Distance Meter

Mini Laser Distance Meter:

●Area, Volume Calculations
●Indirect Measurement Using Pythagoras
●Addition/Subtraction
●Continuous Measurement
●Min/Max Distance Tracking
●Timer (self-triggering)
●Laser Continuous
●Stake-out Function
●Display Illumination and Multi-line Display
●Buzzer Indication
●Multifunctional Endpiece
●Bluetooth Interface
●Meterbox iLDM & Cloud Service

FEATURES

Features LDM-300 LDM-350 LDM-380
3.5″ TFT Color LCD Display * *
Built-in Camera *
Images (JPEG) & Video (3GP) *
Micro SD Memory Card & Datalogger Function *
Electrical Compass * *
Angle Measurement Using Tilt Sensor (±90°) * *
Area, Volume Calculations * * *
Indirect Measurement Using Pythagoras * * *
Addition/Subtraction * * *
Continuous Measurement * * *
Min/Max Distance Tracking * * *
Timer (self-triggering) * * *
Laser Continuous * * *
Stake-out Function * * *
Display Illumination and Multi-line Display * * *
Buzzer Indication * * *
Multifunctional Endpiece * * *
Bluetooth Interface * * *
Meterbox iLDM & Cloud Service * * *

Size(HxWxD): 138mm x 55mm x 35mm

Weight: 165g

SPECIFICATIONS

Specifications LDM-300 LDM-350 LDM-380
Measuring Range 0.05 to 100m (0.15ft to 328.0ft) 0.05 to 150m (0.15ft to 492.0ft) 0.05 to 200m (0.15ft to 656.0ft)
Measuring Accuracy Typically ±1.5mm (±0.06in) Typically ±1.5mm (±0.06in) Typically ±1.5mm (±0.06in)
Smallest Unit Displayed 1mm 1mm 1mm
Measuring Units m, in, ft m, in, ft m, in, ft
Laser Class Class II 635nm, <1mW Class II 635nm, <1mW Class II 635nm, <1mW
Range of Bluetooth 10m 10m 10m
Camera Pixels     5Mega
Compass Measuring Range   0-360° 0-360°
Compass Measuring Accuracy   ±2° ±2°
Tilt Sensor Measuring Range ±90° ±90° ±90°
Tilt Sensor Measuring Accuracy   ±0.5° ±0.5°
Dust Protect/Splash Proof IP54 IP54 IP54
History Measurement Records 99 99 99
Keyboard Type Super Soft-touch (Long Life) Super Soft-touch (Long Life) Super Soft-touch (Long Life)
Operating Temperature -10℃ to 50℃ (14℉ to 122℉) -10℃ to 50℃ (14℉ to 122℉) -10℃ to 50℃ (14℉ to 122℉)
Storage Temperature -20℃ to 70℃ (4℉ to 158℉) -20℃ to 70℃ (4℉ to 158℉) -20℃ to 70℃ (4℉ to 158℉)
Battery Life Up to 8,000 Measurements Up to 5,000 Measurements Up to 5,000 Measurements
Auto Laser Switch-off After 0.5min After 0.5min After 0.5min
Auto Instrument Switch-off After 3min After 3min After 3min

ACCESSORIES

Accessories:

2 x 1.5V “AAA” batteries and gift box with carrying case.
