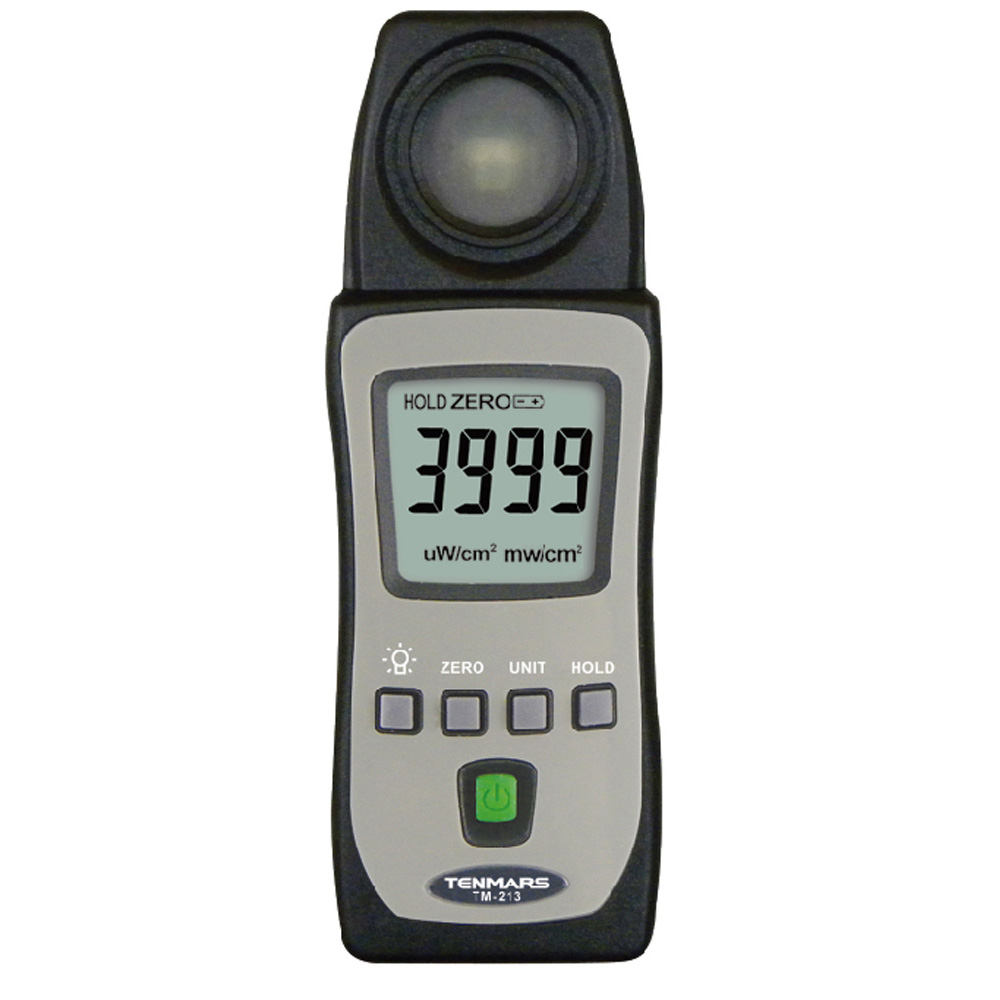

TM-213
Pocket Size UVAB Light Meter

  • Ultra-violet irradiation measurement of UV.
  • UV detector spec trim from 290 nm to 390 nm.

APPLICATION

APPLICATIONS INDUSTRIAL
  • Monitoring blue light radiation hazards in welding.
  • UV sterilization.
  • Graphic arts.
  • Photochemical matching.
  • UV EPROM erasure.
  • Photos resist exposure.
  • Curing of inks, adhesives and coatings.
  • Convenient, no need to adjust, data displayed clearly.
LABORATORY
  • Weathering “degradation studies”.
  • UV sterilization.
  • Virology.
  • Microbial genetics.
  • DNA research.
  • Biologic hoods.
  • General laboratory use.

FEATURES

  • Professional, high quality UV meter.
  • Ultra-violet irradiation measurement of UV
  • UV detector spec trim from 290 nm to 390 nm.
  • Measurement range: 3999 uW/cm2 and 39.99 W/cm²
  • Build Zero button.
  • Microprocessor circuit provides high reliability and durability.
  • Separate UV LIGHT probe allows user to measure the UV light at an optimum position.
  • LCD display, easy readout.
  • Overload display OL.
  • Power off : Manual on/off by push button, or auto shut off after 15 minutes
  • Measurement: There 1μw/cm², 1.00mW/cm² .

SPECIFICATIONS

 Display
 3¾ digits LCD with maximum reading 4000
 Ranges and range
 3999 uW/cm² ~39.99mW/cm²
(1000 uW/ cm²=1 mW/cm²)
 UV sensor spectrums Band pass
 290 nm to 390 nm
 Accuracy
 (±4%FS +2dgt )
FS: full scale15%:sunlight ultraviolet
Peak sensitivity wavelength
 365 nm
Sample Time Approx
 3 sec
Over-input
 Display shows” OL”
Size Main instrument
 133 x 48 x 27 mm. approx 90g.
EMC
 this instrument is EMC-compliant and
 has undergone compatibility tests according
 to EN61326 (1997) + A1 (1998) + A2 (2001)

ACCESSORIES

  • User manual.
  • 1.5V battery (AAA MN2400 LR03 AM4)*2.
  • Carrying case.
