APPLICATION

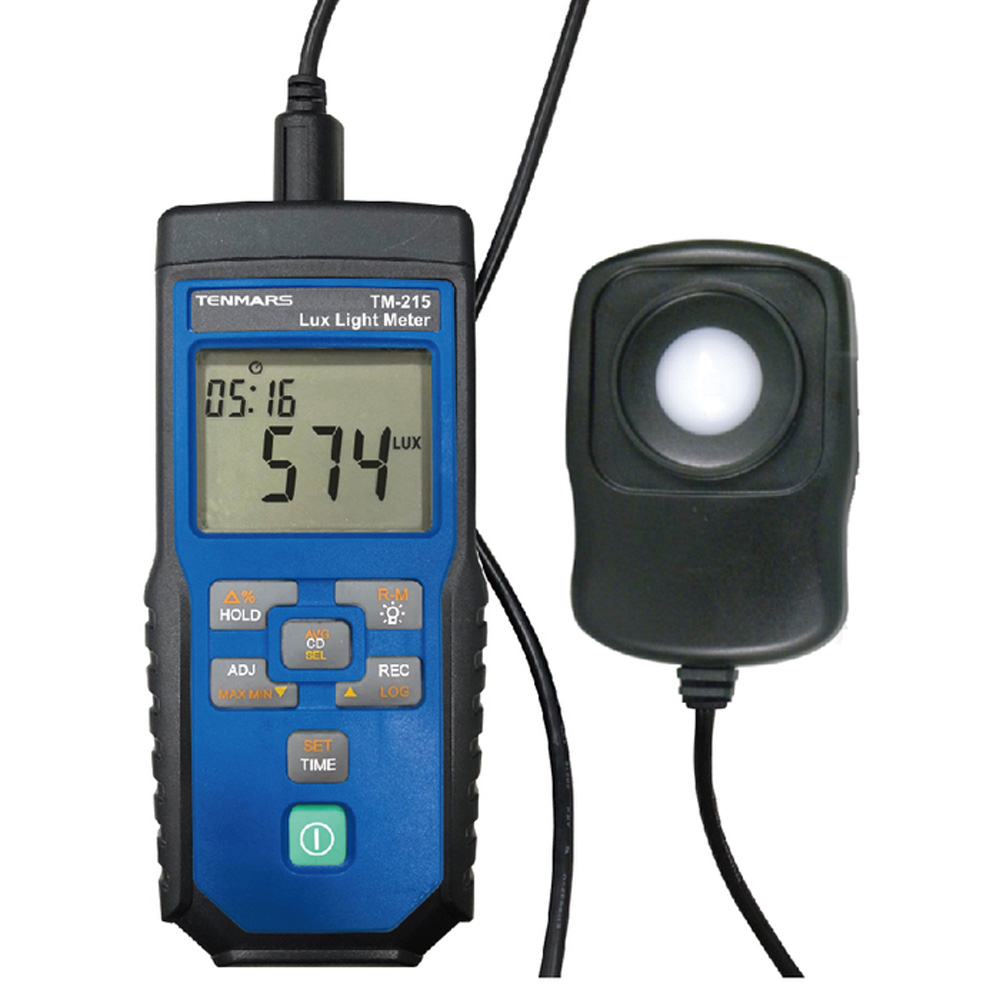

Lux Light Meter is designed for measuring Luminance (unit: Lux/FC) and Luminous intensity (unit: candela or CD), while complying with the specifications: DIN5032-7-2017 Class C, JJG 245-2005 Class B, JIS C 1609-1: 2006 Class A,CNS5119
FEATURES
-
Display of reading: LCD display with 4 digits, where the maximum number shown is 9999.
-
Unit: LUX /FC/CD
-
Data holding function (HOLD)
-
Automatic and manual shifting
-
Backlight display
-
Auto power off (15 minutes after last usage) and
-
disable the function.
-
Maximum/minimum hold.
-
Overload indication: “OL”.
-
Datalogging capacity 7000 records.
-
Interval of data storage: 1 second to 10 days.
-
Low battery indication
-
Average of 4 or 5 point
-
Transmittance measurement
SPECIFICATIONS
- Dimensions:140x65x37.5mm(length x width x height).
-
Sensor:81x57x28(H) mm(length x width x height).
-
The line length of the light receiver: approximate 100 cm.
- Weight: Approximately 300 grams.
ELECTRIC SPECIFICATION
Accuracy is specified for ambient temperatures between 15°C to 28°C (59°F to 82°F)
|
Standard
|
Comply with DIN 5032 Part7 Class C、
JIS C 1609-1:2006 Class A、JJG 245-2005 Class B
|
|
|
Test Range
|
400.0/4000/40,000/400,000 Lux
40.00/400.0/4,000/40,000 Foot-Candle
|
|
|
Accuracy
|
0.1/1/10/100 Lux
0.01/0.1/1/10 Foot-Candle
|
|
|
Relative spectral
response (f1´) |
±8% CIE visible light V(λ)
|
|
|
Cosine characteristic (f2)
|
±6%
|
|
|
Oblique incident light characteristic
|
angle
|
10˚: ±1.5%
|
|
30˚: ±3%
|
||
|
60˚: ±10%
|
||
|
80˚: ±30%
|
||
|
Accuracy
|
±3% (for light source A of 2856˚K )
|
|
|
Linearity (JISC 1609-1:2006)
(Accuracy of various light sources)
|
< 3000 Lux :±5% with reading ± 1
3000 Lux to 9999 Lux:±7.5% with reading ± 1
> 10000Lux(930 FC) N/A
|
|
|
Initial Adjustment(fADJ)
DIN5032 Part7 JJG 245-2005
|
±5% with reading ± 1
|
|
|
Linearity(f3) DIN5032
Part7 JJG 245-2005 |
±2.5%
|
|
|
Range change(f11)
|
±2%
|
|
|
Fatigue(f5)
|
-1%
|
|
|
IR response(fIR)
|
±4%
|
|
|
UV response(fUV)
|
±2.5%
|
|
|
Temperature(f6T)
|
±1%
|
|
|
Response time
|
Auto shifting: ≦5 seconds
Manual shifting: ≦2 seconds
|
|
ACCESSORIES
-
User manual
-
USB cable
-
9V battery
-
Carrying case
-
AC 100~240V to DC 9V/0.5A(9mm) adaptor
