BLL
Wood Chip Moisture Meter with Insertion Probe

Measuring Range: 10 – 50% MC

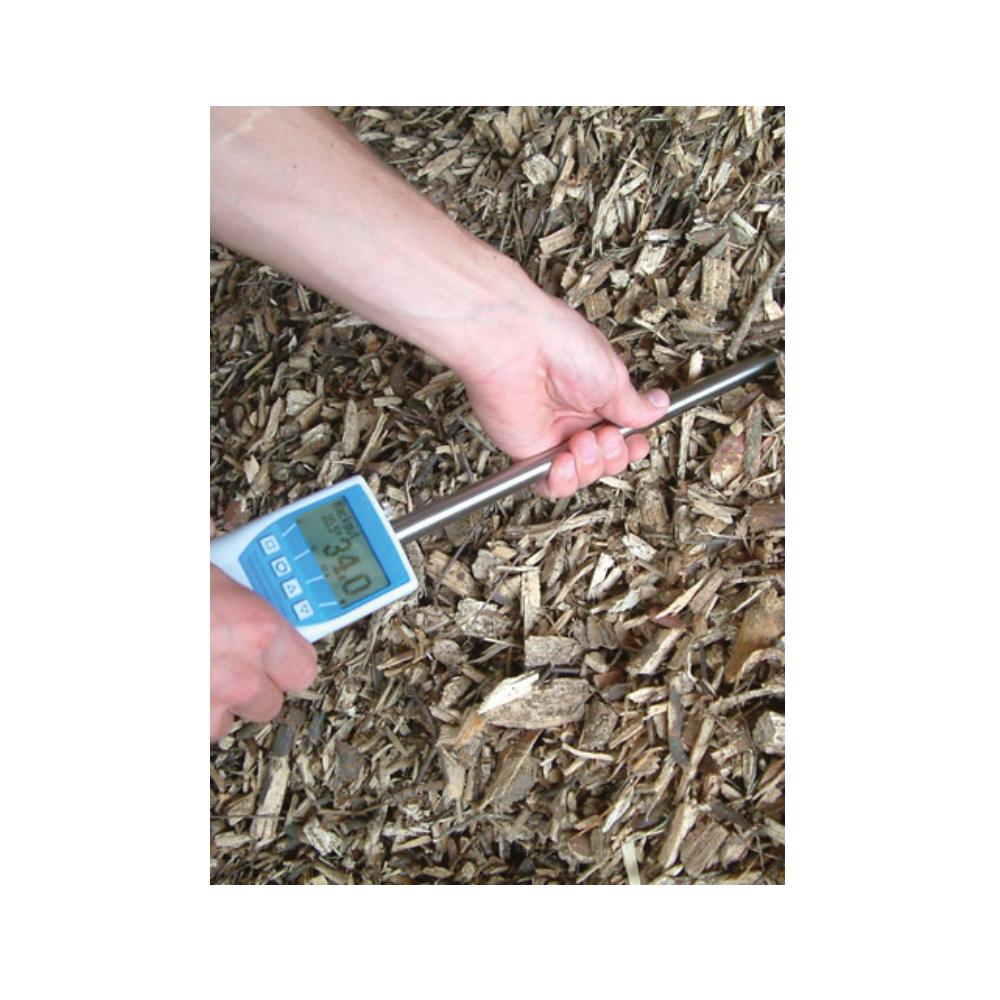

Accurately measure the moisture content in Wood Chips with our BLL meter. One meter long insertion probe for easy measurement in deep piles of chips. The BLL is supplied with three (3) separate calibration curves, depending upon the physical makeup of the wood chips to measured. There are defined into the following classes as described in the European Standards as; Wood Chips, Coarse WC and Industry WC.

Measuring Range: 10 – 50% MC

Wood Chips
A mix of different-sized wood chips
all LESS THAN 70 mm (2-3/4″)

Coarse WC
Equal-sized wood chips approx. 70 mm (2-3/4″)

Industry WC
A mix of different-sized wood chips
all LARGER THAN 70 mm (2-3/4″)

Complete Kit

The BLL is supplied as a complete kit including the meter with rubber protective shell and integrated insertion probe, handle extension, AA batteries and instruction manual in a fitted wood carrying case. BLL-USB also includes data transfer software and USB cable.

	Item	Descrıptıon
	BLL	BLL Moisture Meter for Wood Chips supplied in Wooden Carrying Case with Handle
	BLL-PEAT	BLL Moisture Meter for Peat/Turf supplied in Wooden Carrying Case with Handle
	BLL-USB	BLL Moisture Meter with Insertion Probe in Carrying Case with memory and USB output. Includes software.
	BLL-PEAT-USB	BLL Moisture Meter for Peat/Turf supplied in Wooden Carrying Case with Handle, with USB output, includes free software.

FEATURES

Directly mounted 1 meter long insertion probe
Conversion of wood moisture into water content
Automatic averaging
Sample temperature measurement
Automatic temperature compensation
Temperature can be set to °C or °F as required
Measurement within seconds without prior treatment of samples
Hold function, manual saving of results, data log for 10,000 logs within measuring point report
Supplier’s data can be recorded
Large, well-lit LC display
BLL-USB is supplied with USB output including software and data transfer cable
Gauge menus in English, German, French, Italian, Spanish and Russian
Supplied in custom fitted wood carrying case

SPECIFICATIONS

Measuring range	up to 50% water content depending on material
Resolution	0.5% water content (0.5 °C or °F)
Accuracy	± 3%
Measurement Technique	Resistance, Click for more info
Temperature Range for determination water content	0° – 40° C
Temperature Measurement Range	-10°C to + 80°C
Length of insertion probe	1 meter
Menu languages	English, German, French, Italian, Spanish and Russian
Housing	Plastic with IP40 rating
Data logger	10,000 moisture measurements plus date, batch & temperature
Data Interface (BLL-232 only)	RS-232, 9600/8/N/1 (supplied with transfer cable & USB converter)
Display	Graphic LCD display with backlight (128 x 64 pixel)
Temp Compensation	Automatic in °C or °F using built-in temperature probe
Power	4 x 1.5 Volt AA Alkaline batteries
Battery Life	900 measurements (with auto-off after 6 minutes of non-use)
Shipping Dimensions	6″ x 6″ x 48″
MC% Method	Wet Basis (http://tinyurl.com/qayqvqe)
