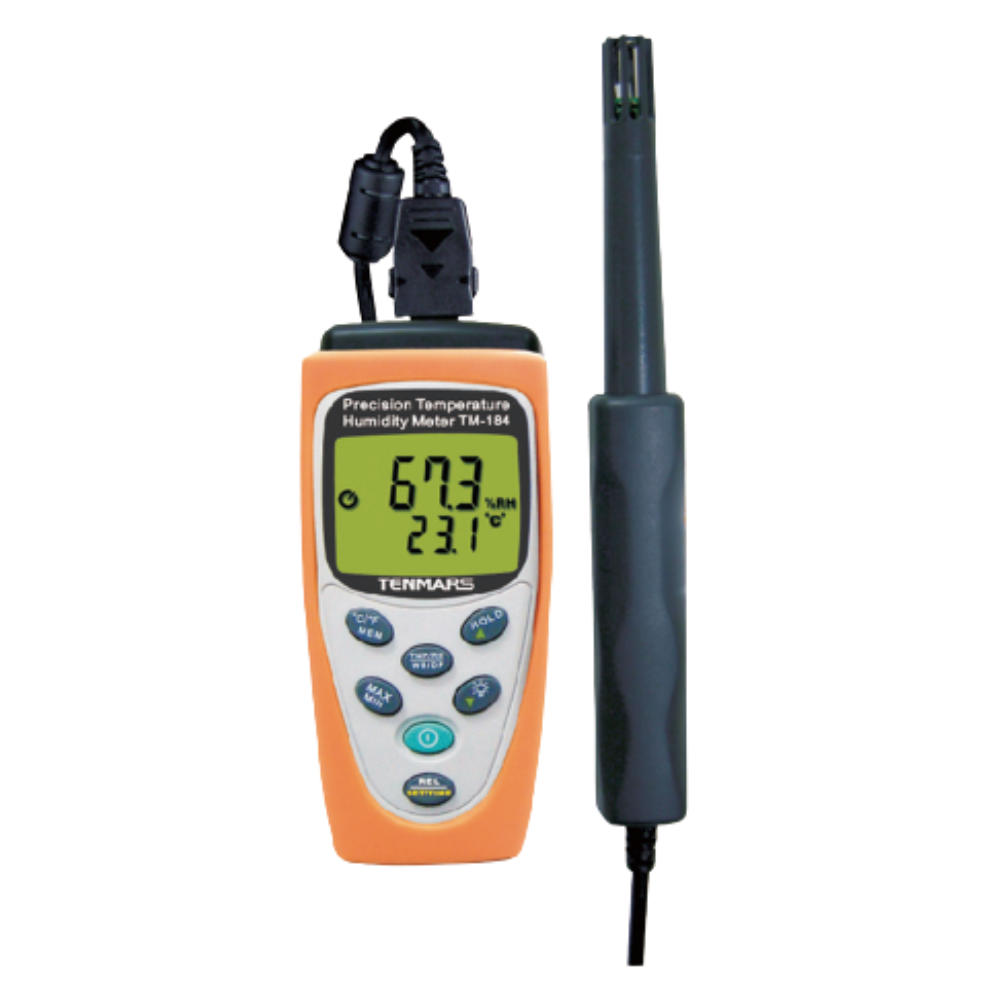

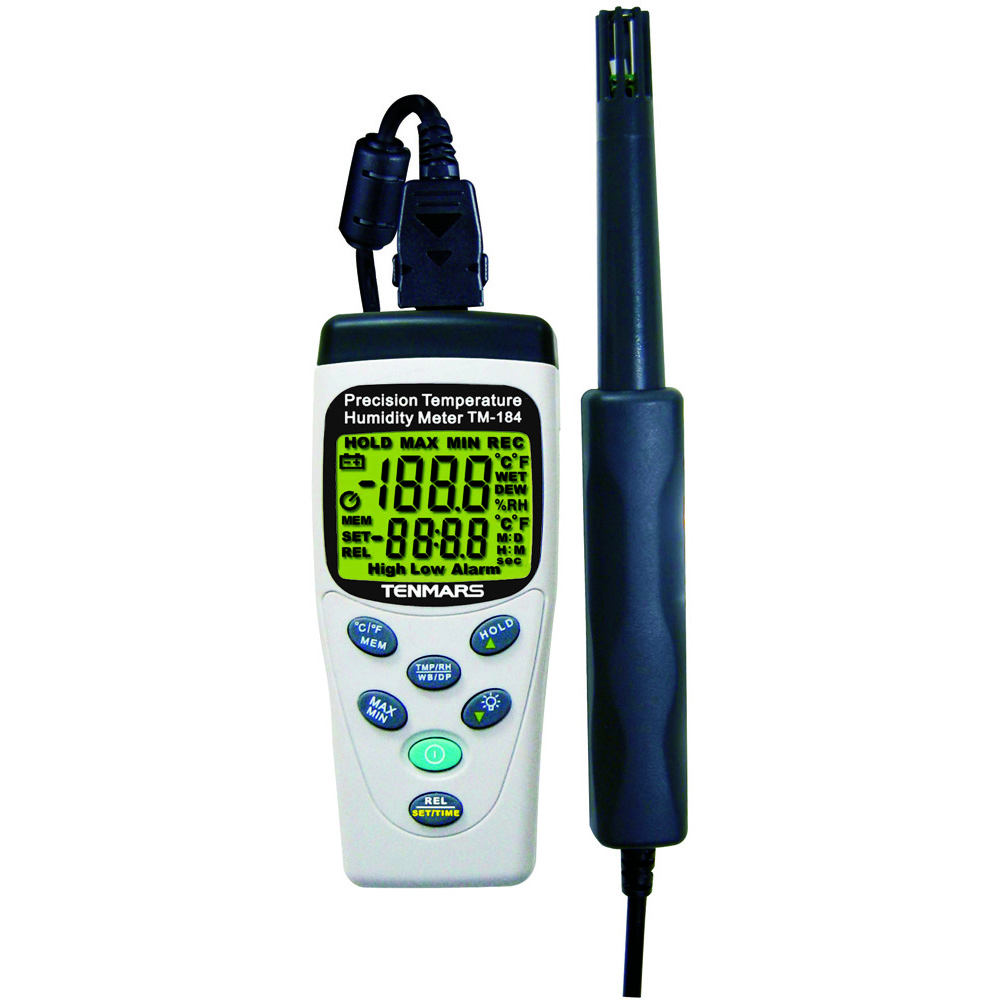

TM-184
Precision Temperature & Humidity Meter with Datalogging Function

High Accurancy Measuremetn up to 1%RH. Light weight, pocket-sized design. Take accurate measurement for humidity, temperature, wet bulb and dew point.

APPLICATION

Maintenance, Utility, Technicians ,and HAVC-service

FEATURES

  • LCD display.
    humidity detective capability up to 999, and temperature detective capability up to 1999.
  • It shows both the value of temperature and humidity.
  • The measurement of °C or °F.
  • Real time data.
  • Data Hold function.
  • Alarm function.
  • Back Light
  • Auto Power Off
  • DEW-POINT and WET-BULB temperature.
  • USB PC interface.
  • Low battery indication.
  • Over load display “OL”.

SPECIFICATIONS

  • Temperature sensor :Diode.
  • Humidity Sensor :Capacitor Sensor.
  • Sampling :1 times/second.
  • Dimensions:130x56x38mm(length x width x height).
  • Weight: Approximately 250 grams.
Electrical Specifications
Measurement Range
 Humidity
 1%~99%
Temprature -20.0°C～60.0°C/-4.0°F～140.0°F
Temperature Accuracy
 ±0.5°C/±1.0°F (0.0°C ~40.0°C /32°F~104°F) ;
other ±2.0°C /3.6°F.
Humidity Accuracy
 ±1.0%RH (15%RH~90%RH).@25ºC
 ±2.5%RH (<15%RH,>90%RH).@25ºC

ACCESSORIES

  • User’s Manual
  • 9V Battery
  • Carrying case
  • MINI USB 4P(MALE) to USB A Type cable
  • Install CD
