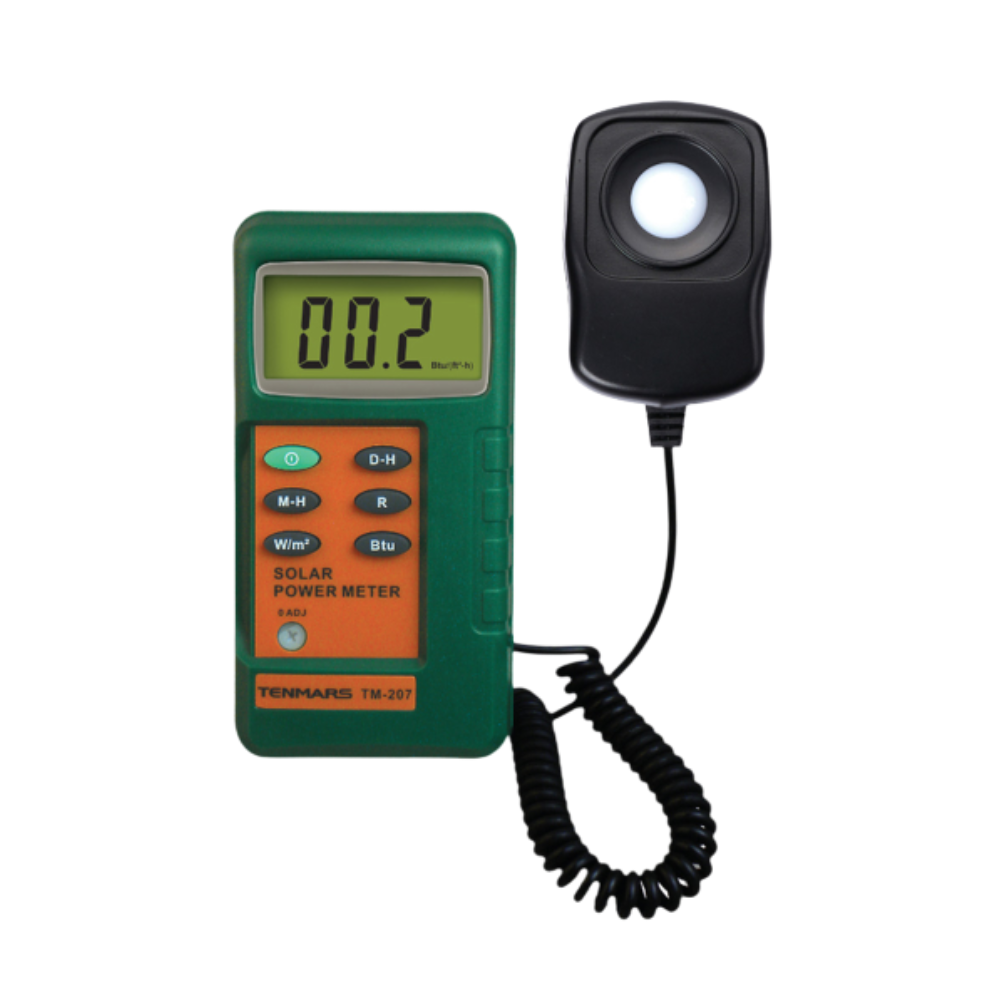

TM-207
SOLAR POWER METER

Measurement: Expressed by W/m² or BTU (ft² *h)

APPLICATION

TM-207 SOLAR POWER METER

Measurement: Expressed by W/m² or BTU (ft² *h)

Application

  • Transmission measurement is most suitable for measuring the effectiveness of the solar film.
  • Solar radiation measurement.
  • Car windows light intensity measurement.
  • Optimal incident angle for the solar panel.
  • Measurement of the sun’s transmission through transparent and film glass
  • Convenient, no need to adjust, data displayed clearly.

FEATURES

  • Super low price, high precision.
  • Measurable light sources, including all visible light.
  • Overload display OL.
  • Select either W/m2 or BTU / (ft2*h) units1
  • Stable for long use.

SPECIFICATIONS

  • DISPLAY:3½ digits LCD with maximum reading 1999.
  • Dimensions:132x60x38mm(length x width x height).
  • Weight: Approximately 150 grams.
ELECTRIC SPECIFICATION
 Resolution
 1W/m2 、1 BTU / (ft2*h)
 Accuracy
 < ±3/year
 Over-input
 Display shows” OL”.
 Range
 1999W/m2、634 BTU /(ft2*h).
 Accuracy
  typically within ± 10W/m2 [ ±3 BTU / (ft2*h) ] or
  ±5% , whichever is greater in sunlight;
  Additional temperature induced error
 ±0.38W/m2 / °C [ ±0.12 BTU / (ft2*h)/ °C] from 25°C
 EMC
  this instrument is EMC-compliant and
  has undergone compatibility tests according
  to EN61326 (1997) + A1 (1998) + A2 (2001)
 Spectrum Reaction
  400~1100nm

ACCESSORIES

  • Manual
  • 9V alkaline battery
  • Carrying case
