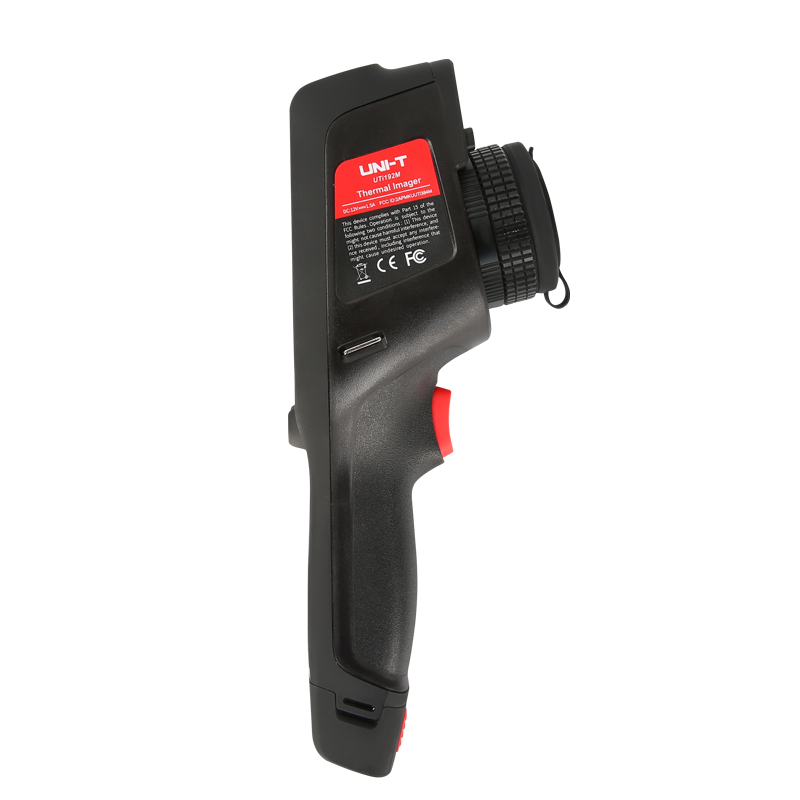

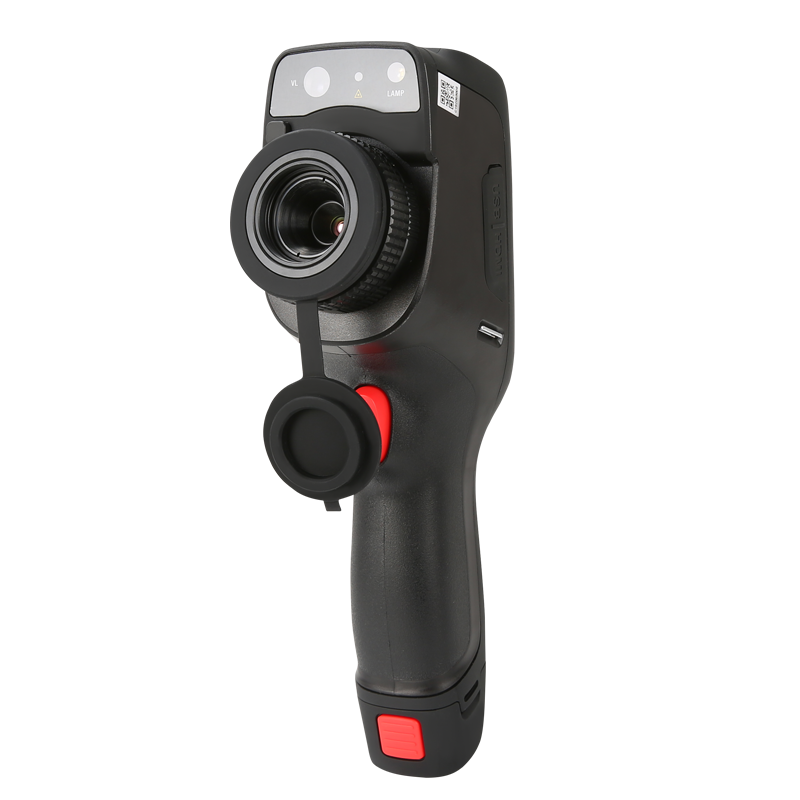

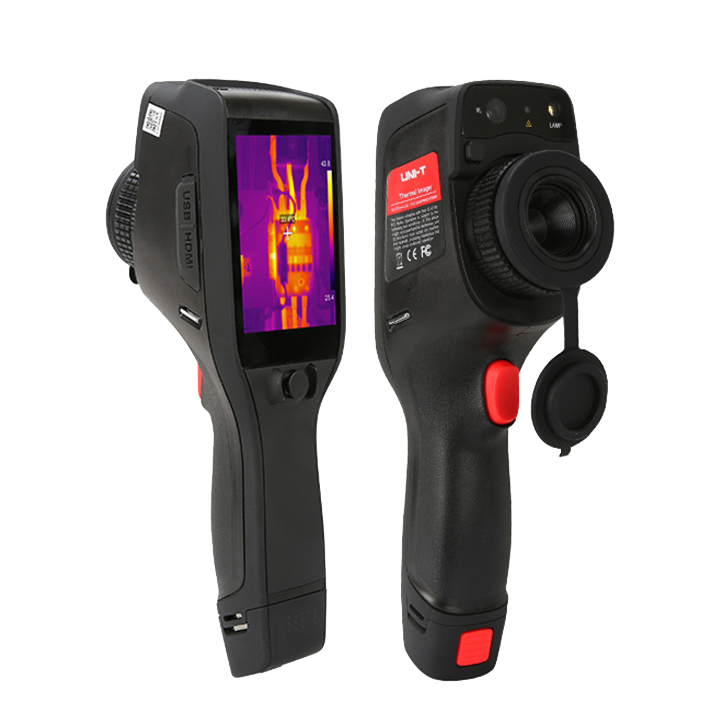

UTi192M
Intelligent Pro-grade Thermal Camera

UTi192M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step, so that first-time users can also become experts! UTi192M is equipped with a high intensity light, so that you can easily take clear visible light and infrared contrast pictures, easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature (1500℃ ) for different applications.

Intelligent Pro-grade Thermal Camera

UTi192M inherits the classic functions of high-end infrared thermal imagers, with simple appearance and ergonomic design. The touch-display screen menu navigation interface is convenient for users to operate easily. There are professional tips for each step, so that first-time users can also become experts! UTi192M/UTi384M is equipped with a high intensity light, so that you can easily take clear visible light and infrared contrast pictures, easier to find abnormalities. We also offer a wide range of high quality optional infrared lenses with higher temperature (1500℃ ) for different applications.

Features :

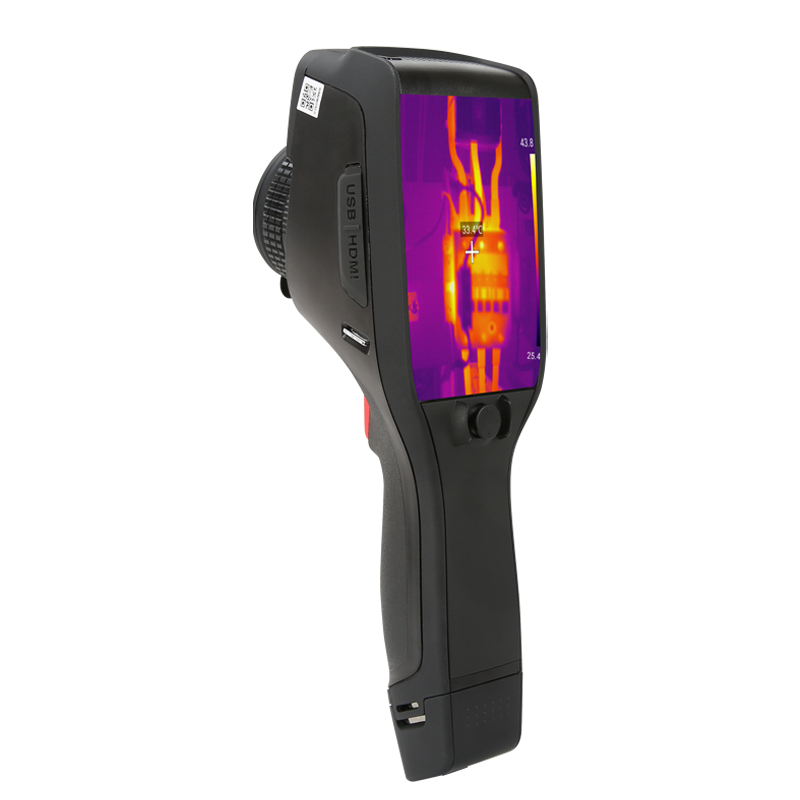

  • 4” touch display screen (800×480 Pixels)
  • IR resolution: 192×144
  • Temperature measurement range: -20℃ to 650℃ , external lens up to 1500℃ / -4℉ to 1202 ℉, external lens up to 2732℉
  • Interchangeable lens (Optional Telephoto lens / High Temp lens)
  • Manual focus
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer: 5 Points/2 Lines/5 Rectangles/5 Circles
  • Image capture
  • Video recording
  • Voice recording
  • Bluetooth connection
  • Digital camera resolution: 5MP
  • Digital zoom: 1.1~4x (continuous zoom)
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 8 (White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
  • Isotherm : 2(Above, Below)
  • LED flashlight
  • Laser pointer
  • Wi-Fi connection through Mobile APP
  • PC software analysis and real-time image projection
  • Replaceable battery pack
  • IP54

SPECIFICATIONS

Product Specifications of UTi192M

Technical Data
IR resolution (Pixels) 192×144
Display 4” LCD Touch (800×480)
Field of view(FOV) 37.8°×28.8°
Thermal sensitivity(NETD) ≤50mk
Spatial resolution(IFOV) 3.45mrad
Frame rate ≤25Hz
Spectral range 7.5~14µm
Focus Manual
Temperature measurement range  -20℃~650℃（standard lens）
650~1500℃ (optional lens)
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 8
(White hot, Fulgurite, Ironbow, Hot iron, Medical, Arctic, Rainbow 1, Rainbow 2)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 5 Points/2 Lines/5 Rectangles/5 Circles
Digital camera resolution 5MP
Digital zoom 1.0~4x continuous
Hi/Lo temperature alarm Icon,LED flashlight,Buzzer
Isotherm Above, Below
Software analysis PC
Video recording √
Voice recording √
Wi-Fi / Bluetooth √ / √
Laser pointer √
General Characteristics
Battery Detachable Li-ion battery (7.2V 2300mAh)
Battery operation time  ≥ 4 hours

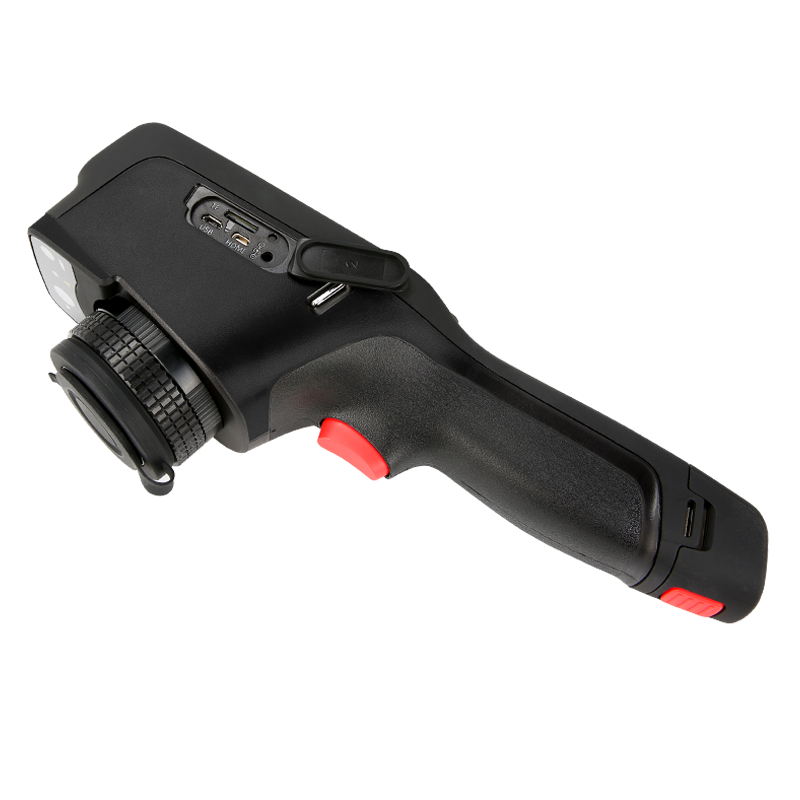

USB HDMI,Micro USB
IP rating IP54
Storage 16G Internal, 16GB SD card
Image/Video storage format Picture: JPEG; Video: irgd
Certificates CE,FCC,RoHS
Product net weight 840g
Product size 274mm×106mm×78mm
Packing Details
Standard accessories Lithium battery, Adapter, Adapter plugs, USB cable, Wristband, HDMI cable, CTP gloves, Quick start guide, English manual, TF card
Standard individual packing Toolbox,Gift box
Standard Qty per carton 1
Standard carton size 480mm×370mm×235mm
Standard carton G.W. 4kg

APPLICATIONS

Applications of UTi192M

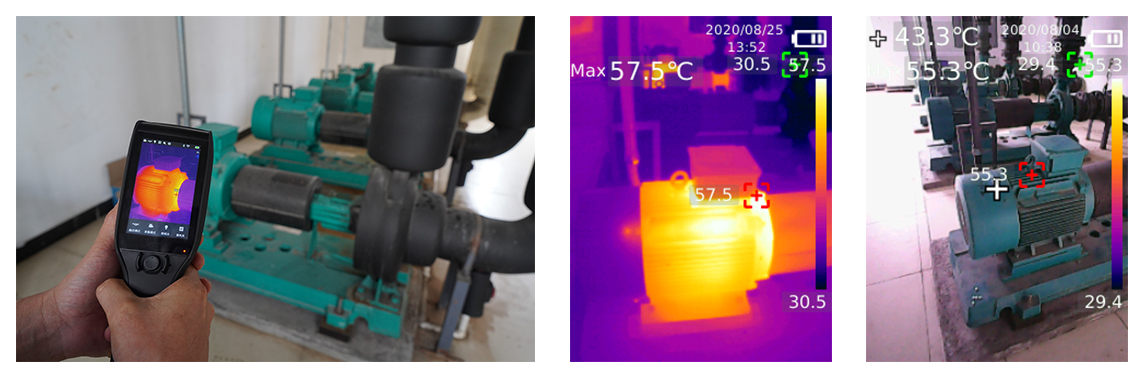

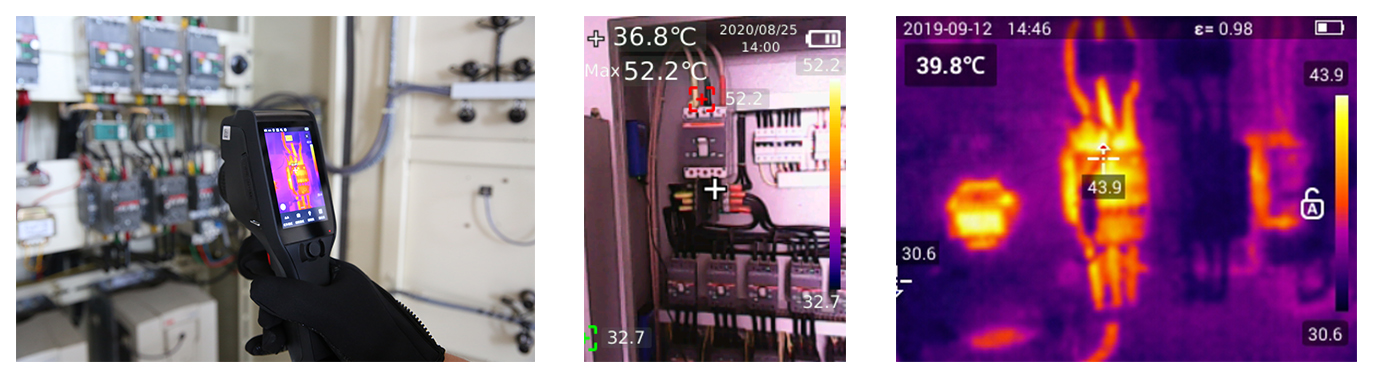

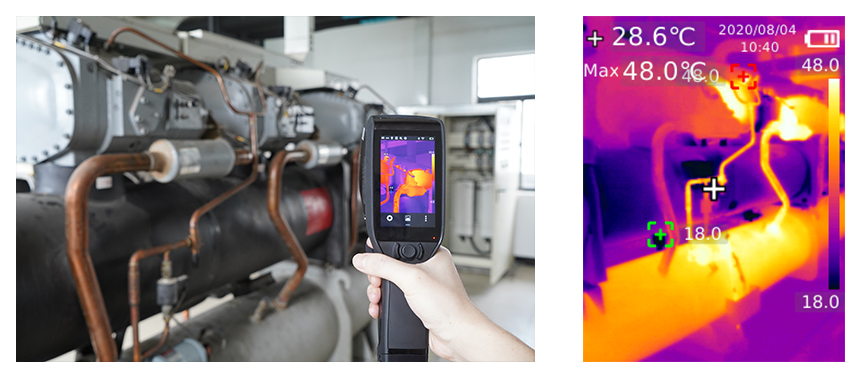

Solar panel inspection, electric power tower inspection,electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petro chemical,metallurgy,industry etc.
