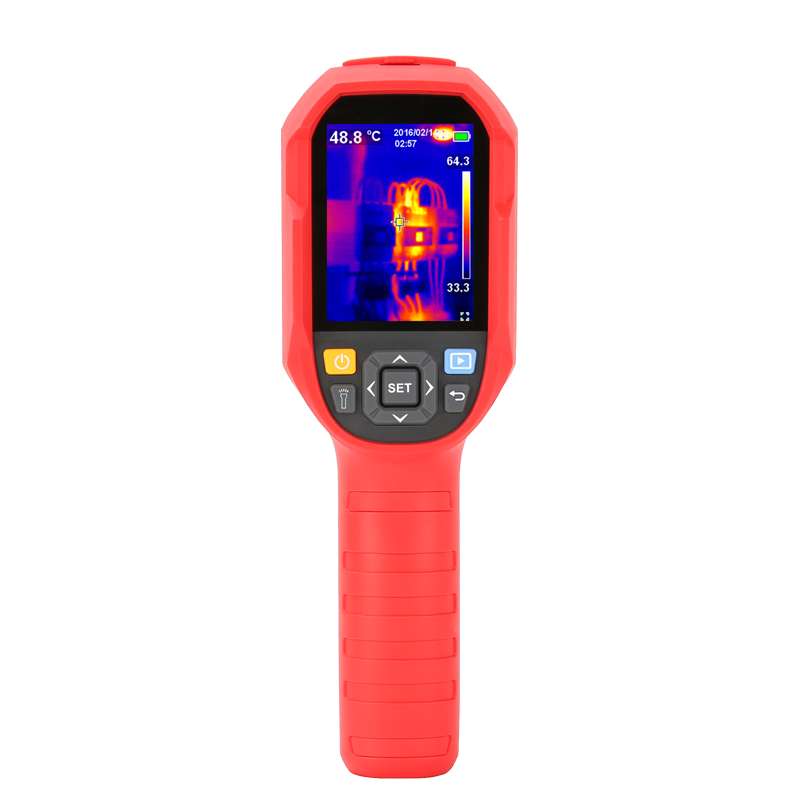

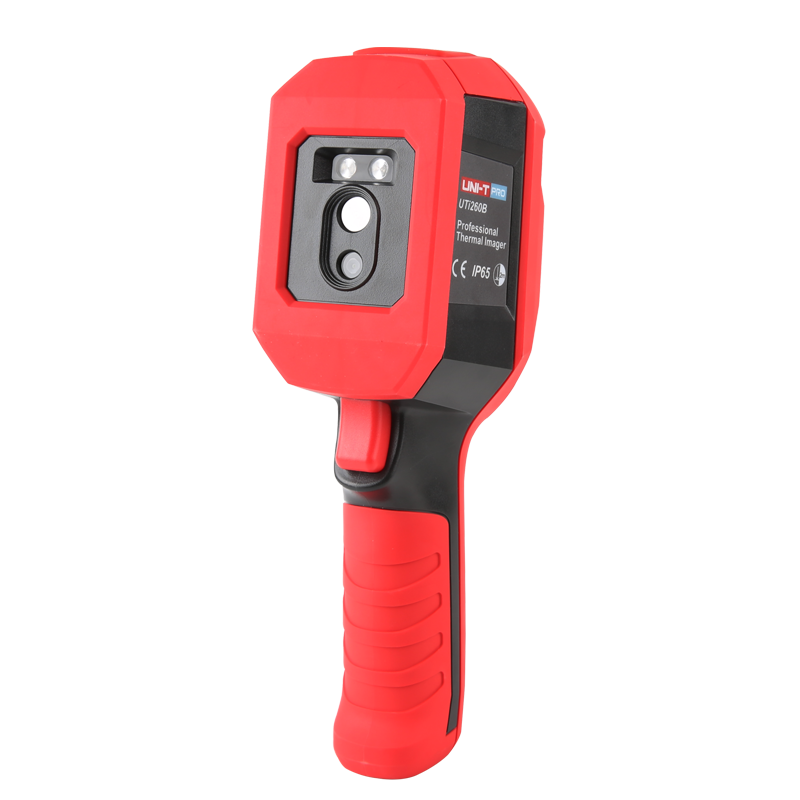

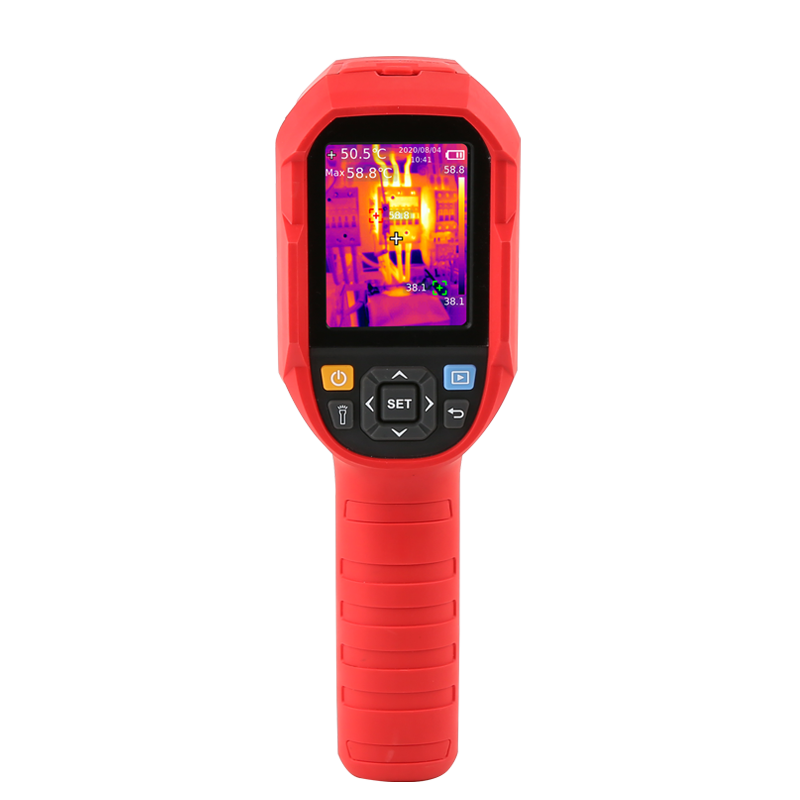

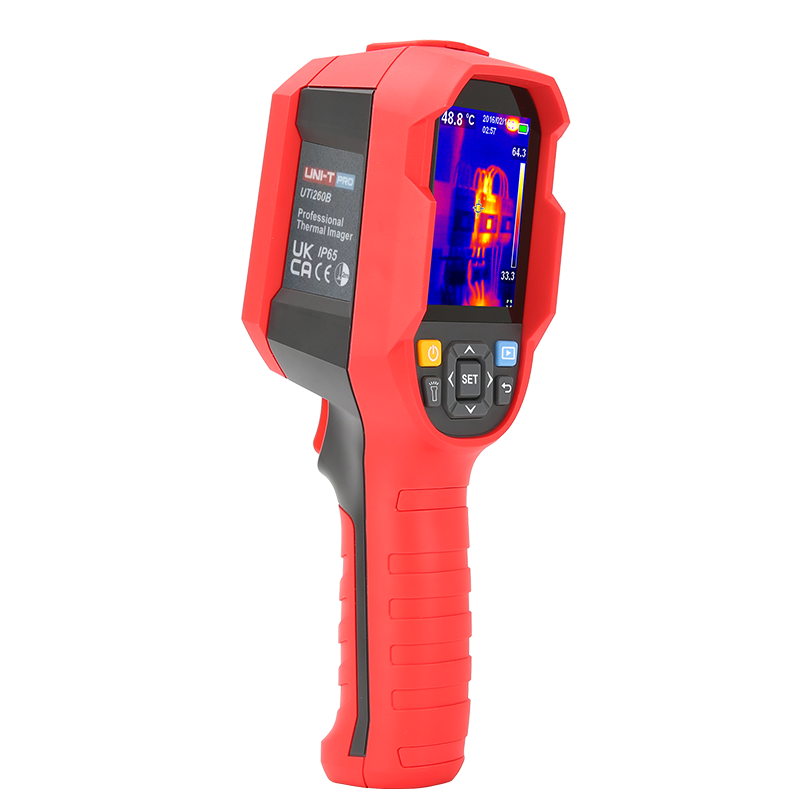

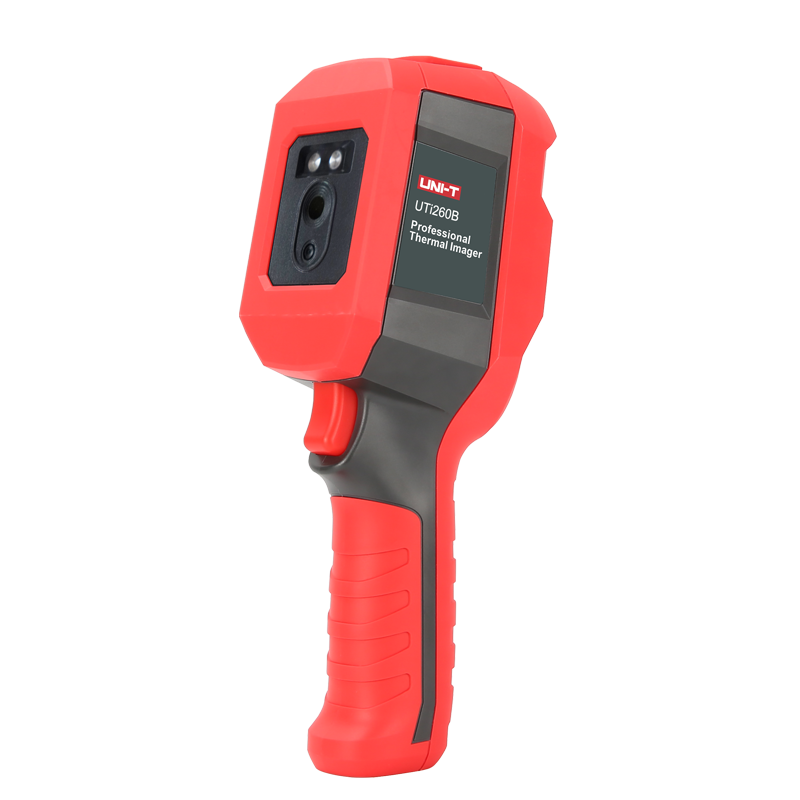

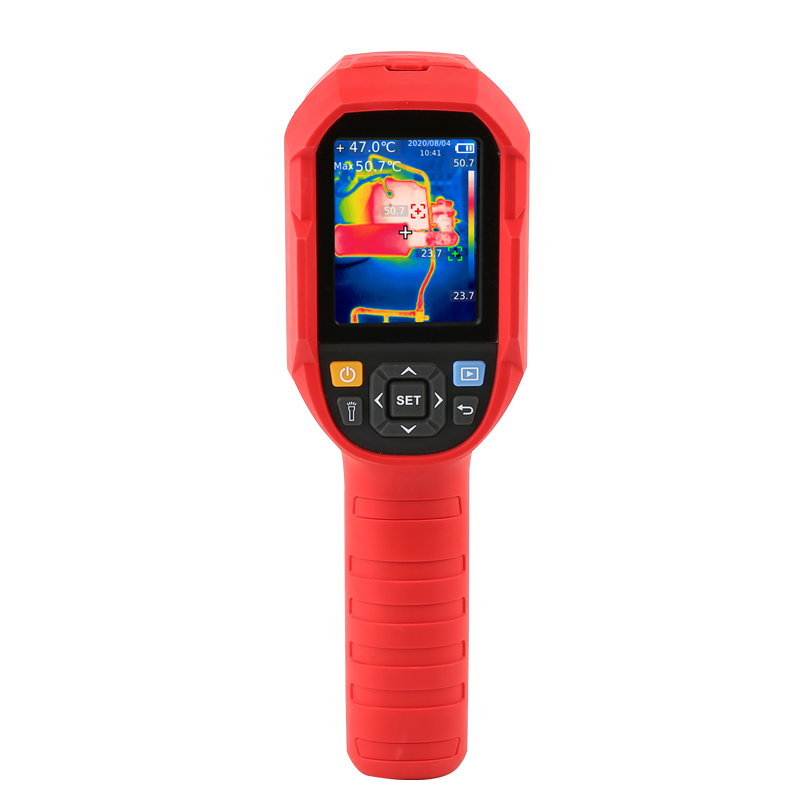

UTi260B
Heavy Duty Thermal Camera

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Heavy Duty Thermal Camera

Features :

Durable and user-friendly
2.8” TFT display screen (320×240 Pixels)
IR resolution: 256×192
Temperature measurement range: -20℃ to 550℃ / -4℉ to 1022 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points
Image capture
Image modess: Thermal,Visual image,Fusion,PIP
Digital camera resolution: 640×480
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
LED flashlight
PC software analysis and real-time image projection)
Rechargeable Li-ion battery

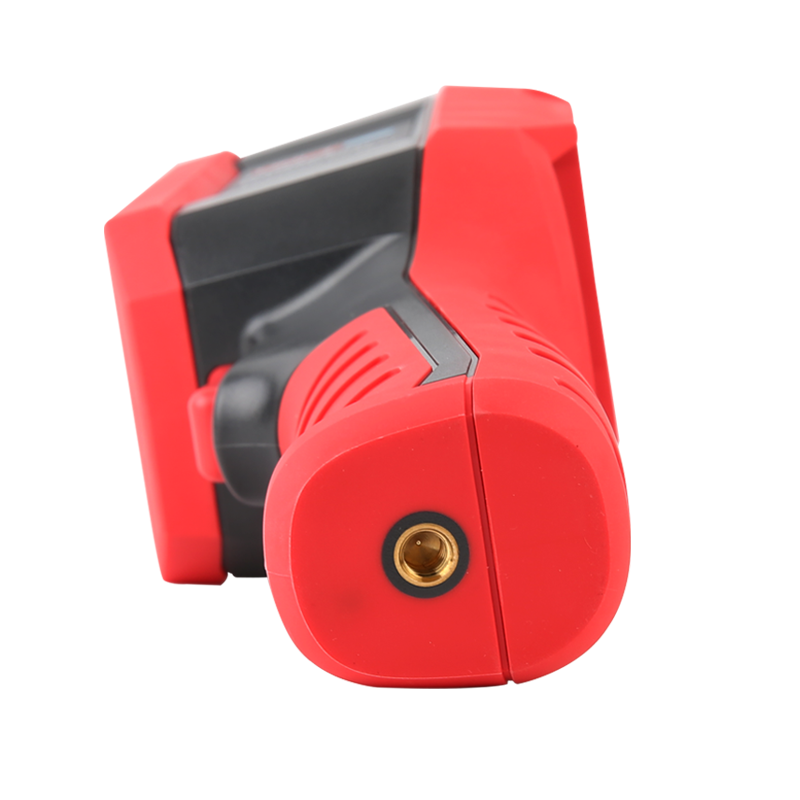

1/4”Tripod Mounting Hole
IP65
2m drop proof

SPECIFICATIONS

Product Specification of UTi260B

Technical Data
IR resolution (Pixels)	256×192
Display	2.8” TFT LCD (320×240)
Field of view(FOV)	56°×42°
Thermal sensitivity(NETD)	≤50mK
Spatial resolution(IFOV)	3.8mrad
Frame rate	≤25Hz
Spectral range	8~14µm
Focus	Focus Free
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Emissivity	0.01~1.00 adjustable (0.95 default)
Functions
Color palettes	7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
Image modes	Thermal,Visual image,Fusion,PIP
On screen analyzer	3 Points
Digital camera resolution	640×480
Hi/Lo temperature alarm	Icon,LED flashlight
PC software analysis	√
General Characteristics
Battery	Fixed Li-ion battery (3.6V 5000mAh)
Battery operation time	≥ 6 hours
USB	Type-C
IP rating	IP65
Drop proof	2m
Storage	Up to 32GB Micro SD card
Image/Video storage format	BMP
Certificates	CE,FCC,RoHS
Product net weight	490g
Product size	236mm×75.5mm×86mm
Packing Details
Standard accessories	Micro SD card, Type-C USB cable, English manual,Documents download operation guide card
Standard individual packing	Gift box
Standard Qty per carton	10
Standard carton size	500mm×315mm×295mm
Standard carton G.W.	10.1kg

APPLICATIONS

Applications of UTi260B

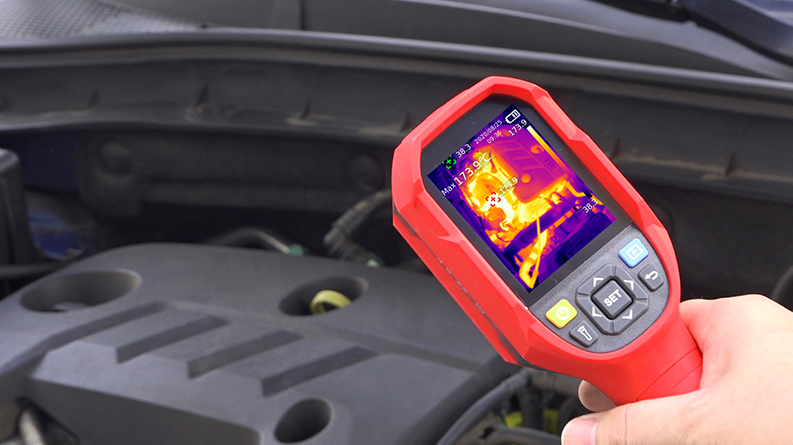

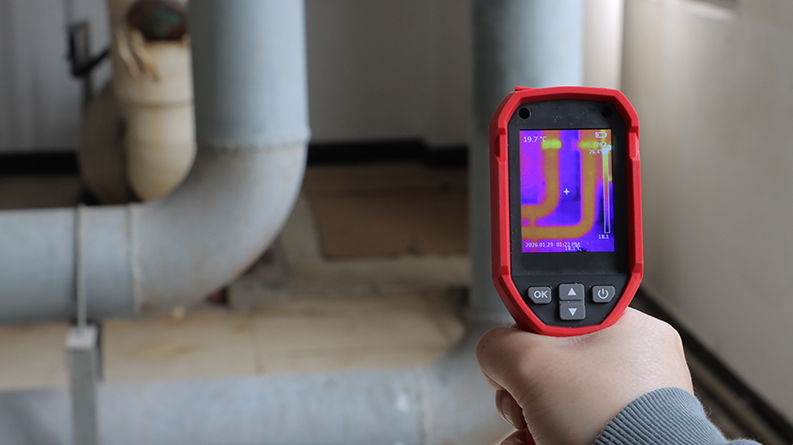

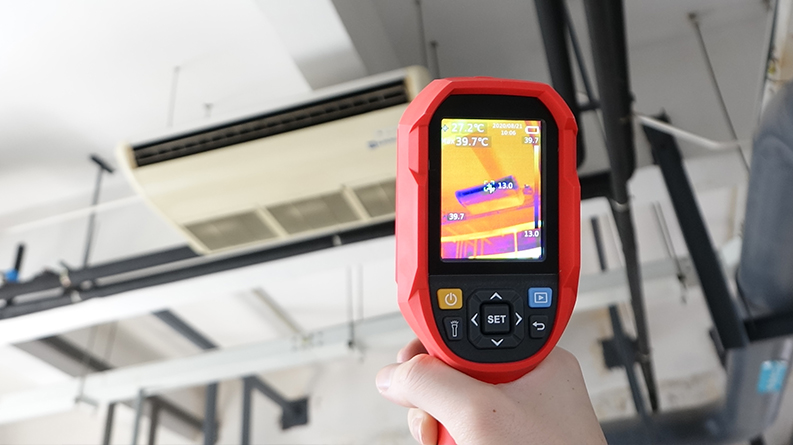

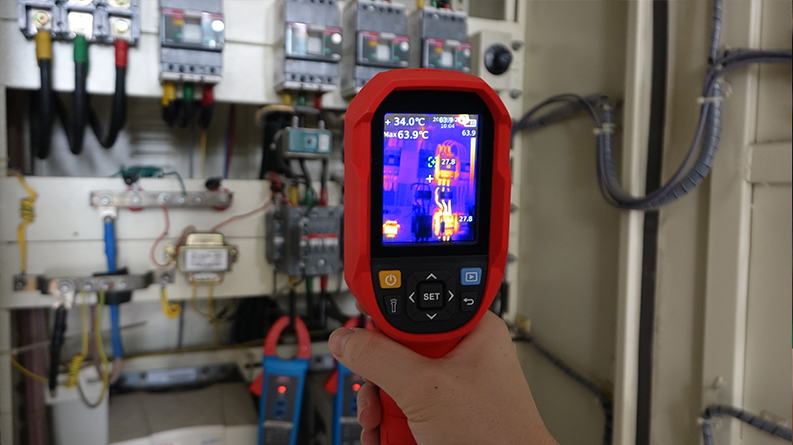

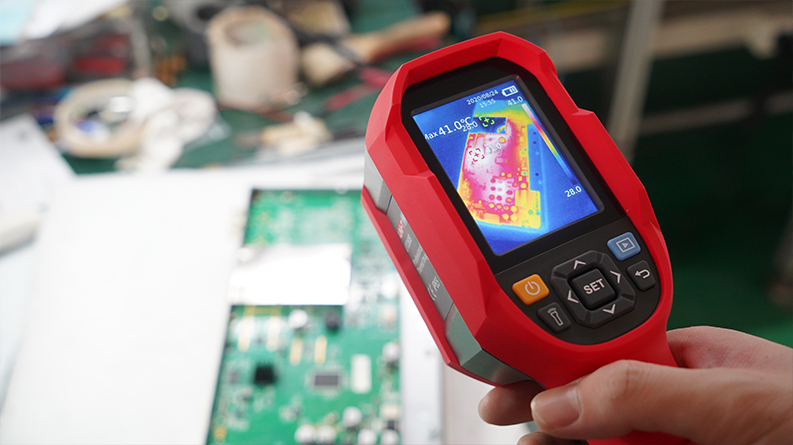

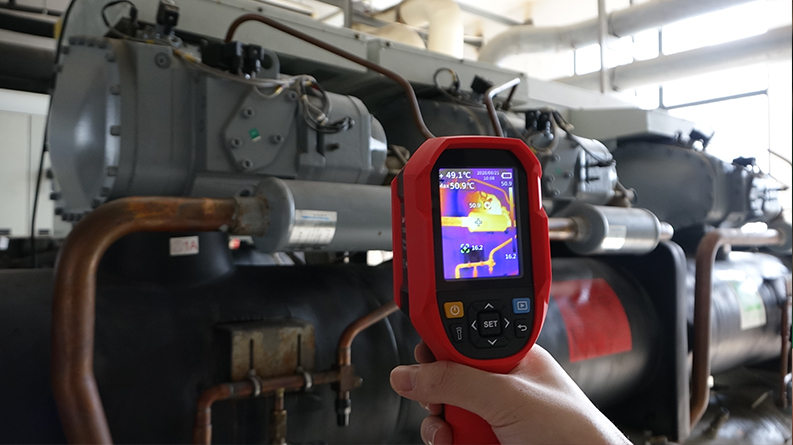

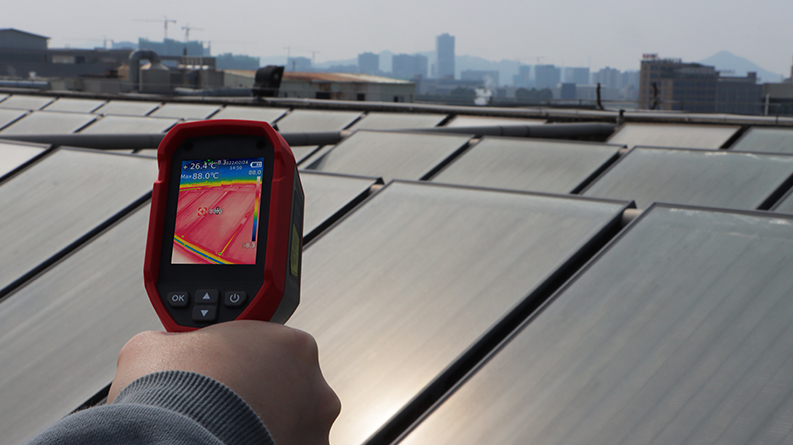

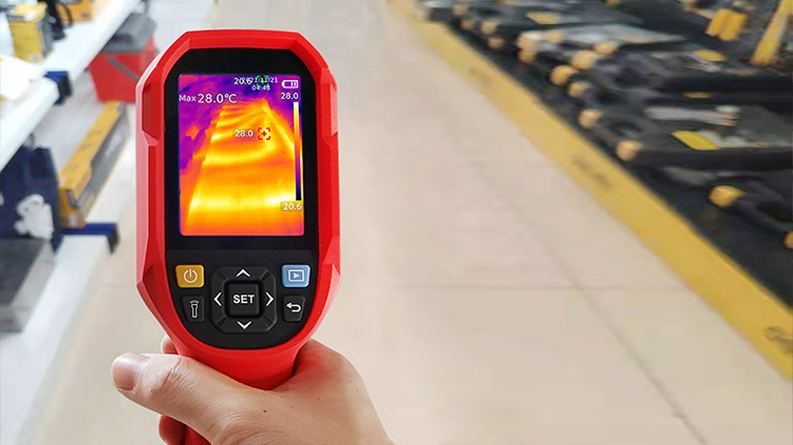

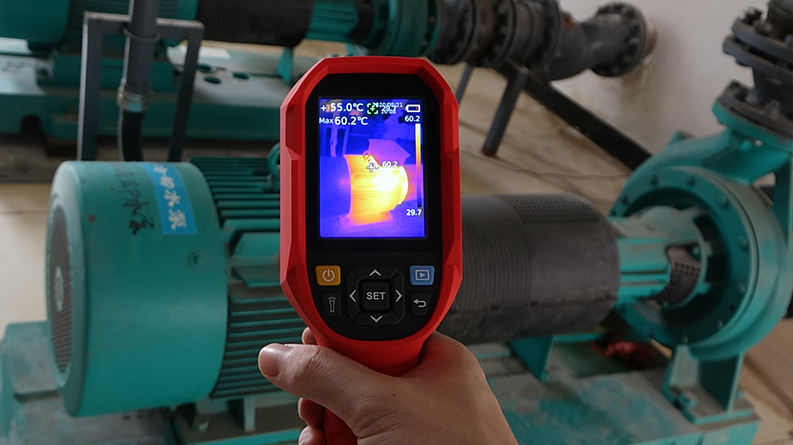

PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
