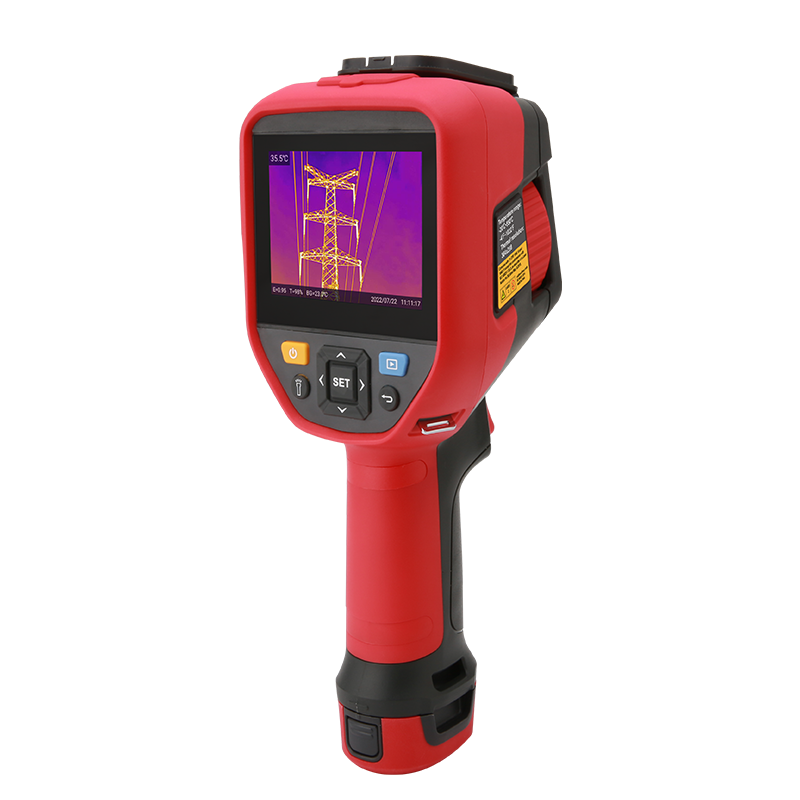

UTi384G
Professional Enhanced Thermal Camera

UTi384G is a professional enhanced thermal cameras that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also support various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer,Isotherm,etc. They are perfect troubleshooting tools for many industrial applications.

Industrial Enhanced Thermal Camera

UTi384G is a professional enhanced thermal cameras that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also support various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer,Isotherm,etc. They are perfect troubleshooting tools for many industrial applications.

Features :

  • 3.5″ IPS touchscreen (640×480)
  • IR resolution:384×288
  • Temperature measurement range: -20℃ to 550℃
  • On screen analyzer :5 Points/5 Lines/5 Rectangles/5 Circles
  • Digital camera resolution: 5MP
  • Focus: Manual focus
  • Digital zoom: 2x, 4x
  • Wi-Fi and Bluetooth connection through Mobile App
  • PC software: analysis and real-time image projection
  • Video recording
  • Voice recording
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)

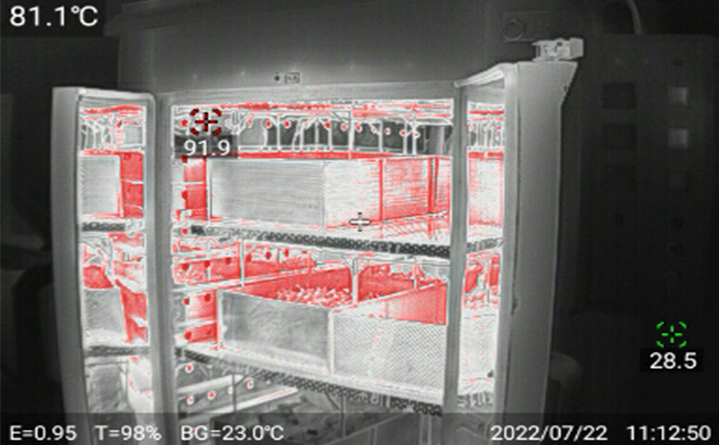

  • Isotherm: 5(Auto/Manual/Above/Below/Section)
  • 5200mAh replaceable battery pack (Type-C rechargeable)
  • IP54
  • 2m drop proof

SPECIFICATIONS

Product Specifications of UTi384G

Technical Data
IR resolution (Pixels) 384×288
Display 3.5‘’ Touch (640×480)
Field of view(FOV) 42°×30°
Thermal sensitivity(NETD) ≤40mK
Spatial resolution(IFOV) 1.91mrad
Frame rate ≤30Hz
Spectral range 7.5~14µm
Focus Manual
Temperature measurement range   -20℃~550℃
Accuracy ±2℃ or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 5 Points/5 Lines/5 Rectangles/5 Circles
Digital camera resolution 5MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon
Isotherm Auto/Manual/Above/Below/Section
Software analysis PC+APP
Video recording √
Voice recording √
Wi-Fi / Bluetooth √/√
Laser pointer √
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time About 5 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 8GB Internal
32GB External
Image/Video storage format pic: JPEG; video: MP4/irgd
Certificates CE,UKCA,FCC,RoHS
Product net weight 880g
Product size 261mm×104mm×97mm
Packing Details
Standard accessories Micro SD card, Type-C USB cable, Wrist strap, English manual, Li-ion battery pack×2, Documents download operation guide card
Standard individual packing Toolbox,Gift box
Standard Qty per carton 1
Standard carton size 400mm×185mm×345mm
Standard carton G.W. 4.2kg

APPLICATIONS

Applications of UTi384G

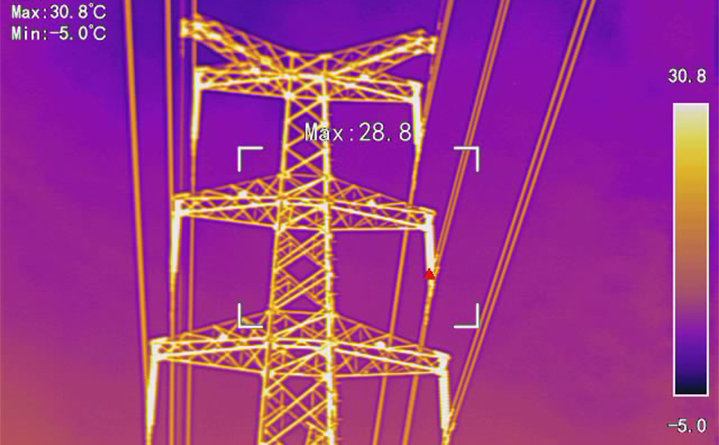

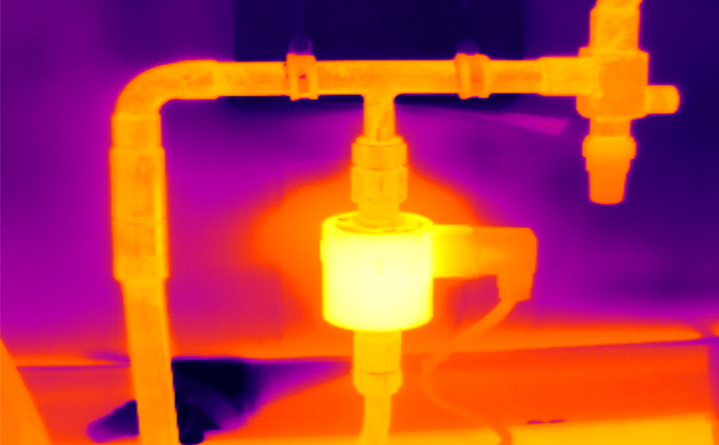

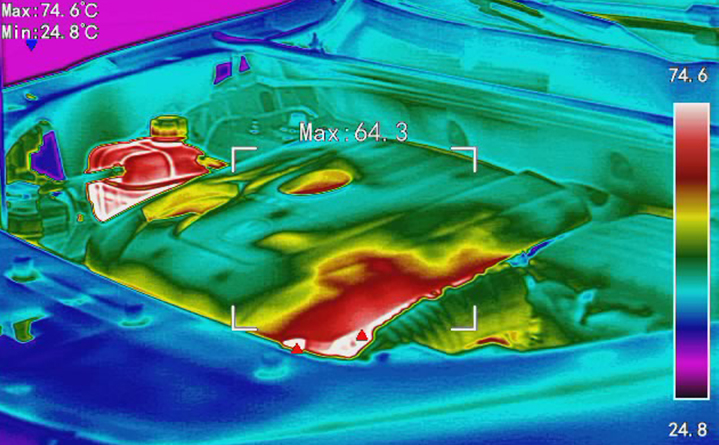

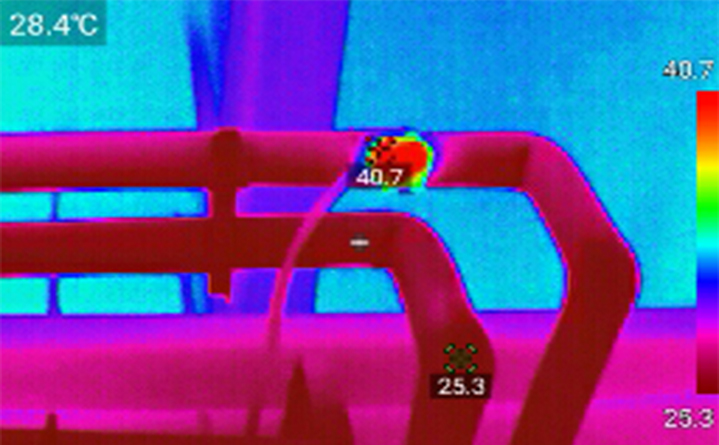

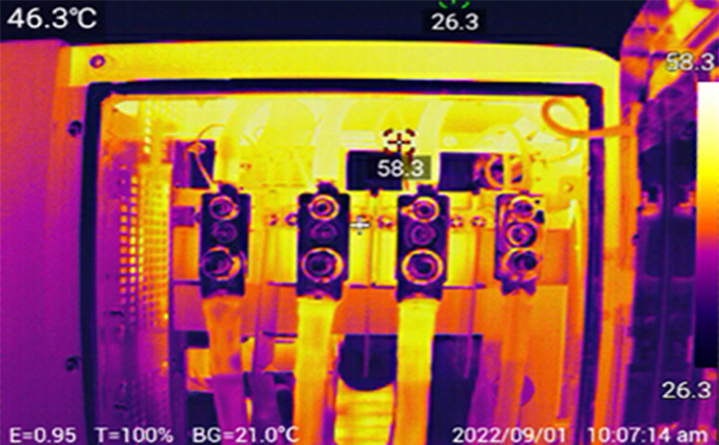

Solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance，mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical,metallurgy,industry etc.
