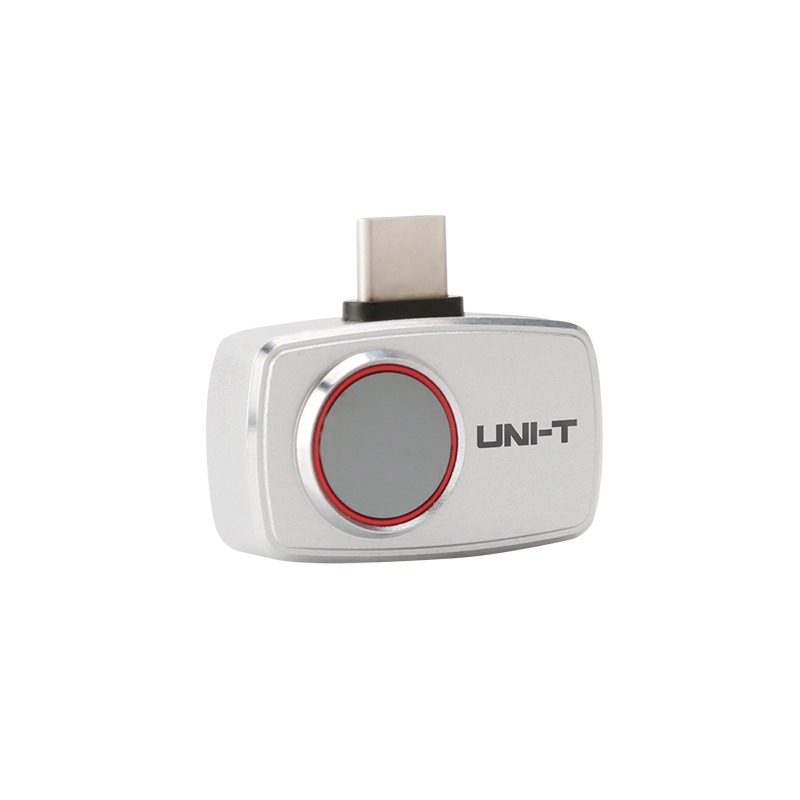

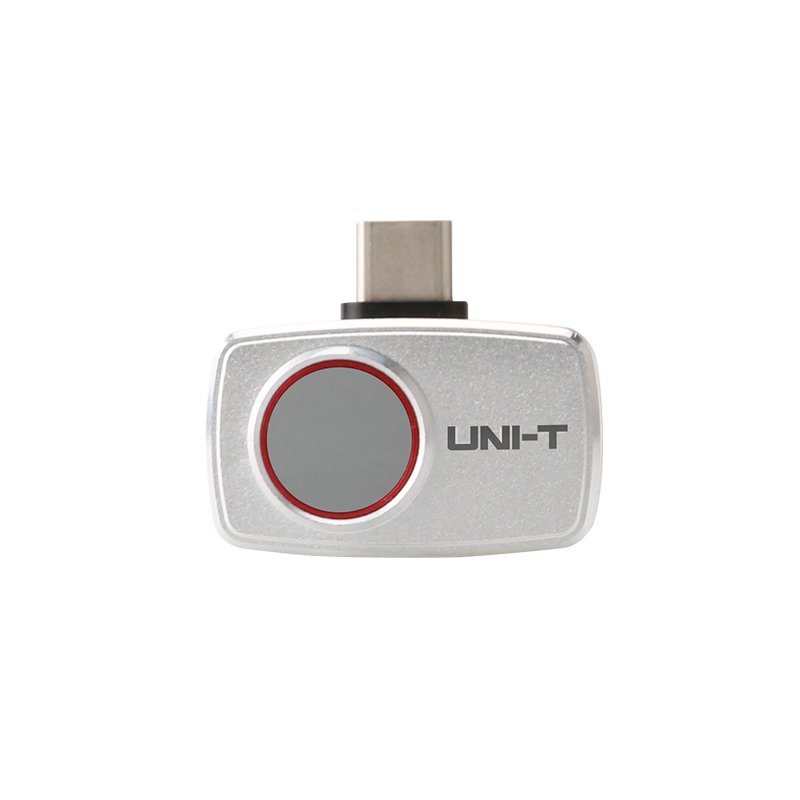

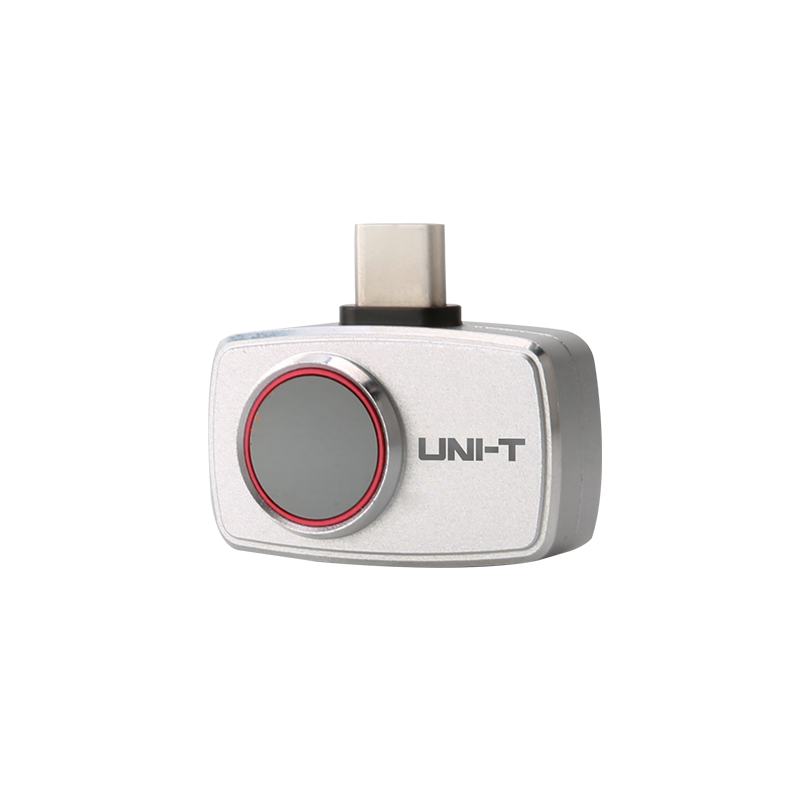

UTi720M
Smartphone Thermal Camera Module for Android

UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.

Smartphone Thermal Camera Module for Android

UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi720M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features :

  • IR resolution: 256×192
  • Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points/3 Lines /3 Rectangles
  • Image capture
  • Video recording
  • Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android (USB Type-C interface)
  • 1m extension cable
  • 1m drop proof

SPECIFICATIONS

Product Specifications of UTi720M

Technical Data
IR resolution (Pixels) 256×192
Field of view(FOV) 56.0°×42.2°
Thermal sensitivity(NETD) ≤50mK  @25℃
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus free
Lens focal length 3.2mm
Temperature measurement range  -20℃ ~ 200℃
Accuracy ±2° or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 3 Points/3 Lines/3 Rectangles
Hi/Lo temperature alarm √
Video recording √
General Characteristics
USB Type-C
Drop proof 1m
Image/Video storage format JPEG, MP4

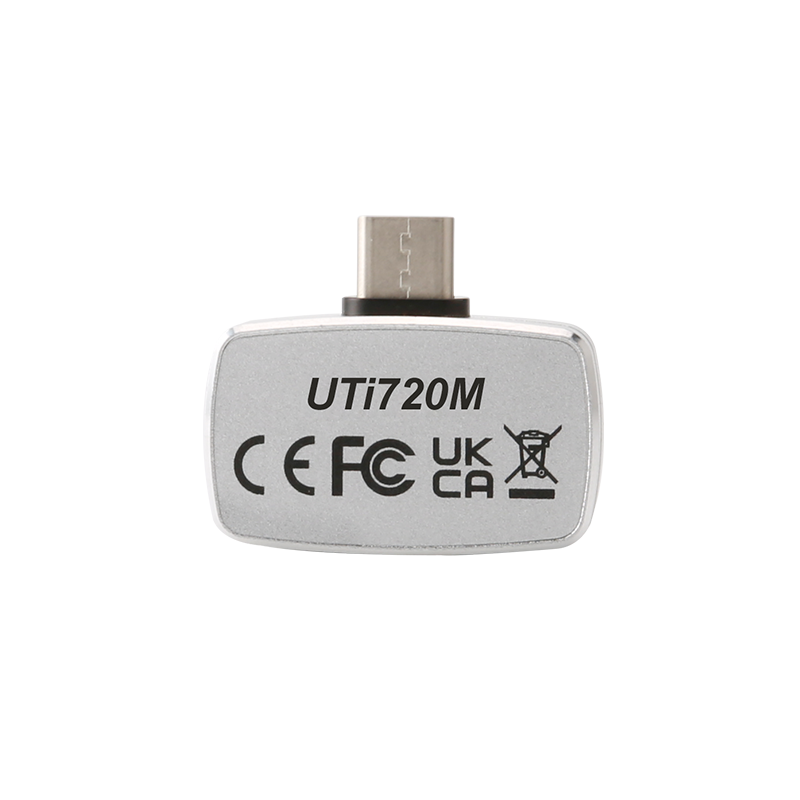

Certificates CE,UKCA,FCC,RoHS
Product net weight 12g
Product size 33mm×28.2mm×11.3mm
Packing Details
Standard accessories USB cable, English manual, Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 20pcs
Standard carton size 290mm×265mm×325mm
Standard carton G.W. 4.4kg

APPLICATIONS

Applications of UTi720M

PCBA inspection,power distribution cabinet inspection,house water leakage inspection,pipeline inspection, HVAC & Building inspection,Outdoor&night vision, etc.
