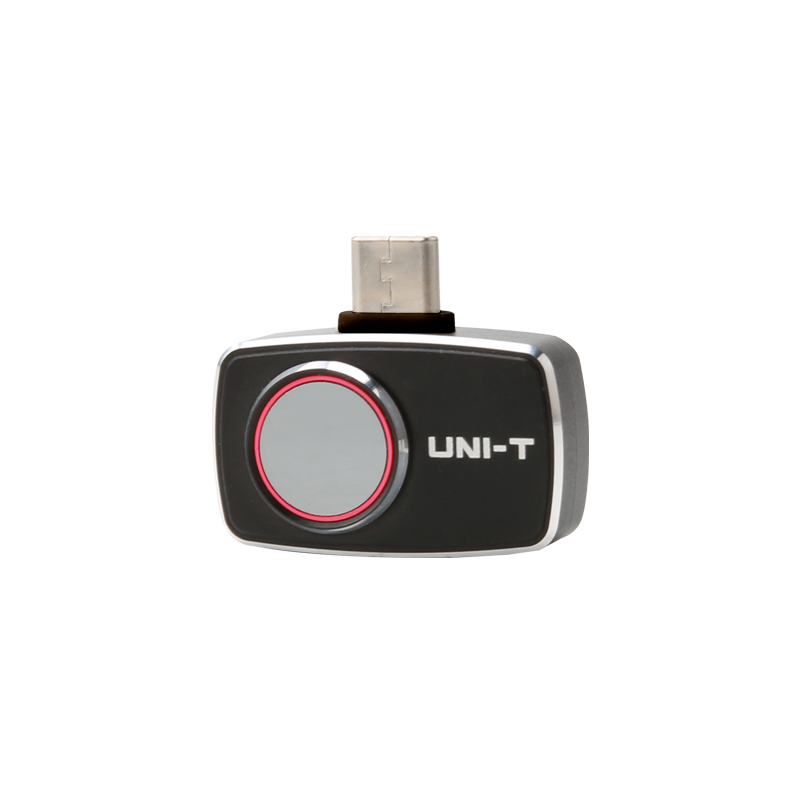

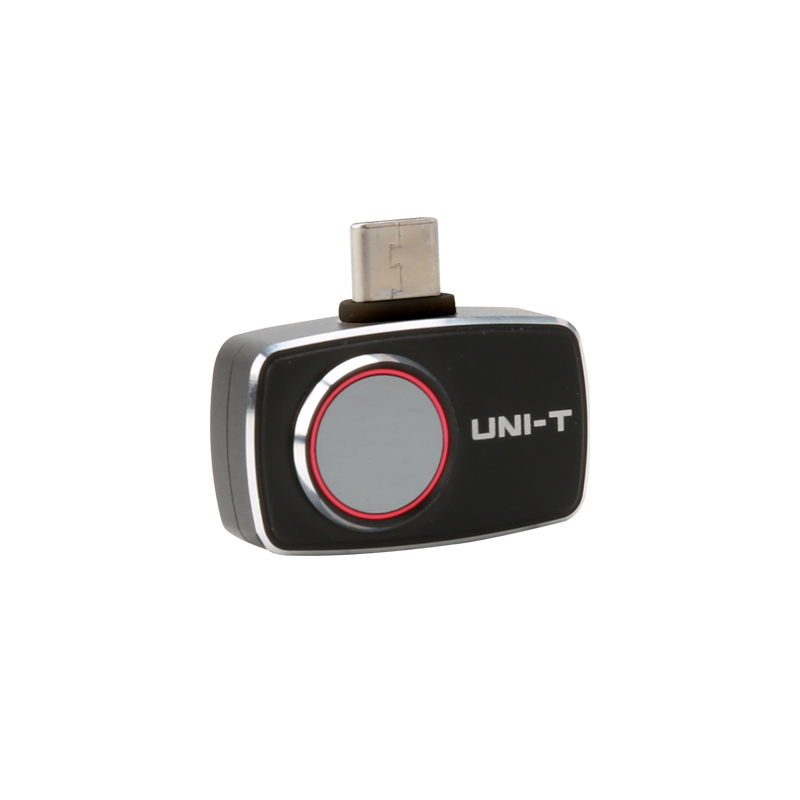

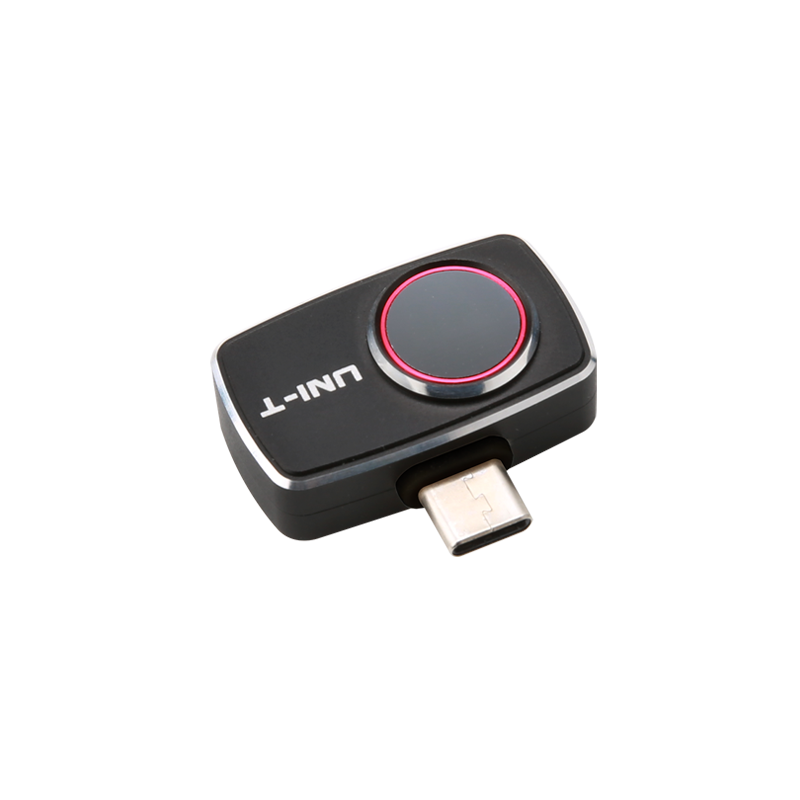

UTi721M
Smartphone Thermal Camera Module for Android

UTi721M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi721M is with wide temperature measurement range -20℃ ~ 550℃.It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Smartphone Thermal Camera Module for Android

UTi721M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.UTi721M is with wide temperature measurement range -20℃ ~ 550℃.It includes two measurements modes for elevated skin temperature inspection and industry applications. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features :

  • IR resolution: 256×192
  • Temperature measurement range: -20℃to 550℃ / -4℉ to 1022 ℉

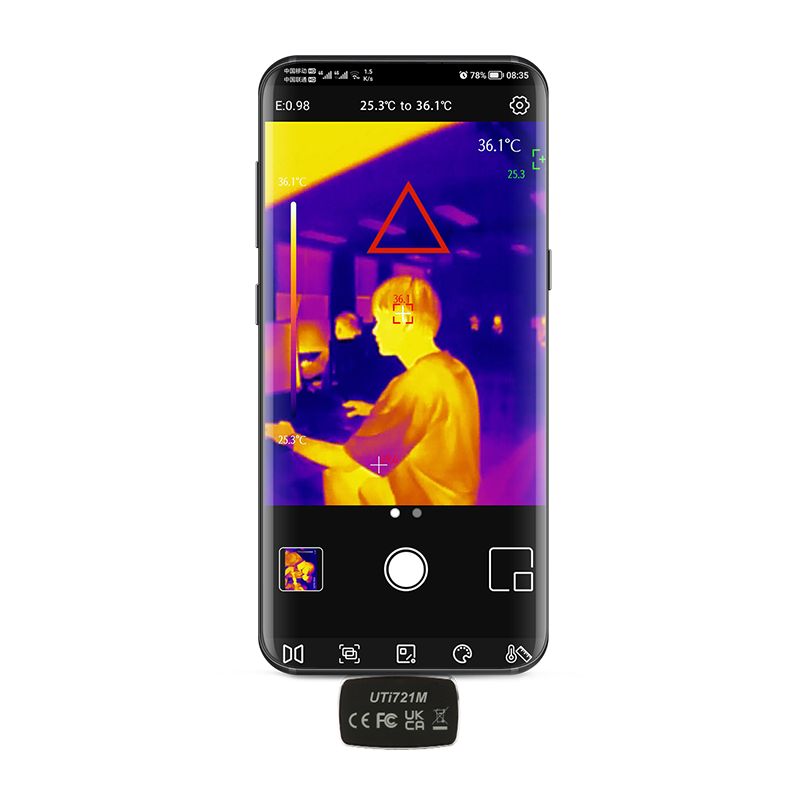

  • Measurement modes: Industry, EST(Elevated Skin Temperature)
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On screen analyzer: 3 Points/3 Lines/3 Rectangles
  • Image capture
  • Video recording
  • Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
  • Phone: Android (USB Type-C interface)
  • 1m extension cable
  • 1m drop proof

SPECIFICATIONS

Product Specifications of UTi721M

Technical Data
IR resolution (Pixels) 256×192
Field of view(FOV) 56.0°×42.2°
Thermal sensitivity(NETD) ≤50mK  @25℃
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14µm
Focus Focus free
Lens focal length 3.2mm
Temperature measurement range  -20℃ ~ 550℃
Temperature scale Low gain: -20℃~150℃
High gain: 0℃~550℃
Measurement modes Industry, EST(Elevated Skin Temperature)
Accuracy Industry: ±2° or ±2% whichever is greater (0℃~550℃)
EST: ±0.5° (30℃~40℃)
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 3 Points/3 Lines/3 Rectangles
Hi/Lo temperature alarm √
Video recording √
General Characteristics
USB Type-C
Drop proof 1m
Image/Video storage format JPEG, MP4

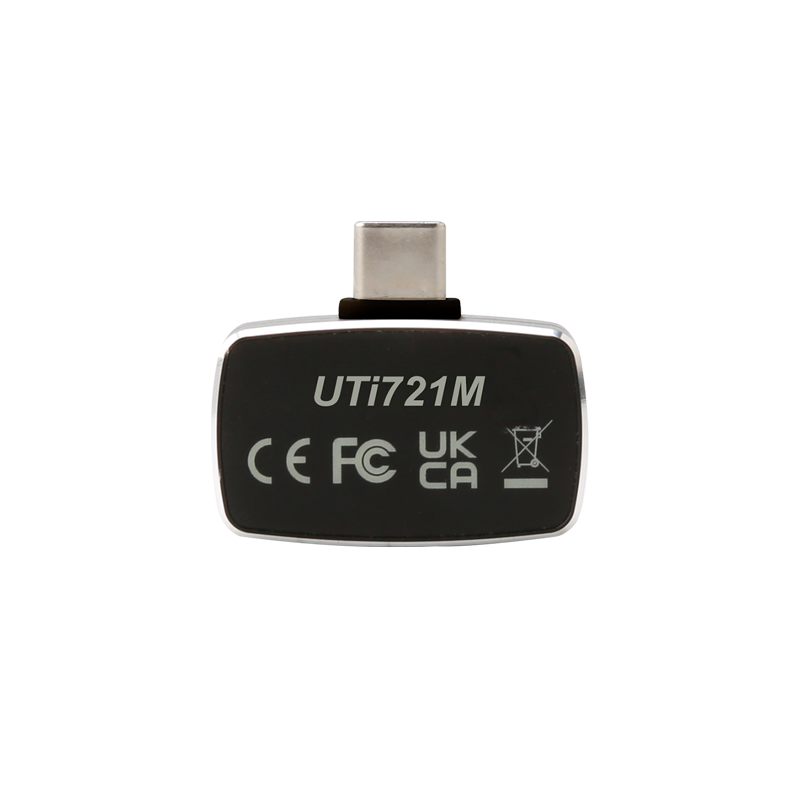

Certificates CE,UKCA,FCC,RoHS
Product net weight 12g
Product size 33mm×28.2mm×11.3mm
Packing Details
Standard accessories USB cable, English manual, Documents download operation guide card
Standard individual packing Gift box
Standard Qty per carton 20pcs
Standard carton size 290mm×265mm×325mm
Standard carton G.W. 4.4kg

APPLICATIONS

Applications of UTi721M

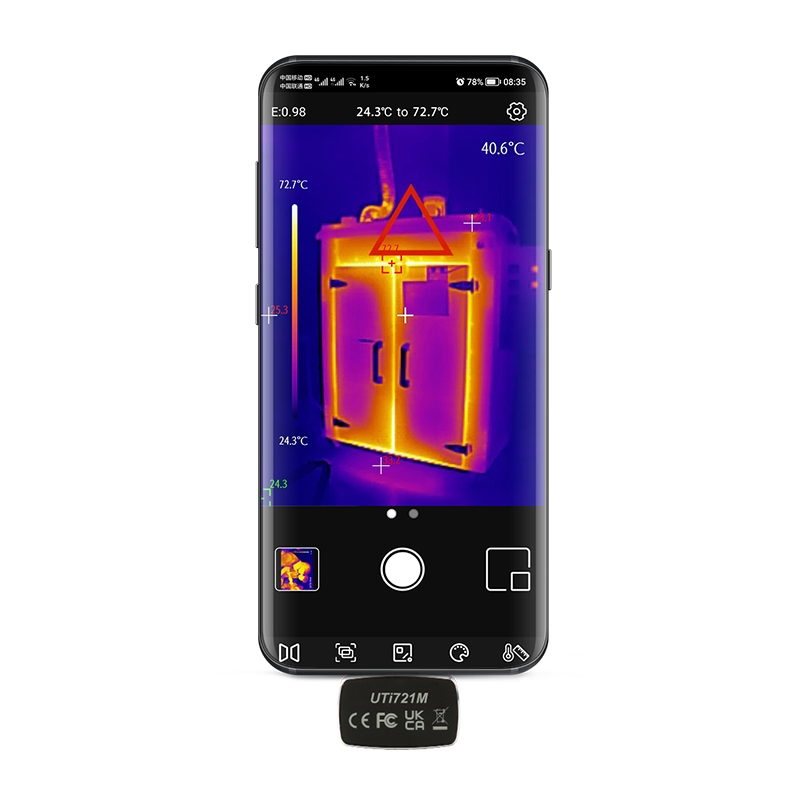

PCBA inspection,power distribution cabinet inspection,house water leakage inspection,pipeline inspection, HVAC & Building inspection,Outdoor&night vision, fever screening etc.
