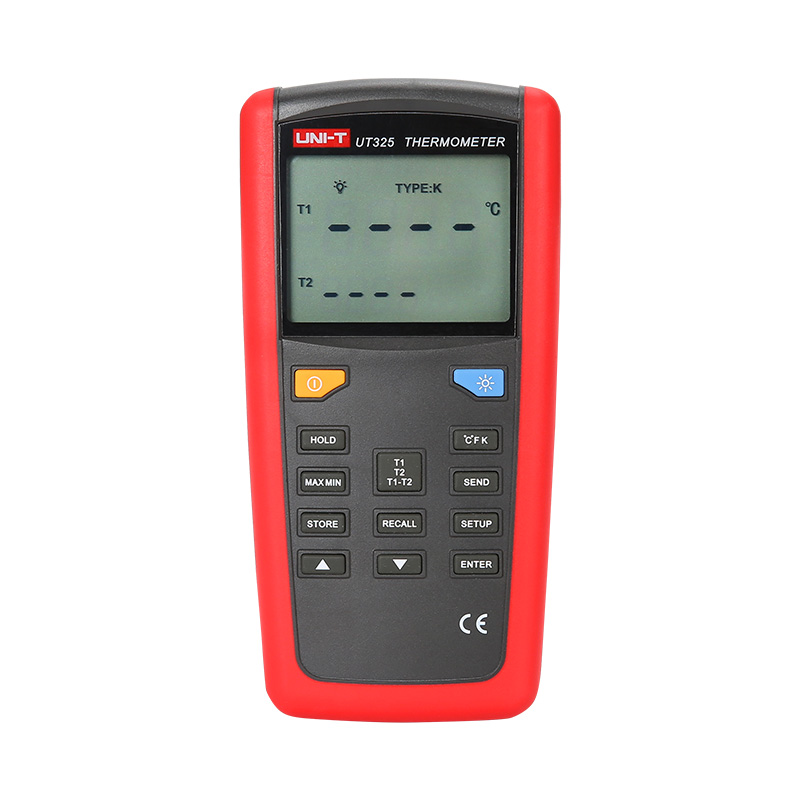

UT325
Contact Type Thermometer

UT325 contact type thermometer provides fast, accurate, and precise temperature measurement with thermocouple temperature probes. Users can select single or dual input, record, and analyze data through PC software. UT325 can be used with a variety of temperature probes, satisfying multiple applications.

Features of UT325 Contact Type Thermometer

Certificates: CE, UKCA

  • °C/°F/K selection
  • Data hold
  • Auto power off
  • Low battery indication
  • MAX/MIN/AVG mode
  • USB interface
  • LCD backlight
  • Auto calibration

SPECIFICATIONS

Specifications of UT325 Contact Type Thermometer

Specifications Range UT325
Single or dual input Dual
Temperature Type K -200°C~1372°C (-328°F~2501°F) ±(0.2%+0.6)
Type J -210°C~1200°C (-346°F~2192°F) ±(0.2%+0.6)
Type T -250°C~400°C (-418°F~752°F) ±(0.2%+0.6)
Type E -150°C~1000°C (-238°F~1832°F) ±(0.2%+0.6)
Type R 0.0°C~1767°C (32°F~3212°F) ±(0.2%+2)
Type S 0.0°C~1767°C (32°F~3212°F) ±(0.2%+2)
Type N -200°C~1300°C (-328°F~2372°F) ±(0.2%+1.5)
Resolution 0.1°C (When value＞999.9°C: 1°C) √
Features
°C/°F/K selection √
Data hold √
Auto power off √
Low battery indication √
MAX/MIN/AVG mode √
Data storage 100
USB interface √
High alarm √
Low alarm √
High/lower signal output √
LCD backlight √
Auto calibration √
General Characteristics
Power USB or 9V battery (6F22)
Display 30mm x 32mm
Product color Red and grey
Product net weight 270g
Product size 175mm x 85mm x 30mm
Standard accessories Battery, USB interface cable, PC software CD, K-type temperature probe
Standard individual packing Gift box, English manual
Standard quantity per carton 10pcs
Standard carton measurement 405mm x 290mm x 165mm
Standard carton gross weight 4.3kg

APPLICATIONS

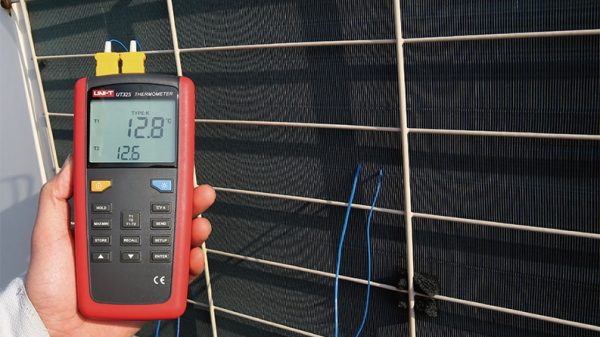

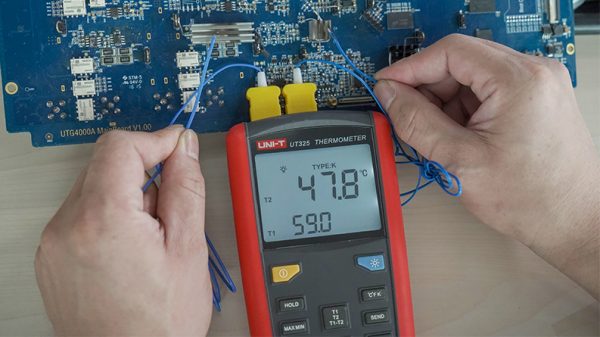

Applications of UT325 Contact Type Thermometer
