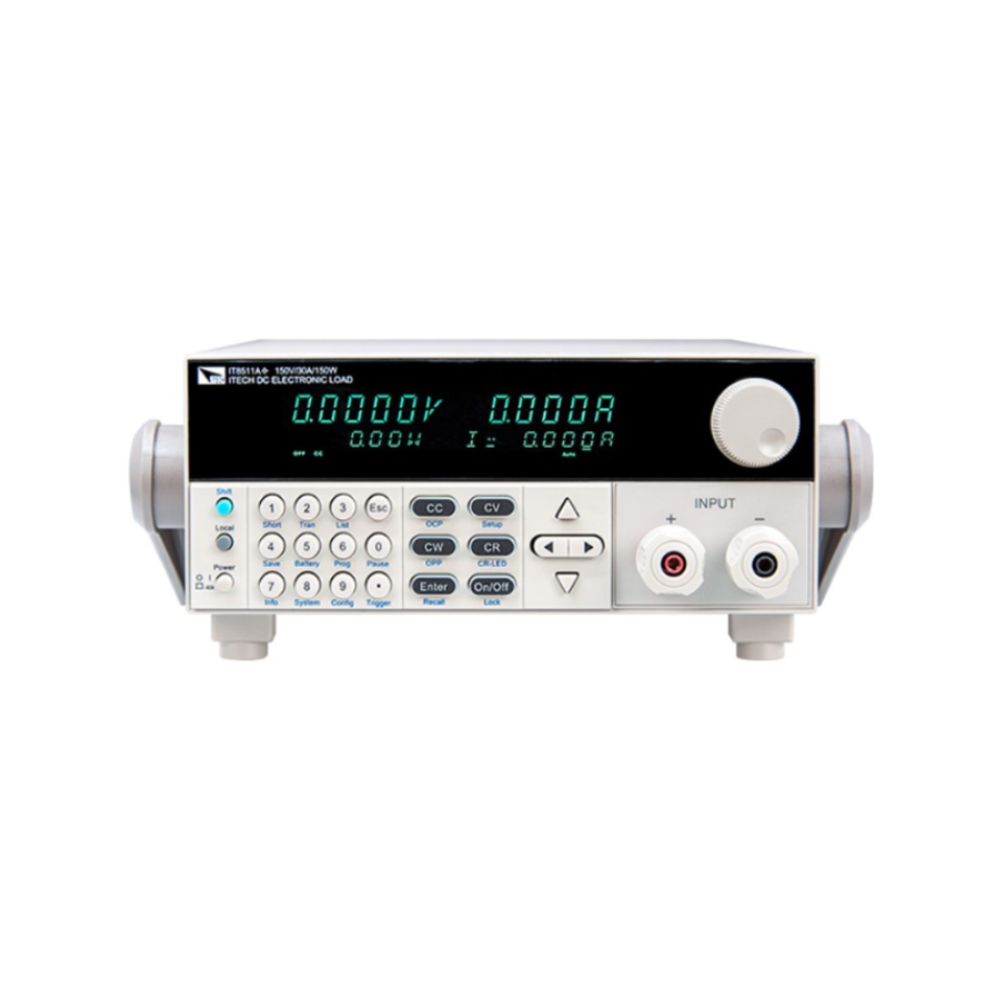

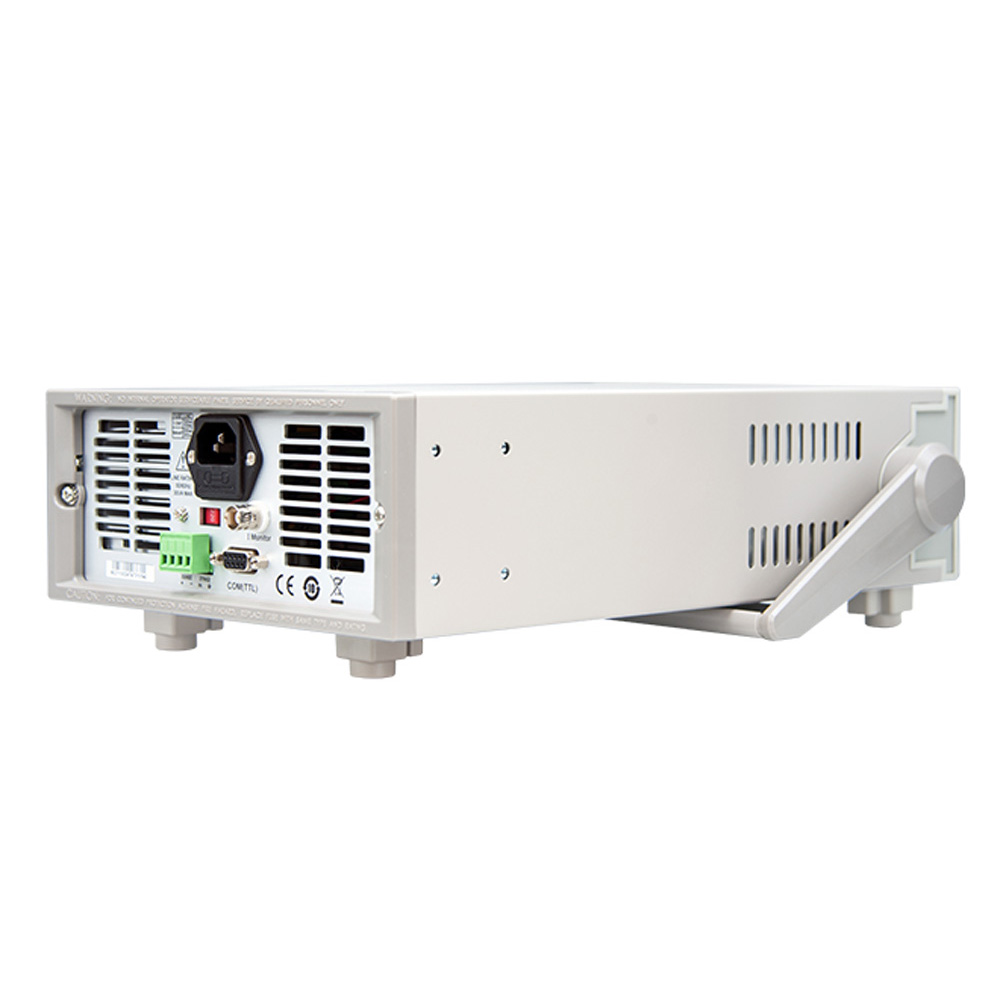

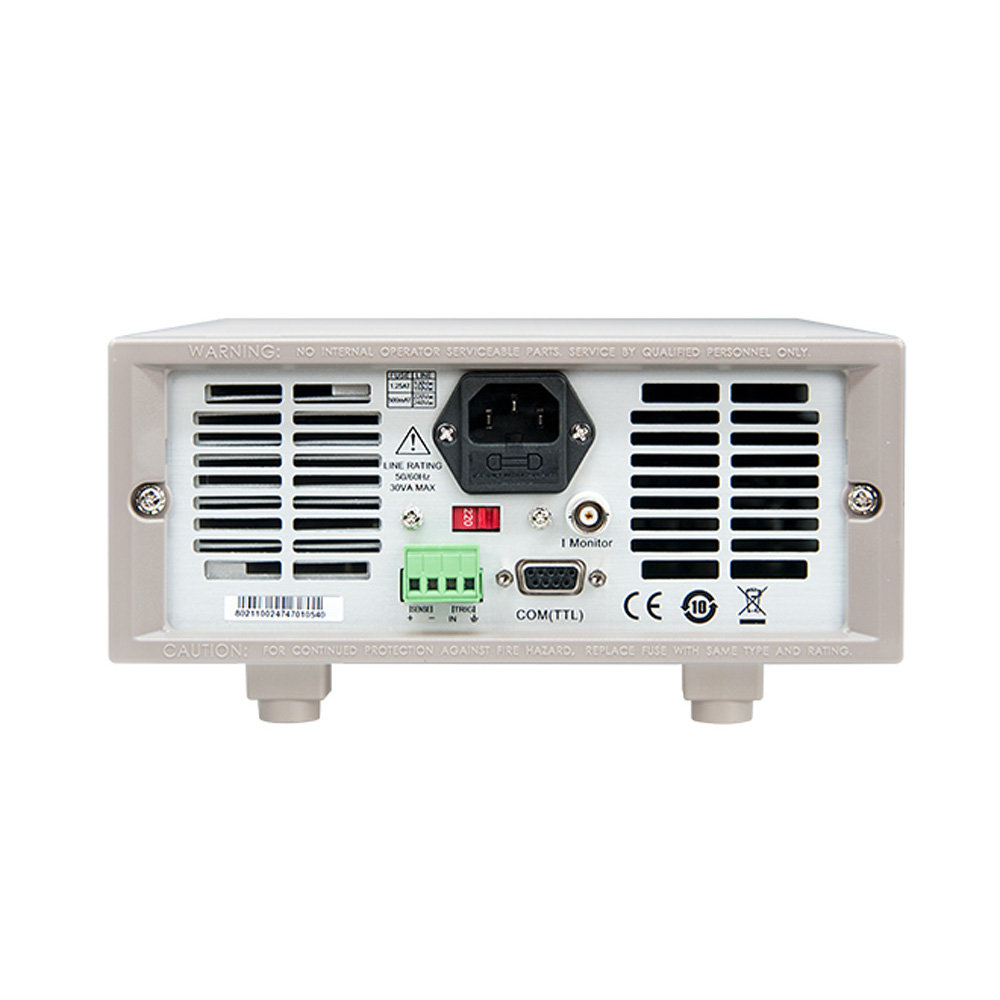

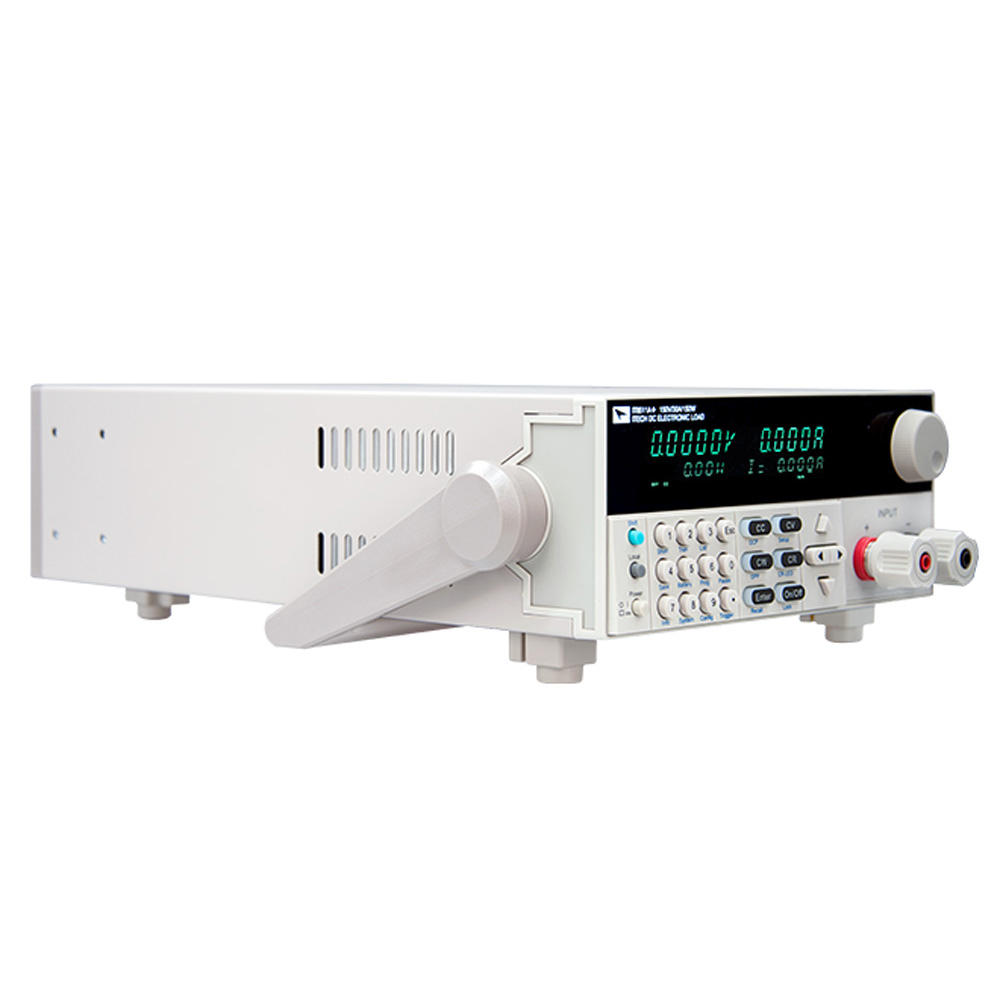

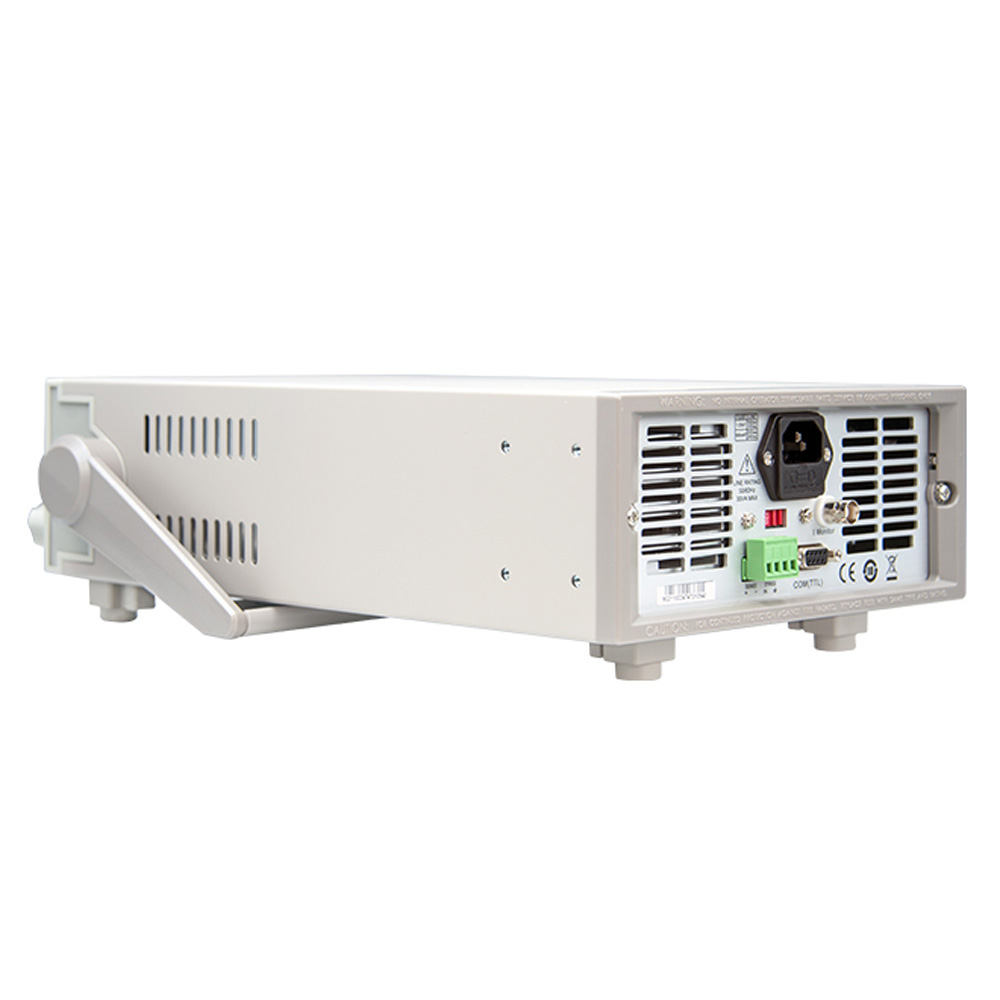

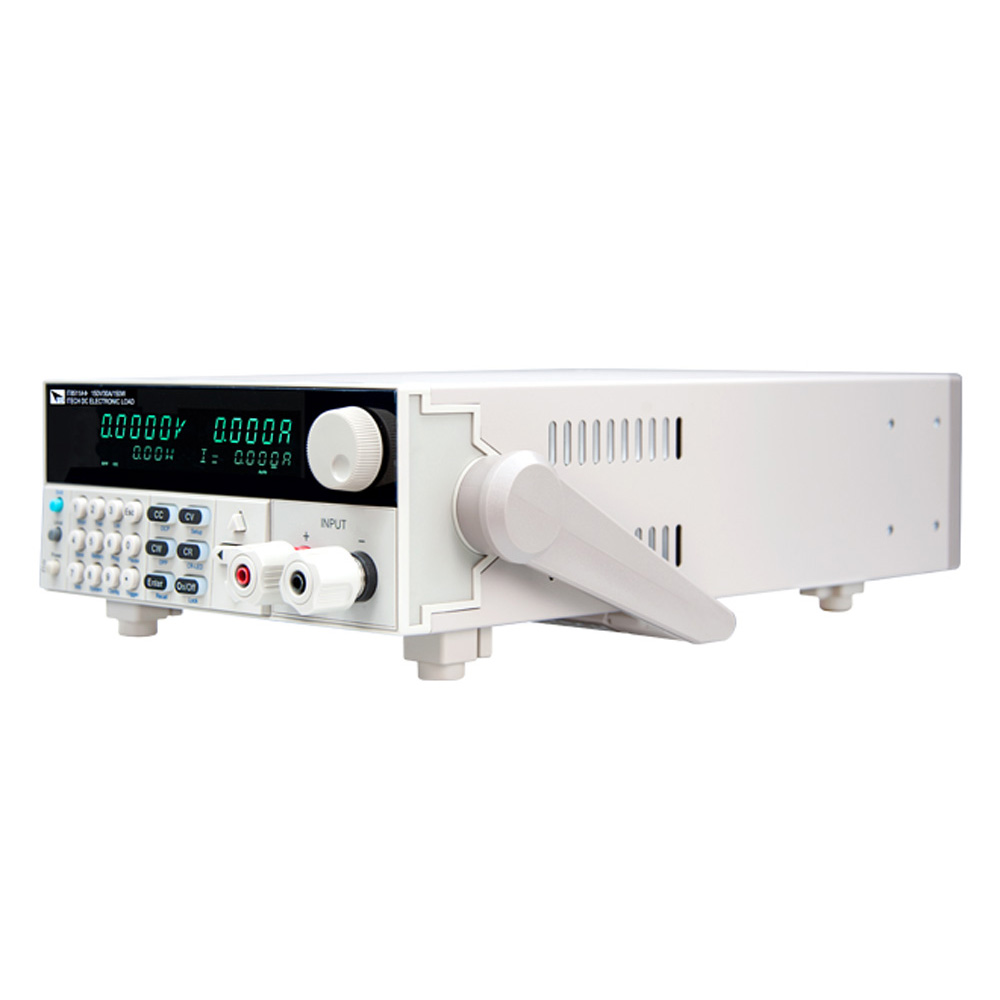

IT8500+ Series
Programmable DC Electronic Load

Features

♦ Four operating modes: CV,CC,CR,CP
♦ Battery test function, automatic test function, OPP test, OCP test function and CR-LED function.
♦ Dynamic mode up to 10KHz
♦ Voltage measurement resolution up to 0.1mV / 0.1mA
♦ Remote sense
♦ Short circuit function
♦ Current monitoring function
♦ Power-off memory function
♦ 100 groups memory capacity
♦ Optional USB / RS232 / RS485 interface

* IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.

Dynamic test function

The dynamic test operation allows the electronic load to be switched between the two setting parameters according to the setting rules. This function is used to test the dynamic characteristics of the power supply.

♦ Continuous mode: Under continuous mode, When the dynamic test operation is enabled, load will be continuously switched between the A value and the B value .

♦ Pulse mode: Under pulse mode, when the dynamic test operation is enabled, each receive a trigger signal, the load will switch to the B value, after maintaining the B pulse width time, switch back to the A value.

♦ Toggle mode: In the trigger mode, when the dynamic test operation is enabled, each time a trigger signal is received, the load is switched between the A value and the B value.

Battery discharge test function

IT8500 + series electronic load can use constant current mode for battery discharge test. After the discharge test mode is selected, the test mode termination condition “switch off voltage value”, “switch off capacity value” and “discharge time” can be set. When any of the three conditions is satisfied, the discharge is stopped and the electronic load is automatically switched is OFF state. Users can observe the battery voltage, time and battery discharge capacity during the test process.
