| MODEL | VOLTAGE | CURRENT | POWER | RESOLUTION | ACCURACY | INTERFACE | SIZE |

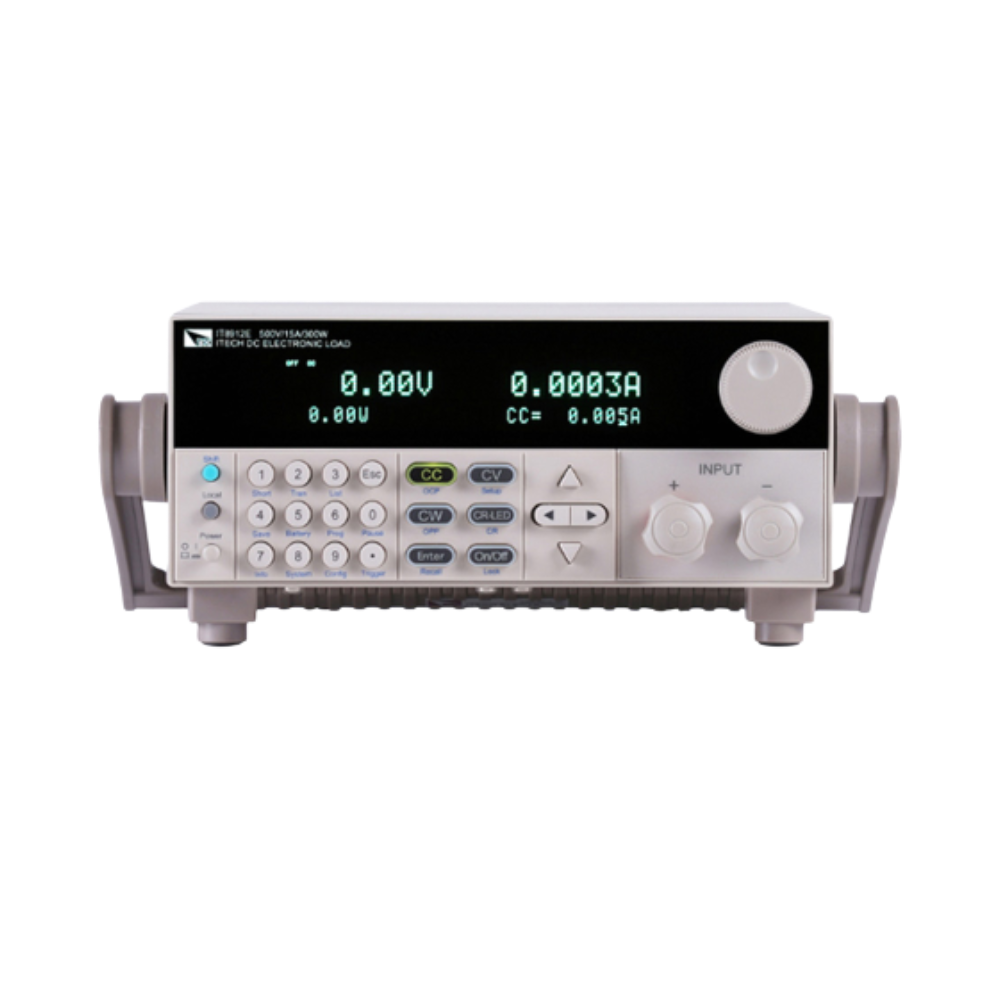

| IT8912E | 500V | 15A | 300W | 10mV/0.1mA | ±(0.05%+0.05%FS) | USB/RS232 | ½ 2U |
Product Features
Feature
♦ Up to 20KHz CC dynamic mode
♦ Voltage / current measurement speed up to 50KHz
♦ Various working modes for choice. CR-LED/CC/CV+CC/CR/CW etc.
♦ Unique CR-LED mode, providing the perfect PWM-LED Driver test solution
♦ Easy programmable parameter setting,applicable for simulating LED lights with different characteristics
♦ Automatically determine whether the test results beyond the set specifications according to high / low limit specifications of the test parameters
♦ Adjustable frequency,duty ratio PWM dimming output port
♦ I-pp/I-max measurement function can test current ripple and start up surge current of LED constant flow source

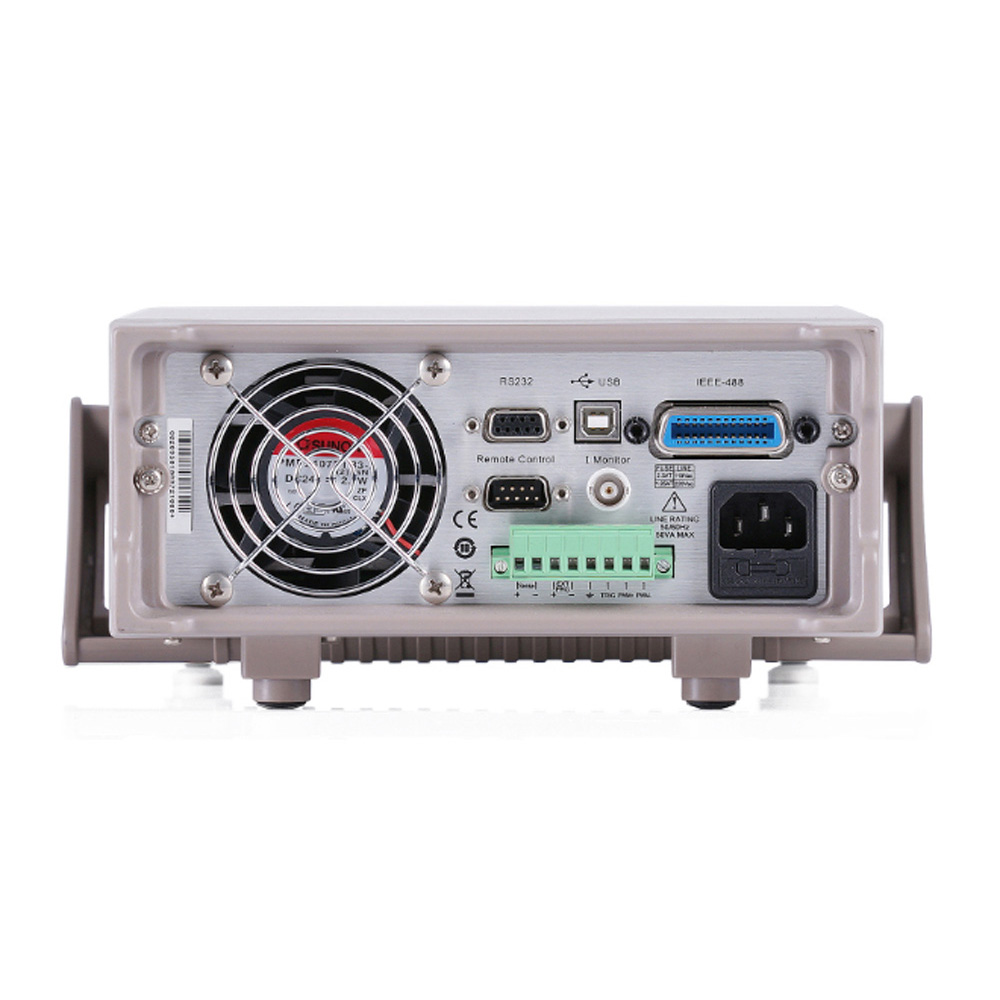

♦ Built-in USB/RS232
Functions and Advantages
CR-LED mode
The unique CR-LED mode developed by IT8900 series is especially applicable for LED driver test.The user only needs to set the operating voltage,current and coefficient of LED driver to obtain real output parameter of LED driver.Different from universal electronic load,this mode of IT8900 series adopts pure hardware circuit design without software operation by MCU module,thus increasing the speed and stability of CR mode control circuit,solving voltage and current jitter during LED driver test,increasing frequency width and helping realize PWM dimming.
Options & Accessories
USBFor USB port communication-
CD (accessory)With user manual and communica…
-
AC power cord (accessory)AC power cord (accessory)
-
IT-E151 (Optional)19” Rack mount kit
-
IT-E151A (Optional)19” Rack mount kit
-
IT-E30312-YY (Optional)30A/1.2m/Y terminal, a pair of…
-
IT-E30320-YY (Optional)30A/2m/Y terminal, a pair of r…
