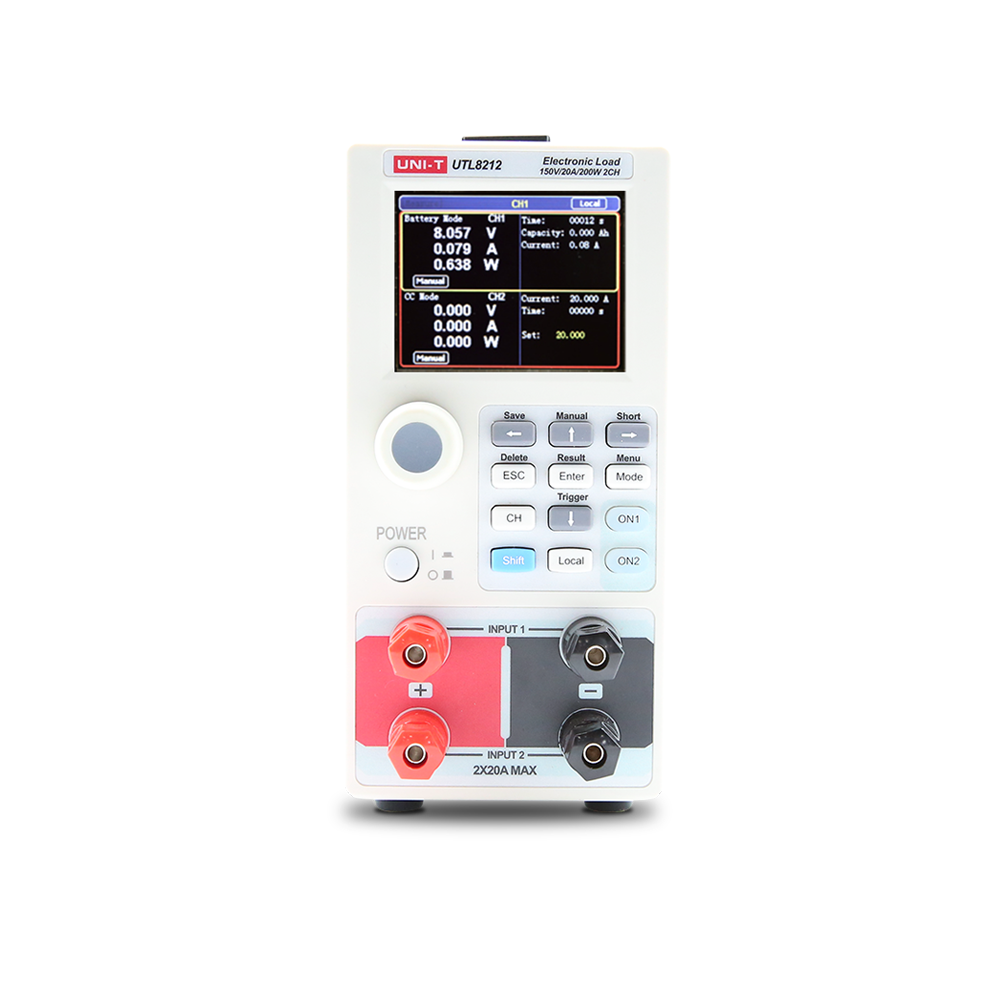

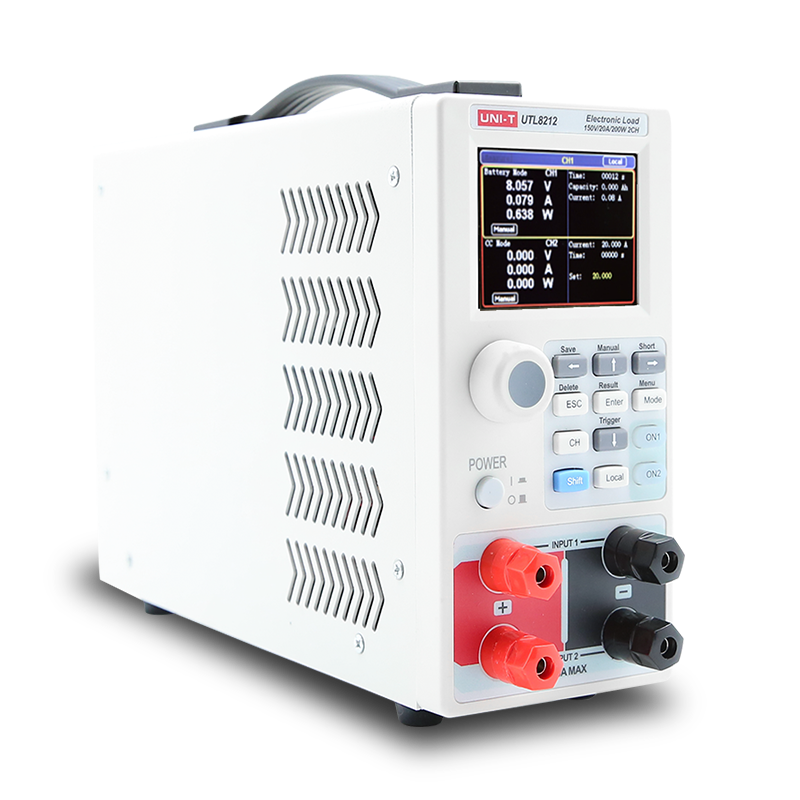

UTL8200 SERIES
DC Electronic Loads

The UTL8200 Series is designed for users requiring a DC load

with a compact form factor which is widely used in basic applications

such as product production line and maintenance. Small size, easy operation,

rich testing functions and modes, support for dual-channel independent testing,

the standard RS-232 interfaces for remote communication to meet your diversified

test requirements, easy to connect seamlessly with automatic production line and

automatic test system (ATS). With a wide range of power measurement,

voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA,

the UTL8200 series is a cost-effective DC load with performance

specifications that rival any instrument in its class.



VOLTAGE
CURRENT
150V
20A/40A



TOTAL POWER
RESOLUTION
400W
1mV/1mA



SIZE
CONNECTIVITY
½ 2U
RS232

2.8 inch large screen LCD display

Test resolution: 1mV/1mA

Voltage test range: 0~150V

Current test range: 0~40A (UTL8211), 0~20A (UTL8212)

Power test range: 0~400W (UTL8211), 0~200W (UTL8212)

Built-in 7 test modes

7 working modes: CC/CV/CR/CP/dynamic/list/battery

Independent short circuit test function

Multi-mode battery discharge test

Multiple protection functions

Various protections such as over voltage, low voltage, over current, over power, over heat, anti-reverse connection, etc.

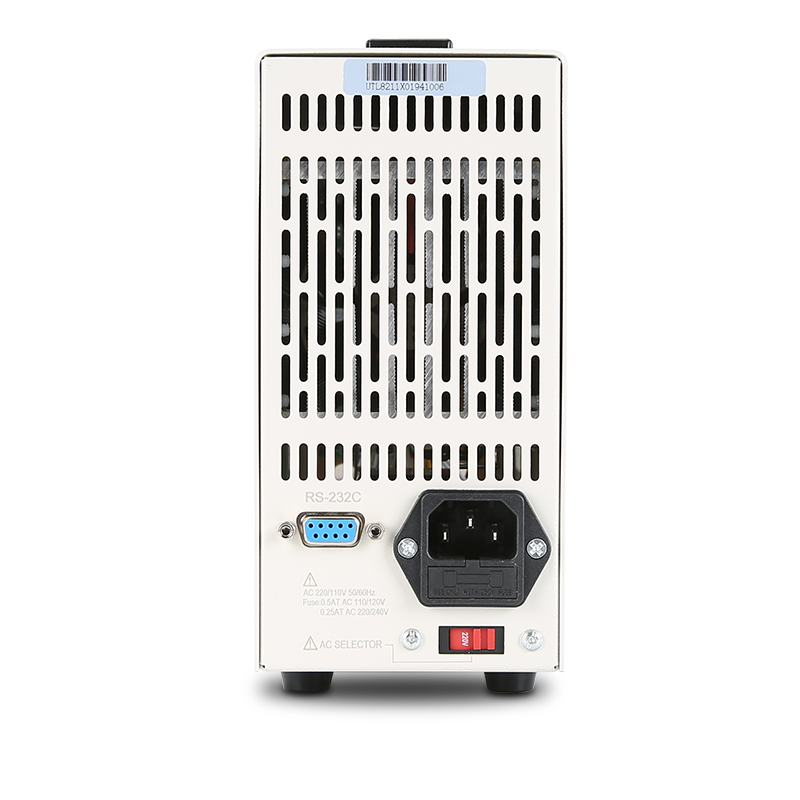

RS-232C communication interface, intelligent temperature control fan, power-off memory function

Standard RS-232C interface: supporting PC software to realize remote operation

Intelligent temperature control fan: Effectively reduce noise and help prevent the instrument from overheating

Power-off memory: power on again to restore the last saved setting value

Model Voltage Current Total Power Resolutıon Max. Dynamıc Frequency Current Slew Rate Sıze Connectıvıty
UTL8211 150V 40A 400W 1mV/1mA 10kHz 0.15A/μs ½ 2U RS-232
UTL8212 150V 20A 200W*2CH 1mV/1mA 10kHz 0.15A/μs ½ 2U RS-232
