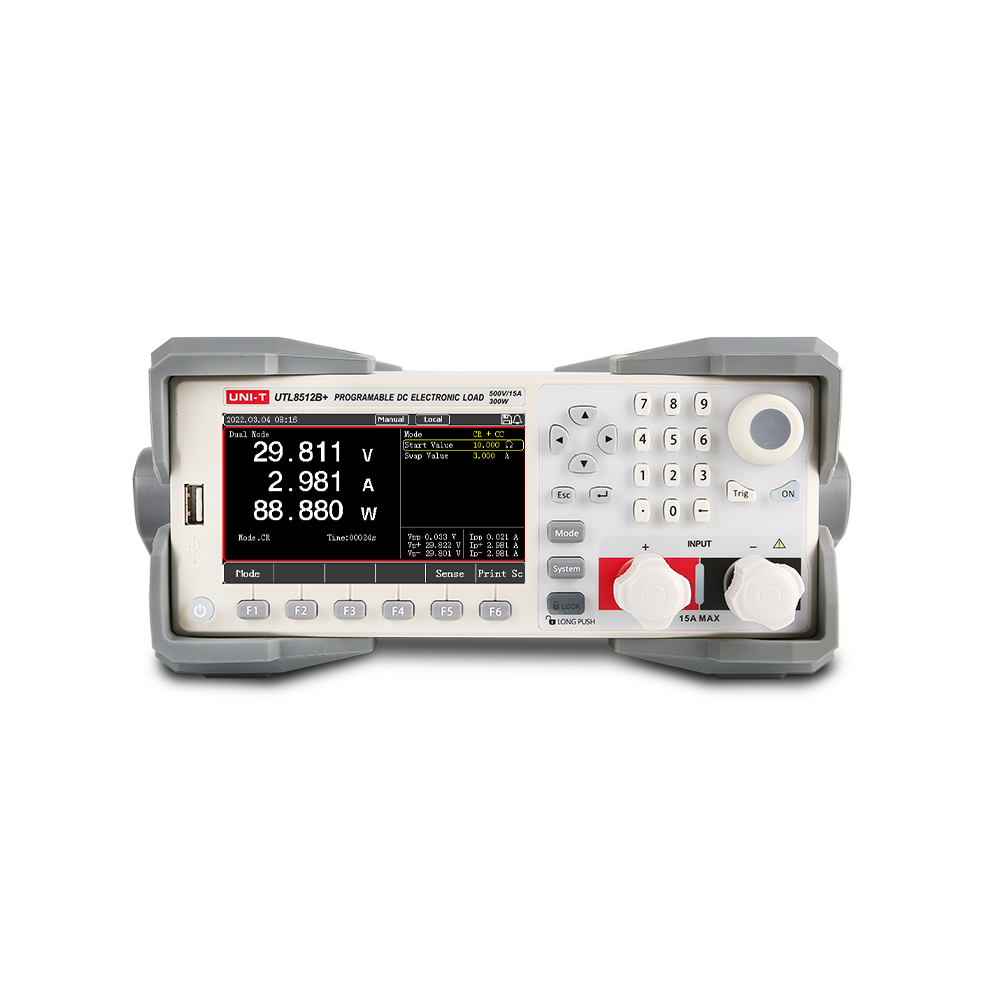

UTL8500 SERIES
DC Electronic Loads

The UTL8500 Series is a cost-effective programmable DC electronic load series

with high performance. With a resolution of 0.1mV and 0.1mA,

multiple protection mechanisms significantly improve the reliability of the equipment.

The Series has a variety of testing functions and modes,

equipped with RS-232 communication interface, and can be equipped with other

communication interfaces according to design and testing requirements.

The Series provides a flexible, fast and effective solution.

Meet different customers’ needs from Education, Scientific Research and Manufacturing



VOLTAGE
CURRENT
150V/500V
15A/30A/120A



TOTAL POWER
RESOLUTION
150W/300W/600W
0.1mV/0.1mA



SIZE
CONNECTIVITY
½ 2U

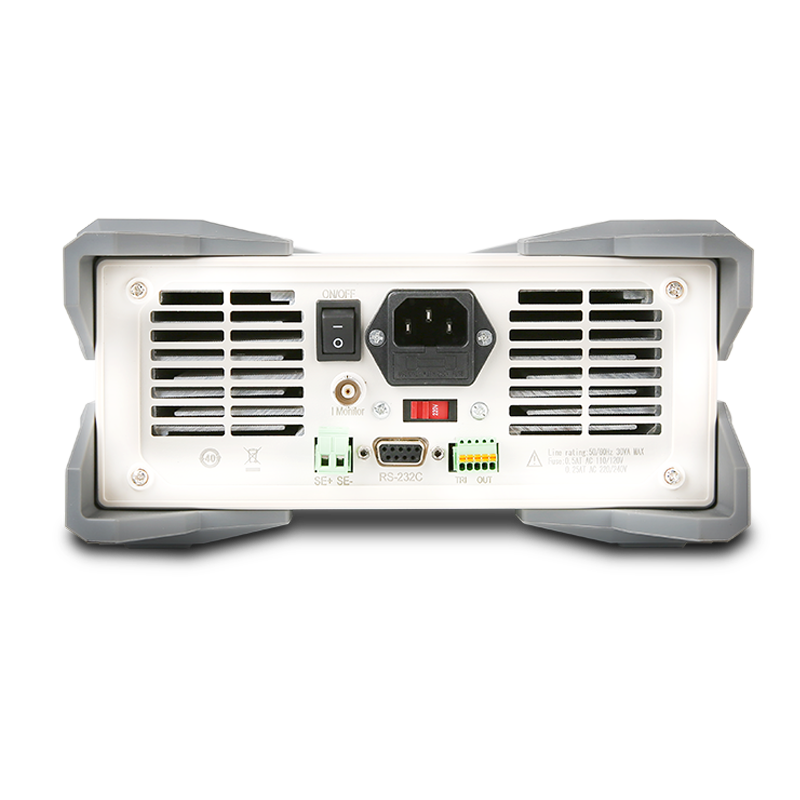

RS232,(Optional RS232, RS232-USB)

4.3 inch LCD screen display

4.3 inch LCD screen display

Resolution: 0.1mV/0.1mA

Voltage test range: 0~150V/500V

Current test range: 0~15A/30A/120A

Power test range: 0~150W/300W/600W

Four basic test modes

Four basic working modes: CC/CV/CR/CP

Rich test mode

In order to meet diversified test requirements,

UTL8500 series electronic loads provide more test modes for users to choose,

including dynamic test, list test, combination test, OCP/OPP test, CR-LED test,

battery test, load effect, OVP test , Short circuit, time test and other modes.

Screenshot function, list call and system upgrade

Press the [Screenshot] button to save the current screen image to the

USB flash drive,or save the frequently used list test files in Flash or USB flash drive,

so that they can be called when needed next time,

 and the system can be upgraded quickly through the USB flash drive.

Multiple protection functions

Various protections such as over voltage, low voltage, over current,

over power, over heat, anti-reverse connection, etc.

Model Voltage Current Total Power Resolutıon Max. Dynamıc Frequency Current Slew Rate Sıze Connectıvıty
UTL8511 150V 30A 150W 0.1mV/0.1mA 10kHz 3A/μs ½ 2U RS-232 (Optional: RS232-USB, RS232-RS485)
UTL8512 150V 30A 300W 0.1mV/0.1mA 10kHz 3A/μs ½ 2U RS-232 (Optional: RS232-USB, RS232)
UTL8512B+ 500V 15A 300W 0.1mV/0.1mA 10kHz 1.5A/μs ½ 2U RS-232 (Optional: RS232-USB, RS232)
UTL8513 150V 120A 600W 0.1mV/0.1mA 10kHz 1.5A/μs ½ 2U RS-232 (Optional: RS232-USB, RS232)
