IT-M3140
Programmable DC Power Supply

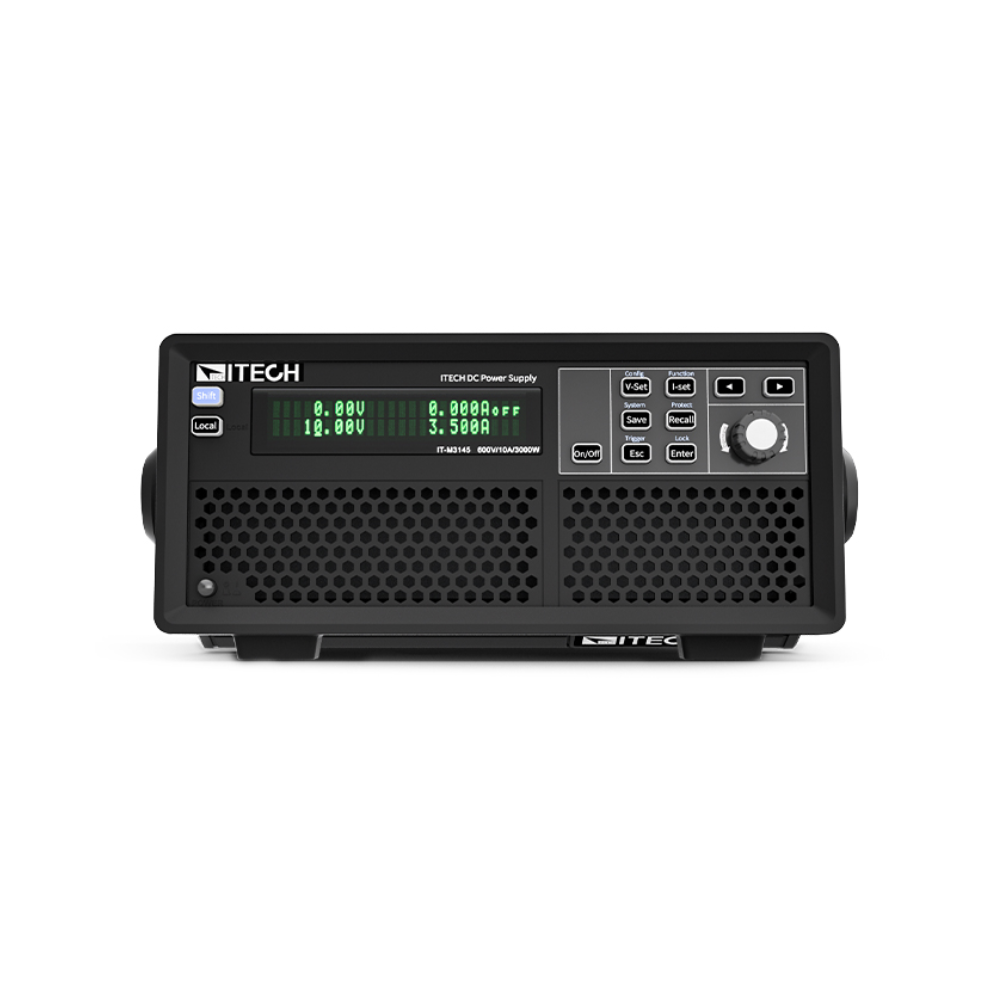

IT-M3140 Programmable DC Power Supply is specially designed for testing, production, R&D lab and ATE integration. It is only 2U half rack, but can output power up to 1850W and 3000W, and voltage output from 30V to 1200V. It has three output modes of constant voltage, constant current and constant power. Automatic wide-range output enables it to achieve a wider output voltage and current range at full power output, meeting a wider range of testing requirements and greatly saving equipment purchase costs. Not only that, IT-M3140 is a DC power supply integrating high stability, fast response (<1ms), high-level protection functions and LIST programmable functions. This series is equipped with a standard USB/LAN interface, and can be used with ITECH’s free PV3140 software to easily realize remote control and data storage, and is easy to integrate. IT-M3140 can be widely used in semiconductor device ATE, burn-in integration, testing and certification, power module and automotive electronics and other fields.



MODEL VOLTAGE CURRENT POWER RESOLUTION ACCURACY INTERFACE SIZE
IT-M3135E 600V 10A 1850W 10mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3134E 300V 20A 1850W 10mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3133E 150V 40A 1850W 10mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3132E 80V 80A 1850W 10mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3131E 30V 150A 1850W 1mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3147 1200V 5A 3000W 100mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3146 1000V 6A 3000W 100mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3145 600V 10A 3000W 10mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3144 300V 20A 3000W 10mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3143 150V 40A 3000W 100mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3142 80V 80A 3000W 10mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3141 30V 150A 3000W 1mV/10mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3137E 1200V 5A 1850W 100mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U
IT-M3136E 1000V 6A 1850W 100mV/1mA U:≤0.03% + 0.02%F.S / I:≤0.1% + 0.1%F.S. Built-in USB/LAN, optional GPIB/external analog 1/2 2U

 Product Features

♦ Only 2U half rack, Power range: 1850W/3000W
♦ Voltage and current range: 30V-1200V, 150A
♦ Three output modes: CV/CC/CP
♦ CC/CV priority to avoid current overshoot
♦ Fast dynamic response: <1ms
♦ LIST mode simulates various power supply disturbance waveforms，rising and falling slope are adjustable
♦ Fold back,UVP/OVP, UCP/OCP,OPP,OTP, inhibit protection,more secure and reliable
♦ The Sense protection circuit combined with software and hardware can effectively detect Sense reverse connection and missing connection, and protect the DUT
♦ Standard USB/LAN, optional RS232 & analog, GPIB, easy to integrate

Functions and Advantages

LIST mode simulates various power supply disturbance waveforms

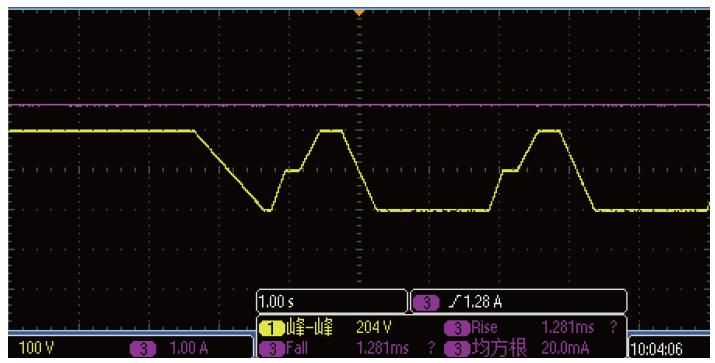

IT-M3140 series provides LIST programming mode. In this mode, users can generate arbitrary DC voltage disturbance waveforms, such as instantaneous voltage drop or voltage rise slowly, by setting parameters such as working steps (max100 steps), output voltage/current per step, single step duration (0.001s-3600s), rising and falling slopes, etc., to fully verify the anti-interference performance of DC loads. It is suitable for testing products such as DC-DC power modules, motor drivers, and battery-powered household appliances.

 CC/CV priority function to effectively suppress current overshoot

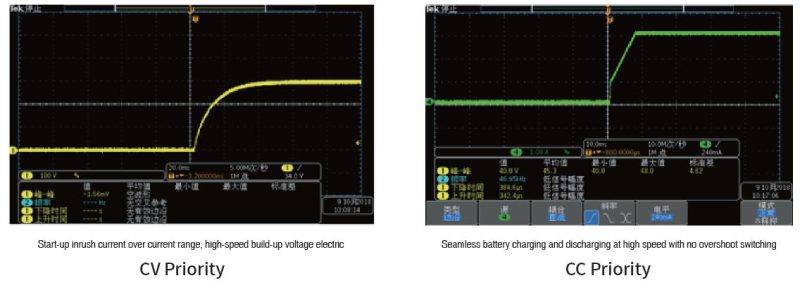

The IT-M3140 series has a CC/CV priority function to help users solve a variety of demanding problems in long-term test applications. By changing the CC/CV priority and loop speed settings, users can obtain voltage high speed mode or current no overshoot mode, making the test more flexible, since it is suitable for current-sensitive laser testing, and can also meet the application scenario of rapid voltage dips.

 9 protection modes to enhance test security

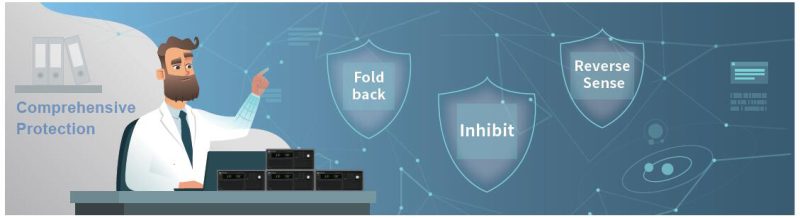

To further enhance the reliability and safety of product testing, the IT-M3140 series offers nine protection modes. In the traditional over / under voltage, over / under current, over power protection on the basis of the additional Fold back, Inhibit and Sense reverse connection protection function, so that not only can effectively reduce the power mode switching instantaneous overshoot, while avoiding the sense wrong connection or leakage caused by test abnormalities. With the Inhibit output ban / interlock function, making the test more secure and reliable.
