IT-M3900D Series
High power DC power supply

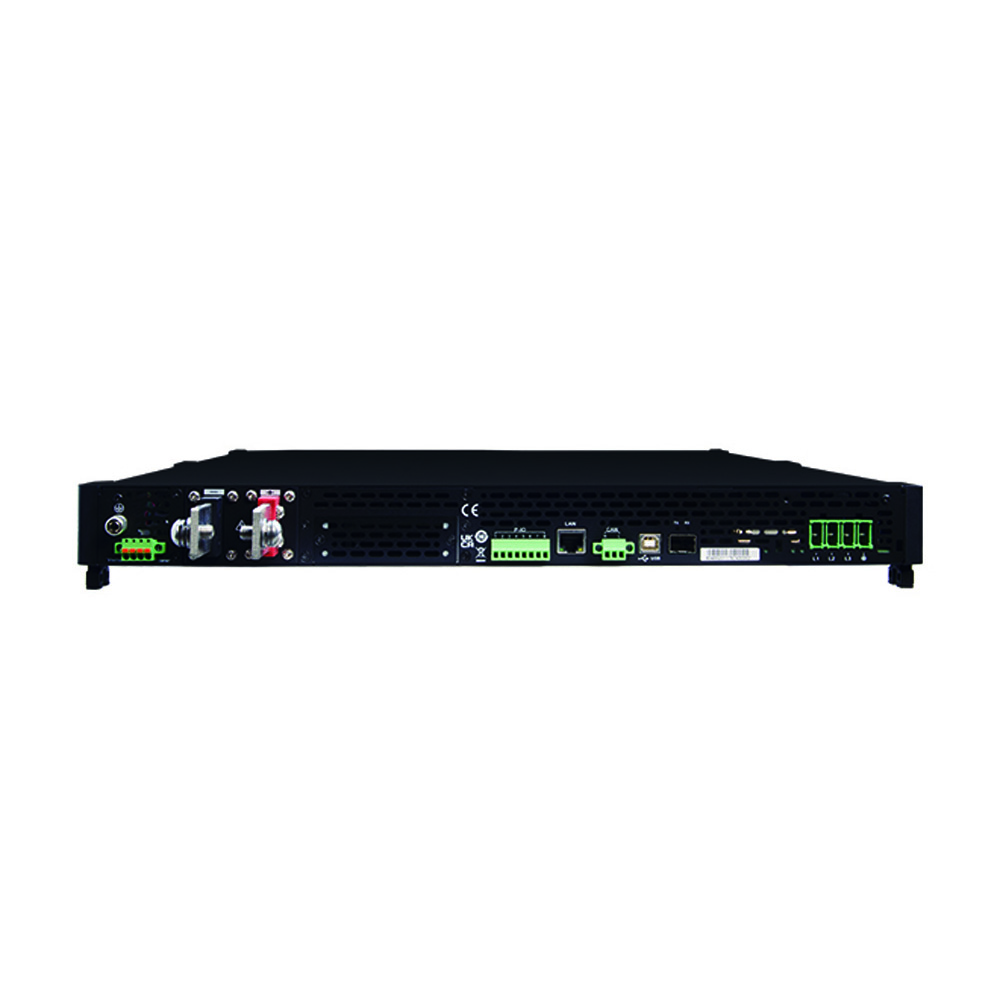

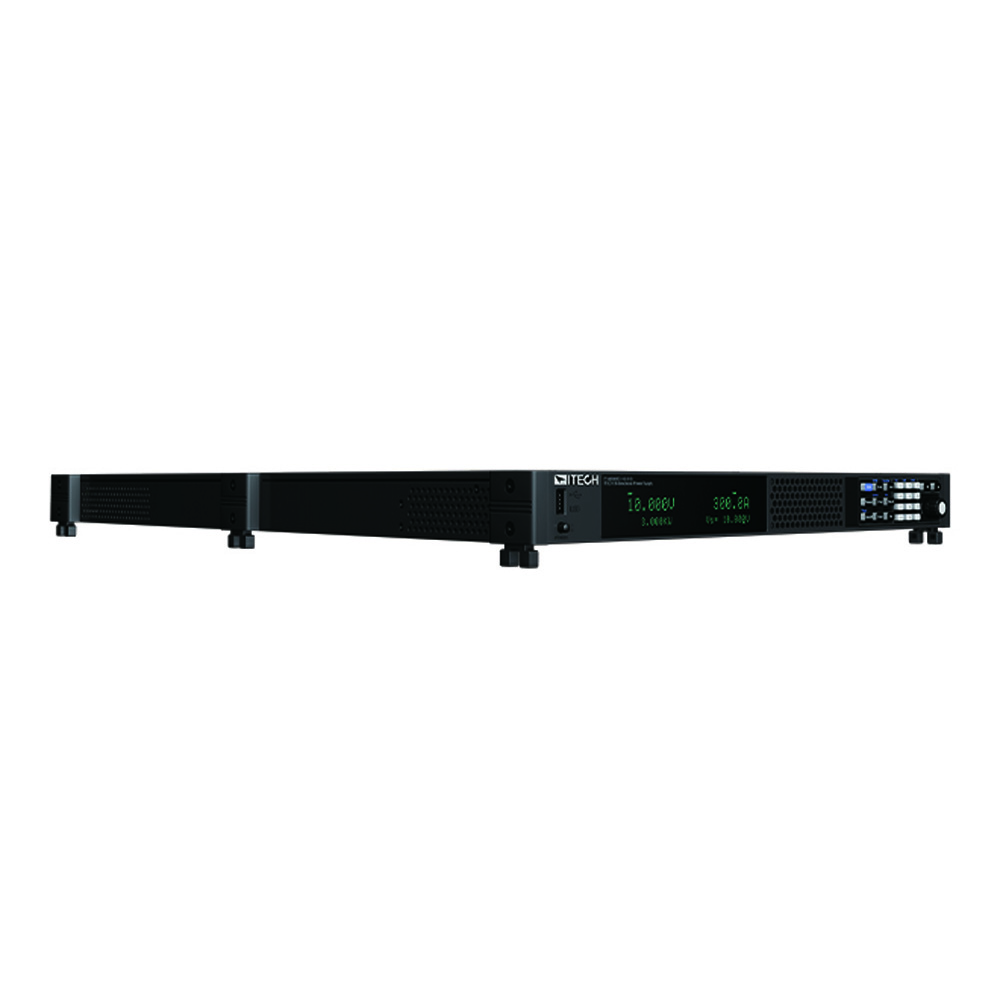

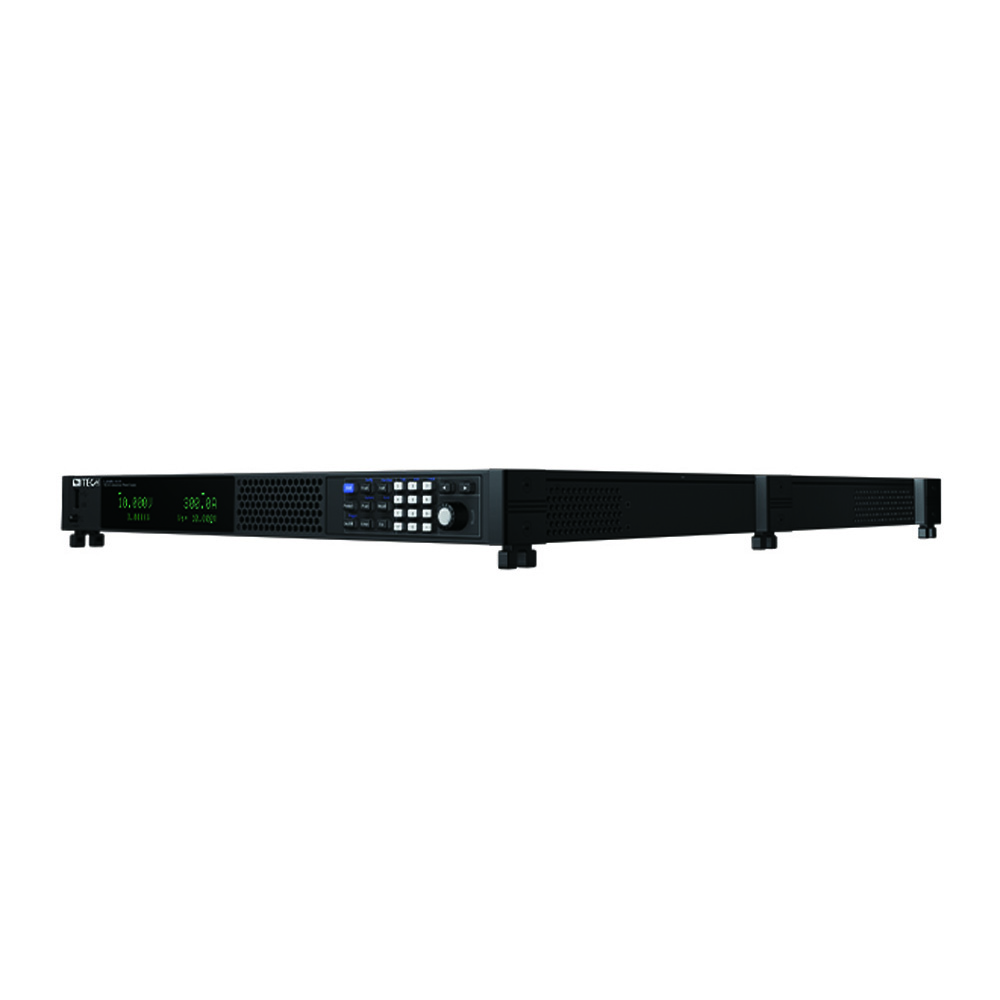

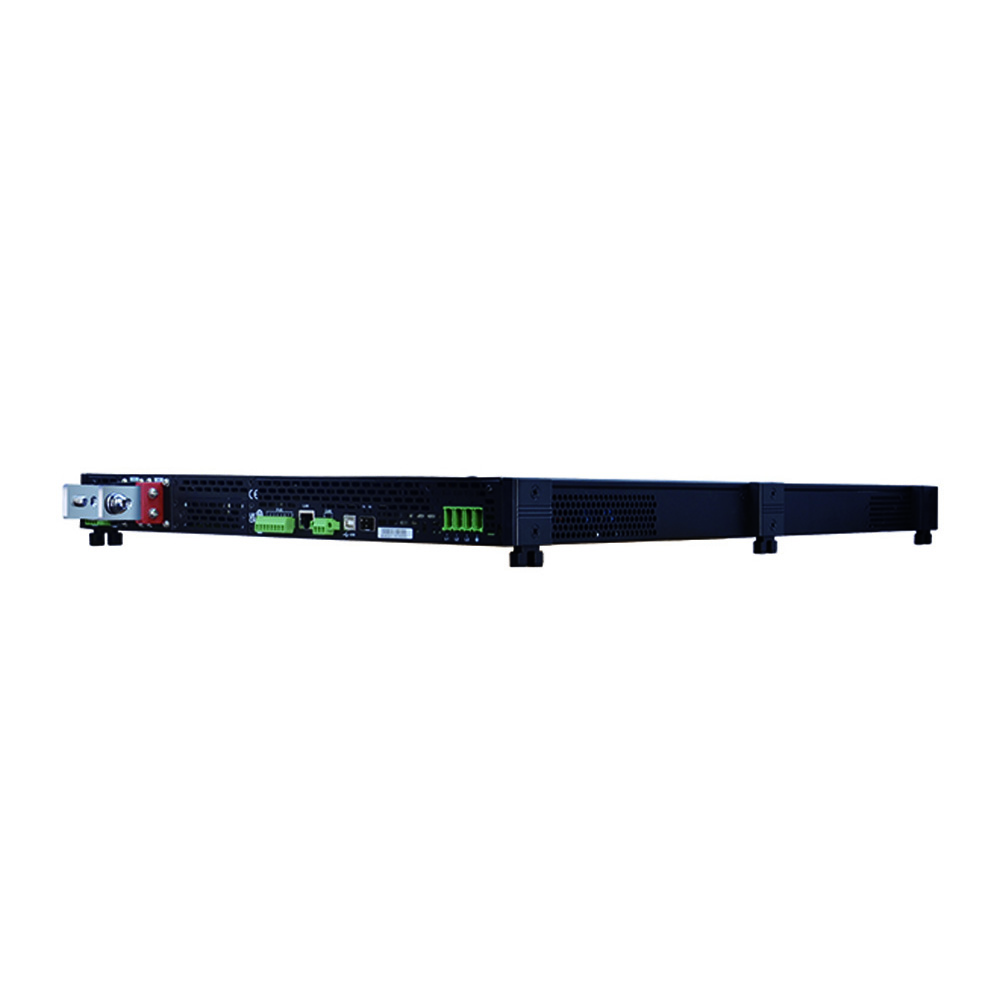

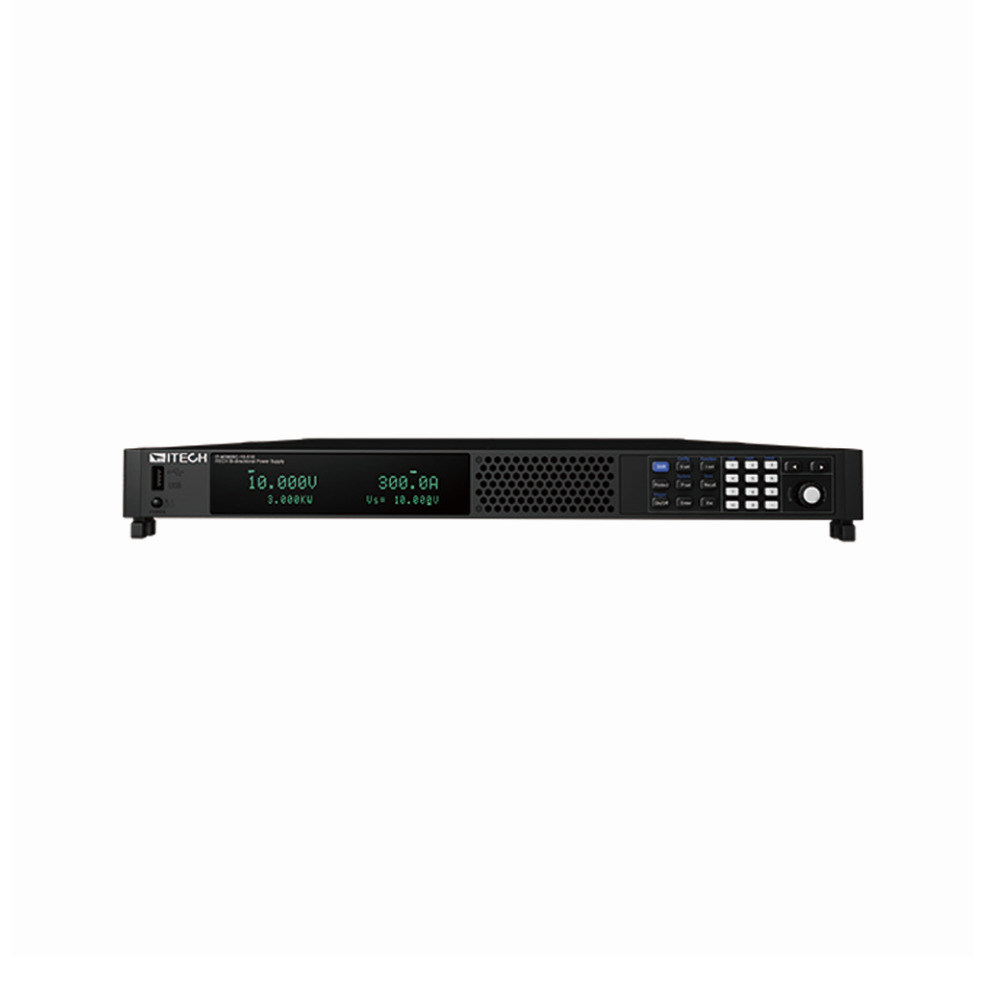

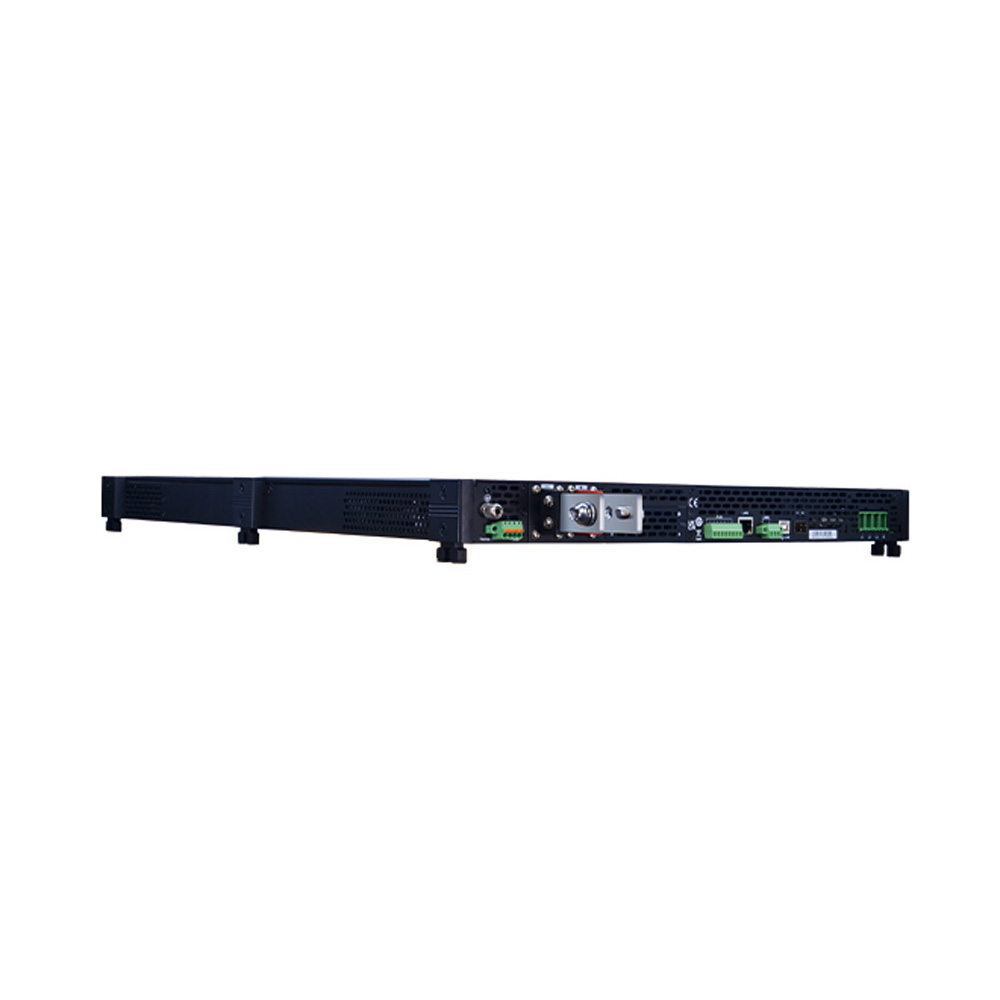

IT-M3900D High Power DC Power Supply

The IT-M3900D series is a single channel output programmable DC power supply. The density structure design can effectively save rack space. Also with wide-range output design, can provide a wider range of voltage and current combinations within the specified power range. One unit can be used as multiple power supplies, more flexibility. The CC/CV priority allows user to switch the output mode according to the different needs of the DUT priority, match with the high-precision and high-speed product characteristics, and a variety of standard communication interfaces, simplifying and speeding up the test development, can meet users’ variety testing application, widely used in laboratories, production lines, and automatic test systems.



                          MODEL  VOLTAGE CURRENT POWER RESOLUTION ACCURACY INTERFACE SIZE
IT-M3910D-10-1020 10V 1020A 10200W 0.001V/0.1A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3905D-10-510 10V 510A 5100W 0.001V/0.1A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3903D-10-340 10V 340A 3400W 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3901D-10-170 10V 170A 1700W 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3906D-500-36 500V 36A 6kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3904D-500-24 500V 24A 4kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3902D-500-12 500V 12A 2kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-300-120 300V 120A 12kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3906D-300-60 300V 60A 6kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3904D-300-40 300V 40A 4kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3902D-300-20 300V 20A 2kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-80-240 80V 240A 12kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3906D-80-120 80V 120A 6kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3904D-80-80 80V 80A 4kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3902D-80-40 80V 40A 2kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-32-480 32V 480A 12kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3906D-32-240 32V 240A 6kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3904D-32-160 32V 160A 4kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3902D-32-80 32V 80A 2kW 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-1500-24 1500V 24A 12kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3906D-1500-12 1500V 12A 6kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-800-48 800V 48A 12kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U
IT-M3906D-800-24 800V 24A 6kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3904D-800-16 800V 16A 4kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3902D-800-8 800V 8A 2kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 1 U
IT-M3912D-500-72 500V 72A 12kW 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232 2 U



Product Features



♦ Compact design，power up to 6kW in 1U space, power up to12kW in 2U space
♦ Voltage range: 10-1500V
♦ Current range:8A~1020A
♦ Power range:1700W~12kW
♦ Wide range of output design, one unit can be used as multiple power supplies
♦ With simple master/slave parallel connection, expand power while maintaining performance*1
♦ CC/CV priority
♦ Adjustable output impedance
♦ Built-in function generator, support arbitrary-waveform generating
♦ List function, up to 200 steps can be set
♦ Support multiple working modes, adjustable rise and fall time
♦ The front panel supports the insertion of USB storage devices to meet the import of List files/Export, data logging functions, etc.
♦ Standard build-in USB/CAN/LAN/digital IO communication interface, optional GPIB/analog & RS232                   *1>6 devices in parallel, please contact ITECH for details

Functions and Advantages



High power density, compact design

ITECH has always adhered to the design concept of high power density to help users optimize the test solutions. The IT-M3900D series adopts a compact structure design to effectively save rack space, and provide up to 6kW power output in a 1U chassis, up to 12kW power output in a 2U chassis, which makes the entire portfolio of ITECH high power density series more complete and comprehensive.

Wide range output

There are 25 models included in IT-M3900C series. The output voltage ranges from 10V to 1500V and the maximum output current of a single unit can reach 1020A. The wide-range output design provides more voltage and current combinations than conventional fixed-range output DC power supplies, which is more flexible. Just a single unit can cover a wide range of applications which makes it easy to build power  systems and largely save room for you at the same time.

CC&CV priority function

CC/CV priority can continue to help users solve various severe problems in long-term test applications to make applications that require high-speed power or non-overshoot more flexible.The CC&CV priority function of IT-M3900D allows the user to select the response speed and the loop working mode of the CC/CV loop to determine whether the output is high-speed voltage mode or non-overshoot current mode,
which is suitable for high-power integrated circuit testing, charging and discharging testing, power transient simulation and characterization of automotive electronics, etc.

High efficiency parallel connection technology

Considering the user’s convenience and versatility , IT-M3900d can use master/slave control mode to parallel 6 units or more. Meanwhile ITECH fiber optic parallel technology fully solve the problems of slow speed and poor accuracy of traditional parallel methods. It is suitable for calibration and measurement, R&D lab, production line and ATE test.
