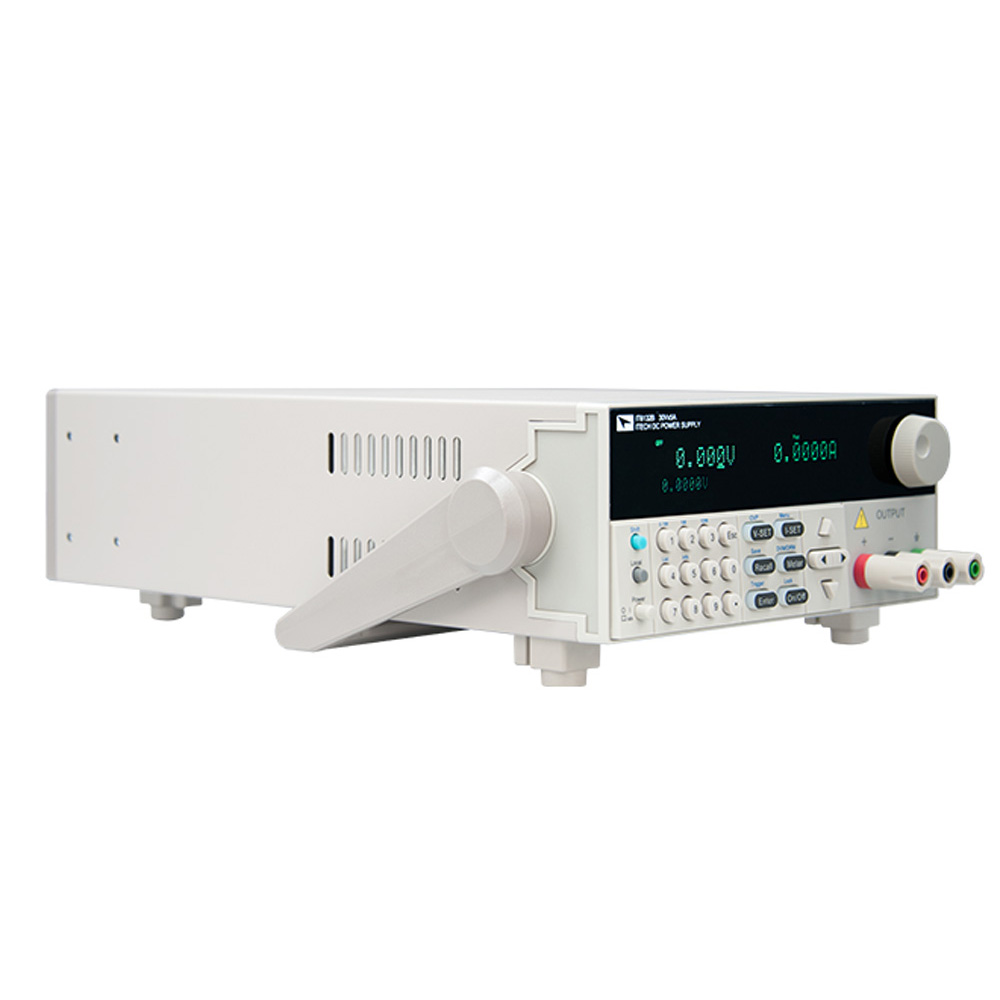

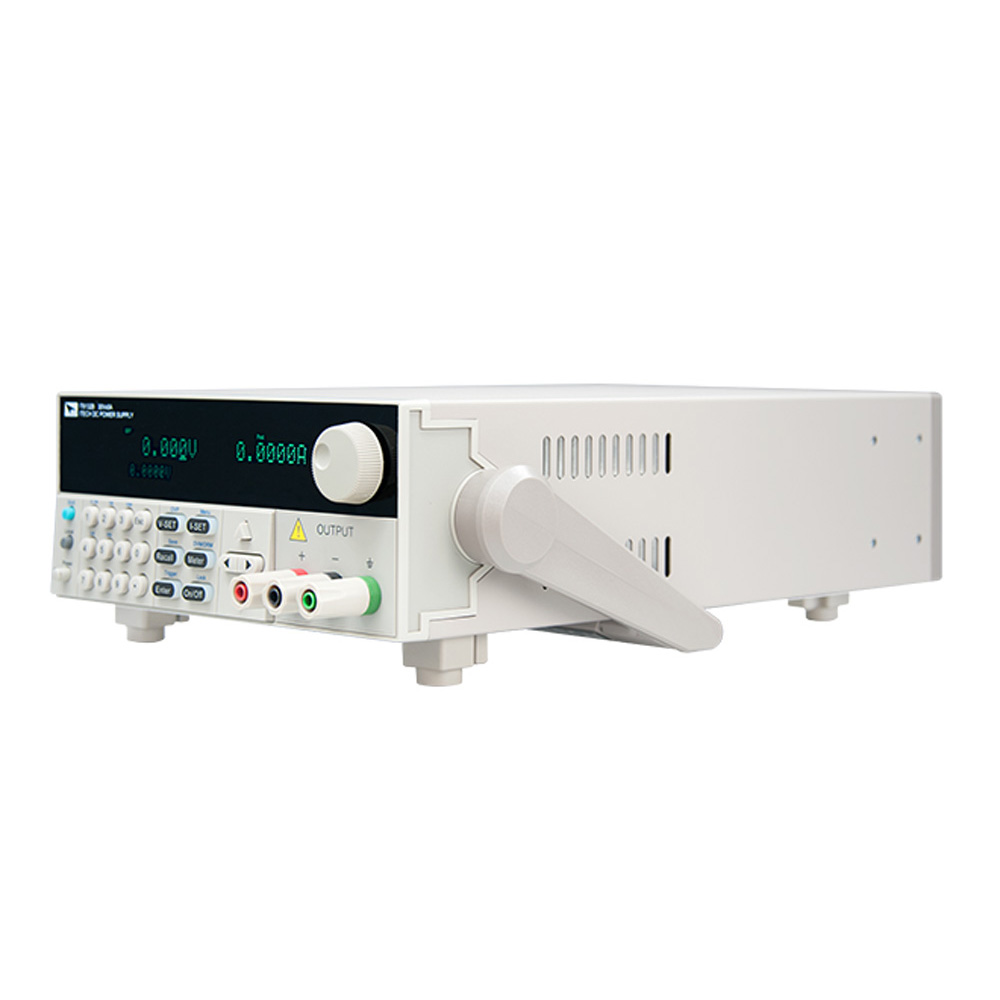

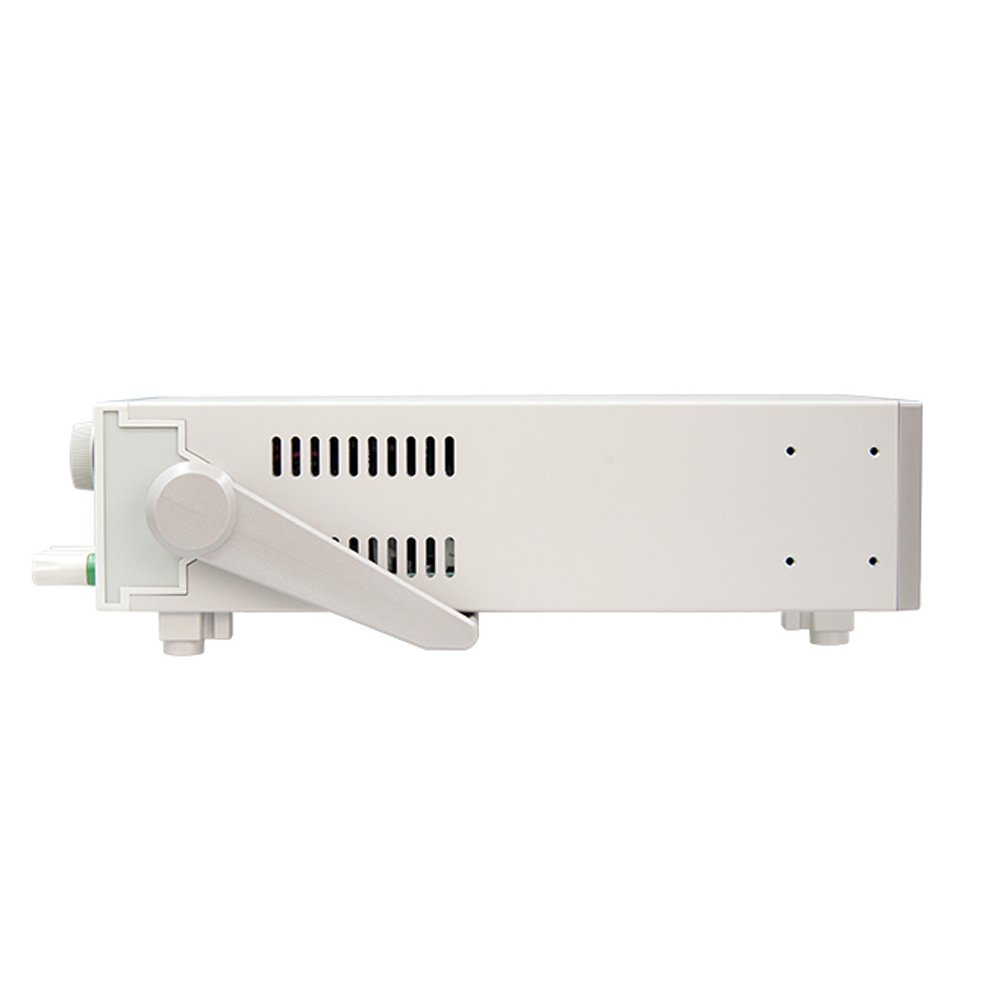

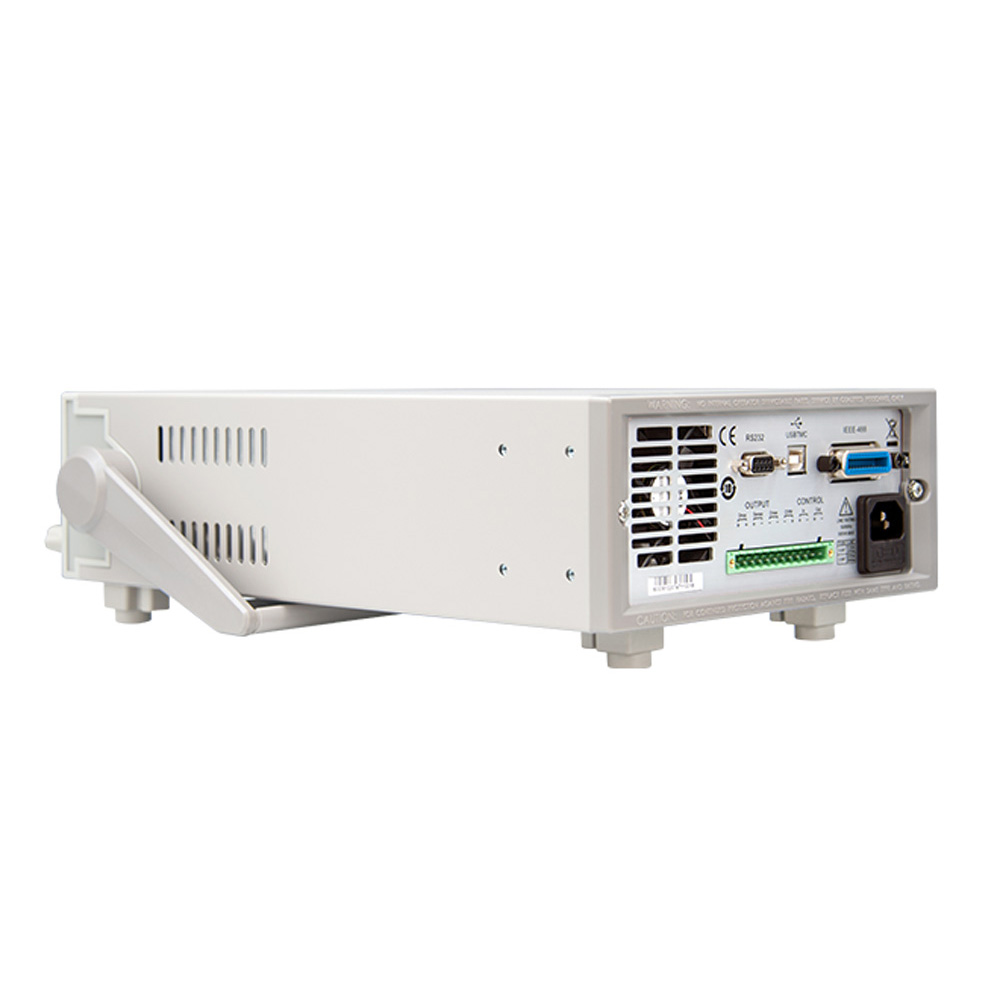

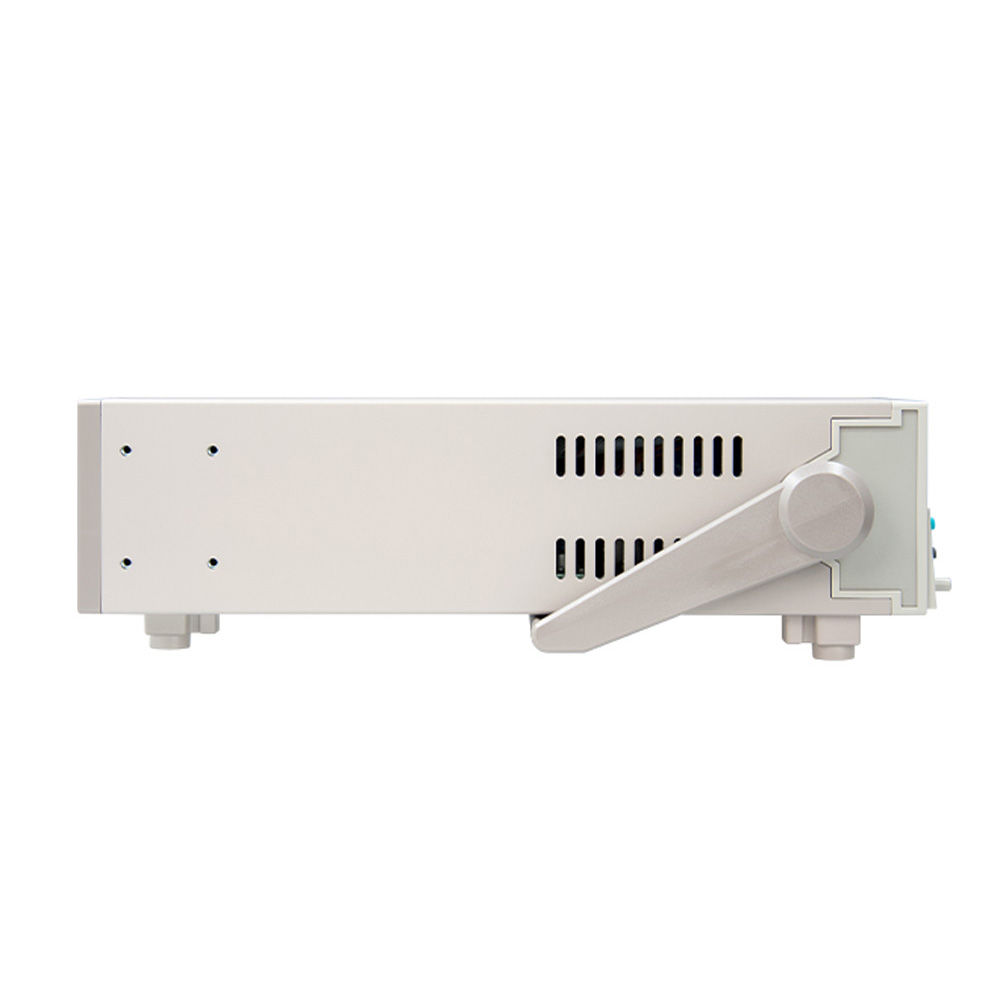

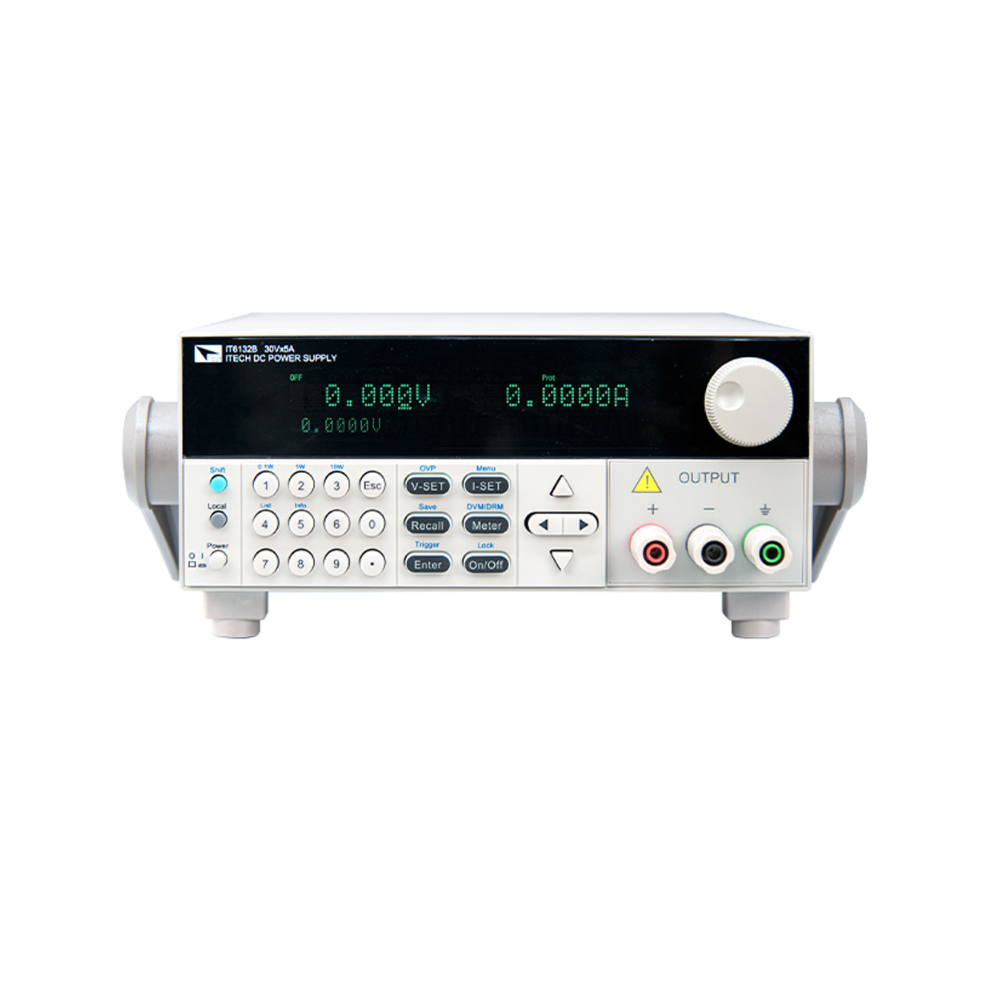

IT6100B Series
Programmable DC Power Supply

IT6100B series (86 ~ 1200W) high speed high precision programmable DC power supply is withultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current is with high-speed and no overshoot, which is widely used in power modules and other high-precision test occasions. IT6100B hasbuilt-in standard USB / RS232 communication interface and the panel supports List programming, which canprovide multi-purpose solution according to customer design and testing demands, easy to use.

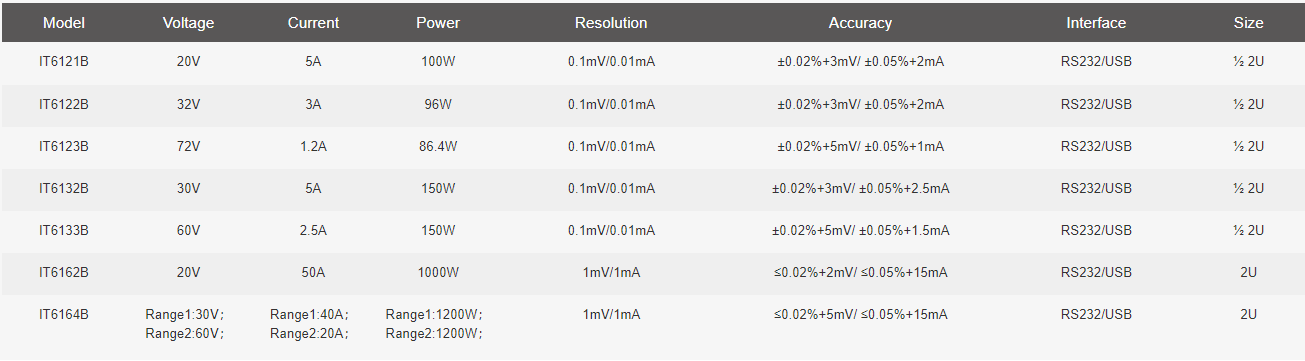

MODEL VOLTAGE CURRENT POWER RESOLUTION ACCURACY INTERFACE SIZE
IT6123B 72V 1.2A 86.4W 0.1mV/0.01mA ±0.02%+5mV/ ±0.05%+1mA RS232/USB ½ 2U
IT6122B 32V 3A 96W 0.1mV/0.01mA ±0.02%+3mV/ ±0.05%+2mA RS232/USB ½ 2U
IT6121B 20V 5A 100W 0.1mV/0.01mA ±0.02%+3mV/ ±0.05%+2mA RS232/USB ½ 2U
IT6164B Range1:30V；Range2:60V； Range1:40A；Range2:20A； Range1:1200W；Range2:1200W； 1mV/1mA ≤0.02%+5mV/ ≤0.05%+15mA RS232/USB 2U
IT6162B 20V 50A 1000W 1mV/1mA ≤0.02%+2mV/ ≤0.05%+15mA RS232/USB 2U
IT6133B 60V 2.5A 150W 0.1mV/0.01mA ±0.02%+5mV/ ±0.05%+1.5mA RS232/USB ½ 2U
IT6132B 30V 5A 150W 0.1mV/0.01mA ±0.02%+3mV/ ±0.05%+2.5mA RS232/USB ½ 2U



Product Features

♦ Output linear adjustment, high speed reliable, low noise
♦ High accuracy and resolution
♦ High voltage rising edge
♦ Built-in 5½ digital voltmeter and Ohmmeter
♦ Memory capacity: 100 groups
♦ List mode
♦ Timer function (0.01~60000S)
♦ Remote sense interface to compensate line voltage

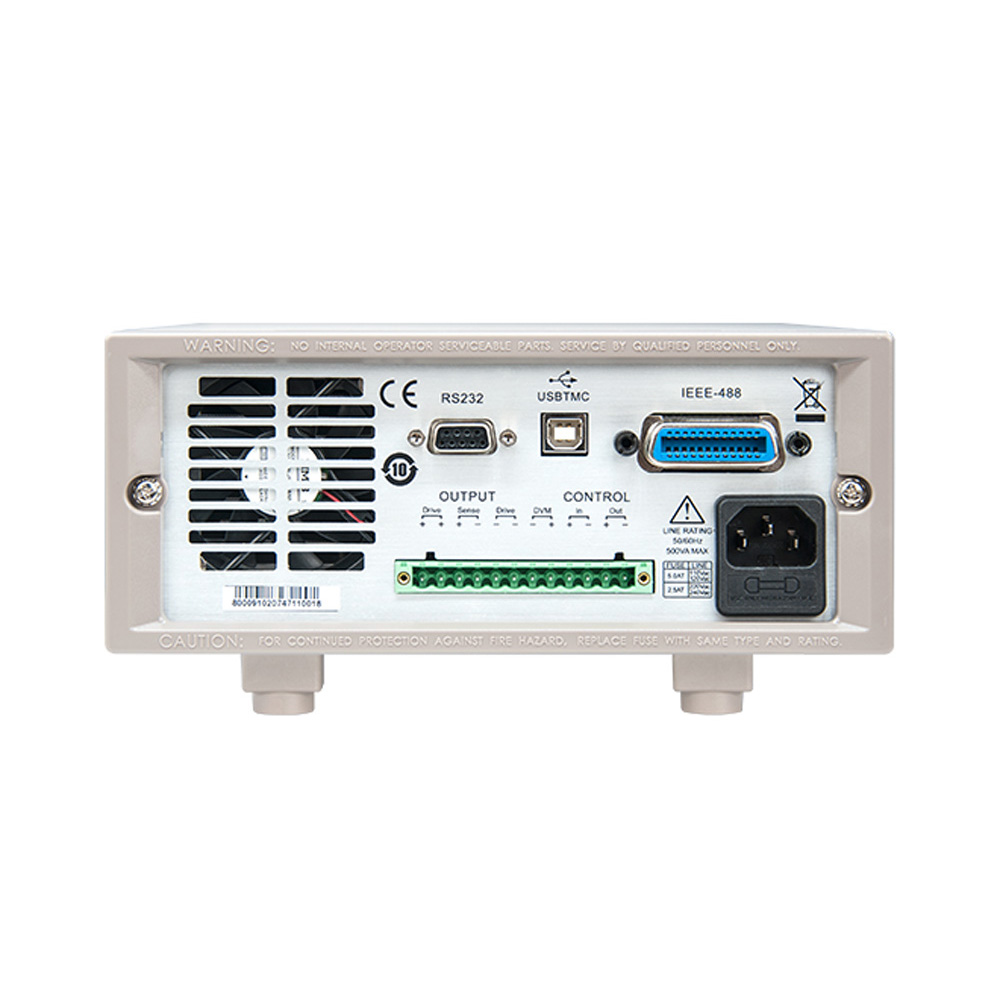

♦ Built-in RS232/USB interface and support SCPI protocol

Functions and Advantages

High voltage rise speed
Comparing with general high speed power supplies, IT6100B series power supplies reduce their ripple and noise to the lowest level.Their high voltage rise speed  (<20mS) suits for all high speed and precise testing occasions.



Digital voltage ohmmeter

IT6100B series has built-in precision digital voltage ohmmeterDigital ohmmeter: Provide four-wire method to measure resistance, measurement range: 0 ~ 1KΩ
Digital voltmeter: A 5½  voltmeter is provided to measure the external voltage, measurement range: 0 ~ 40V

Options & Accessories

  • USB
    For USB port communication
  • CD (accessory)
    With user manual and communica…
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E151A (Optional)
    19” Rack mount kit
  • IT-E151 (Optional)
    19” Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip – Banana…
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug – Banana pl…
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug – Y termina…
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of…
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r…
  • IT-E30615-OO (Optional)
    60A/1.5m/round terminal, a pai…
