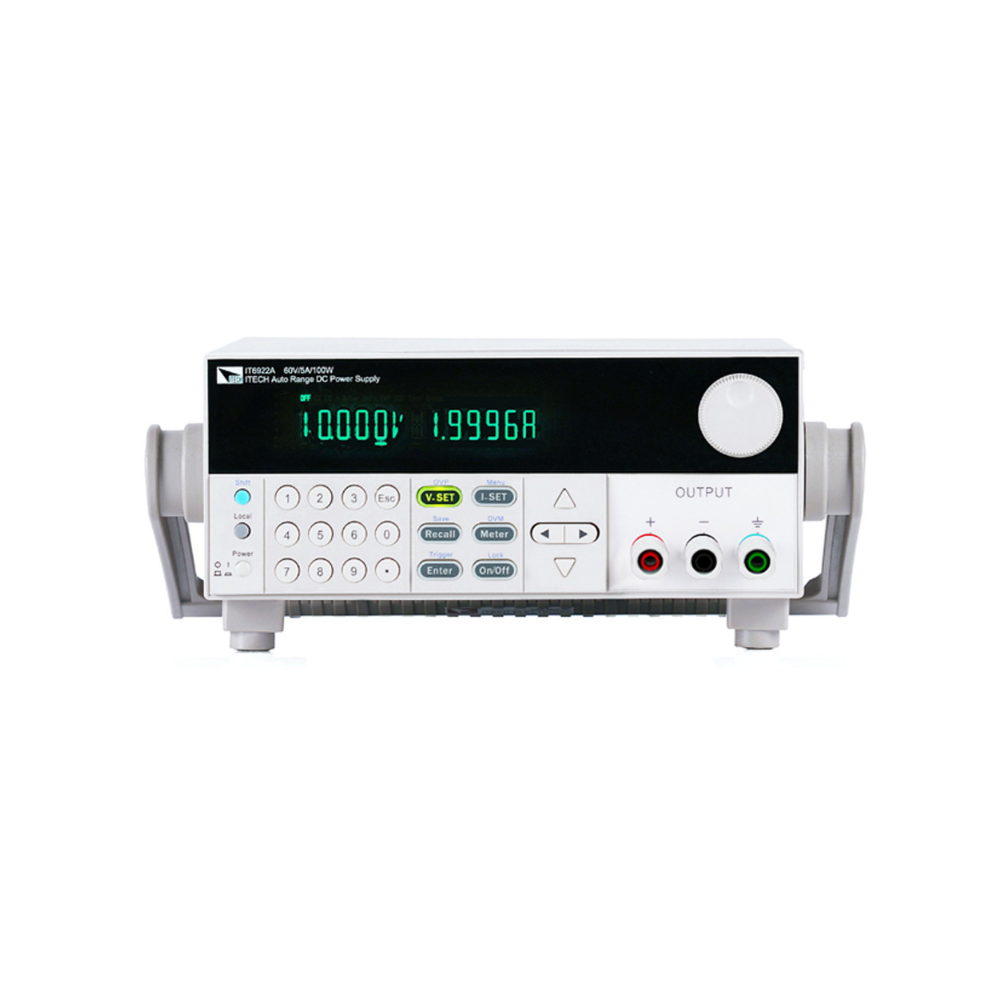

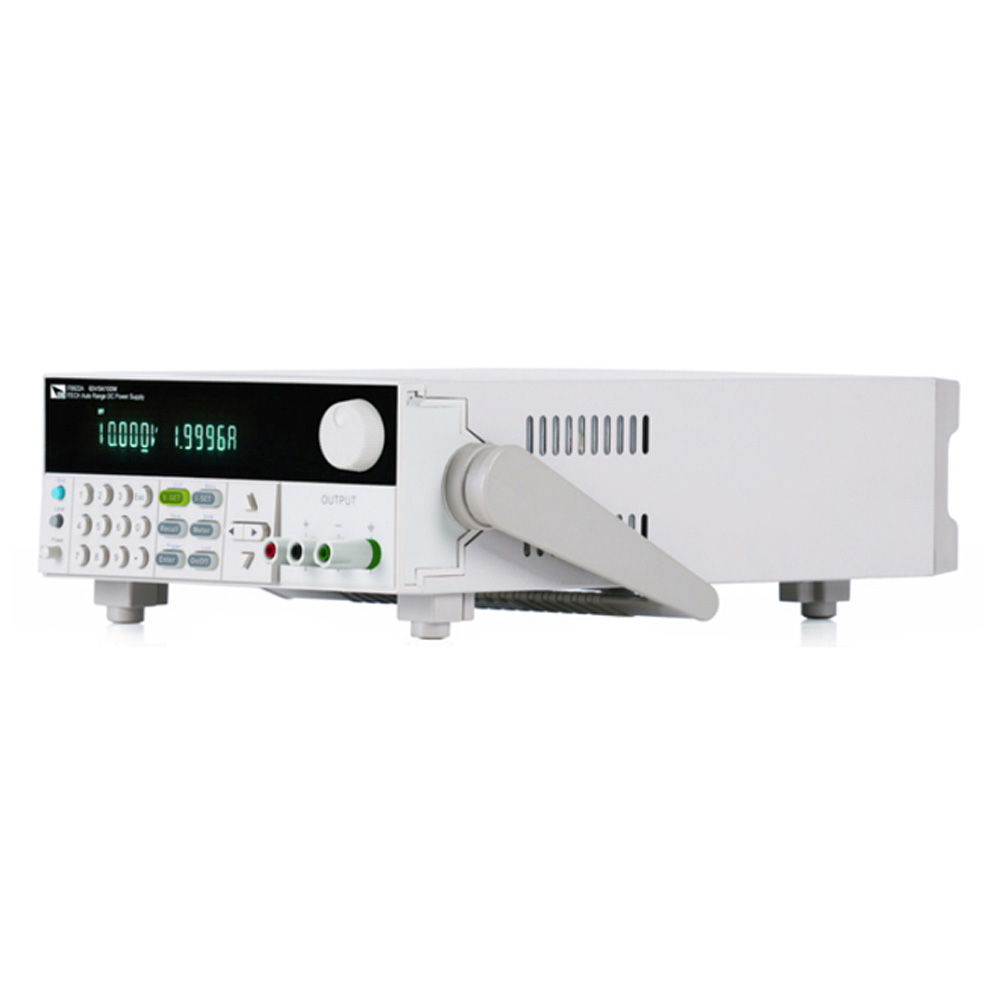

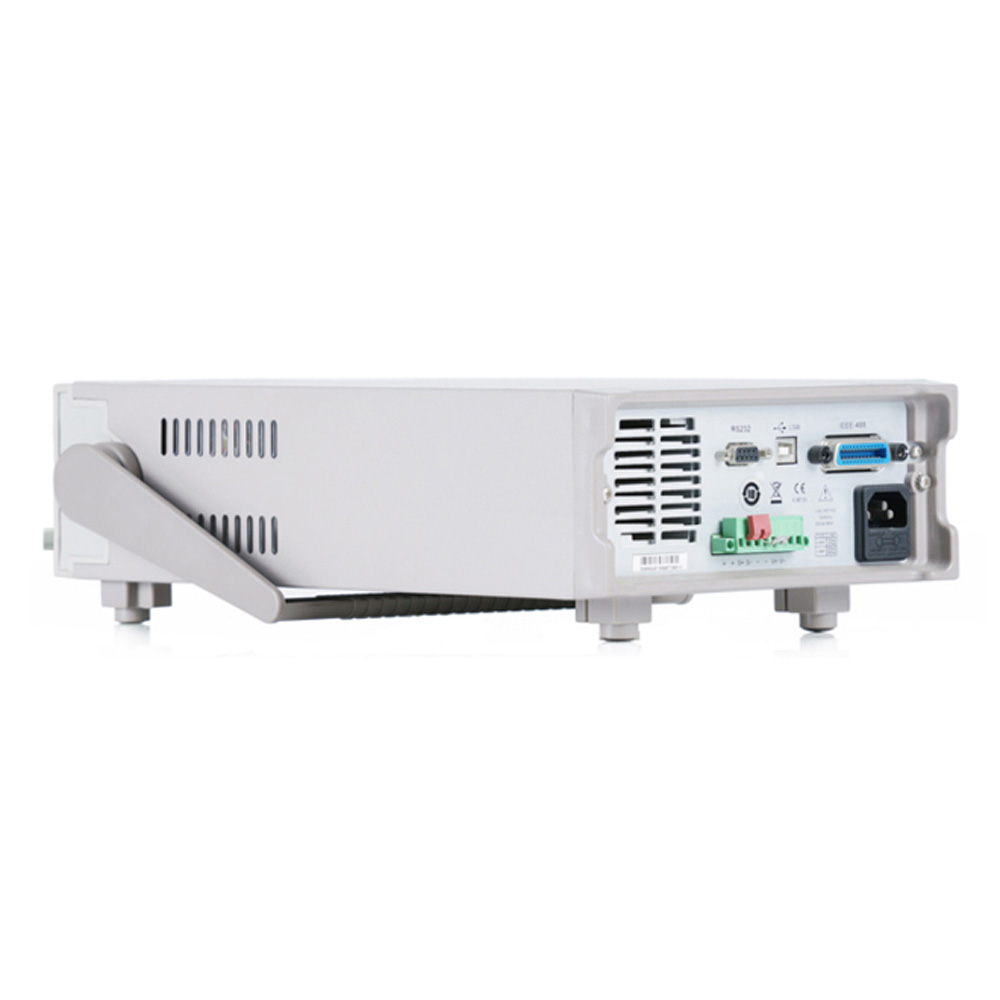

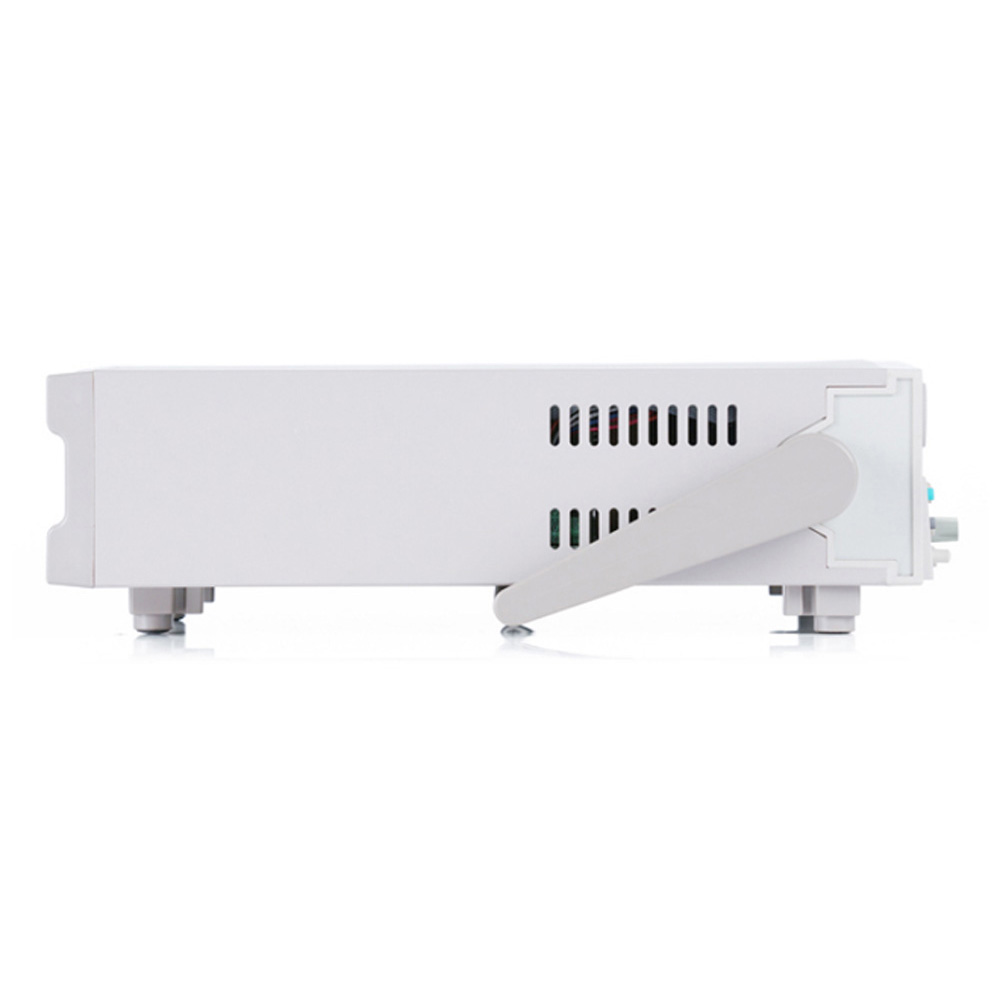

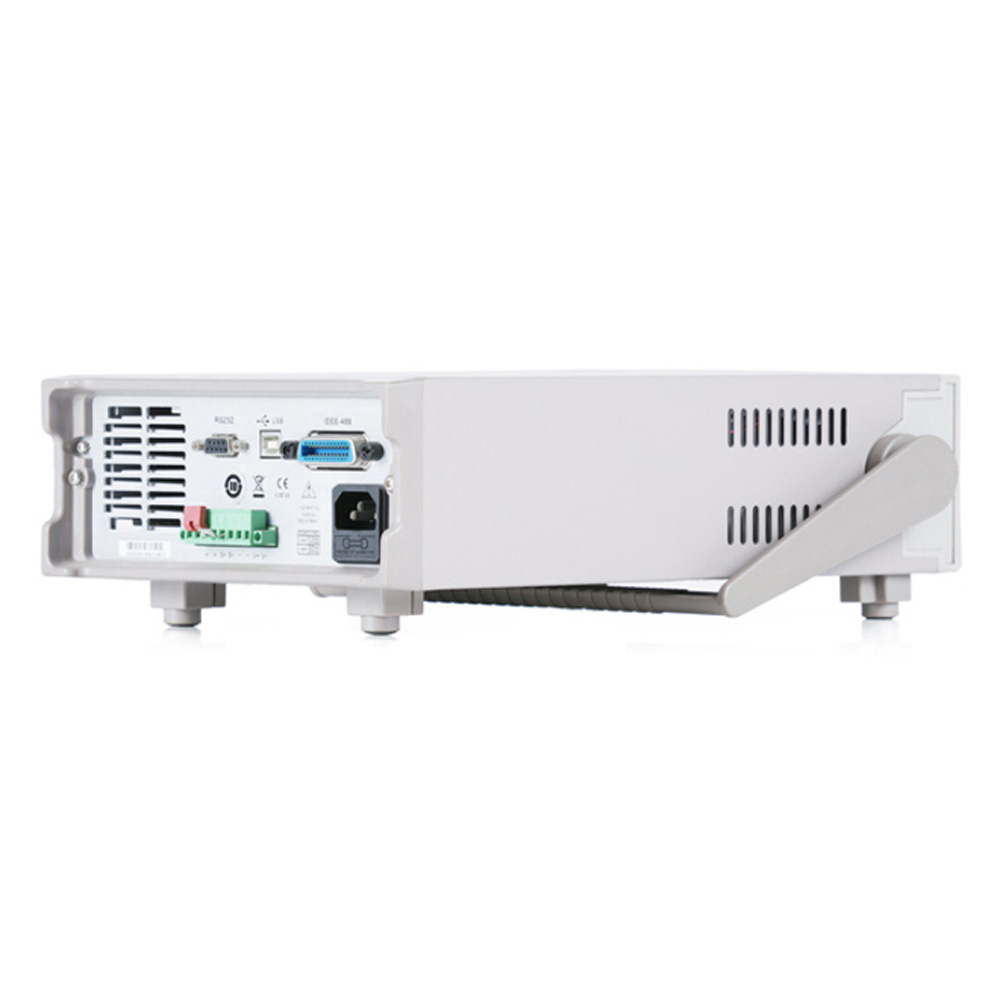

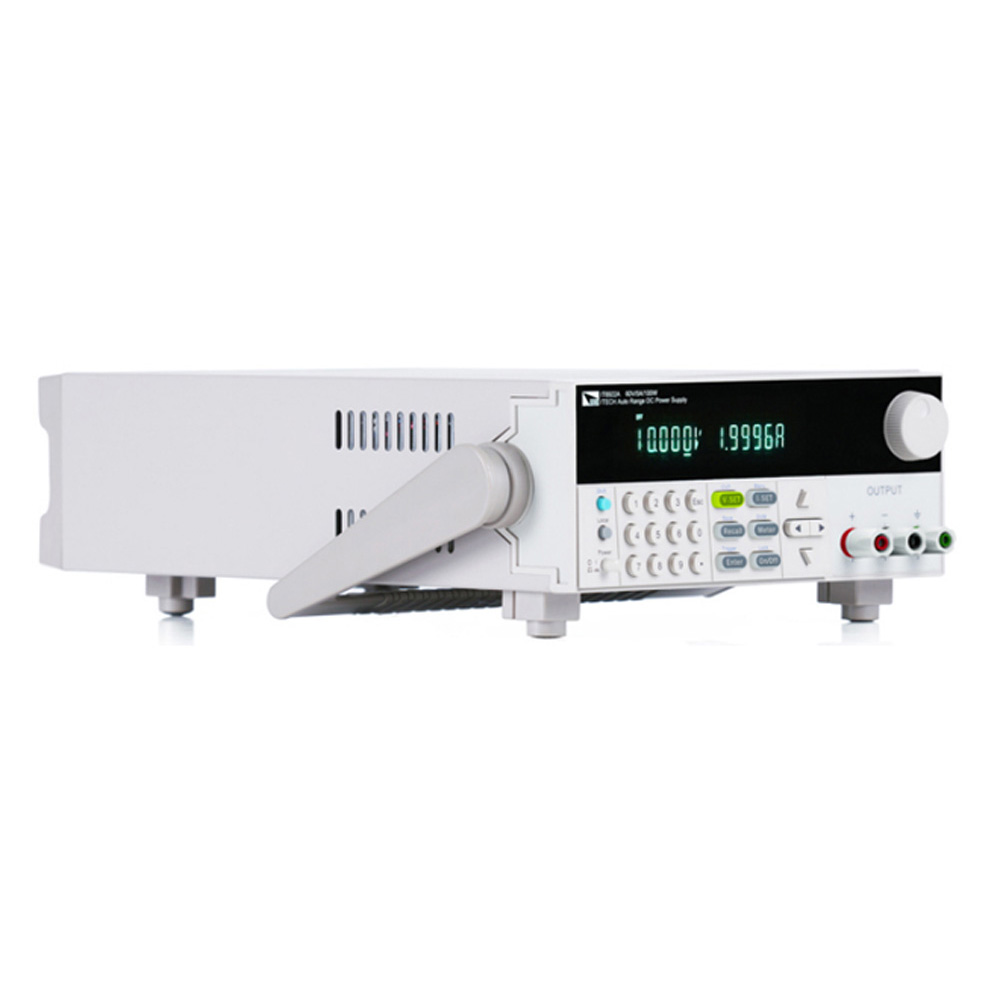

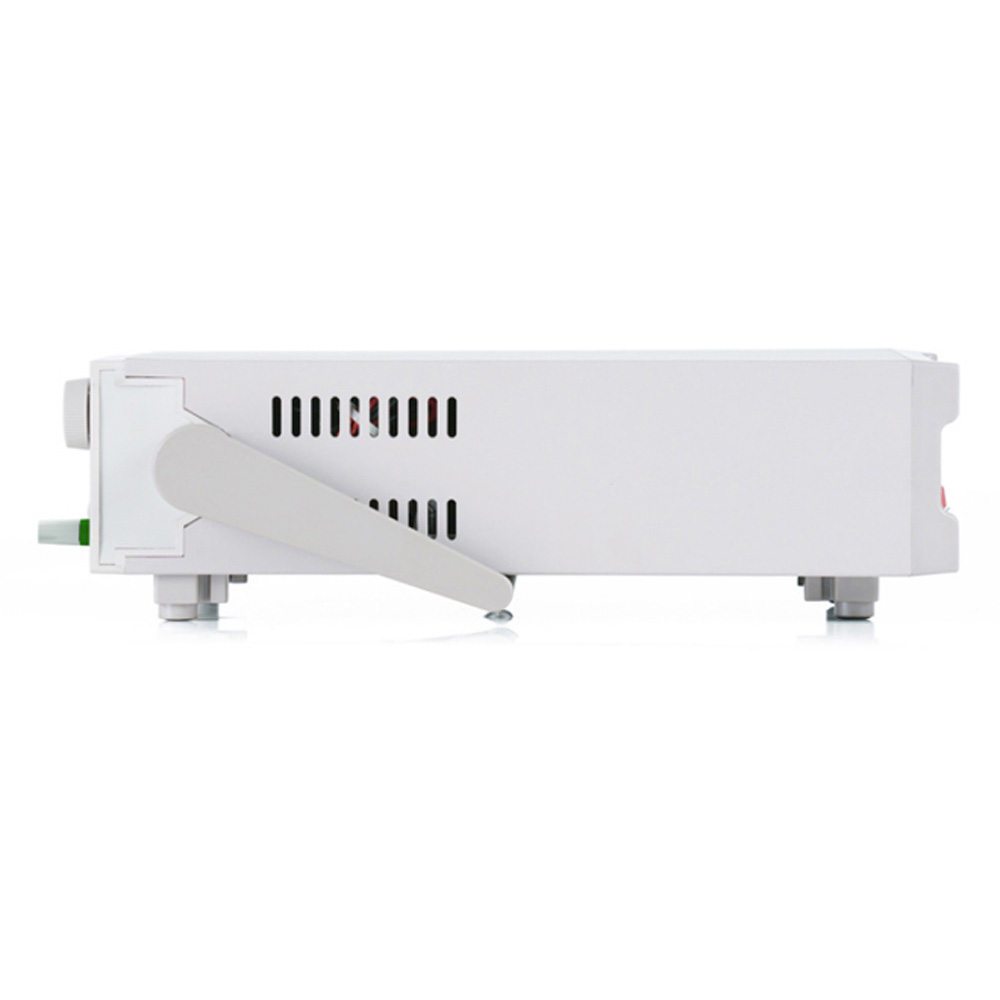

IT6900A Series
Wide-range Programmable DC Power Supply

IT6900A series wide range programmable power supply have built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), support SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire.Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement.IT6900A can be widely applied in DC-DC power supply module, battery charging and sensors and other test areas.

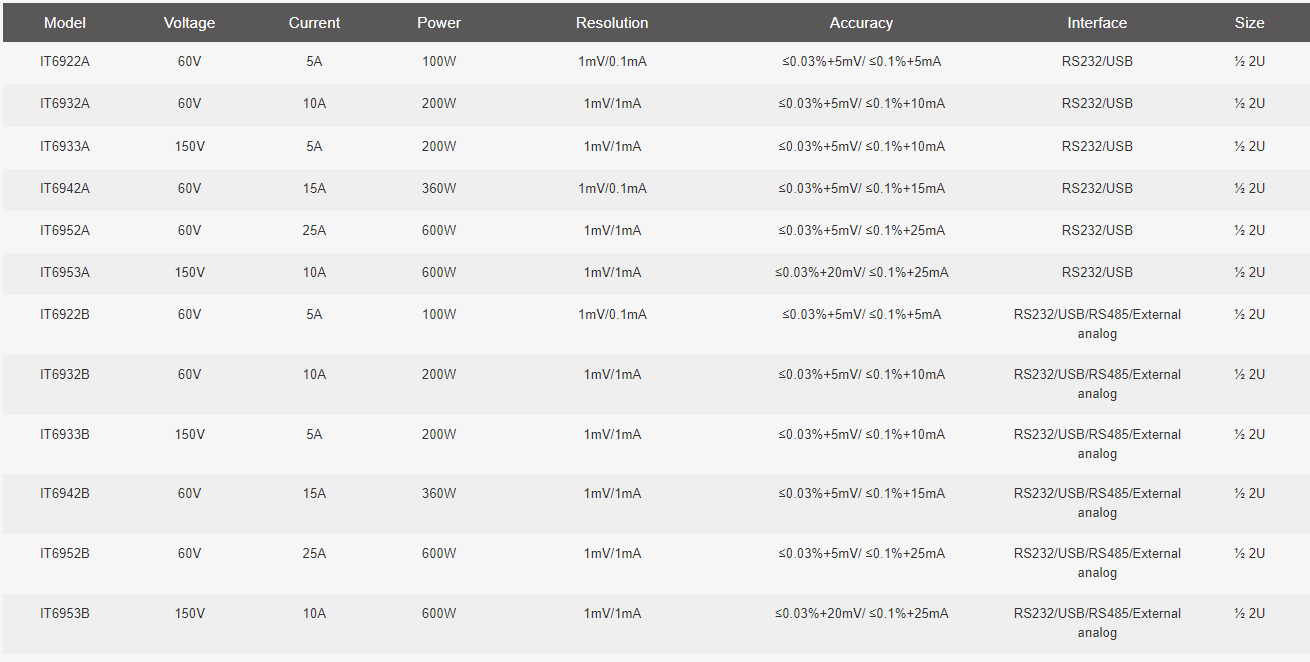

MODEL VOLTAGE CURRENT POWER RESOLUTION ACCURACY INTERFACE SIZE
IT6933B 150V 5A 200W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+10mA RS232/USB/RS485/external analog ½ 2U
IT6932B 60V 10A 200W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+10mA RS232/USB/RS485/external analog ½ 2U
IT6922B 60V 5A 100W 1mV/0.1mA ≤0.03%+5mV/ ≤0.1%+5mA RS232/USB/RS485/external analog ½ 2U
IT6953A 150V 10A 600W 1mV/1mA ≤0.03%+20mV/ ≤0.1%+25mA RS232/USB ½ 2U
IT6952A 60V 25A 600W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+25mA RS232/USB ½ 2U
IT6942A 60V 15A 360W 1mV/0.1mA ≤0.03%+5mV/ ≤0.1%+15mA RS232/USB ½ 2U
IT6933A 150V 5A 200W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+10mA RS232/USB ½ 2U
IT6932A 60V 10A 200W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+10mA RS232/USB ½ 2U
IT6922A 60V 5A 100W 1mV/0.1mA ≤0.03%+5mV/ ≤0.1%+5mA RS232/USB ½ 2U
IT6953B 150V 10A 600W 1mV/1mA ≤0.03%+20mV/ ≤0.1%+25mA RS232/USB/RS485/external analog ½ 2U
IT6952B 60V 25A 600W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+25mA RS232/USB/RS485/external analog ½ 2U
IT6942B 60V 15A 360W 1mV/1mA ≤0.03%+5mV/ ≤0.1%+15mA RS232/USB/RS485/external analog ½ 2U



Product Features

♦ VFD display
♦ Adjust voltage and current via knob or numerical key pad
♦ High accuracy and high resolution
♦ Adjust digital step value via cursor
♦ Output according to voltage and current programed
♦ Output Timer(0.1 ~ 99999.9S) Function
♦ Low ripple and low noise
♦ Remote Sense Function
♦ OVP/OCP/OTP protection fucntions
♦ Intelligent fan control
♦ Rich SCPI instructions to facilitate the formation of intelligent test platform
♦ Support front and rear panel output
♦ Optional external analog function

Functions and Advantages

Remote sense function

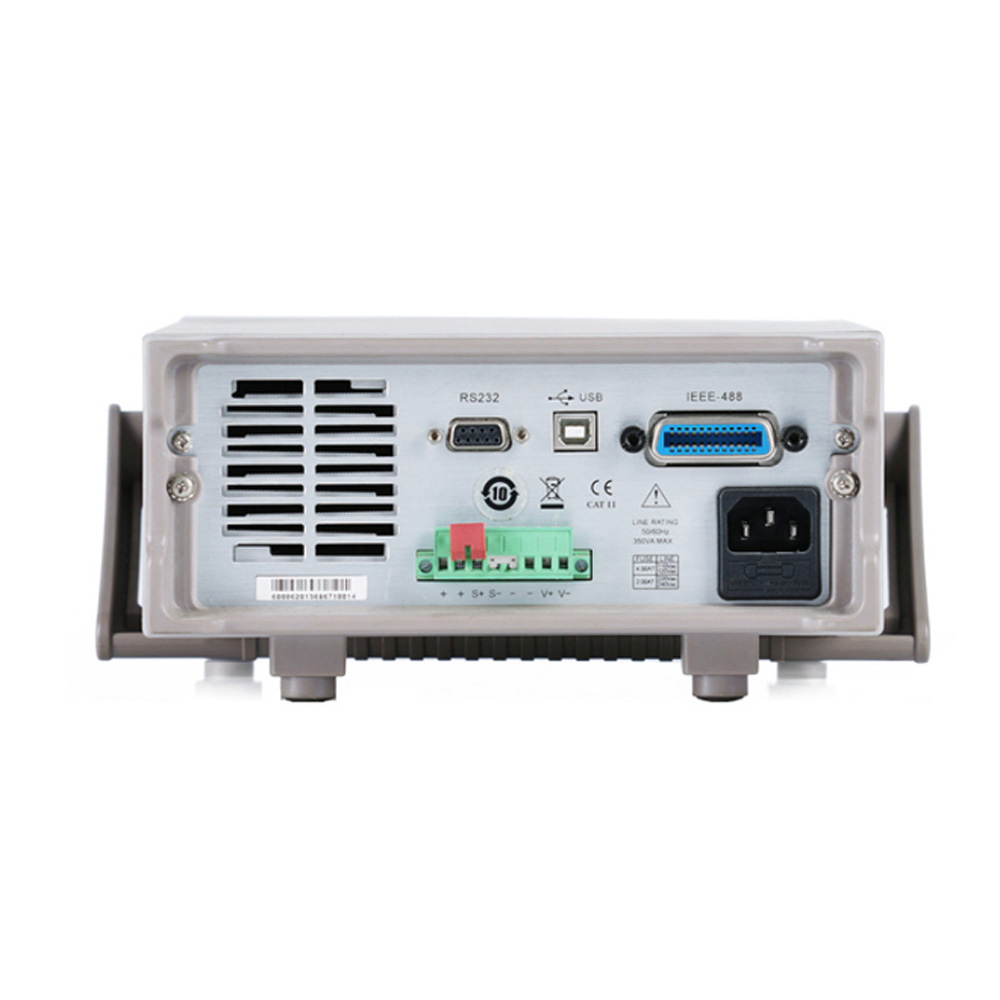

In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, – is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the “+, -” terminals and lead S +, S to the test object.

List function

Auto Range

IT6900A series power supply has adopted Auto-range technology. One unit could replace multiple units with different specifications.Take IT6932A(60V/10A/200W),as an example,the user could used as a 60V/3.3A/200W instruments and also a 20V/10A/200W unit.

Options & Accessories

  • CD (accessory)
    With user manual and communica…
  • USB
    For USB port communication
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E151A (Optional)
    19” Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip – Banana…
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug – Banana pl…
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug – Y termina…
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of…
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r…
