UDP1000 SERIES
DC Power Supplies

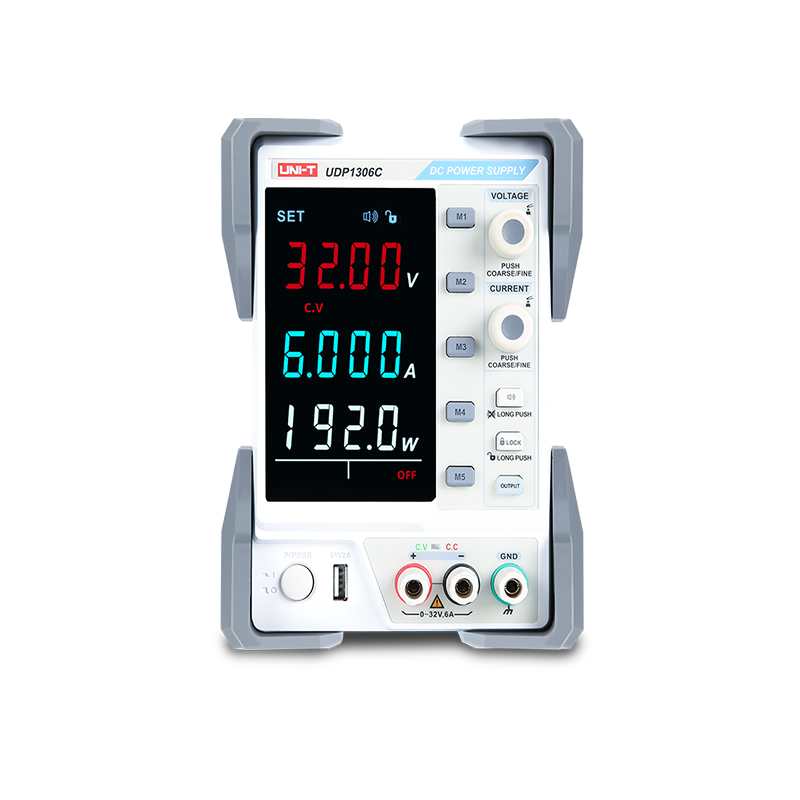

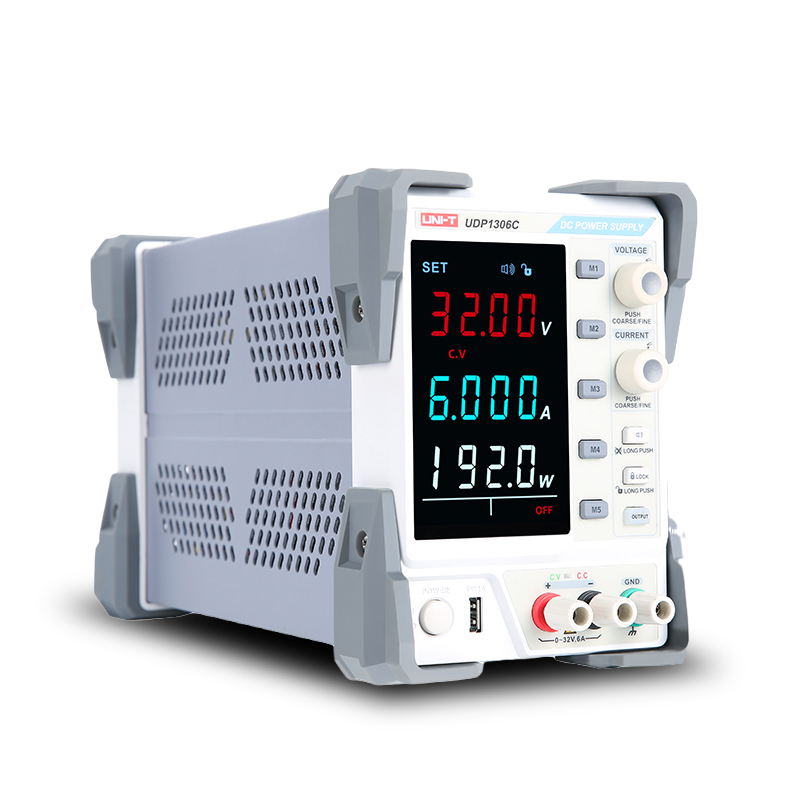

UDP1306C is a single-channel programmable linear DC power supply,

a basic power product designed by users of a smaller size and high reliability

power supply. It has low ripple noise, fast transient response, excellent power supply

and load regulation and other characteristics. Powerful output function and complete

protection function.



TYPE
CHANNELS
Programmable linear Power
1



TOTAL POWER
OUTPUT VOLTAGE
192W
32V



OUTPUT CURRENT
RESOLUTION
6A
10mV/1mA



SETTING ACCURACY
Voltage :＜ (0.01% + 3mV) ,Current:≤(0.1% + 3mA)

32V/6A Output

Maximum output voltage;32V Maximum current;6A

Voltage/current display resolution: 10mV/1mA;

OVP/OCP/OTP Protection

The user can set the limit of over-voltage/over-current/over-temperature protection.

When over-voltage/over-current occurs or the internal heat sink reaches about 100°C,

 the power supply will automatically shut down the output and give a prompt message.

Five sets of settings to save and recall

M1~M5 five groups of stored values,

long press to store, short press to recall, convenient for test work.

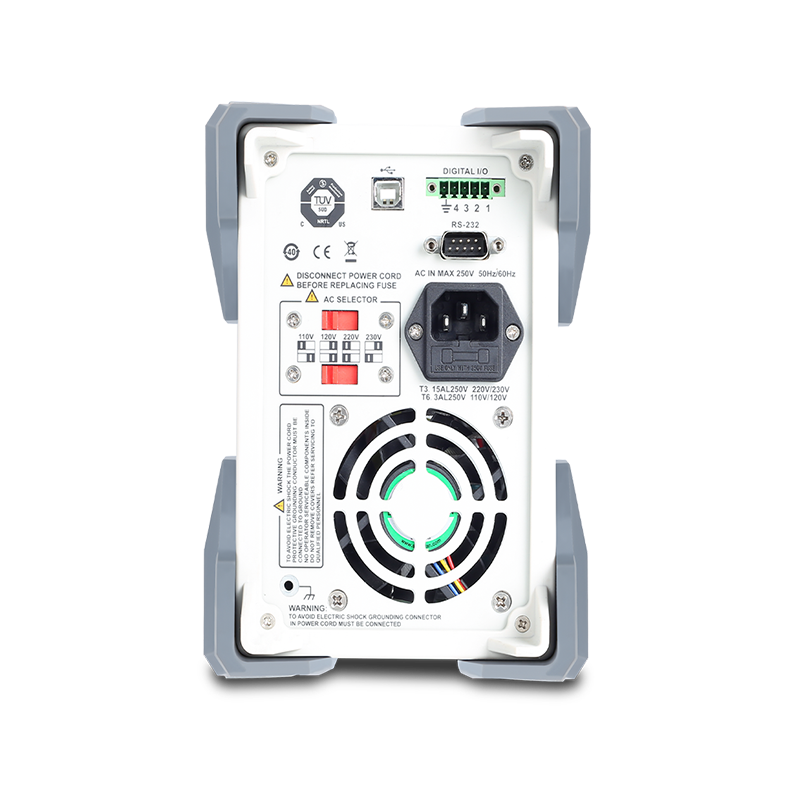

Interface function

Remote control DIGITAL I/O interface;

Can realize remote control of the output and shutdown of the power supply channel.

RS-232 interface, USB Device port,

based on SCPI communication command, can communicate with computer.

Model Type Channels Total Power Output Voltage Output Current Resolutıon Settıng Accuracy Connectıvıty
UDP1306C Programmable linear DC power supply 1 192W 32V 6A 10mV/1mA Voltage:＜0.01%＋3mV,Current:≤0.1%+3mA USB，RS-232
