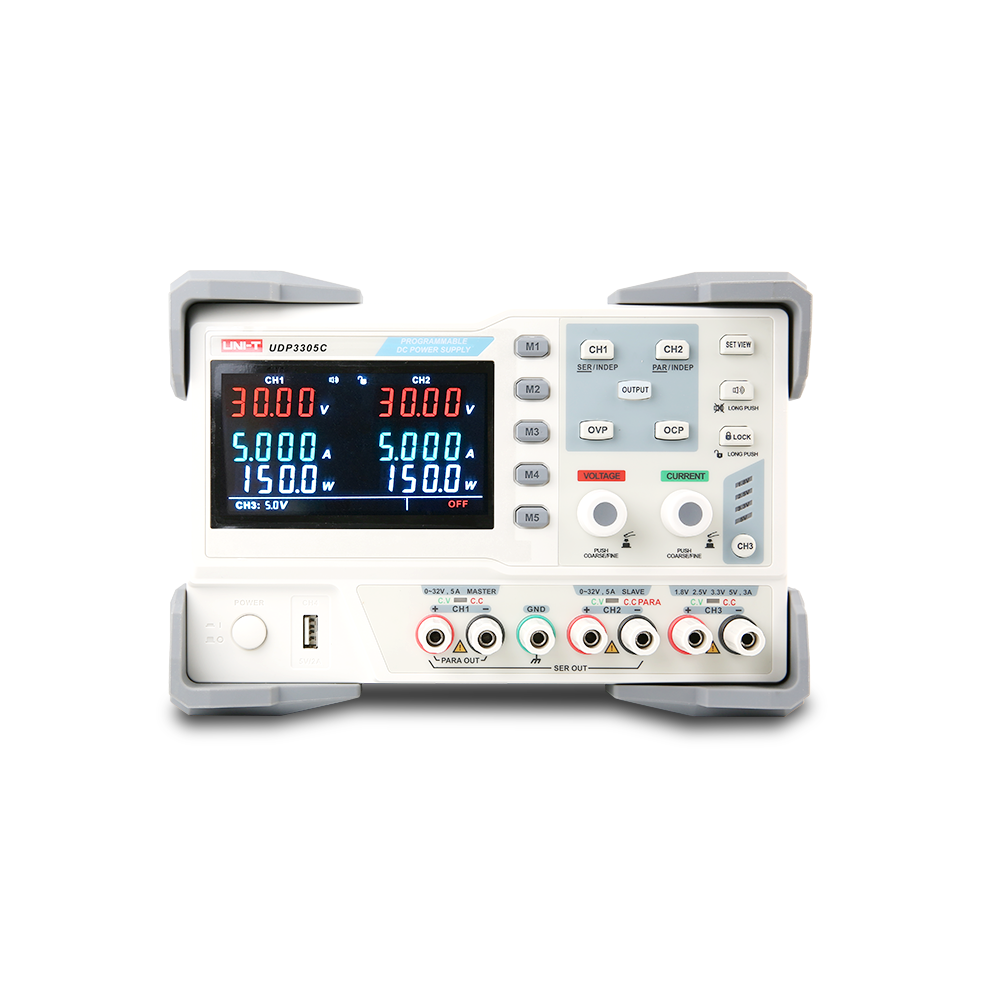

3 CH outputs，High precision Display
3 independent outputs,
4-digit voltage and current high-precision display: 10mV/1mA
Five sets of settings to save and recall
Five groups of M1~M5 settings are saved and recalled,
long press to store and short press to recall,
making the test work efficient and convenient.
Buzzer switch and key lock function, shutdown memory function, SET VIEW function
Buzzer switch:
switch the buzzer according to the working environment
Key lock function:
prevent accidental touch and wrong setting during normal working process
Shutdown memory function:
restore the last saved setting value next time the machine is turned on SET
VIEW function:
call preset value with one key

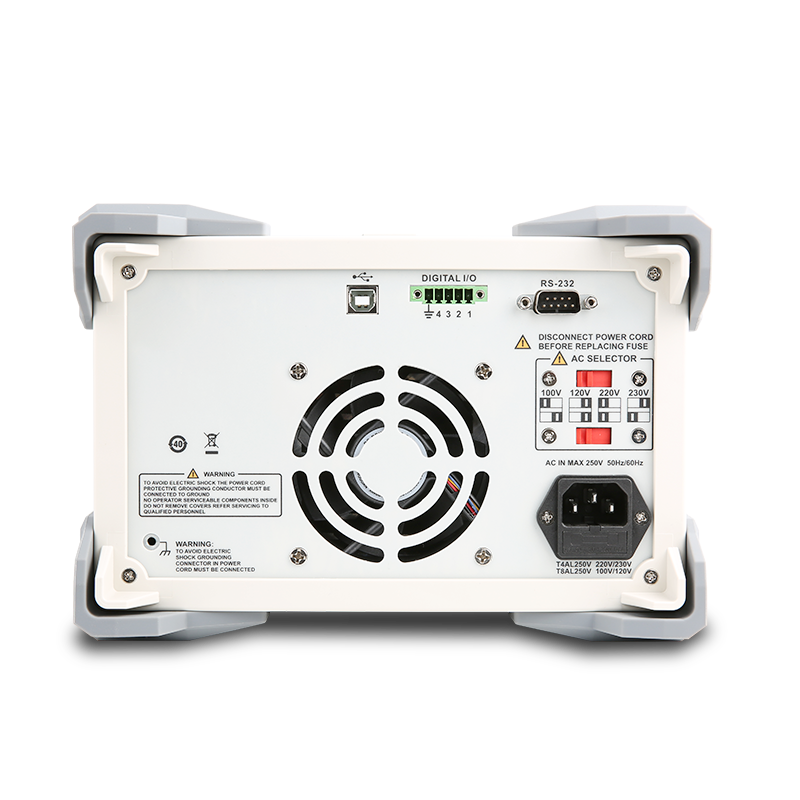

Remote control DIGITAL I/O interface
The remote control power supply CH1/CH2 channels can be output
and closed through DIGITAL I/O terminals
| Model | Type | Channels | Total Power | Output Voltage | Output Current | Resolutıon | Settıng Accuracy | Connectıvıty |
|---|---|---|---|---|---|---|---|---|
| UDP3305C | Programmable linear DC power supply | 3 | 315W | 30V | 5A | 10mV/1mA | Voltage:＜0.01%＋3mV, Current:≤0.2%+3mA | USB，RS-232 |
| UDP3303C | Programmable linear DC power supply | 3 | 195W | 30V | 3A | 10mV/1mA | Voltage:＜0.01%＋3mV, Current:≤0.2%+3mA | USB，RS-232 |
| UDP3303A | Linear DC power supply | 3 | 195W | 30V | 3A | 10mV/1mA | Voltage:＜0.01%＋3mV, Current:≤0.2%+3mA |
