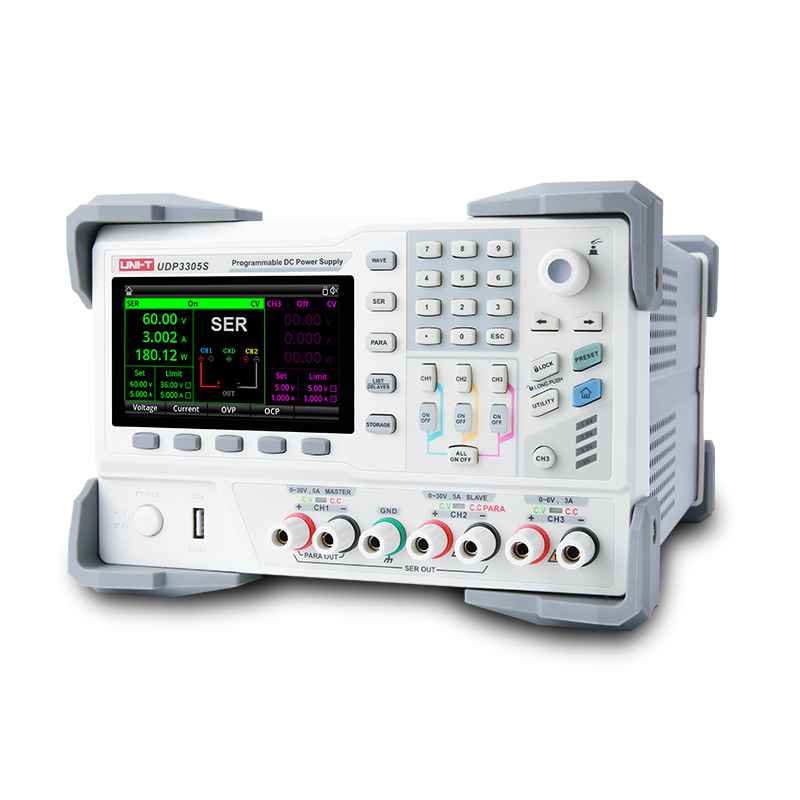

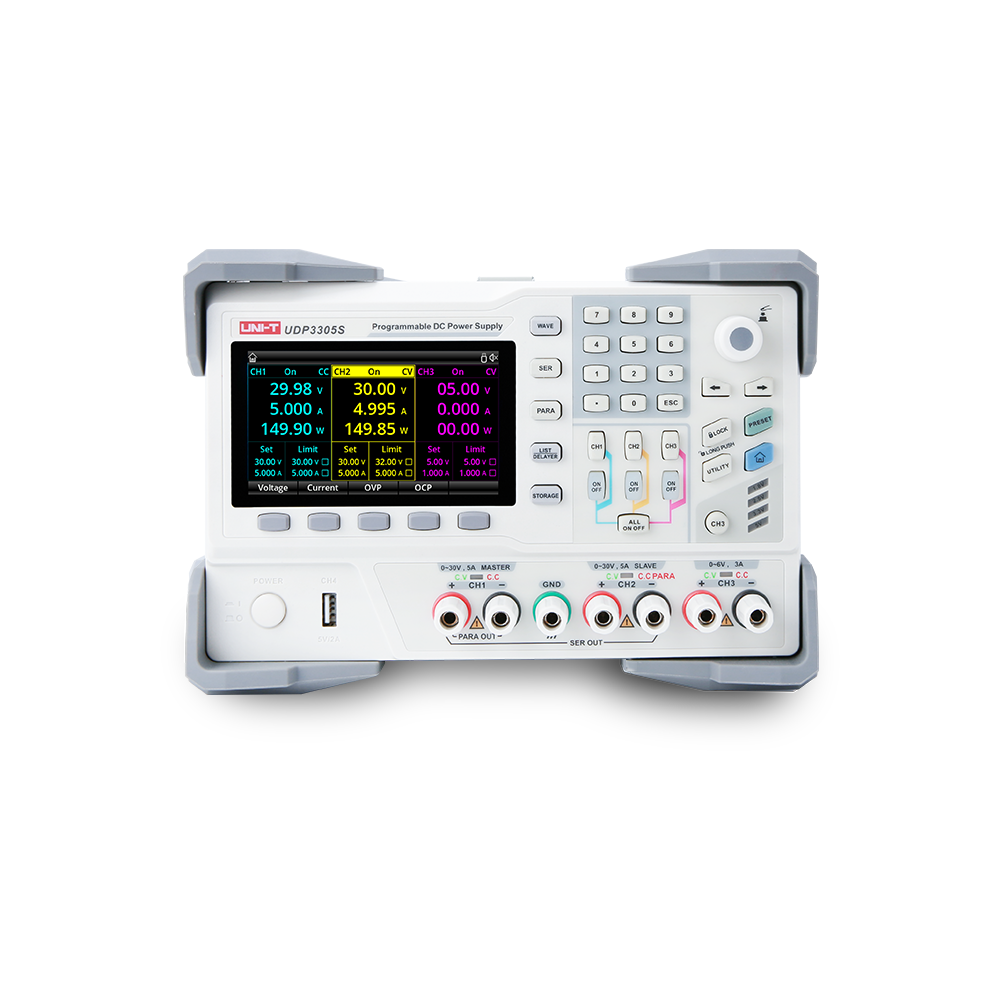

LCD interactive interface
Using a 4.3-inch high-definition display screen, it provides users with a man-machine interface with rich functions and simple operation, which can display the current set output voltage/current, actual output voltage/current and protection output voltage/current value of the power supply in real time. The functional interface is simple and comprehensive, easy to operate.
One-key setting for series and parallel
The series-parallel connection between CH1 and CH2 of the main channel can be realized without external connection, which simplifies the connection and makes the test easier.
List/Delayer function
With list and delay setting functions, it can set up to 2048 sets of data according to test requirements, and the number of cycles can reach 99999. It is used with waveform templates, which is very convenient for cycle testing and aging testing.

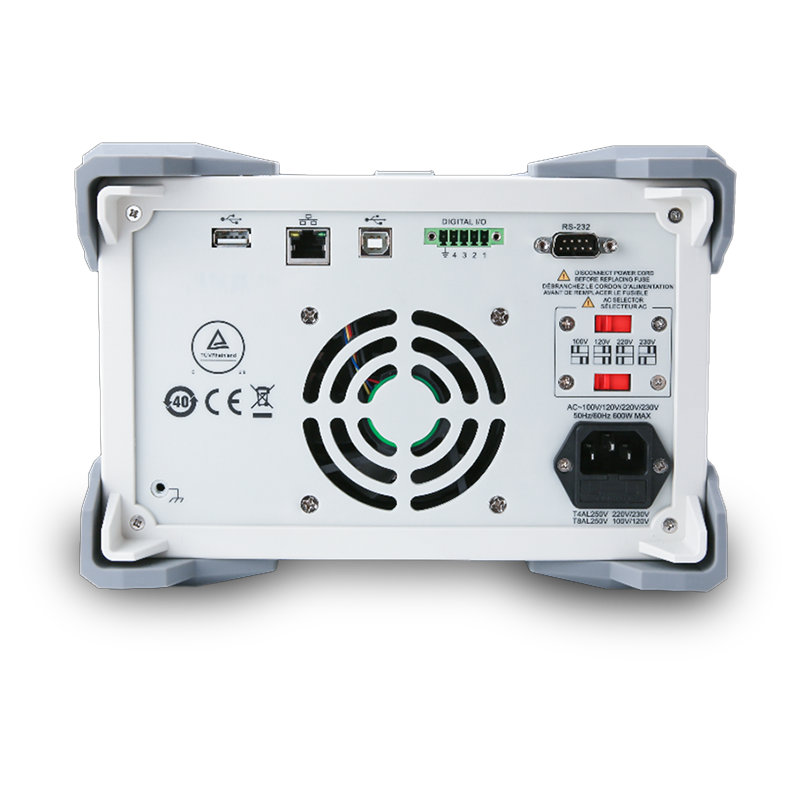

Rich remote control interface
Standard RS232 communication interface, Ethernet interface, Digital I/O and master and slave USB interfaces, can be controlled by remote connection to Ethernet, or through RS232 and USB, with the host computer software to achieve software control.
| Model | Type | Channels | Total Power | Output Voltage | Output Current | Resolutıon | Settıng Accuracy | Connectıvıty |
|---|---|---|---|---|---|---|---|---|
| UDP3305S-E | Linear | 4 | 328W | CH1/CH2: 0~30V CH3: 0~6V CH4: 5V |
CH1/CH2: 0~5A CH3: 0~3A CH4: 2A |
10mV, 1mA | <0.3%+20mV <0.2%+5mA |
USB Device, RS-232, LAN, USB host, Digital I/O |
| UDP3305S | Linear | 4 | 328W | CH1/CH2: 0~30V CH3: 0~6V CH4: 5V |
CH1/CH2: 0~5A CH3: 0~3A CH4: 2A |
1mV, 1mA | <0.03%+10mV <0.2%+5mA |
USB Device, RS-232, LAN, USB host, Digital I/O |
