UDP6722 SERIES
DC Power Supplies

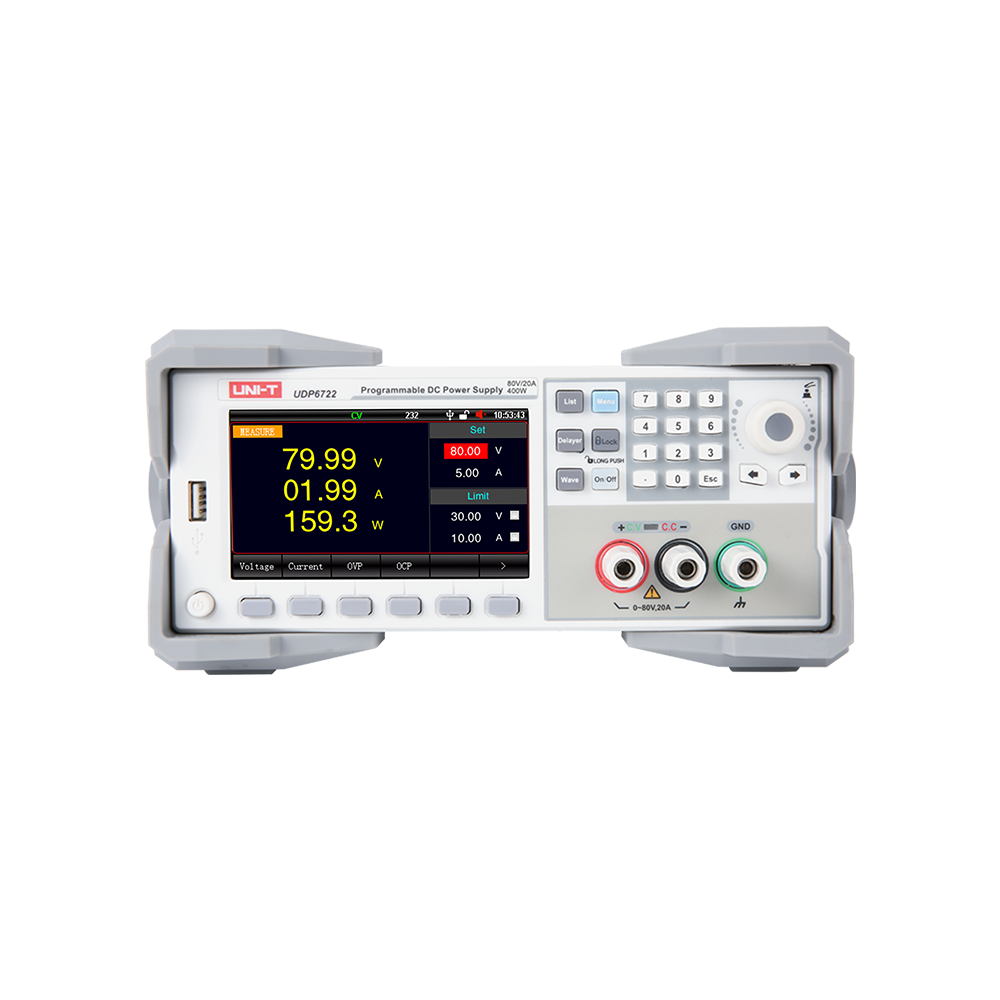

UDP6722 programmable DC power supply is a wide range switching power supply. This model has the characteristics of small size, light weight and powerful functions; it adopts 4.3inch LCD screen, intuitive parameters and quick operation; it can be used in automatic test system, product development and debugging, laboratory, teaching experiment, mobile phone home appliance repair and other fields.



TYPE
CHANNELS
Programmable Switching DC Power Supplies
1



TOTAL POWER
OUTPUT VOLTAGE
400W
0~80V



OUTPUT CURRENT
RESOLUTION
0~20A
10mV,10mA



SETTING ACCURACY
<0.01%+20mV <0.1%+10mA

4.3 inch full color LCD

Comprehensive information display, color separation to display different content, more convenient to uses

Perfect file management

100 configuration files, 40 delayer files and 40 list files can be saved

Multiple interfaces & Dual protocol

Support SCPI, MODBUS dual protocol

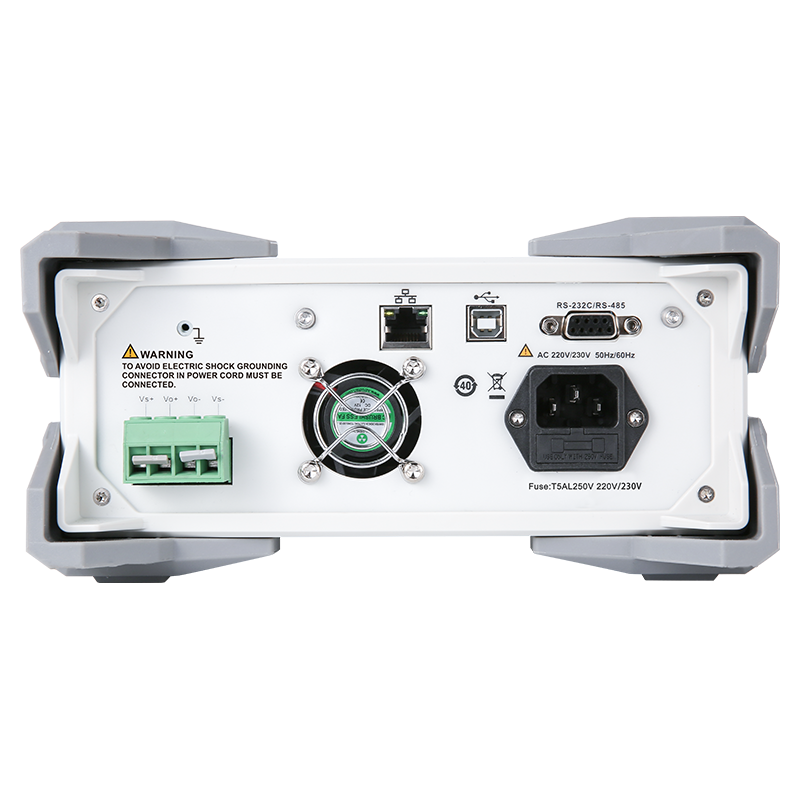

With RS232, RS485, LAN, USB multiple interconnection ports

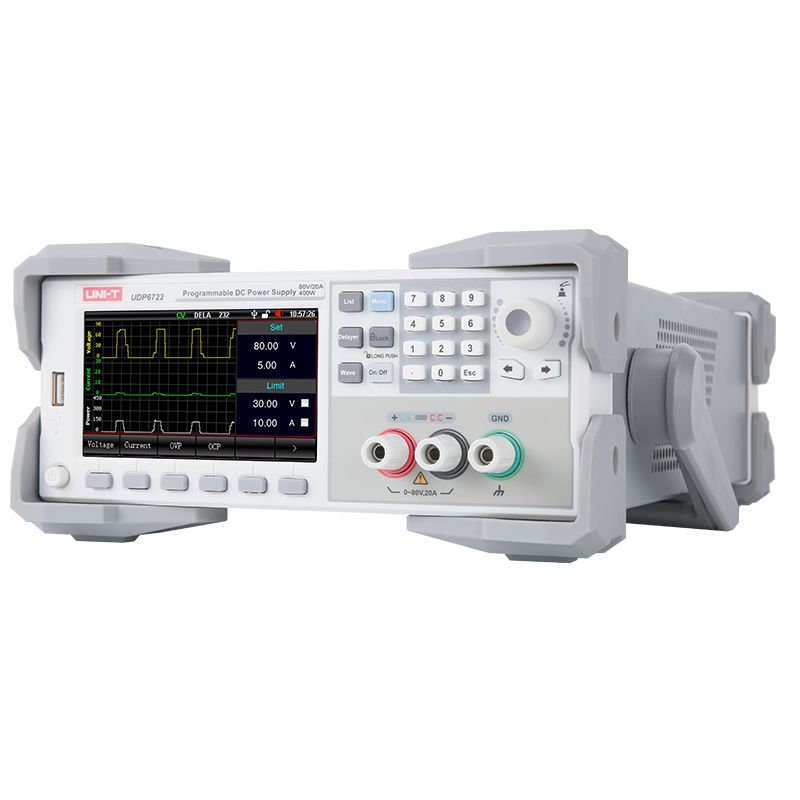

The output curve display

Intuitive voltage, current, power waveform display

Delayer function

The delayer mode provides a sequence output of up to 200 steps to realize automatic multiple power-on/off operations.

List function

The list mode provides a sequence output of up to 200 steps to suit various output needs.

Model Type Channels Total Power Output Voltage Output Current Resolutıon Settıng Accuracy Connectıvıty
UDP6722 Switching 1 400W 0~80V 0~20A 10mV,10mA <0.01%+20mV <0.1%+10mA RS232, RS485, USB Host, USB Device, LAN
