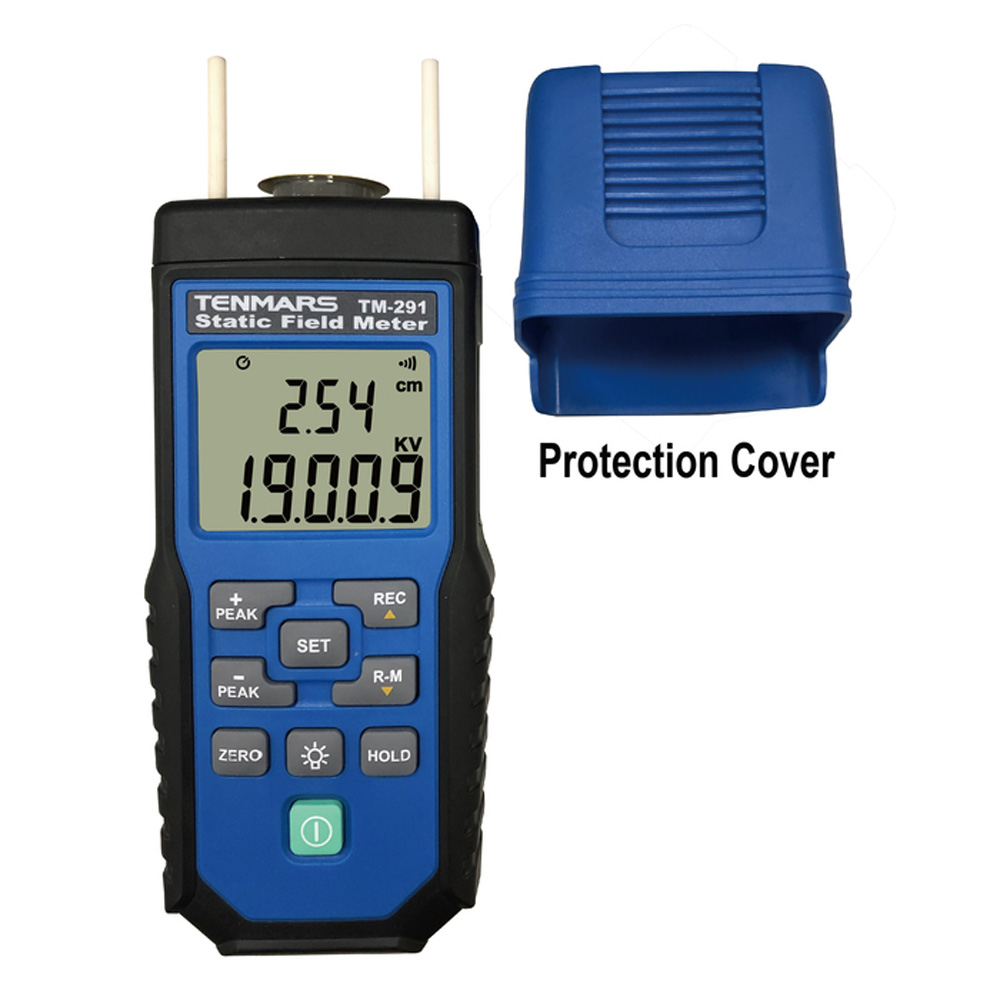

TM-291
Static Field Meter

APPLICATION

This contactless precise electrostatic field meter can immediately sensor the static voltage on a charged body without contact. The measuring range is 0.010kV ~ 20.000kV with the sensing distance 1 inch (2.54cm). The meter provides alarm function for prompt.

FEATURES

  • Measuring range：0～＋/－20.000KV
  • Measuring distance：2.54cm(1 inch).
  • Sampling time：0.5 sec.
  • Warning alarm setting.
  • Data hold.
  • Peak hold.
  • Backlight function.
  • Auto power off with disable function.
  • Zero function and low battery indicate.
  • Manual data memory storing 99 data sets.

SPECIFICATIONS

  • Professional and precise static voltmeter with resolution of 0.001kV.
  • Auto power off (for about 15 minutes).
  • Dimension: 148x65x37.5mm (LxWxH)
  • Weight: 210g(without the batteries’ weight)
 Display for   readings
 Liquid crystal display (LCD) of 4½ digits with the   displaying value up to 19999
 Resolution
 0.001KV
 Measuring range
 -19.999KV～+19.999KV
 Accuracy
 ±(5%+10dgt)
 Sampling period
 2 times per second
 High voltage   alarm
 +/- 18.000KV
 Alarm setting
 0.001KV～18.000KV
 Overloading   indication
 OL
 Battery
 9V NEDA 1604、IEC 6F22 or JIS 006P
 Battery life
 Approximately 100 hours

ACCESSORIES

  • User’s Manual
  • 9V battery
  • Carrying case
