TM-604

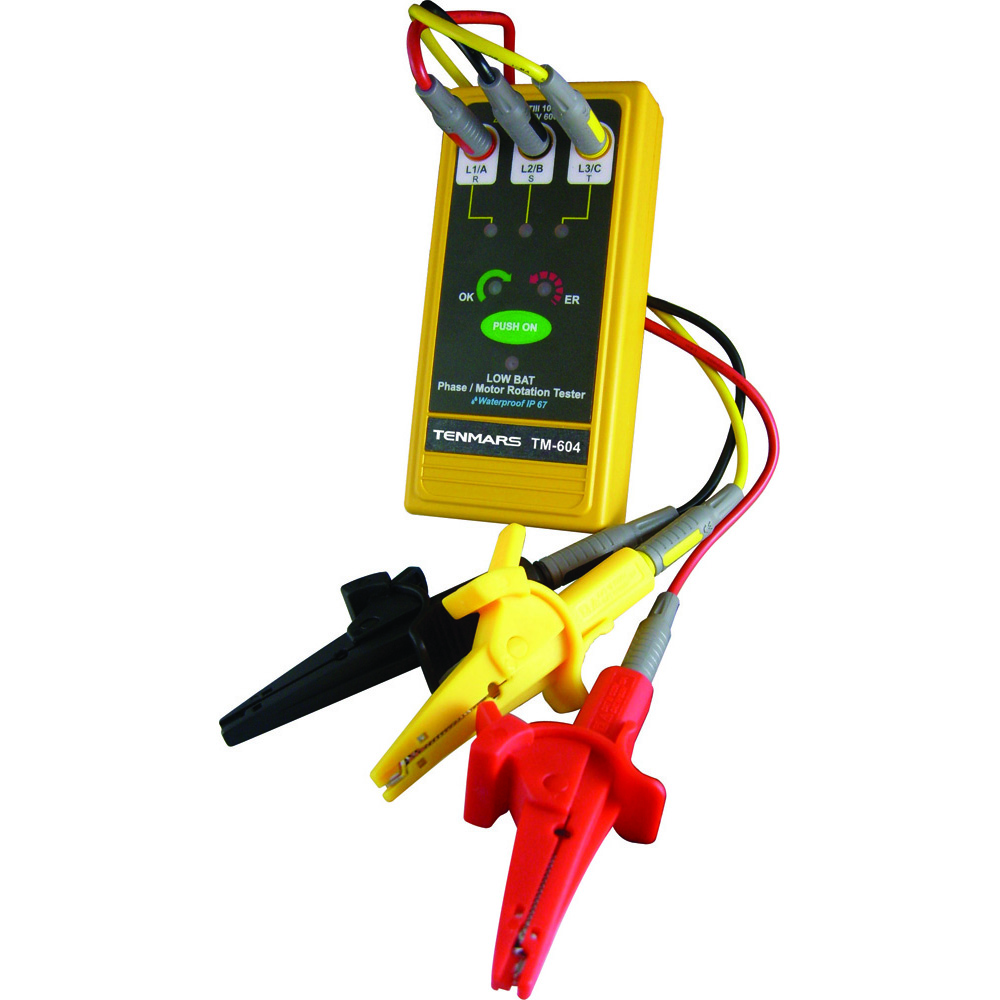

3 Phase/ Motor Rotation Tester

  • Display by LED indicators.
  • Low battery detection.

APPLICATION

  • Phase sequence testing. Three phase motor installation and maintenance.
  • Check motors for rotation direction.
  • Identifies the phase sequence of three phase electrical systems.
  • Indicates normal or reversed phases as well as loss of phase.

FEATURES

  • Check the 3 wires of the power cord, L1, L2 and L3 through the 3 red lamps, which indicate if each wire is connected well.
  • Check if L1, L2 and L3 are in place, the 3 motor wires, the motor’s direction of rotation, and the ER red/green OK indicators.
  • When the battery is low, an indicator will turn ON to remind you to replace it.
  • Hold the power button and check the panel indicator.

SPECIFICATIONS

  • Overvoltage category : CAT IV 600V, CAT III 1000V.
  • Inter phase voltage : 45V AC up to 600 AC.
  • Signal Frequency Range : 45 to 400 Hz.
  • Test Currents (In per phase) less than : 3.5 mA
  • Motor POWER：6W~160W
  • Dimension: 143mm(L)x68mm(W)x35mm(H).
  • Weight:about 150g. (Including battery)
