Upper and lower limit alarm
The upper and lower limit alarm parameters of current and power can be set freely. It has audible and visual alarm indication, and can set delay alarm
Effortless to build
Optional test cable, easy to build measurement environment
Data display refresh rate adjustable
Can be adjusted to an appropriate value according to user testing requirements. Improve efficiency for batch testing
Average function
The reading is more stable, suitable for measuring loads or power sources with large changes
Remote control
Equipped with RS232 + 485 port, it can be connected to PC or PLC for remote control
Supports Modbus and SCPI protocols, providing automation protocol guarantees for more fields
True RMS measurement
UTE9802+ true RMS measurement. Can measure AC，DC，AC+DC
Harmonic analysis
UTE9811+ adopts phase locked loop (PLL) synchronization method, and the maximum harmonic analysis is 50 times

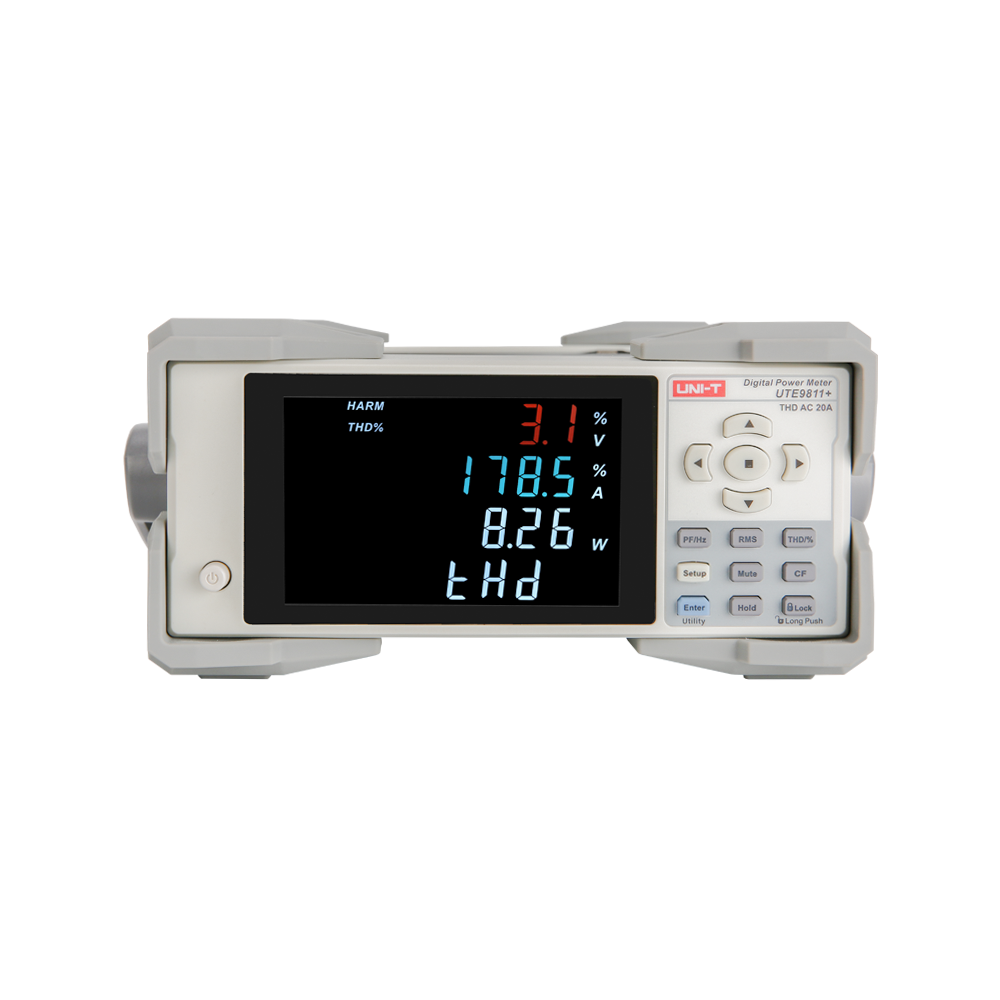

Four windows display
More items are displayed on the same screen without frequent switching
5 digits display with higher display resolution
| Model | Voltage Range | Current Range | Frequency Range | Accuracy | Measurement Mode | Connectıvıty | Sıze | Dısplay |
|---|---|---|---|---|---|---|---|---|
| UTE9806+ | 0.5V~600V | 0.05mA~10.0A | 40Hz~400Hz | ± (0.4% reading + 0.1 range + 1 digit) | AC | RS-232/RS-485 | ½ 2U | VA LCD |
| UTE9811+ | 3.0V~600V | 5mA~20.0A | 40Hz~70Hz | ± (0.4% reading + 0.1 range + 1 digit) | AC | RS-232/RS-485 | ½ 2U | VA LCD |
| UTE9802+ | 3.0V~600V | 0.5mA~20.0A | DC，40Hz~400Hz | ± (0.4% reading + 0.1 range + 1 digit) | AC，DC，AC+DC | RS-232/RS-485 | ½ 2U | VA LCD |
