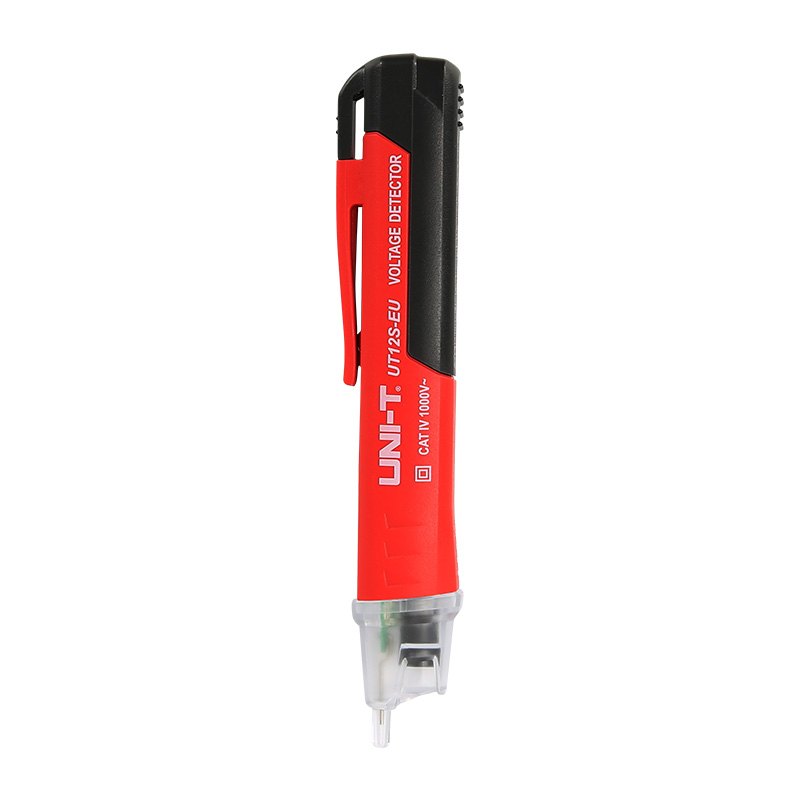

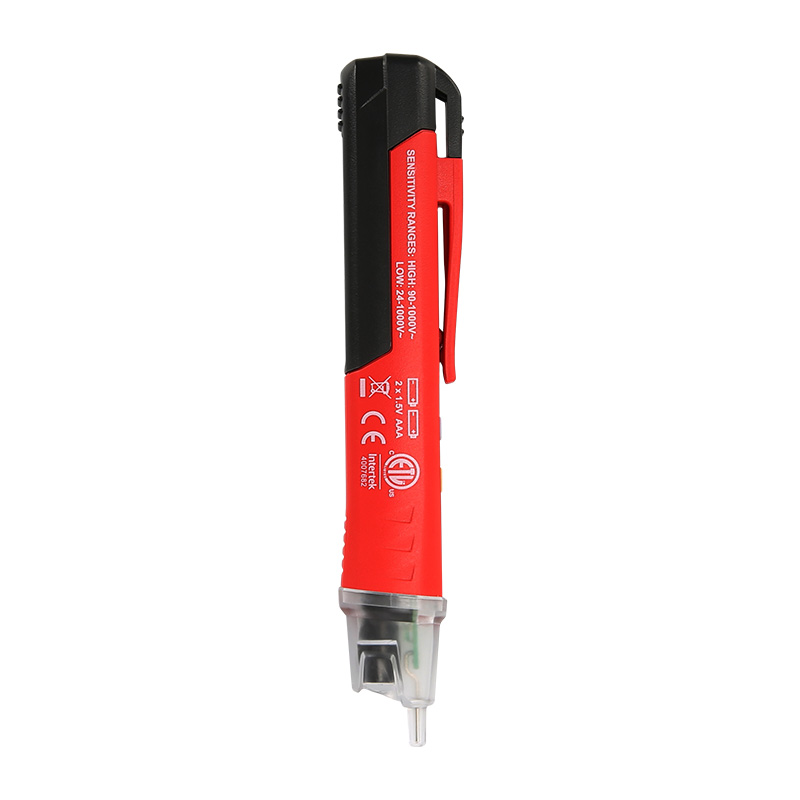

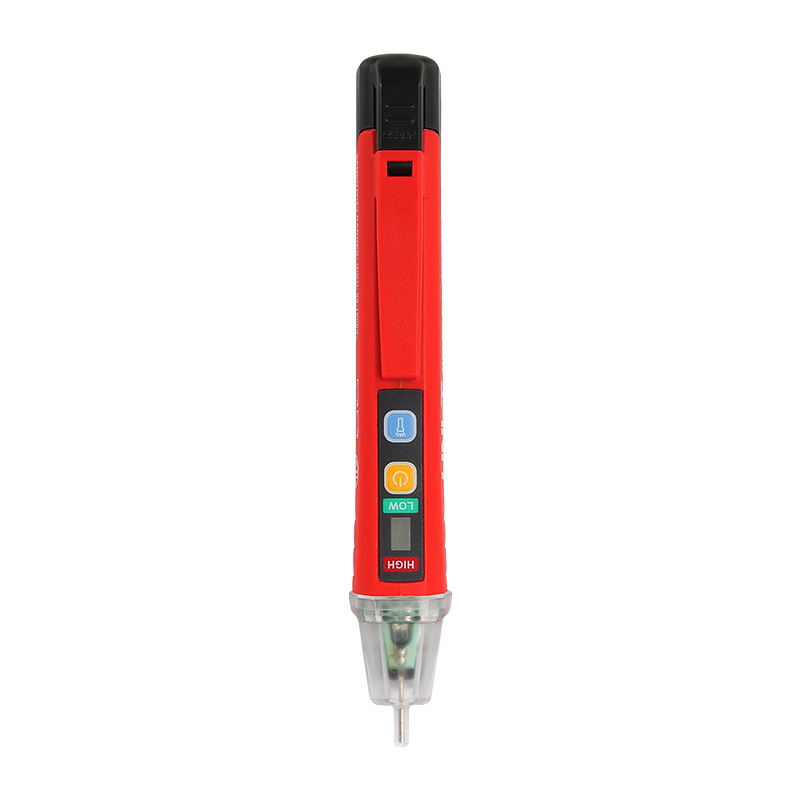

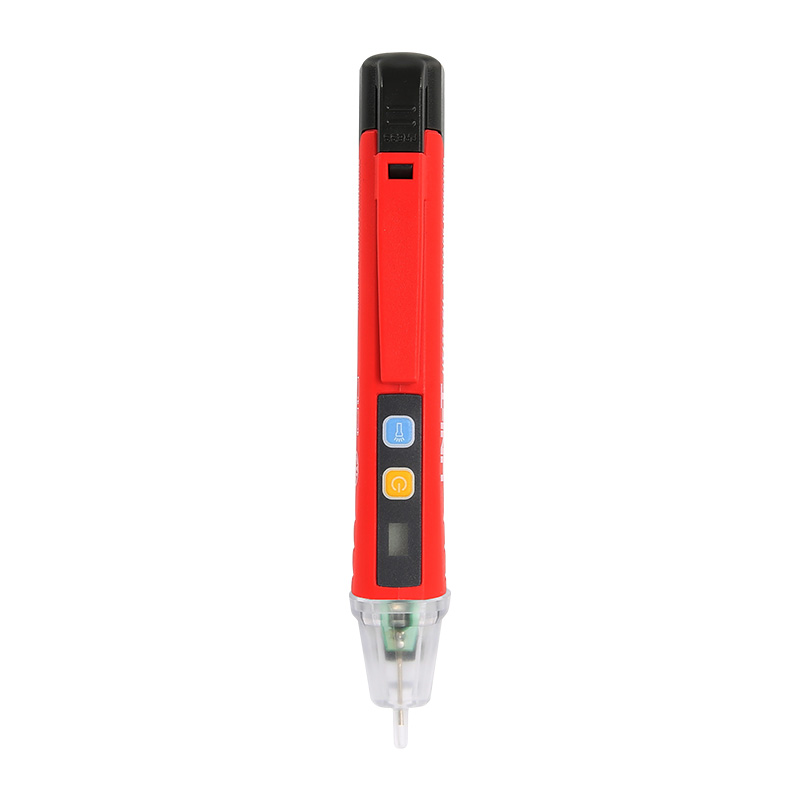

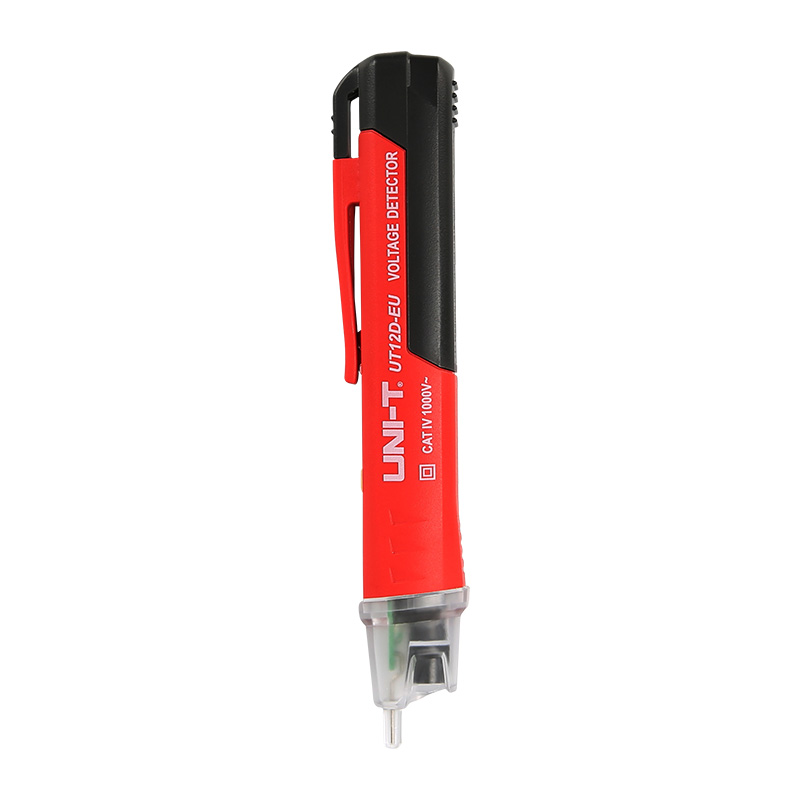

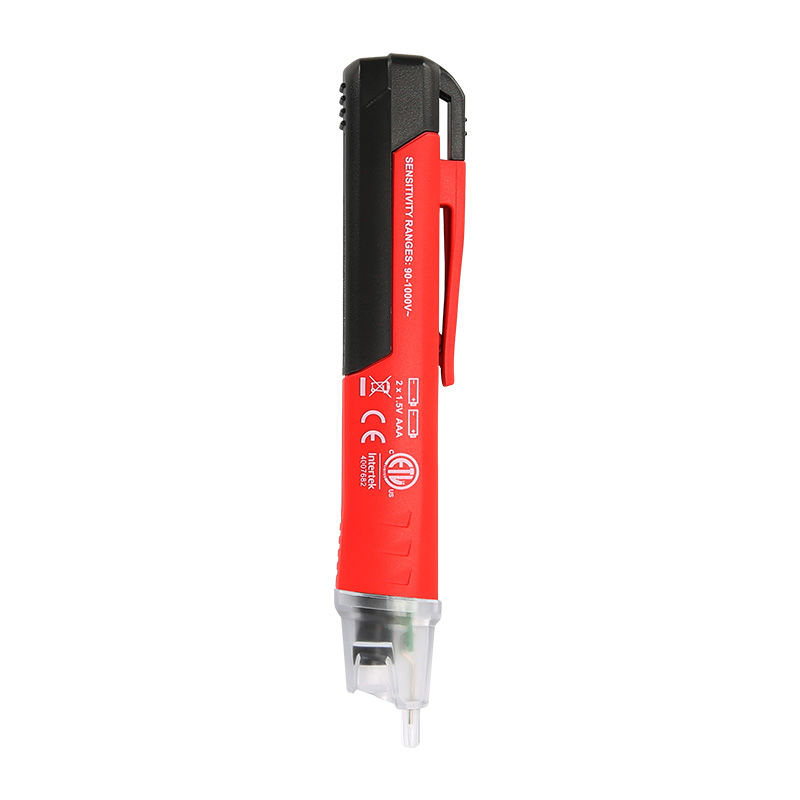

UT12S-EU/UT12D-EU
AC Voltage Detectors

UT12S-EU/UT12D-EU non-contact AC voltage detectors are widely used in the maintenance of low voltage equipments such as conductors, cables, sockets, and other electrical/electronics instruments. It is a very handy tool for electricians.

Models: UT12S-EU, UT12D-EU

Features of UT12S-EU/UT12D-EU AC Voltage Detectors

Certifications: CE, UKCA, cETLus

  • Auto power off
  • Buzzer
  • LED indication
  • AC voltagedetection
  • High/Low voltagemode (UT12D-EU)

SPECIFICATIONS

Specifications of UT12S-EU/UT12D-EU AC Voltage Detectors

Specifications UT12S-EU UT12D-EU
AC voltage (Low) 24V~1000V
AC voltage (High) 90V~1000V 90V~1000V
Frequency range 50/60Hz
Built-in flashlight √ √
※Audible (buzzer) and visual (LED) indication √ √
Buzzer √ √
LED indication √ √
Auto power off √ √
Low voltage indication √ √
Drop test 1m 1m
General Characteristics
Power 1.5V battery (R03) x 2
Product color Red and grey
Product net weight 50g
Product size 150mm x 18 mm x 23mm
Standard accessories Batteries
Standard individual packing Blister, English manual
Standard quantity per carton 40pcs
Standard carton measurement 350mm x 245 mm x 210mm
Standard carton gross weight About 3.6kg

APPLICATIONS

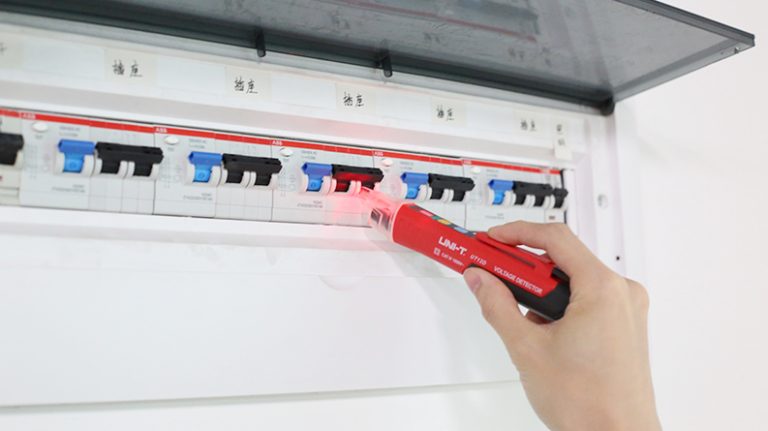

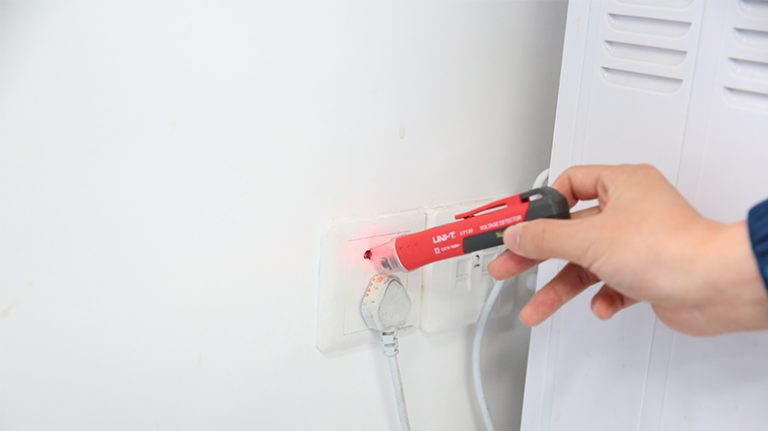

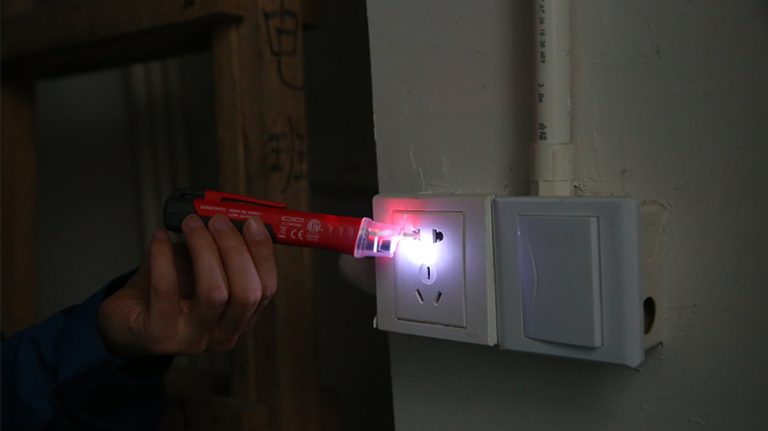

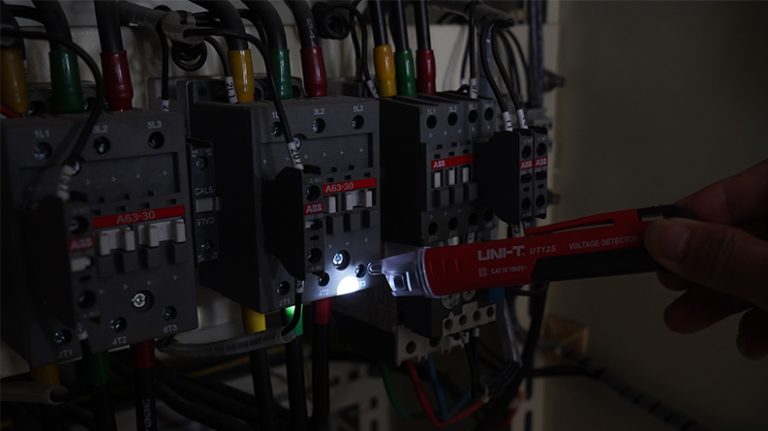

Applications of UT12S-EU/UT12D-EU AC Voltage Detectors
