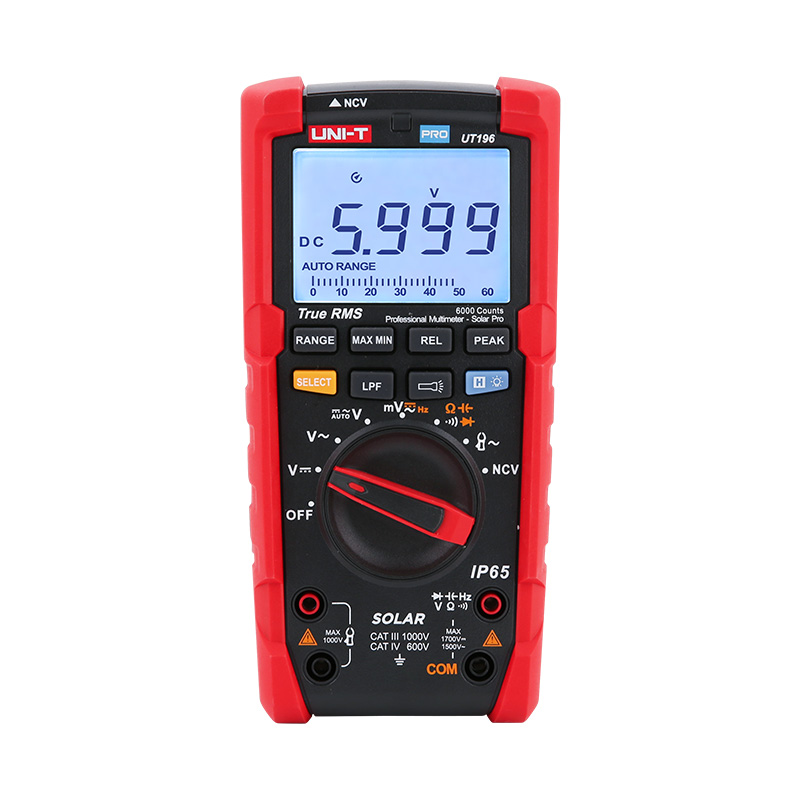

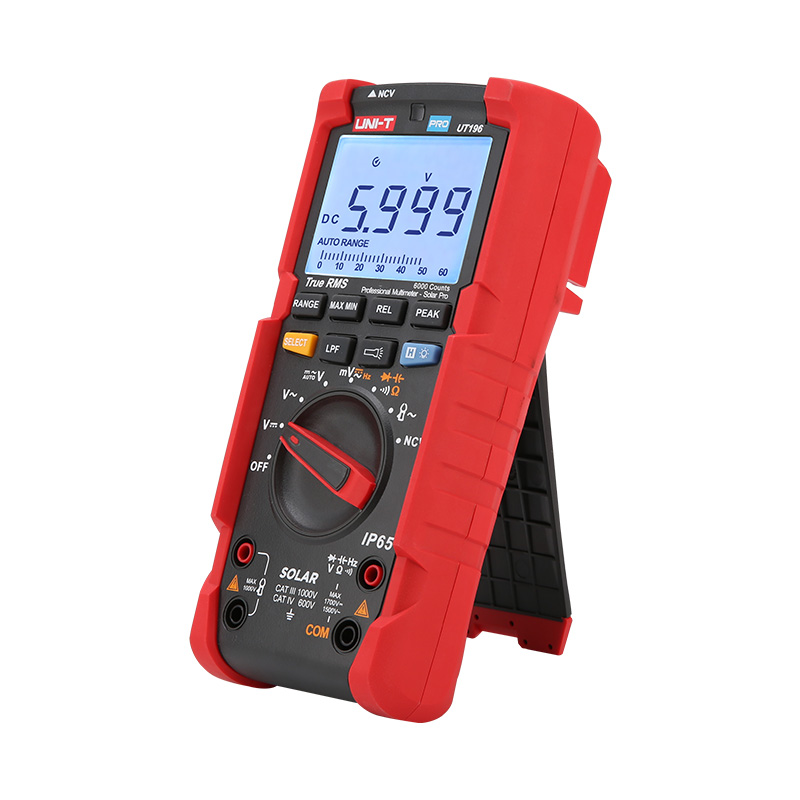

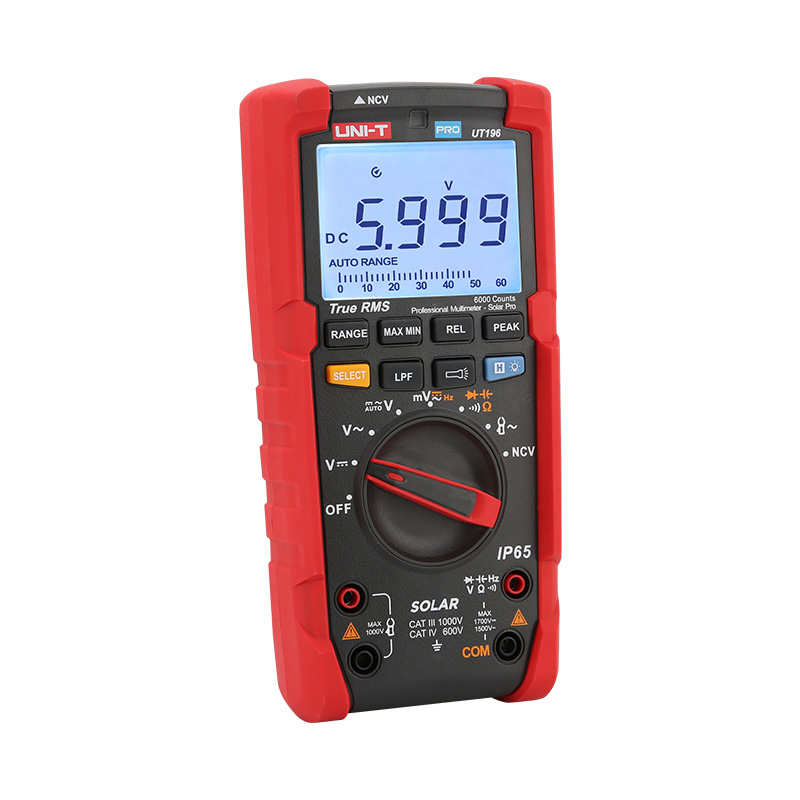

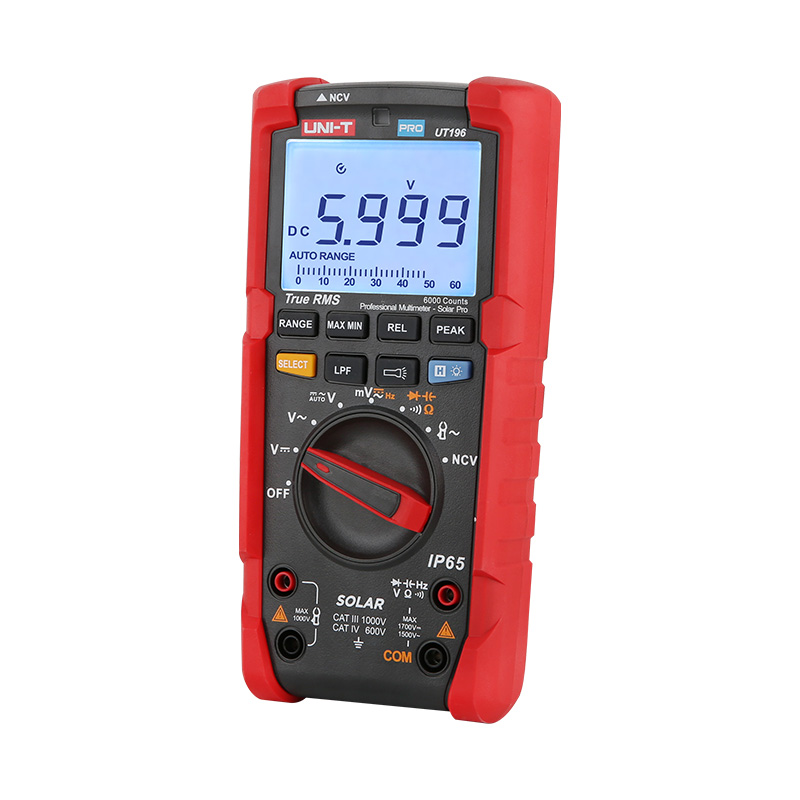

UT196
1700V DC True RMS Professional Multimeter – Solar Pro

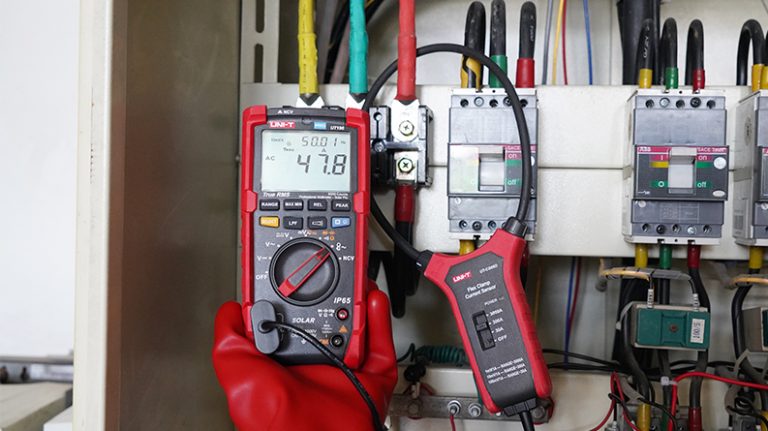

UT196 True RMS solar digital multimeter is an ideal tool for solar power system maintenance. This rugged meter is designed for technicians who work in rugged outdoor environments. UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an external current clamp sensor. This solar meter offers IP65 protection and able to withstand 2m drop as well.

UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.

Features of UT196 1700V DC True RMS Professional Multimeter – Solar Pro

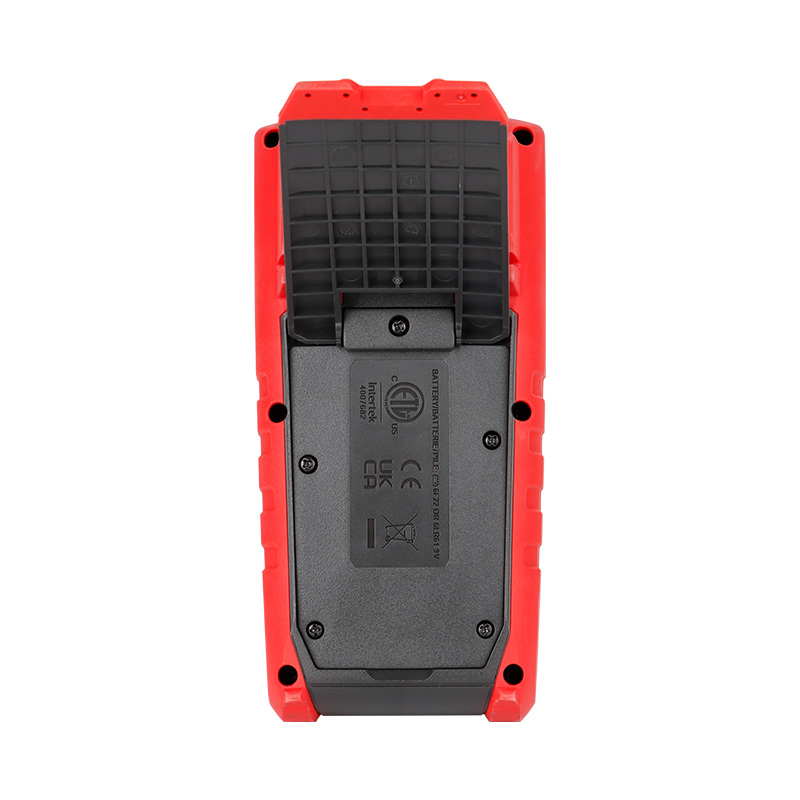

Certifications: CE, UKCA, cETLus
True RMS

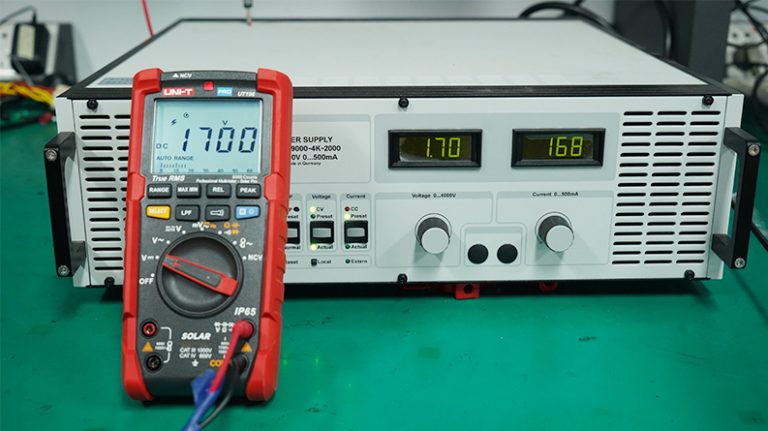

Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
IP65 protection
CAT III 1000V, CAT IV 600V
Analog bar
Frequency response：45Hz~1kHz
Low-pass filter function
Low impedance mode

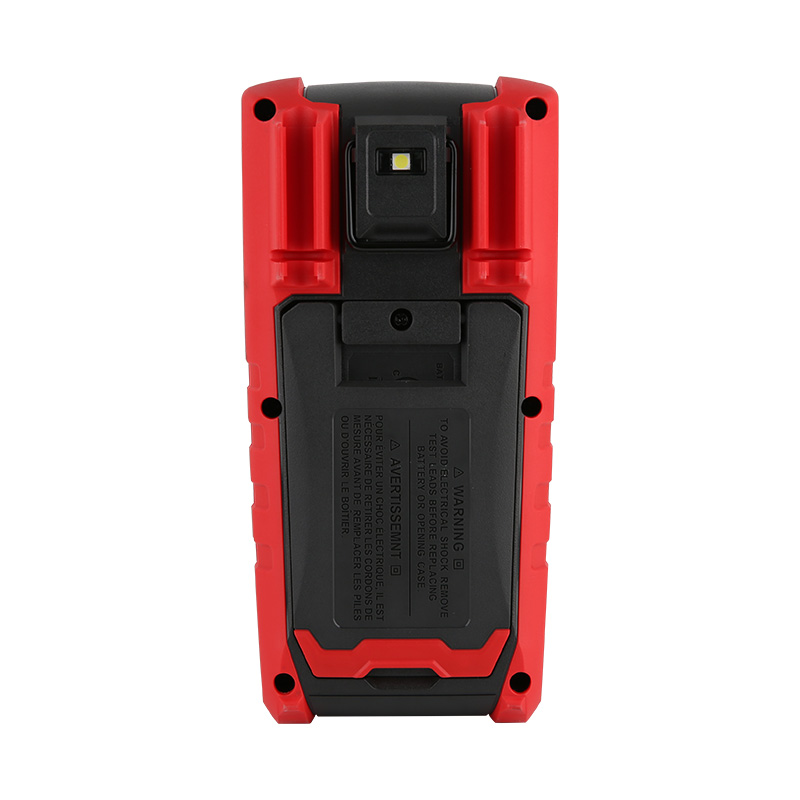

Built-in flashlight, bright backlight and visual alarm

SPECIFICATIONS

Specifications of UT196 1700V DC True RMS Professional Multimeter – Solar Pro

Specifications	Range	UT196
DC voltage(V)	1700V	±(0.2%＋5)
AC voltage(V)	1500V	±(0.8%＋3)
Frequency (Hz)	1MHz	±(0.08%+4)
Resistance(Ω)	60MΩ	±(0.8%＋2)
Capacitance (F)	60mF	±(1.9%+5)
Features
Display count		6000
True RMS		√
Dual display		√
Auto range		√
NCV		√
Diode test		√
Continuity		√
Relative mode		√
Max/Min		√
Peak hold		√
Low pass filter(LPF)		√
Audible visual indication		√
Low battery indication	＜7.5V approximately	√
Data hold		√
Analog bar graph		√
Auto power off	Approximately 15 minutes	√
Flashlight		√
IP rating		IP65
Drop test		2m
Safety rating	CAT III 1000V, CAT IV 600V
General Characteristics

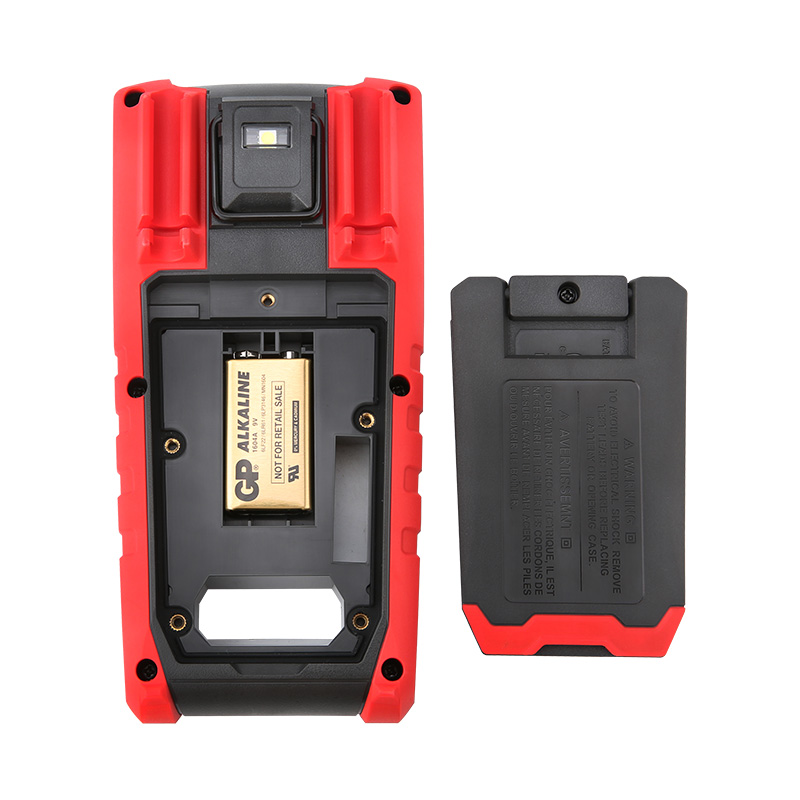

Power	9V battery
Product color	Red+Gray
Product net weight	485g
Product size	195 x 95 x 58mm
Standard accessories	English manual, test leads, battery.
Standard individual packing	Gift box,carrying bag.
Standard quantity per carton	10 pcs
Standard carton measurement	480×370×195mm
