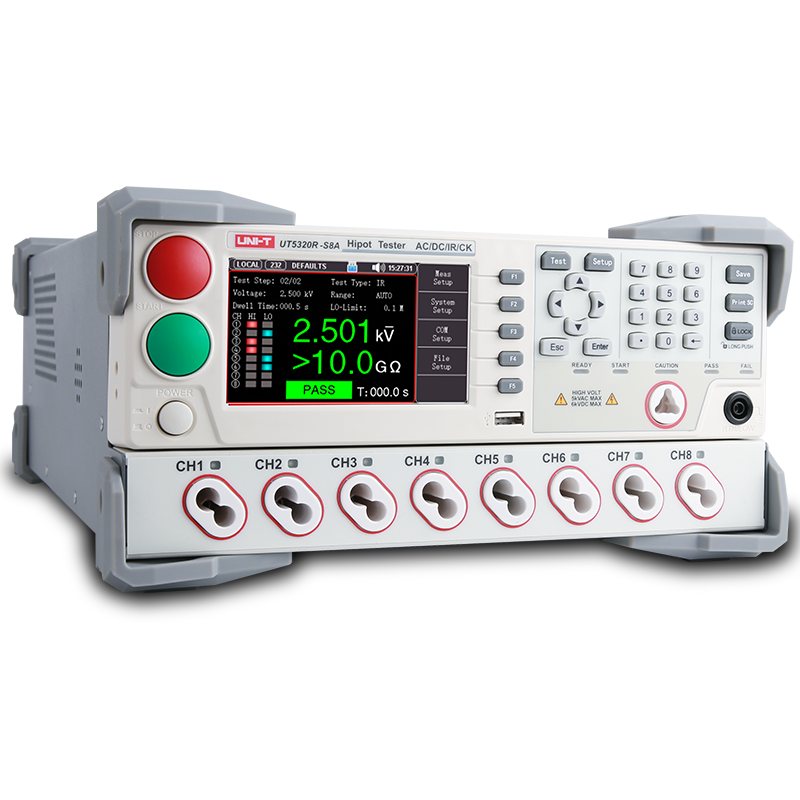

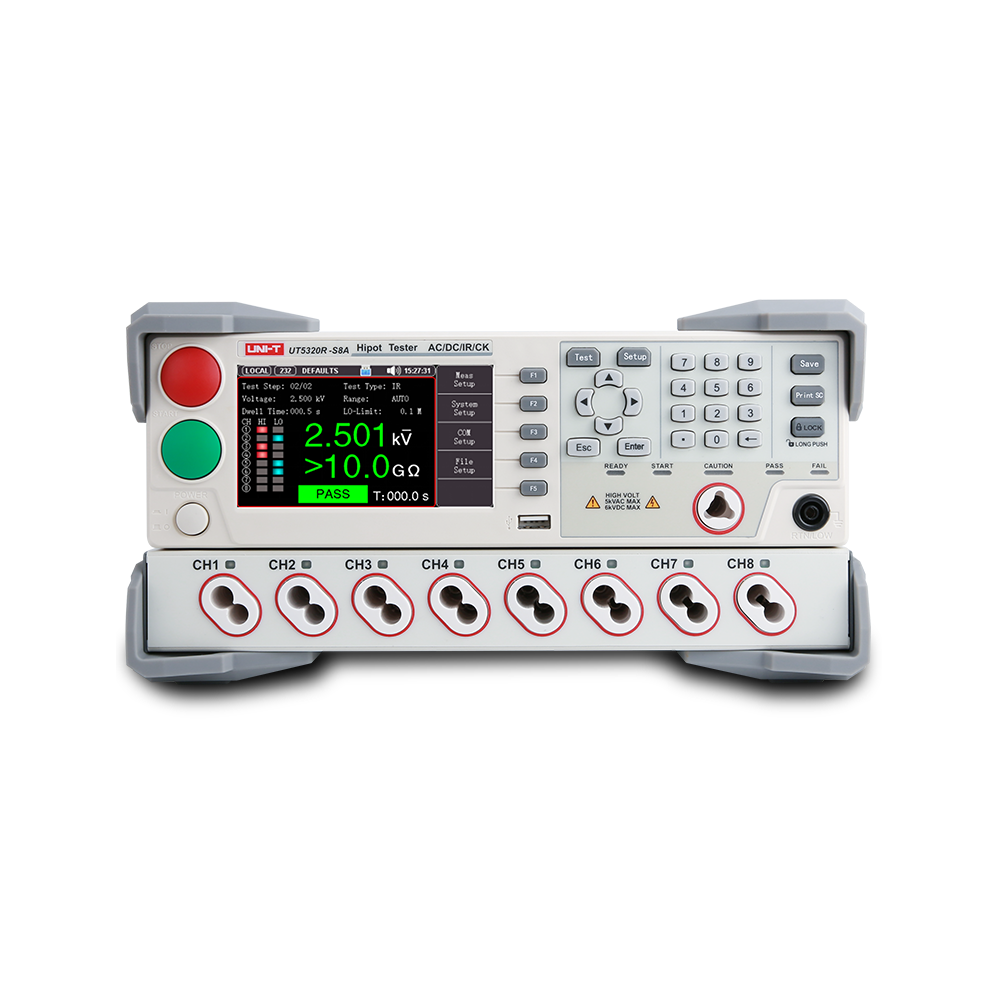

UT5320R-SxA SERIES
Hipot Tester

UT5320R-SxA series is an instrument that integrates multiple testing functions of electrical strength (AC/DC withstand voltage) and insulation resistance. It can be widely used in the safety performance inspection of household appliances, transformers, electrical equipment and components.



CHANNELS
AC VOLTAGE
8
‘0.050kV~5.000kV



DC VOLTAGE
AC CURRENT
‘0.050kV~6.000kV
0.001mA~20mA



DC CURRENT
INSULATION RESISTANCE
0.001mA~10.00mA
0.1MΩ– 10GΩ



DISPLAY
CONNECTIVITY
4.3” TFT LCD
RS232C，LAN，RS485(optional)

Unique hardware contact test, fast and reliable

Multiple protection functions provide you with a safer test environment

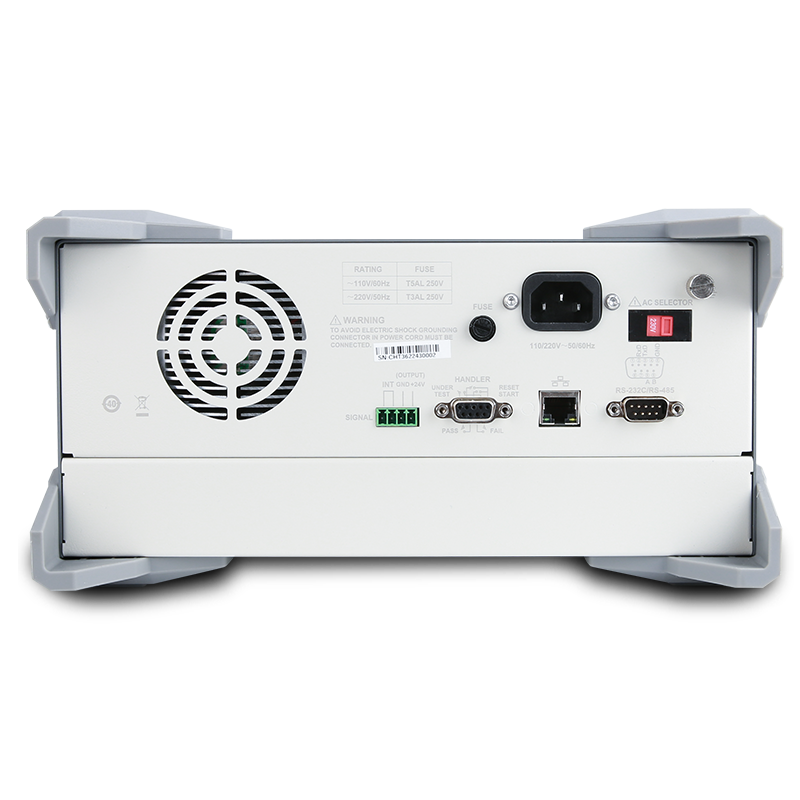

Equipped with Handler (PLC), RS485 (option), RS-232C and LAN interface. Support SCPI and Modbus RTU dual protocols.

Insulation resistance test voltage is 2.5kV as standard, 5.0kV is optional, suitable for more test occasions

Intelligent judgment:

Provide a good prompt for the measurement work, and broadcast the results immediately.

Multiple test modes


Model Channels AC Voltage DC Voltage AC Current DC Current Insulatıon Resıstance Dısplay Connectıvıty
UT5320R-S4A 4 ‘0.050kV~5.000kV ‘0.050kV~6.000kV 0.001mA~20mA 0.001mA~10.00mA 0.1MΩ–10GΩ 4.3” TFT LCD RS232C，LAN，RS485(optional)
UT5320R-S8A 8 ‘0.050kV~5.000kV ‘0.050kV~6.000kV 0.001mA~20mA 0.001mA~10.00mA 0.1MΩ–10GΩ 4.3” TFT LCD RS232C，LAN，RS485(optional)
