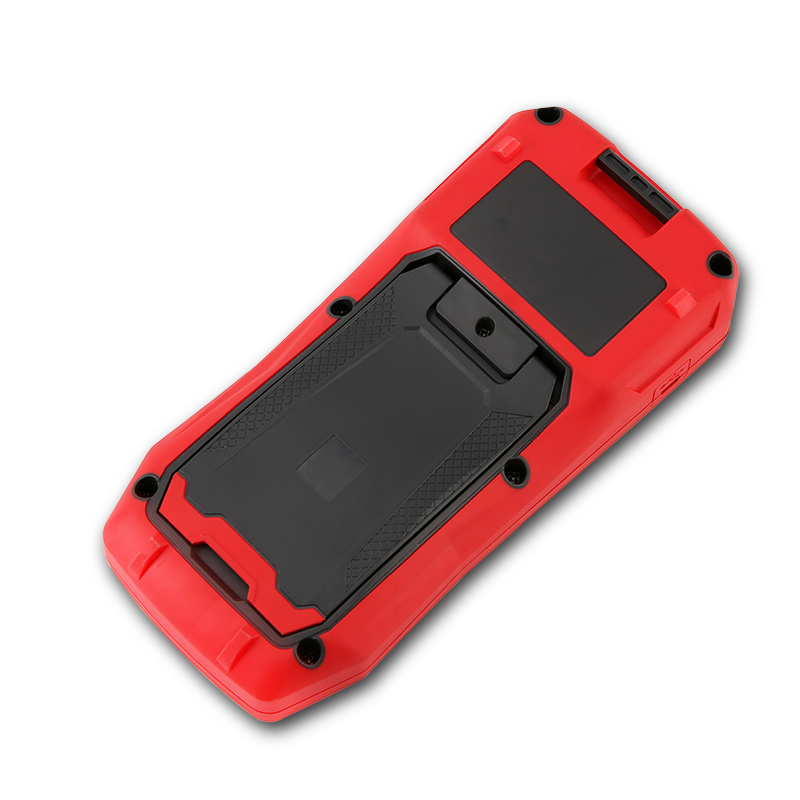

UT622 SERIES
LCR Meters

The UT622 Series Handheld LCR meters feature powerful functions,

high accuracy, fast speed, and long standby time.

With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable batiery,

and up to 100kHz test frequency, the meters can be used for longstanding accurate

and convenient measurement in any occasion.

They are suitable for the measurement and screening of inductance, capacitance,

and resistance in laboratories, production lines, maintenance points etc.



MAX. TEST FREQUENCY
ACCURACY
100kHz
0.1%



DISPLAY COUNT
MAX. TEST RATE
99999
20 times/s



CONNECTIVITY
DISPLAY
Mini-USB
2.8” TFT LCD

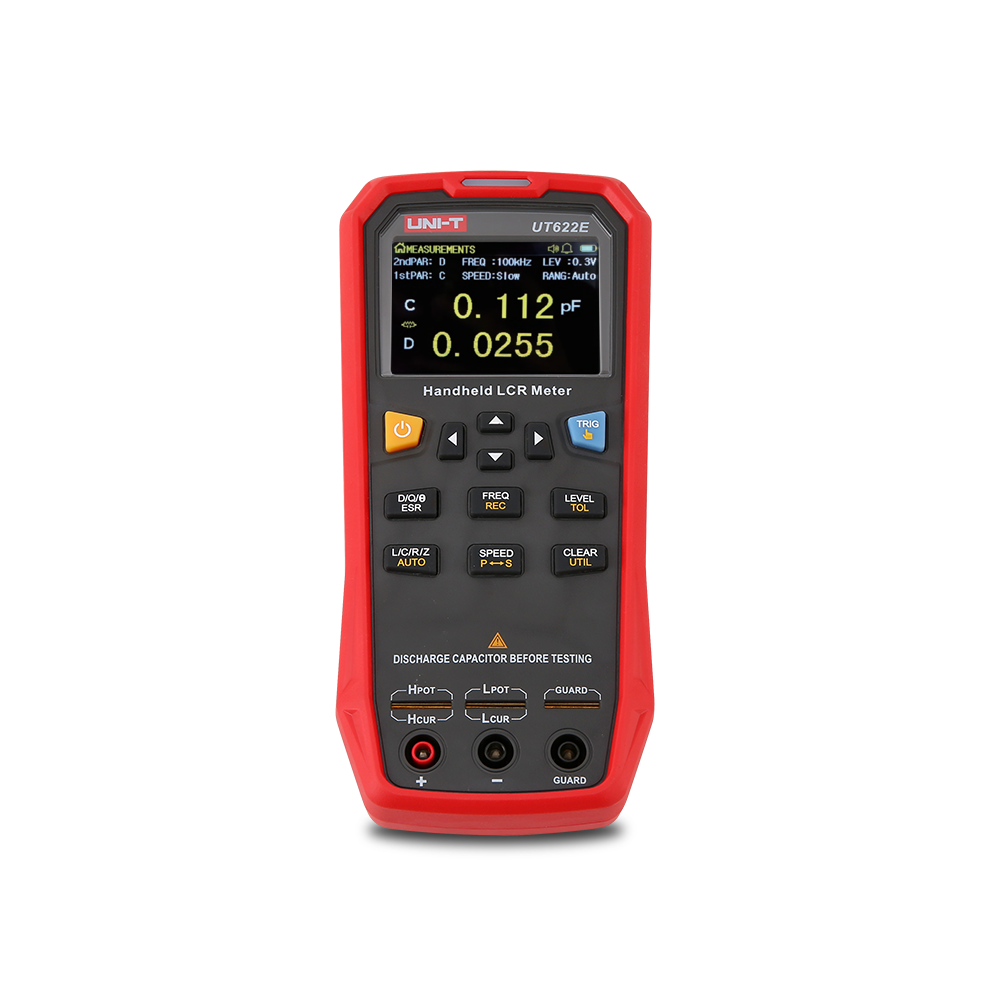

Function panel introduction

1. Power switch: long press to turn on, short press to turn off

2. Arrow keys: select menu operation keys

3. Trigger key: trigger/select trigger mode

4. D/Q/θ/ESR: secondary parameter selection

5. FREQ/REC: Frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz selection and record mode button.

6. LEVEL/TOL: 0.1V, 0.3V, 1V, switch and tolerance mode buttons

7. L/C/R/Z/AUTO: main parameters and automatic identification.

8. SPEED/P-S: Test speed and equivalent mode switch button

9. CLEAR/UTIL: CLEAR clear and UTIL practical configuration menu.

Recording mode

The recording mode can be used for data statistics

to dynamically obtain the Average, Maximum, Minimum and Number of records

Tolerance mode

The tolerance mode can be used for component sorting.

The nominal value, tolerance limit, alarm, LED indicator and counter can be set,

and the percentage deviation between the measured value of the main parameter

and the nominal value can be calculated for qualified and unqualified Compare,

display GO/NG discrimination results.

Tolerance range: 1%~20%

Test speed: 20 times/s(Fast),5 times(Med),2 times/s (Slow)

3-terminal and 5-terminal test ports

Support three-terminal test, five-terminal end-face test and Kelvin test line expansion.

Allow both convenient testing and high-precision testing requirements.

Power supply

UT622 series have two power supply methods:

lithium polymer battery power supply and USB power adapter power supply.

Model Max. Test Frequency Accuracy Dısplay Count Max. Test Rate DCR Connectıvıty Dısplay
UT622A 10kHz 0.1% 99999 20 times/s NO Mini-USB 2.8” TFT LCD
UT622C 100kHz 0.1% 99999 20 times/s NO Mini-USB 2.8” TFT LCD
UT622E 100kHz 0.1% 99999 20 times/s YES Mini-USB 2.8” TFT LCD
