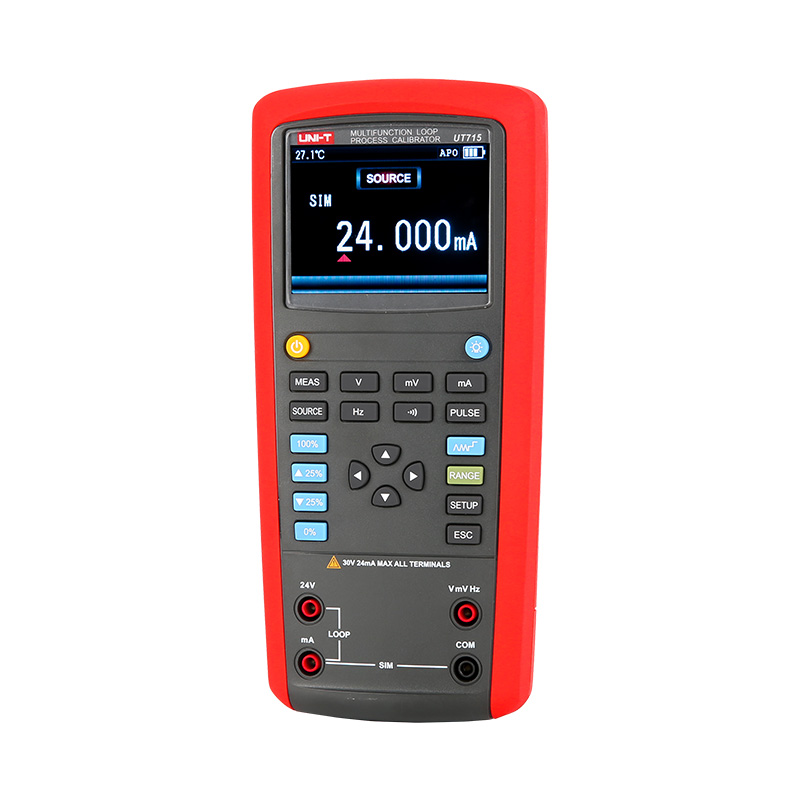

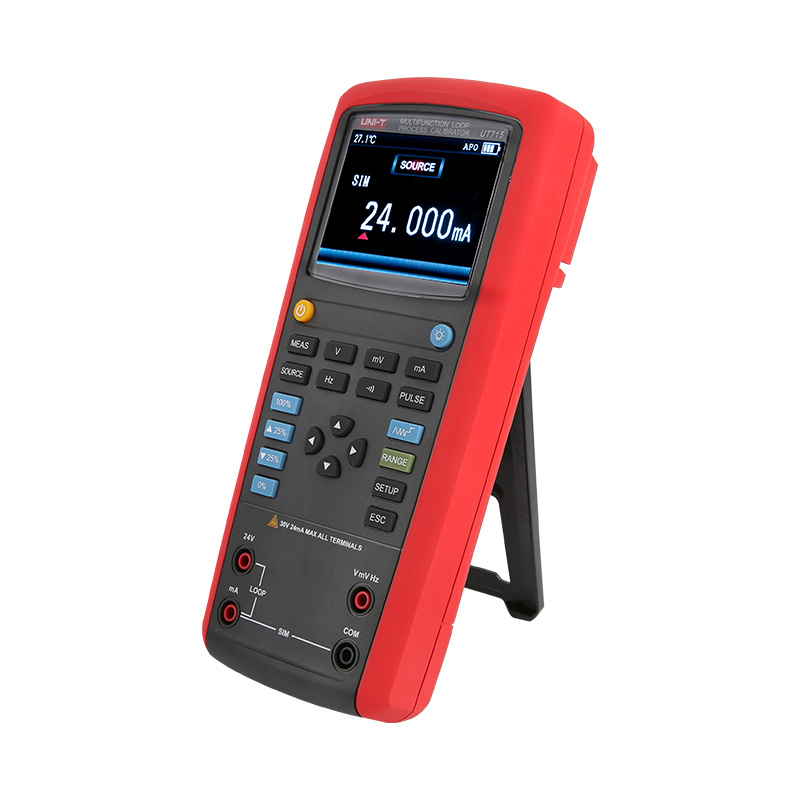

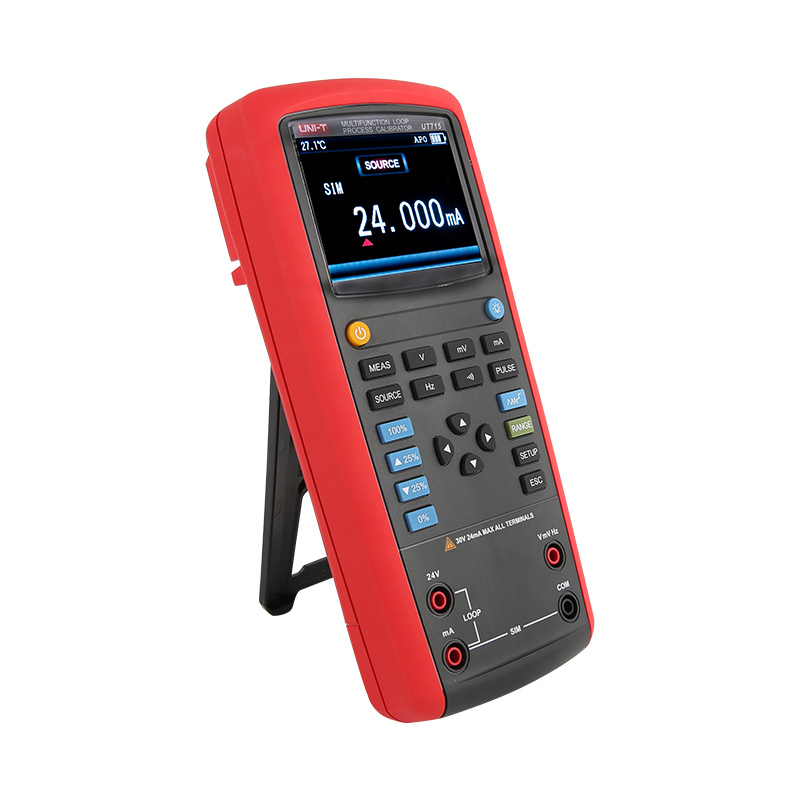

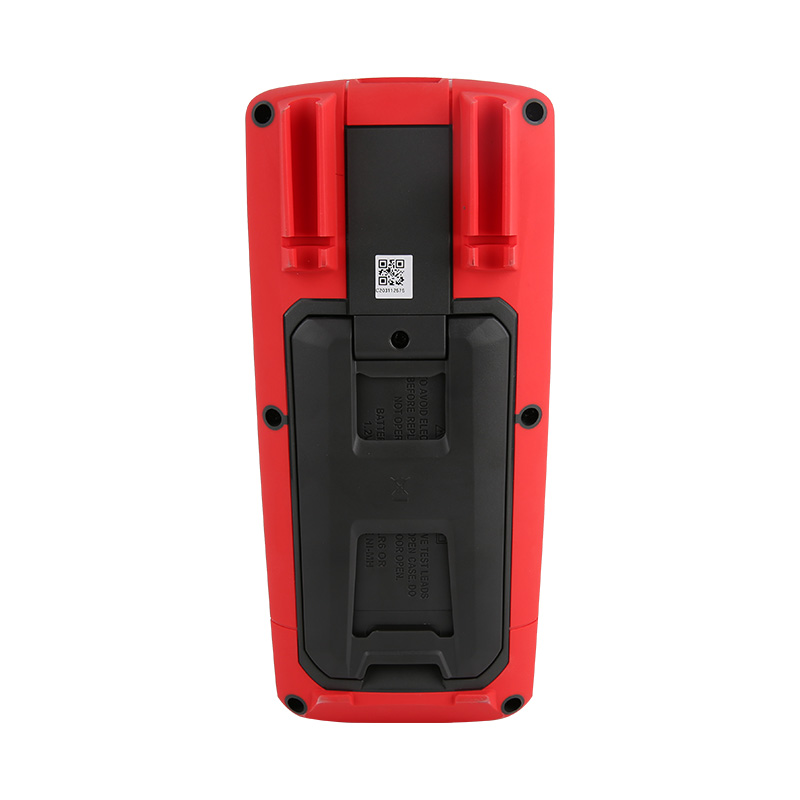

UT715
Multifunction Loop Process Calibrator

The UT715 multifunction loop process calibrator, it measures and sources loop current and voltage. It is designed with 0.02% accuracy, adjustable backlight and auto power off. It is a powerful tool for calibration, repair, and maintenance of mA loops.

Features of UT715 Multifunction Loop Process Calibrator

Certifications: CE, UKCA

  • Step/ramp functions
  • Source and measure accuracy up to 0.02%
  • Rechargeable battery
  • Contrast adjustment
  • Auto power off (Time adjustable)
  • Stores and recalls setups
  • USB communication
  • Provides 24V loop power to transmitter while conducting mA current measurement at the same time

SPECIFICATIONS

Specifications of UT715 Multifunction Loop Process Calibrator

Specifications Range UT715
Measurement
DC voltage (V) 200mV/30V ±(0.02%+2)
DC current (mA) 24mA ±(0.02%+2)
Loop current (mA) 24mA ±(0.02%+2)
Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
Continuity test √
Source
DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
DC current (mA) 24mA/20mA (SIM) ±(0.02%+2)
Frequency (Hz) 200Hz/2000Hz/20kHz ±(0.01%+1)
Pulses (Hz) 100Hz/1kHz/10kHz ±1
Loop power output 24V ±10%
Display count 20000
Operation temperature  -10°C~55°C
General Characteristics
Power 1.2V x 6 AA rechargeable battery
Product net weight 650g
Product size 195mm x 95mm x 58mm
Standard accessory Test lead, USB cable, power adapter, English manual

APPLICATIONS

Applications of UT715 Multifunction Loop Process Calibrator

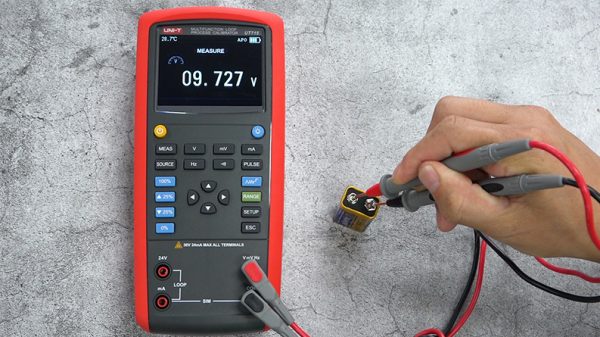

DC voltage measurement

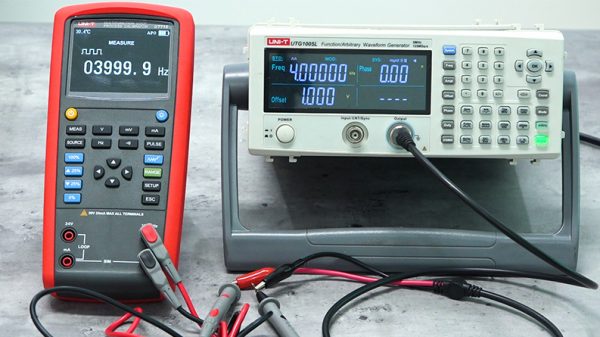

Frequency measurement
